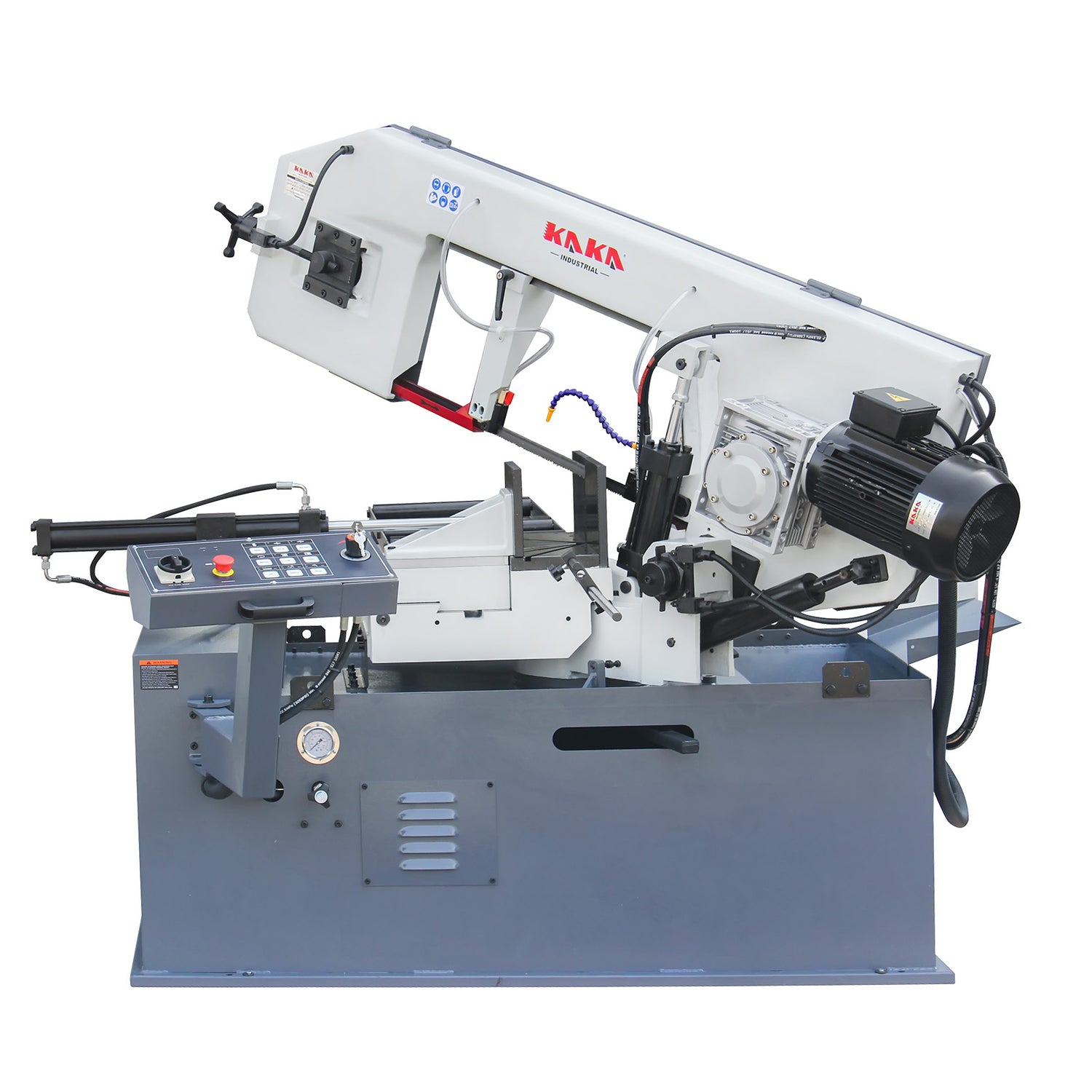

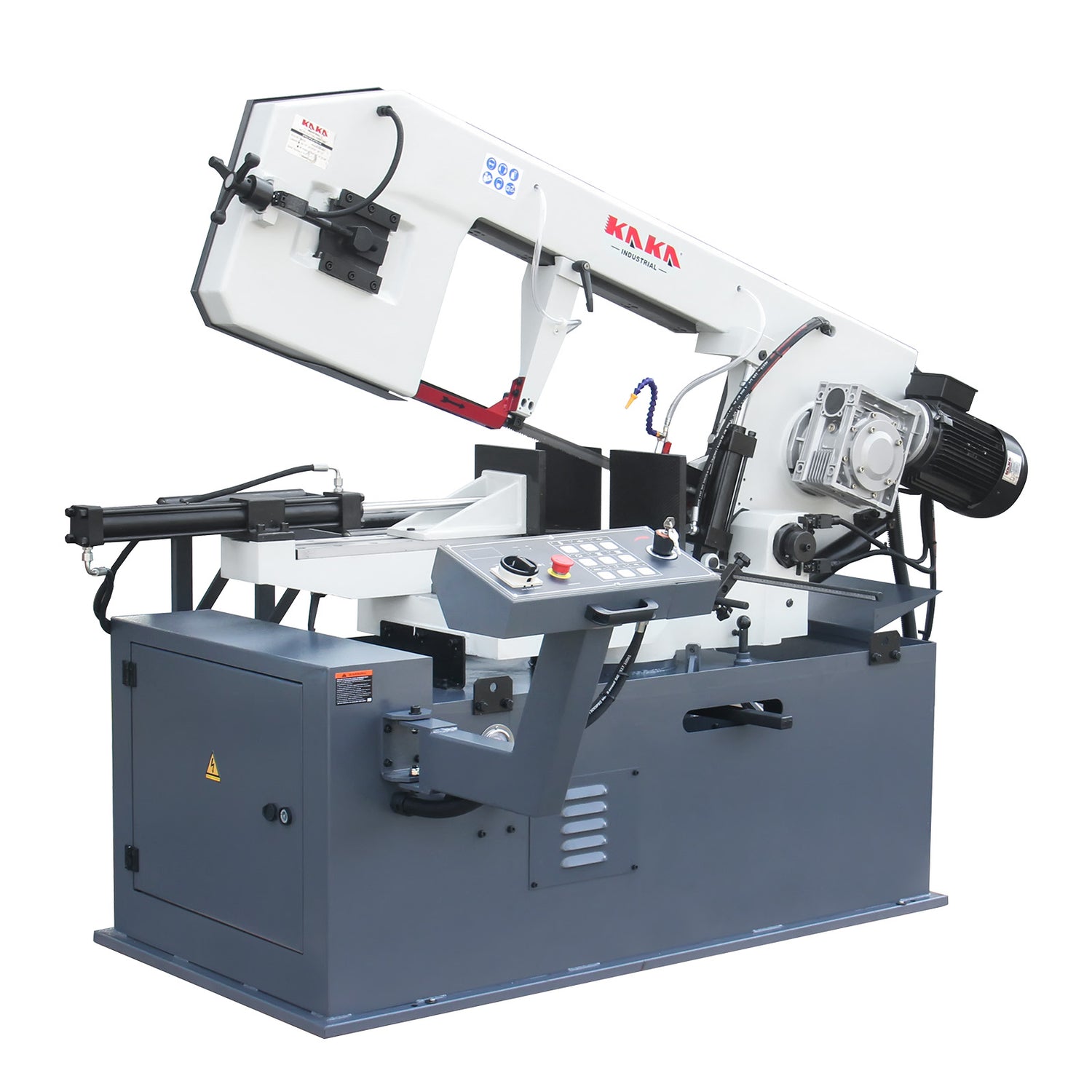

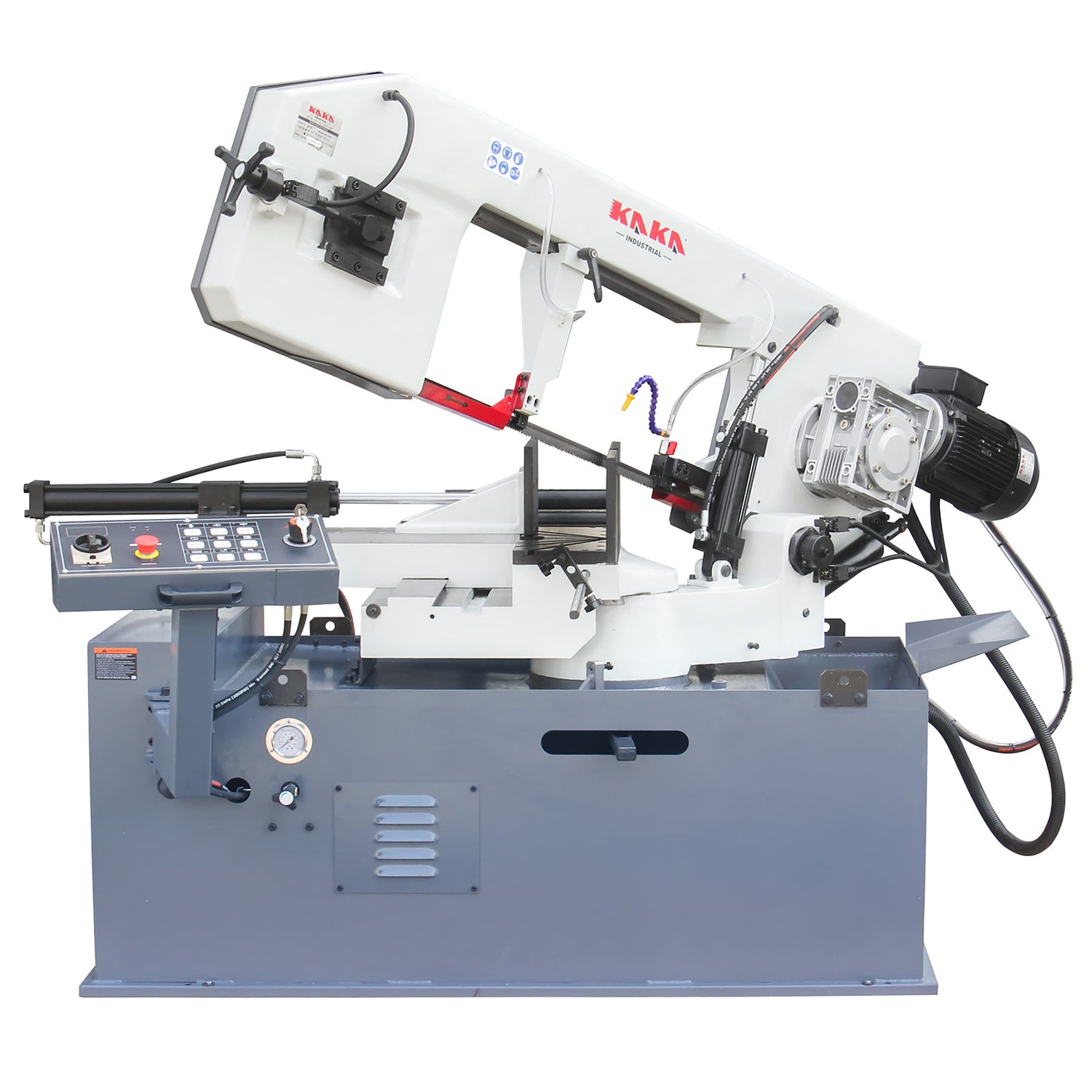

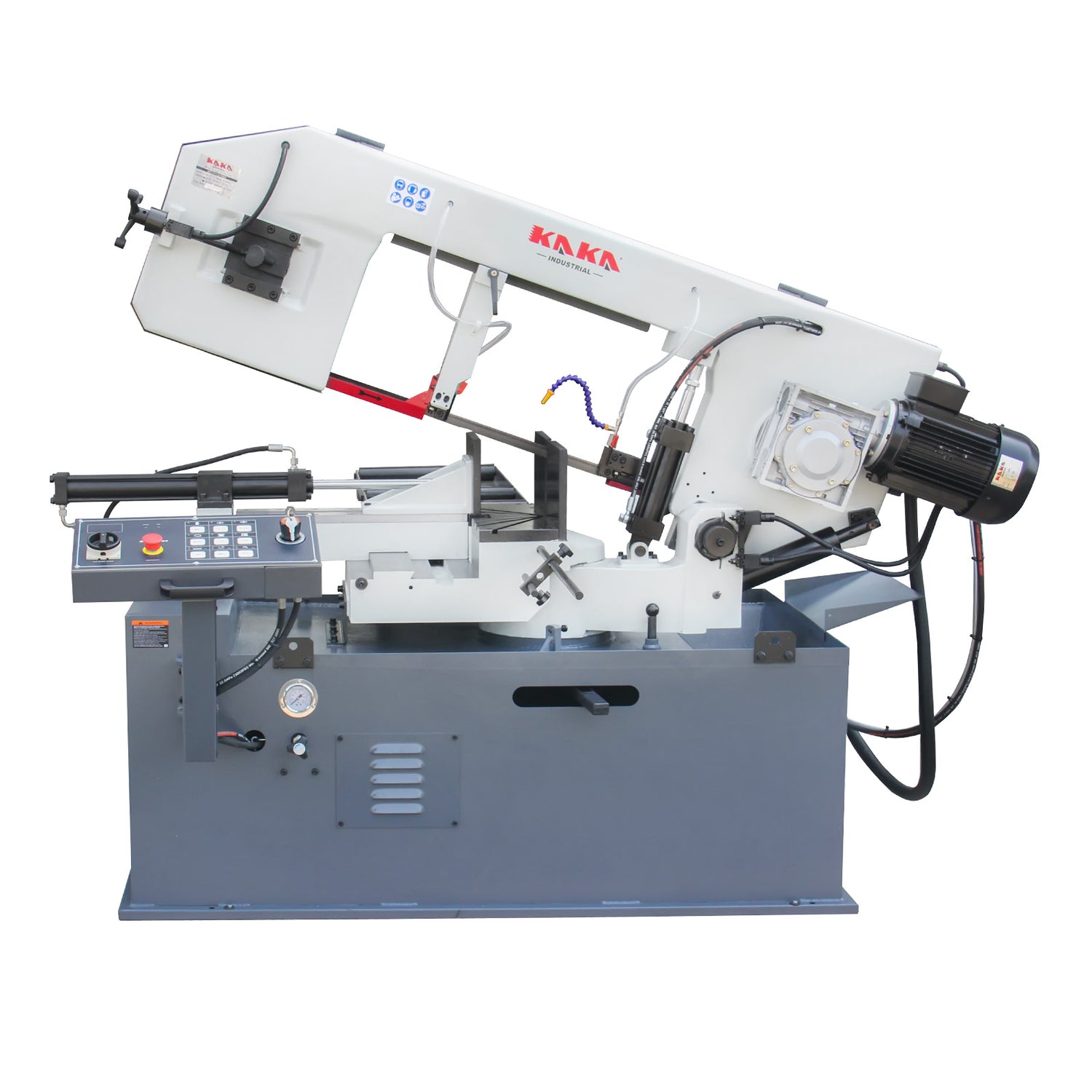

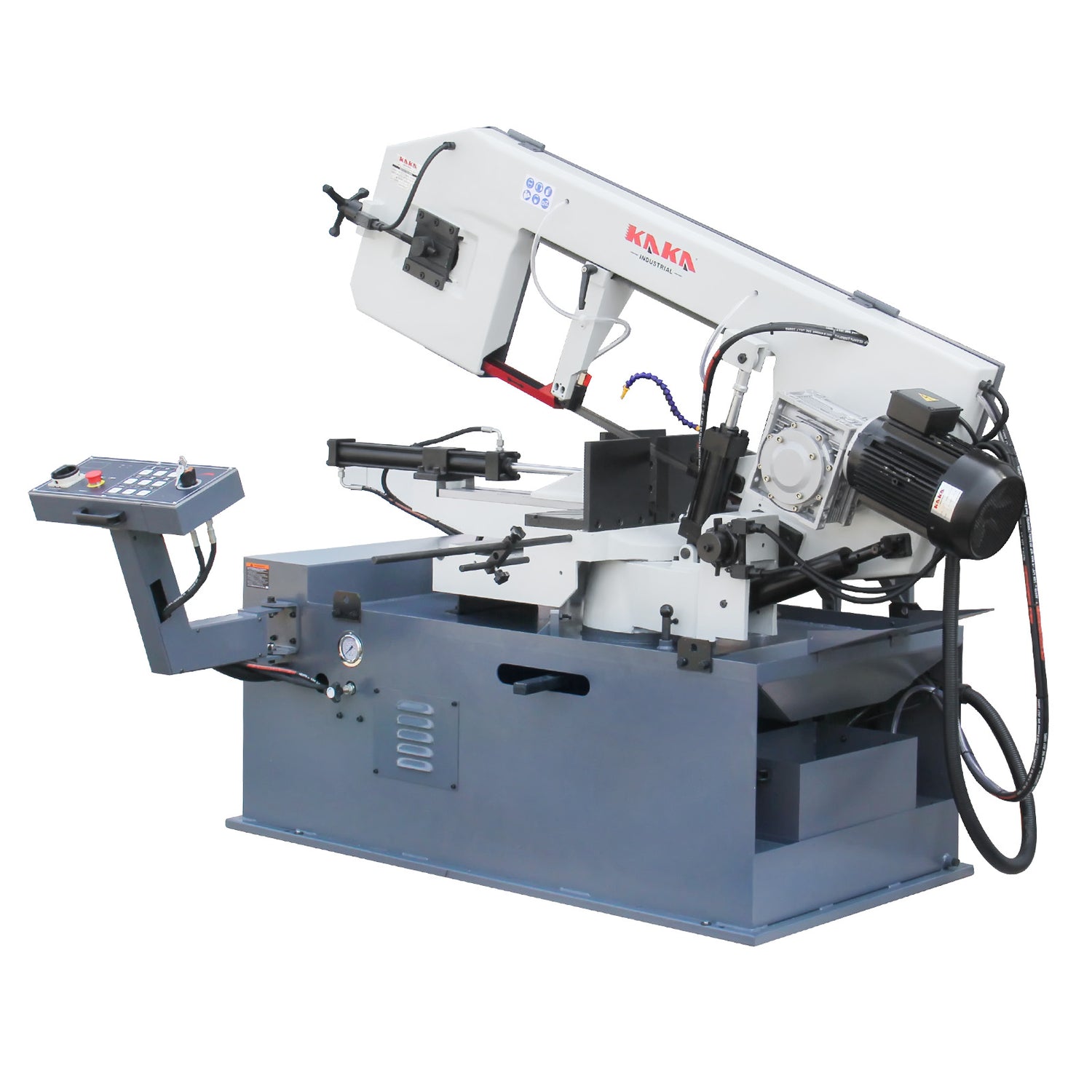

Kang Industrial BS-1810GC Metal Cutting Band Saw with Dual Swivel Frame
The KANG BS-1810GC is a compact 330 mm horizontal metal cutting band saw in European-style design, optimised for precise angle cutting with a swivel saw frame, a dual mitre bandsaw machine. Tailored for metal fabrication workshops and light industrial use, it excels at cutting steel bar, tubes and profiles. Dual fixed blade speeds for straightforward operation.
Versatile Angle Cutting Capability Saw Machine: The swivel saw bow allows precise adjustments up to 60° right and 45° left without repositioning material, enabling efficient fabrication of angled components like structural beams or pipe fittings, ideal for workshop handling diverse metal profiles.

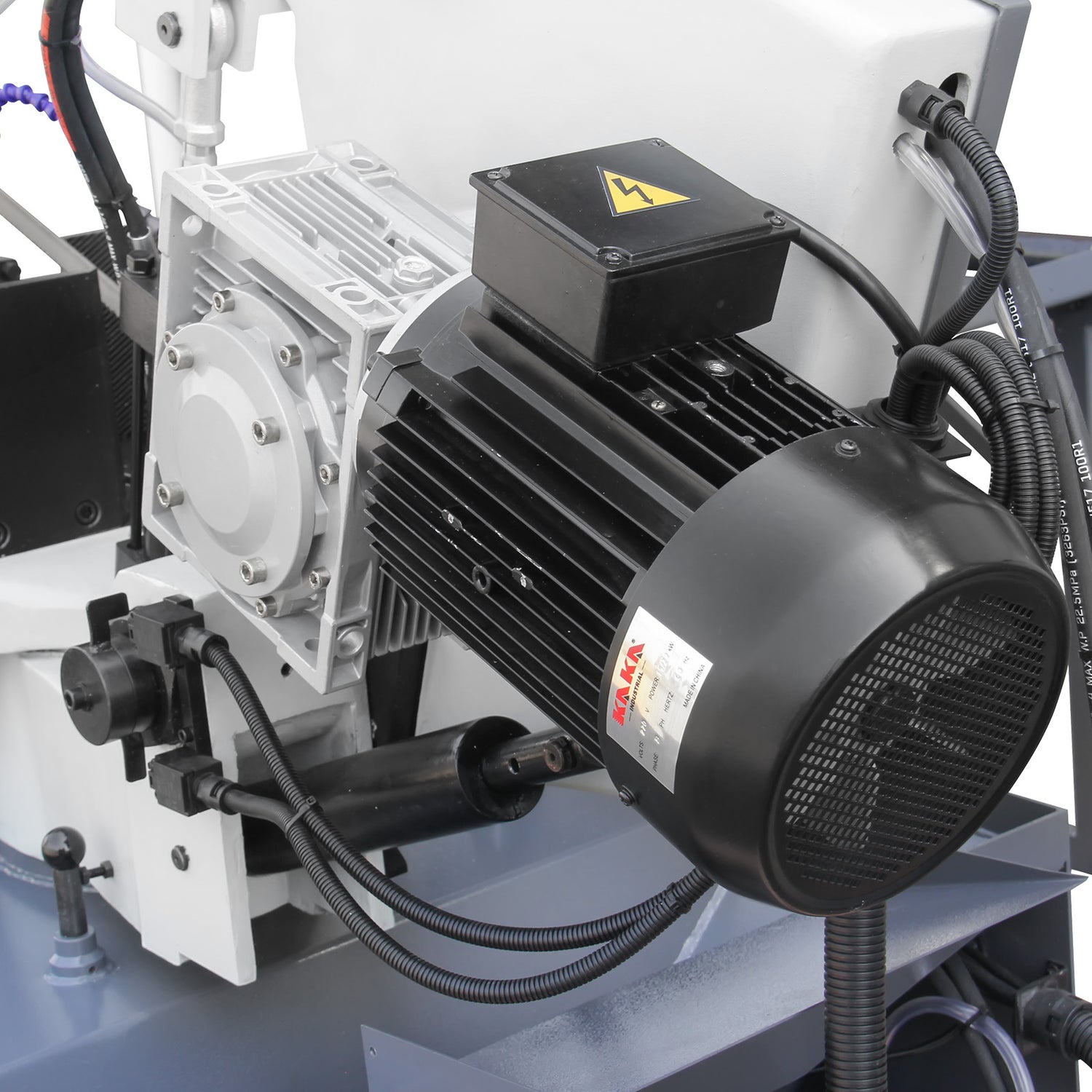

Superior Torque and Power Transmission: Gear drives deliver consistent, high-torque output from the 1.5/2.2 kW Dual-Power motor, ensuring smooth penetration through tough materials up to 330 mm diameter.

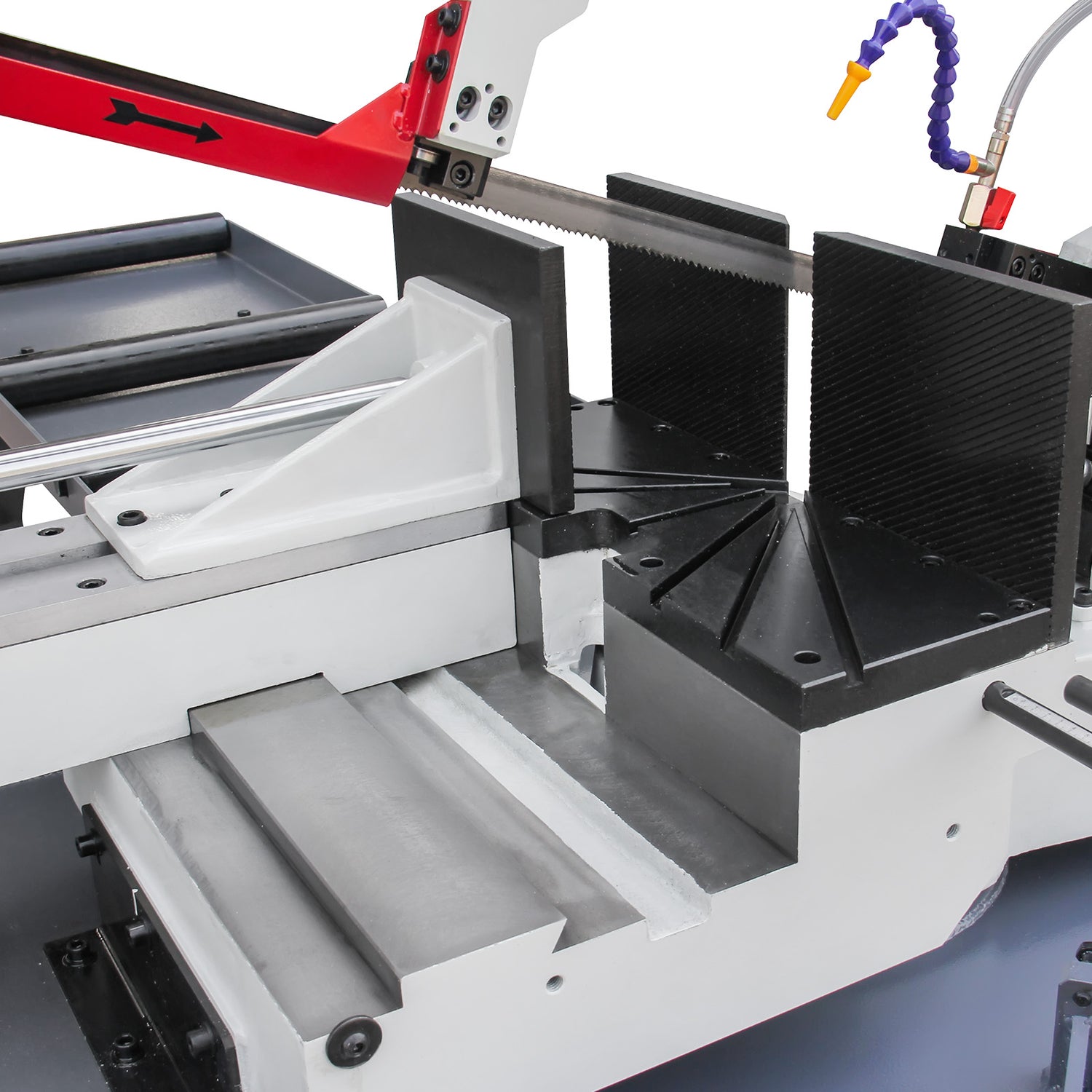

Secure and Efficient Clamping: The bandsaw features a hydraulic full-stroke vice that provides rapid, powerful clamping for secure holds on irregular shapes, speeding up cycle times in batch production, which reduces operator effort.
Ergonomic and Safe Design: Swivelling control box improves accessibility and hazard prevention. At 900kg, with a stable footprint, it offers vibration-free stability for consistent results in demanding workshops.
Smooth Sliding Vice: The dovetail working table is smooth movement for the sliding vice base, delivering repeatable cuts.
Features
Gear drive bandsaw
415V powerful double-speed motor
Hydraulic clamping vice and the vice could slide on a guide, to ensure the saw frame swivels to both sides
Quick lock handle for saw frame swivel
Hydraulic descending
Manual blade tension with microswitch

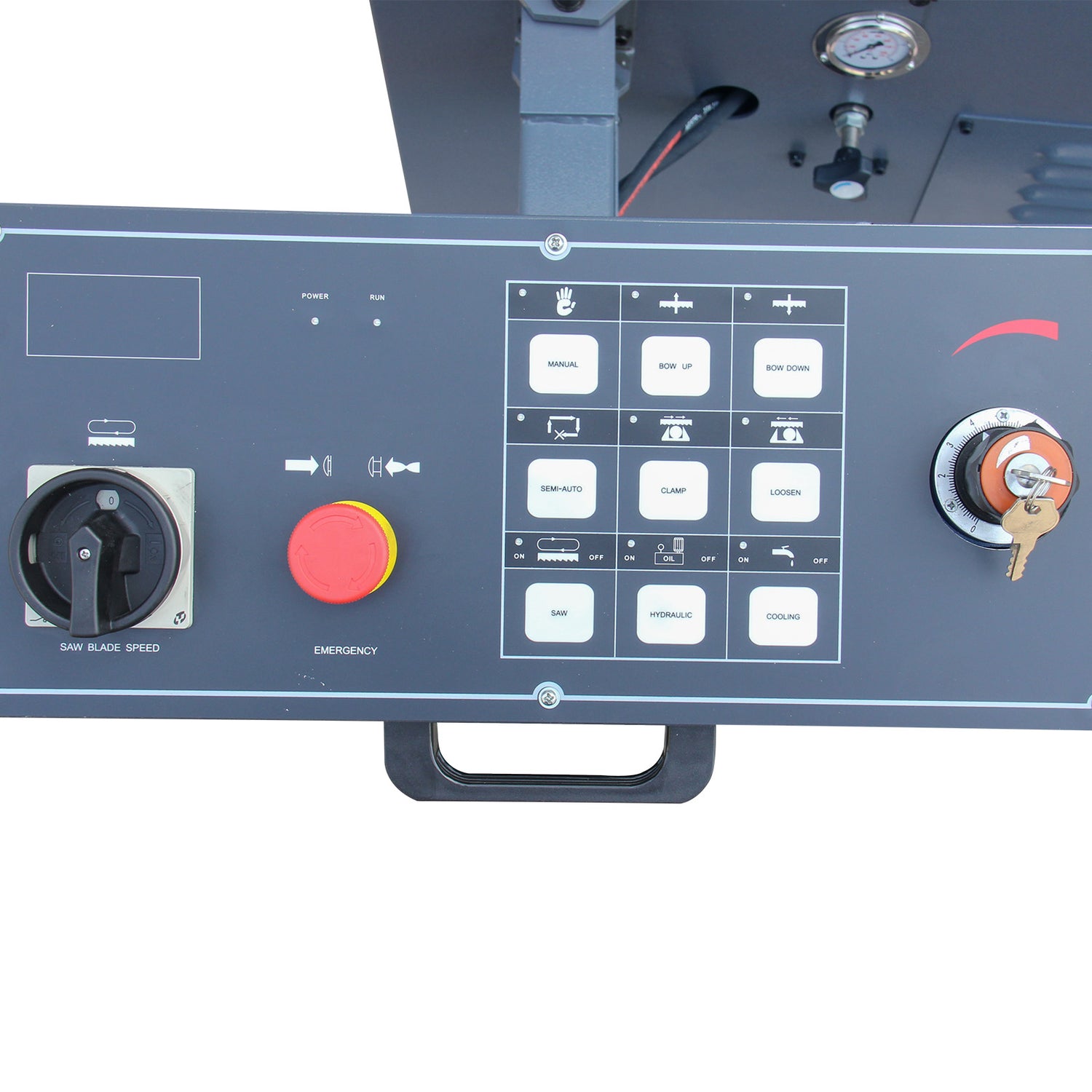

Moveable control panel with compact press keys

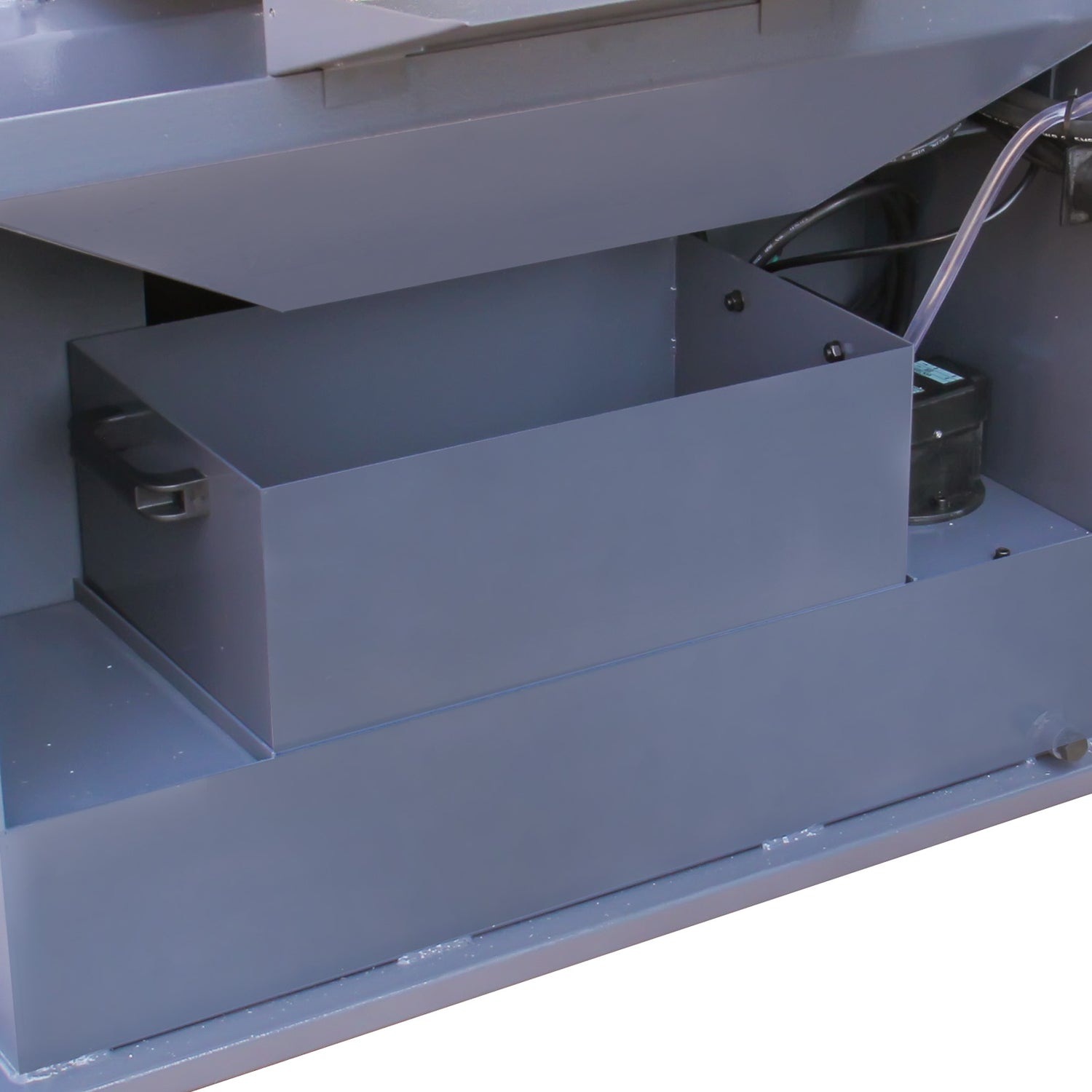

Standard coolant system
17L Oil Tank
Specifications
| SKU | 188125 |
| Model | BS-1810GC |
| Cut circular @90° | 330 mm |
| Cut rectangular @90° | 460x250 mm |
| Cut circular @60° (Right) | 205 mm |
| Cut rectangular@60° (Right) | 205x250 mm |
| Cut circular @45° (Left & Right) | 305 mm |
| Cut rectangular @90°(Left & Right) | 305x250 mm |
| Vice table height | 850 mm |
| Blade speed | 40/80 MPM |
| Blade size | 27x0.9x3960 mm |
| Motor | 1.5/2.2 kW |
| Coolant tank | 26L |
| Drive | Gear |
| Packing size | 230x113x163 cm |
| N.W./G.W. | 900/1060 kg |
