Kang Industrial Semi-Auto Metal Cutting Band Saw

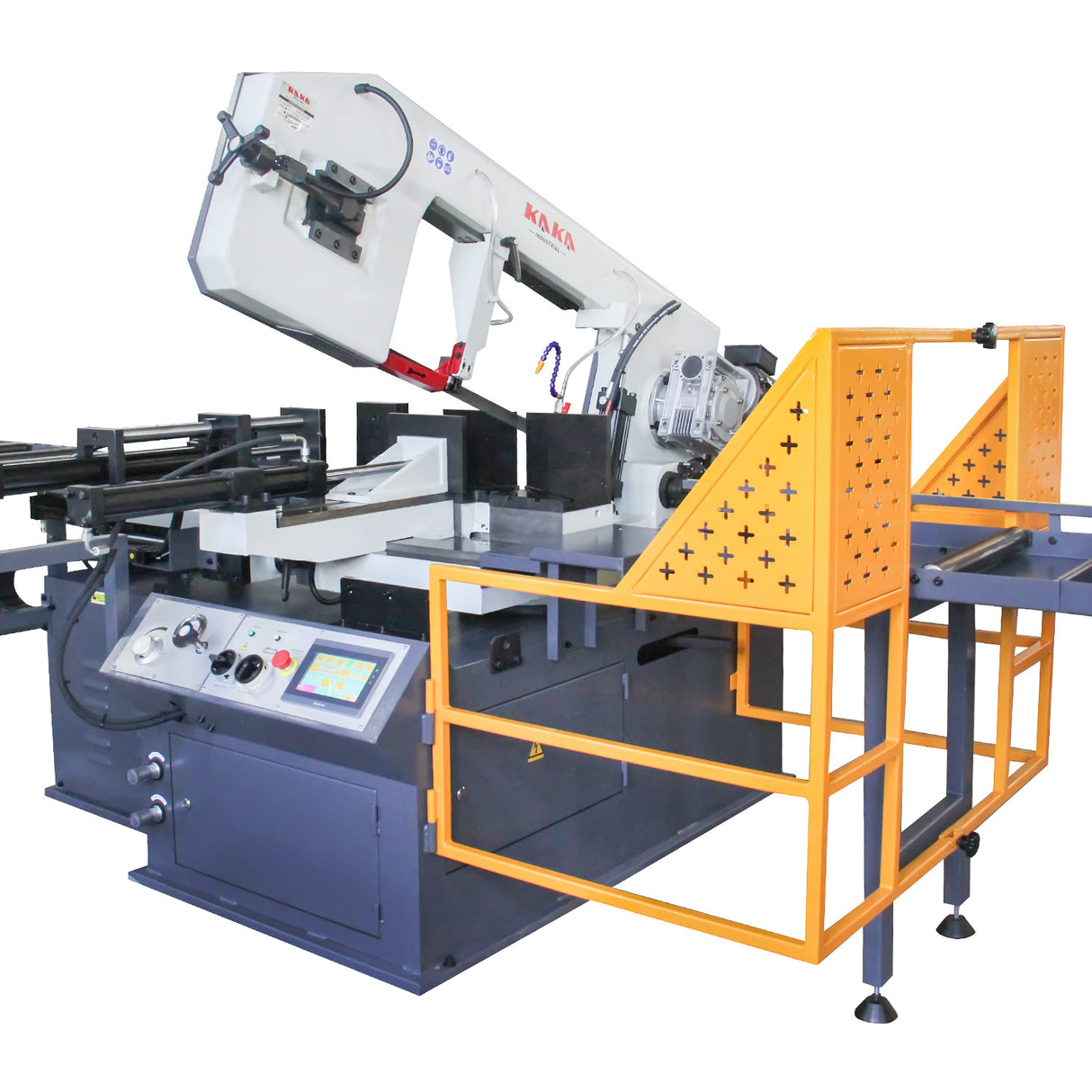

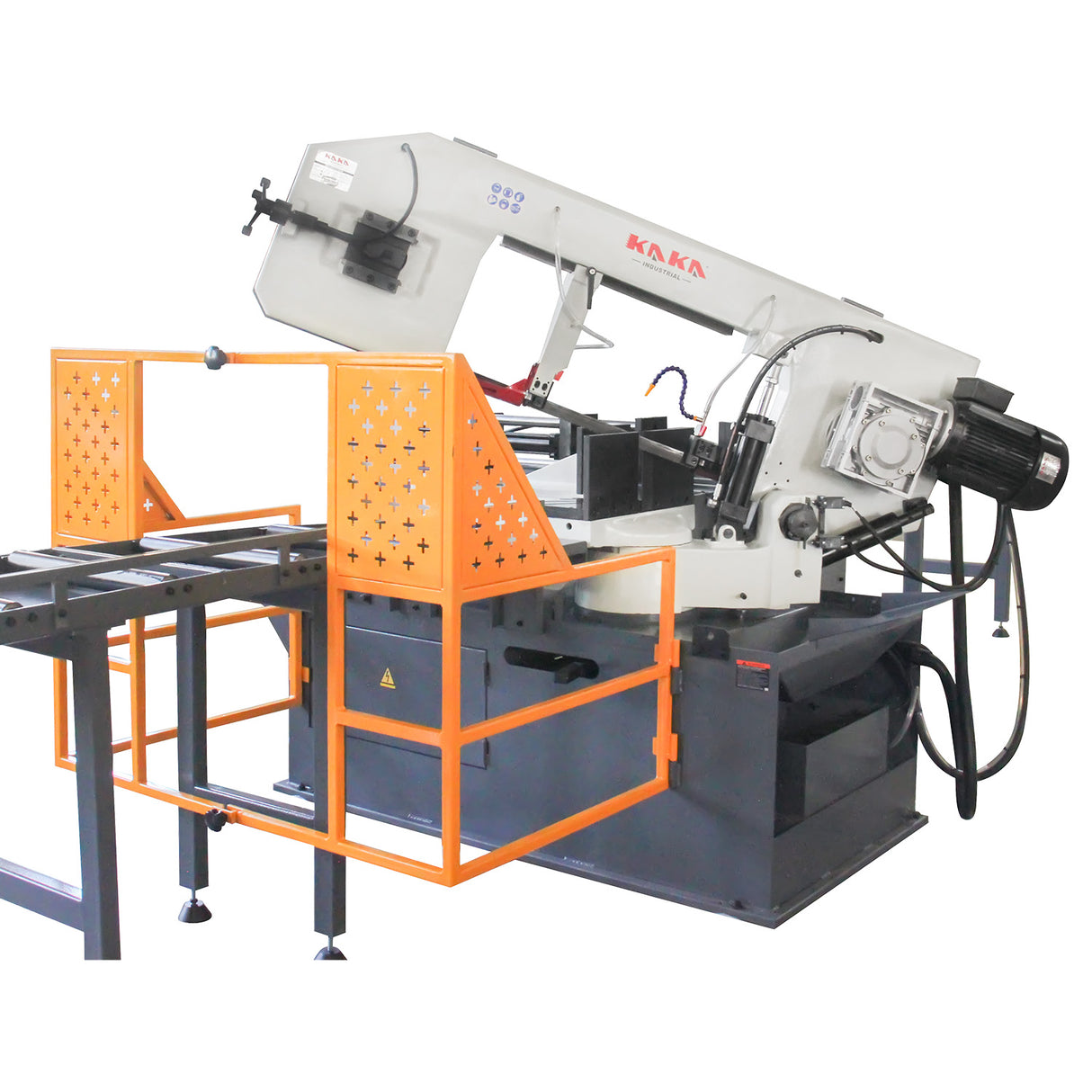

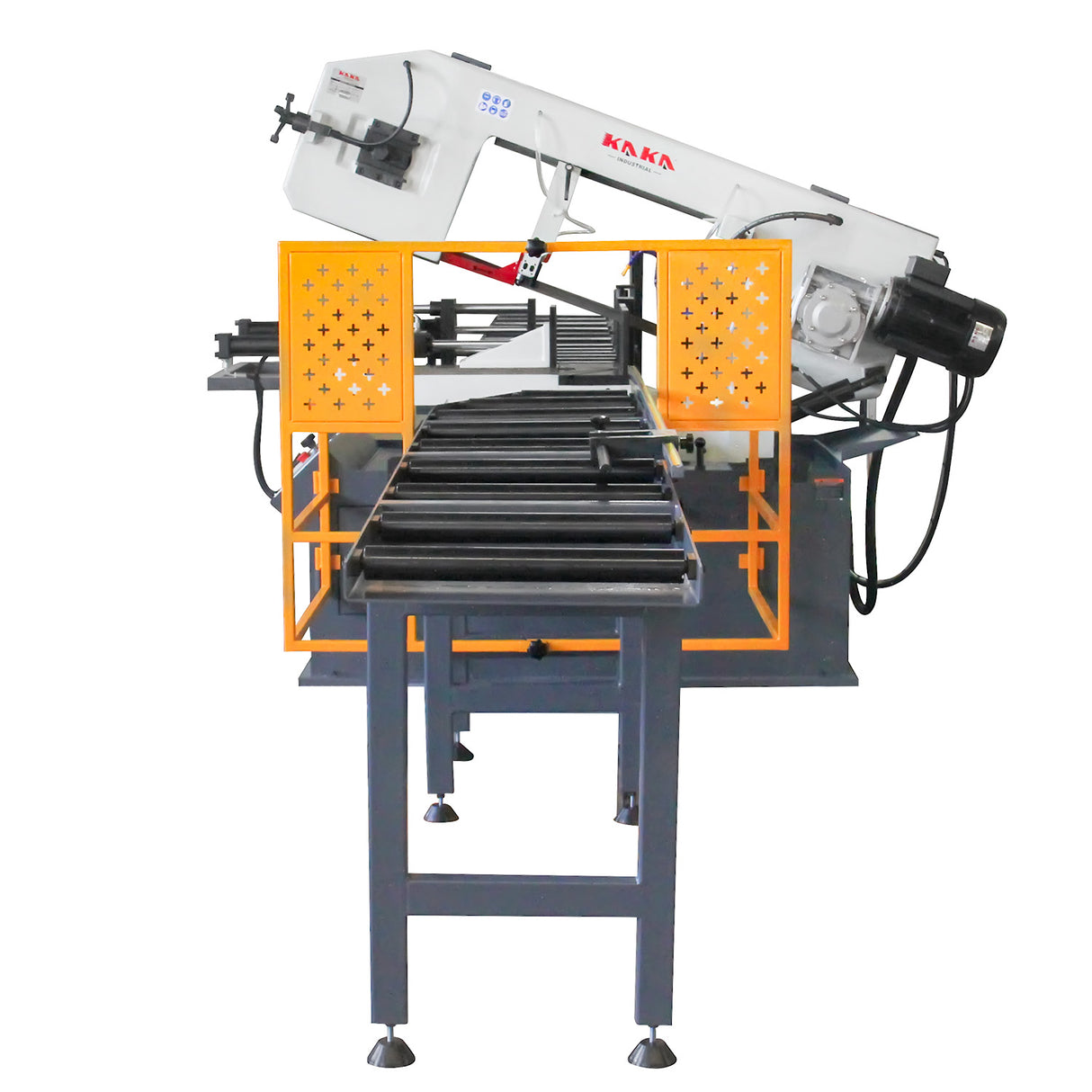

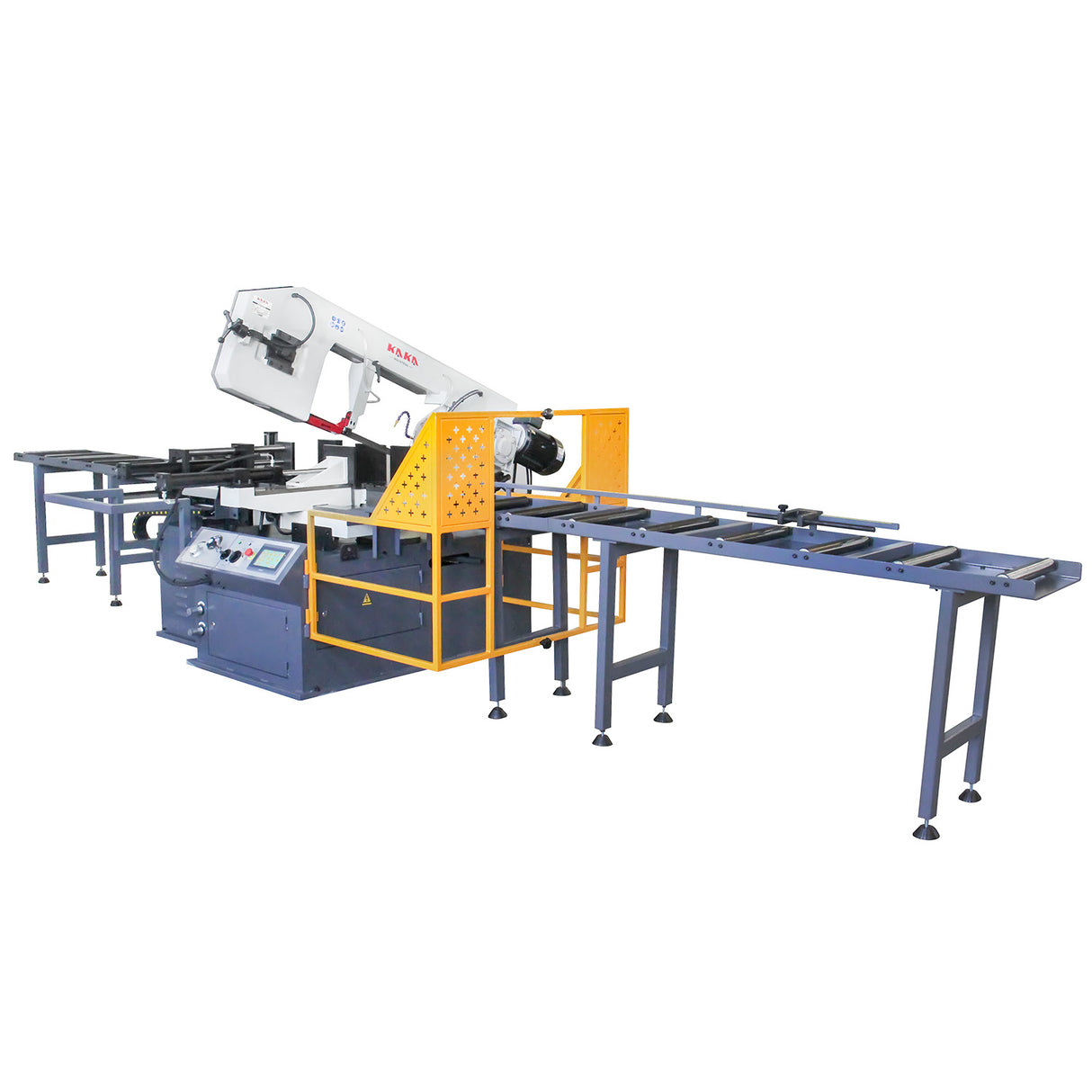

The KANG BS-1810G is a robust 330mm capacity horizontal semi-automatic bandsaw engineered for precise mitre cutting, allowing manual angle adjustment up to 60 degrees right without material repositioning. The bandsaw is designed with a dual-speed motor and gear drive, with manual adjustment, hydraulic semi-automatic operation for vices and downfeed. Ideal for fabrication shops, construction, and manufacturing environments handling steel profiles, tubes, structural steel, and bars, etc.
Mitre Bandsaw Machine: Supports angle cuts manually, enabling complex angled workpieces like structural beams or pipe without flipping materials, reducing setup time compared to a single-mitre saw, and minimising errors in high-precision tasks.
Generous Cutting Capacity Band Saw: Accommodates substantial size (up to 330mm round or 460x250mm rectangular at 90 degrees), making it suitable for oversize metal stock in industrial settings. This outperforms smaller bandsaws for heavy fabrication without the need for multiple machines.
Powerful and Efficient Drive System: Dual-speed 1.5/2.2 kW blade motor delivers high torques for tough materials, 40/80 MPM double cutting speeds, running at the correct speed reduces vibration, noise, and stress on gears, bearings and the frame. Less maintenance.

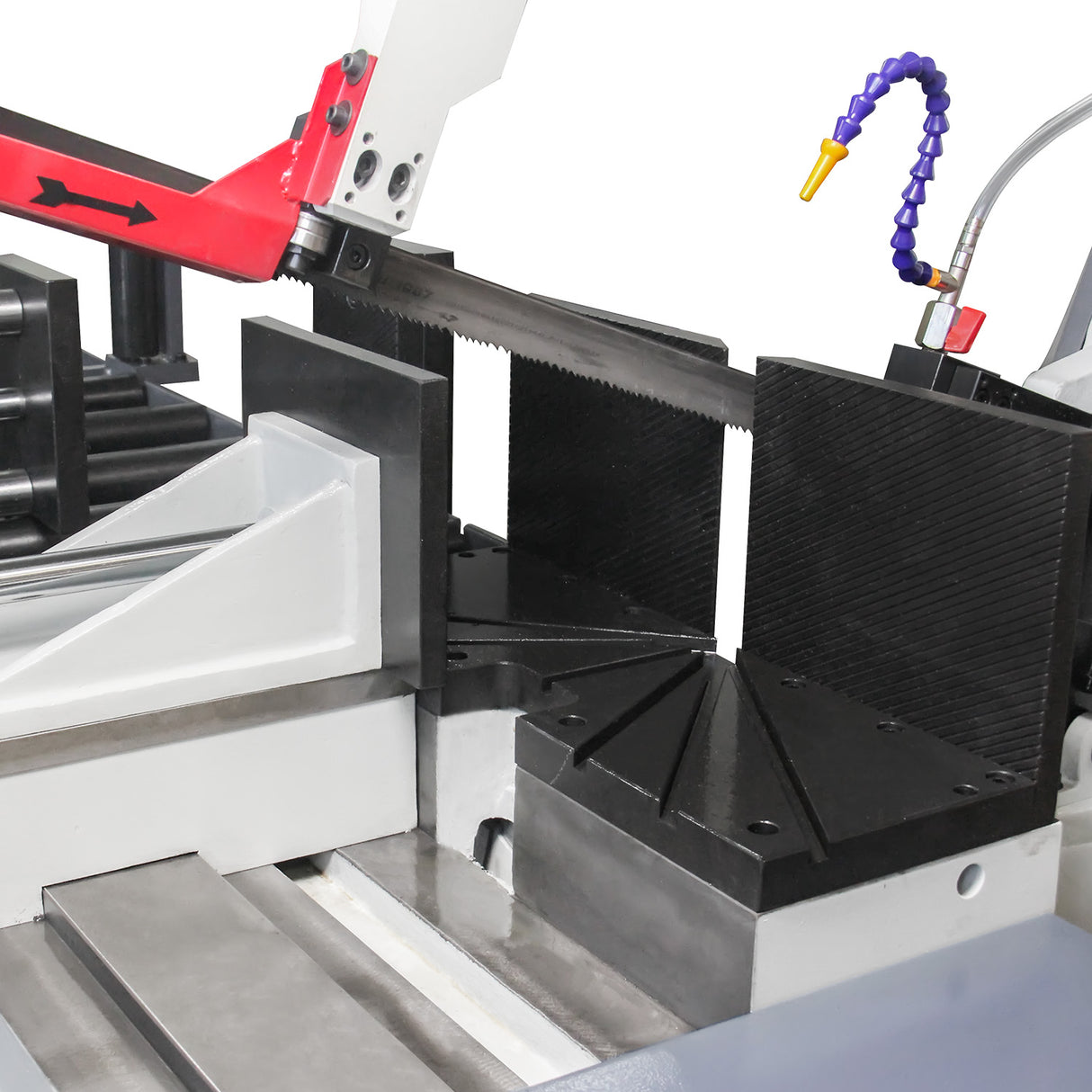

Semi-Automatic Hydraulic for Productivity: Full-stroke hydraulic vices and downfeed automate clamping and feeding, slashing operator effort and cycle times in batch operation.

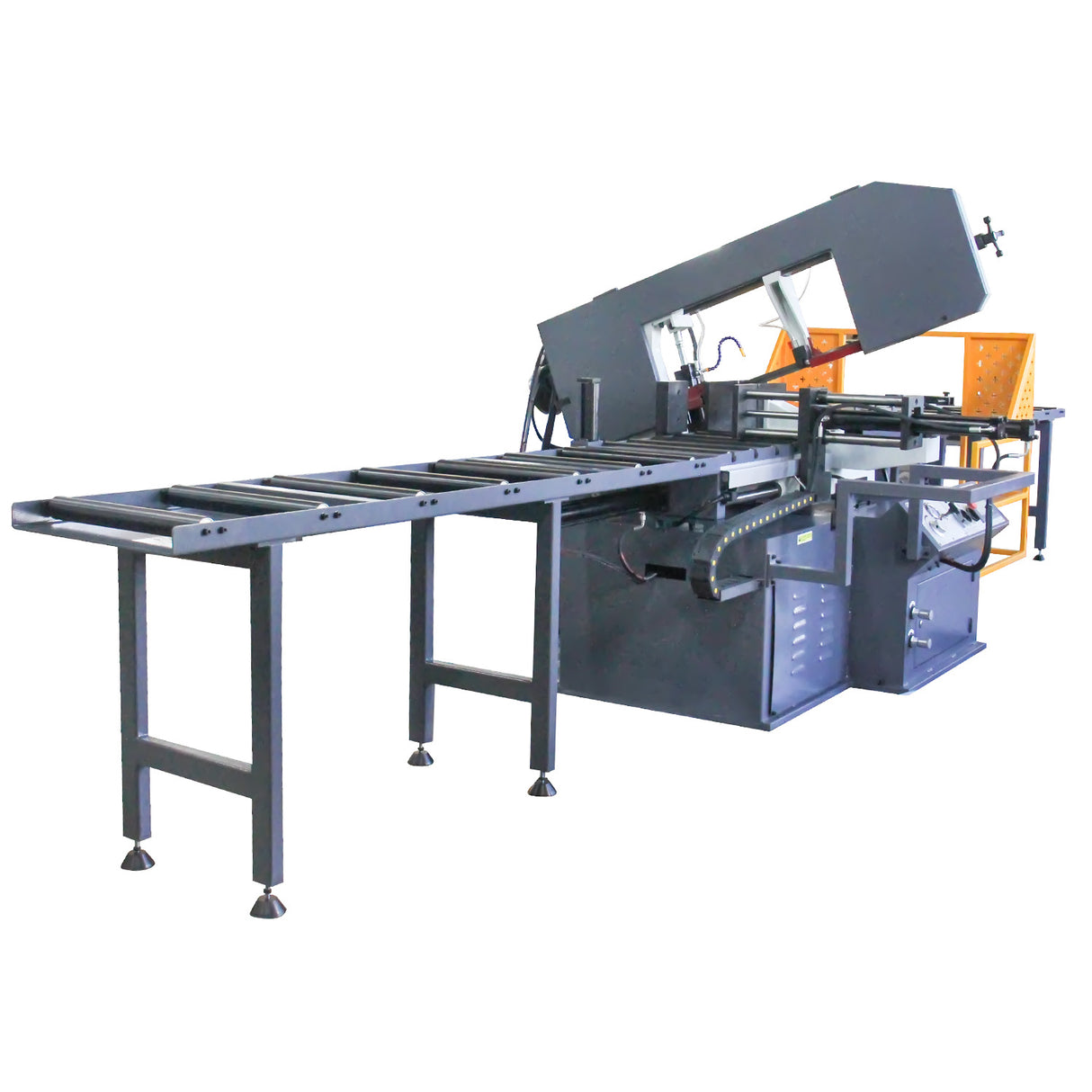

The Band Saw Standard with Roller Conveyor: C/W 460mm width idler stand positioned at the infeed/outfeed for supporting long stocks, easy
Features
Runs on 415V-3PH power, 1.5/2.2kW double speed motor
Max. cut 330mm at 90 degrees
Gear drive, double cutting speed (optional, variable speed at extra cost)
Swivel saw frame, max. angle 60 degrees (right)

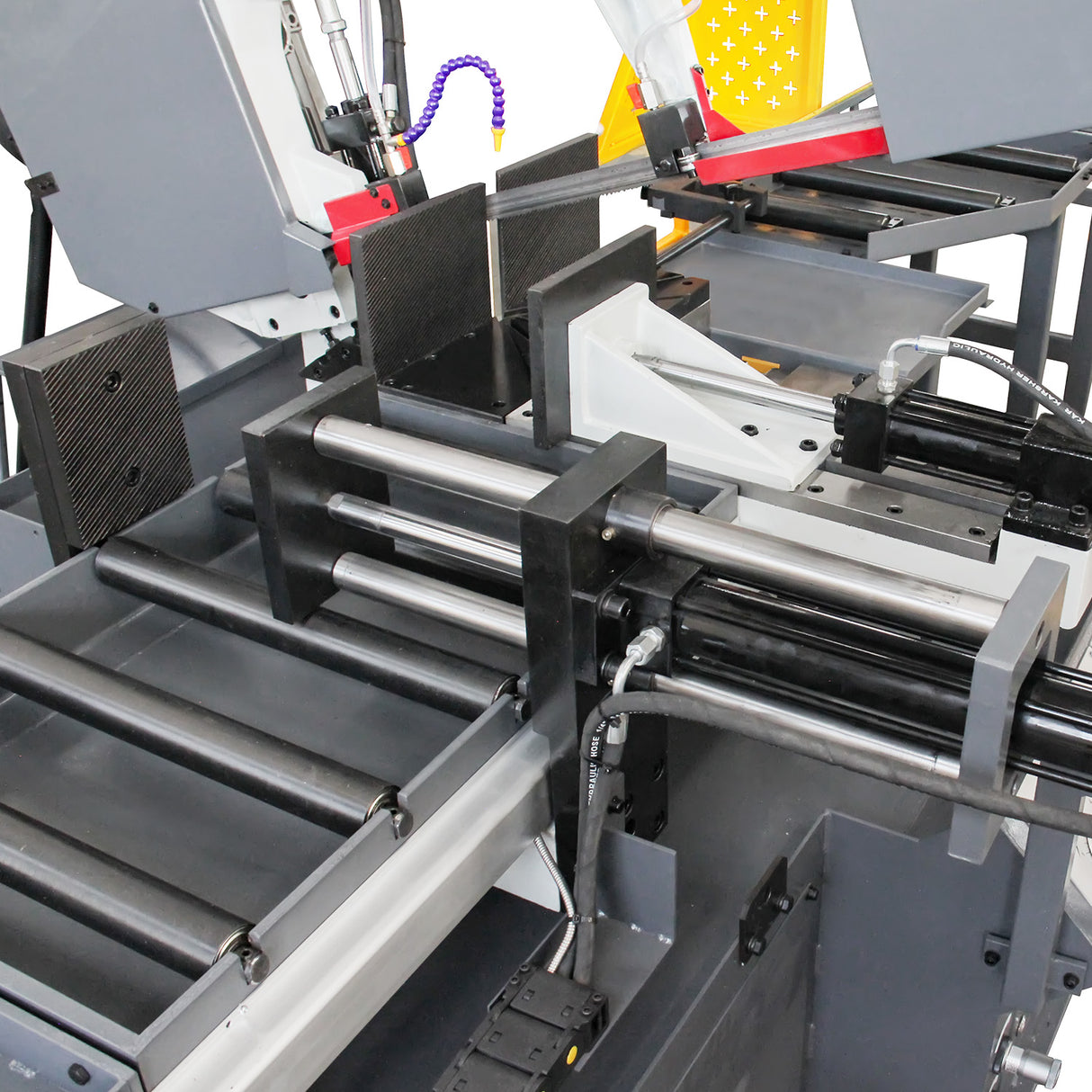

Automatic feeding and clamping, max. feed 500mm each feed

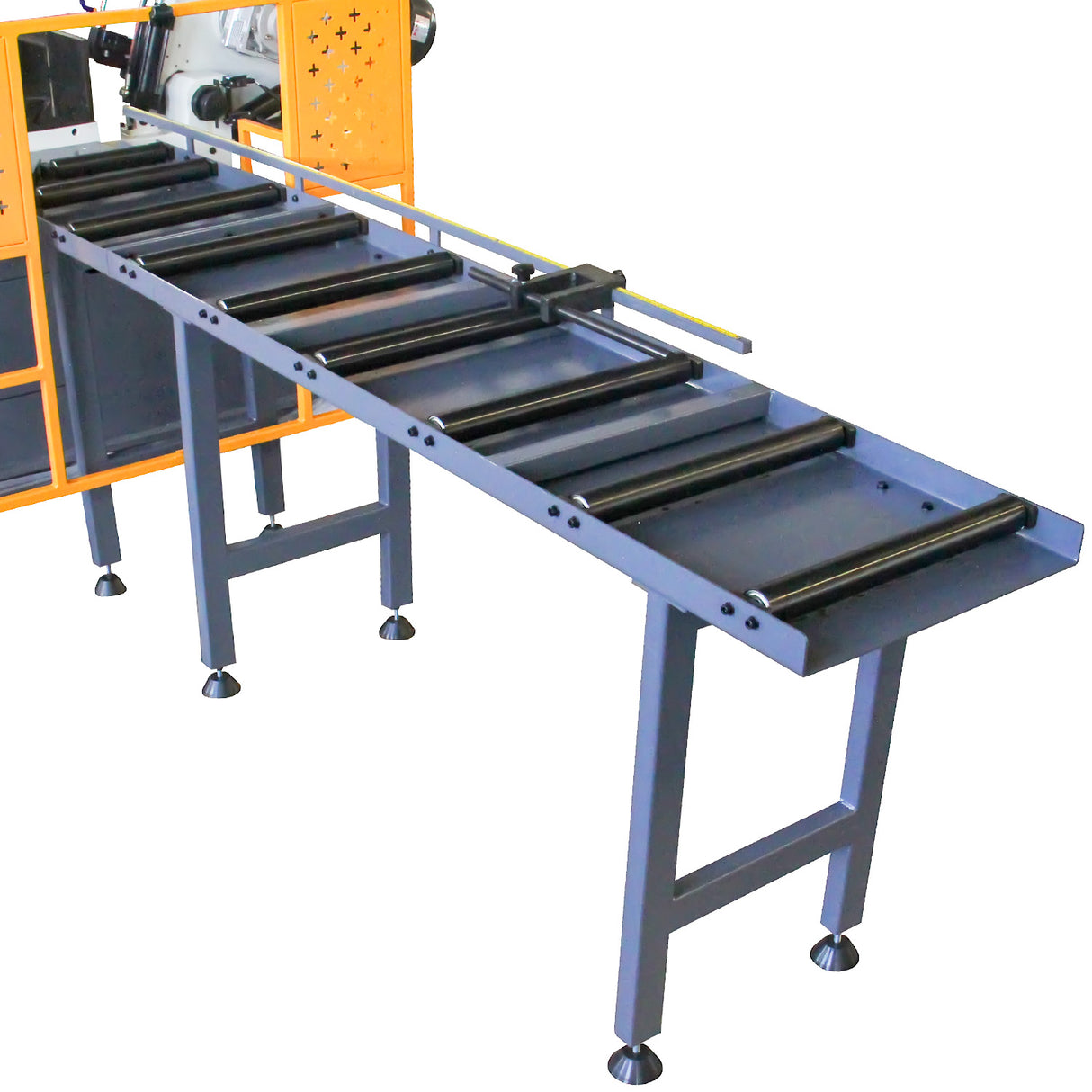

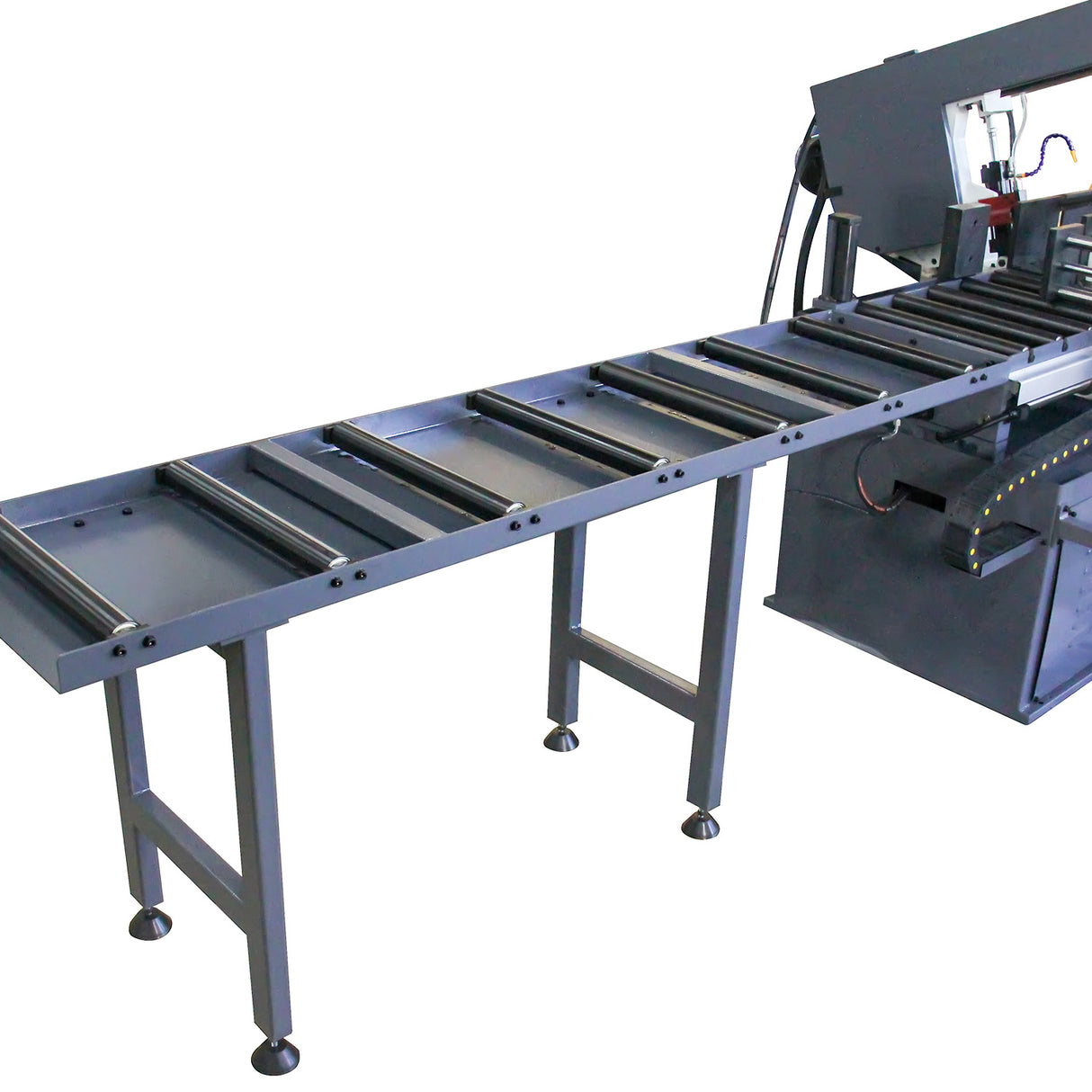

Standard with a material stand, total 6-meter length, width up to 460mm

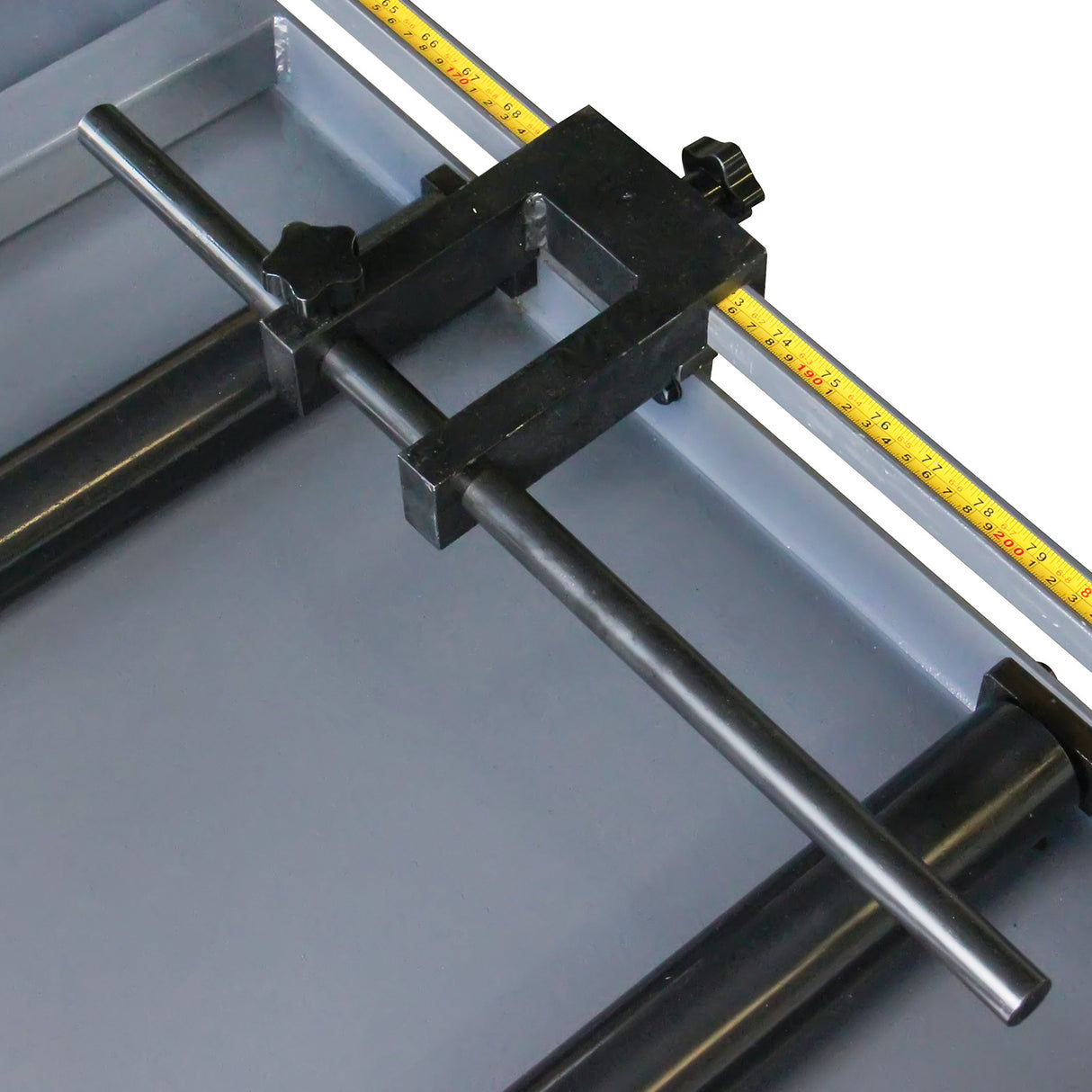

The stop rod is available on the material stand

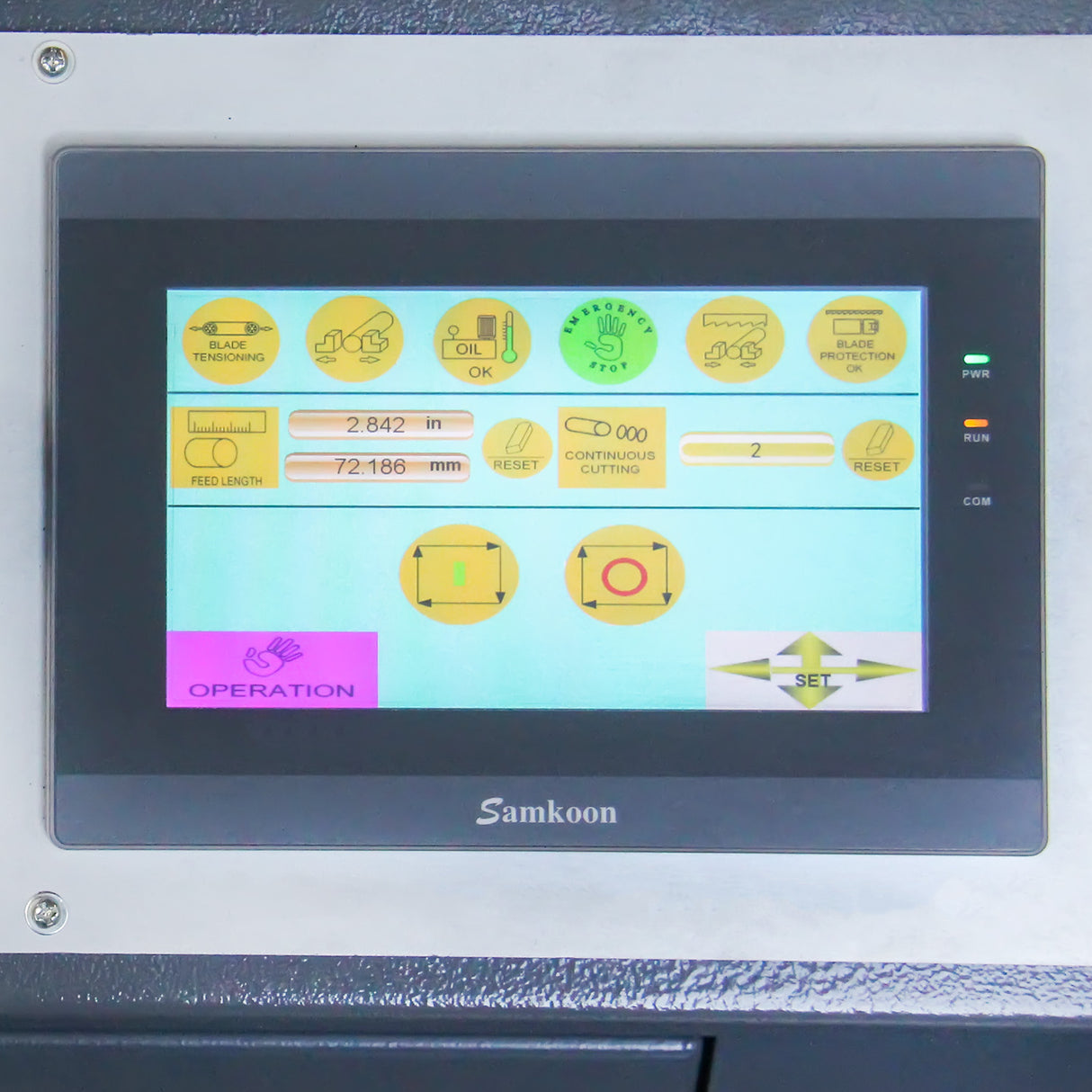

PLC control with an HMI, easy operation
36L Oil Tank of this bandsaw, fill the hydraulic oil before operating
Specifications
| SKU | 188127 |
| Model | BS-1810G |
| Cut circular @90° | 330 mm |
| Cut rectangular @90° | 460x250 mm |
| Cut circular @60° (right) | 205 mm |
| Cut rectangular @60° (right) | 205x250 mm |
| Cut circular @45° (right) | 305 mm |
| Cut rectangular @45° (right) | 305x250 mm |
| Vice table height | 850 mm |
| Blade speed | 40/80 MPM |
| Blade size | 27x0.9x3960 mm |
| Coolant Tank | 26L |
| Motor | 1.5/2.2 kW |
| Drive | Gear |
| Packing size | 265x230x163 cm |
| N.W./G.W. | 1520/1655 kg |
