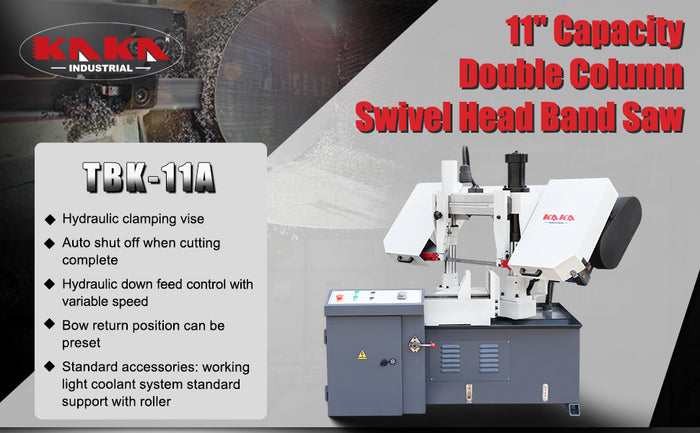

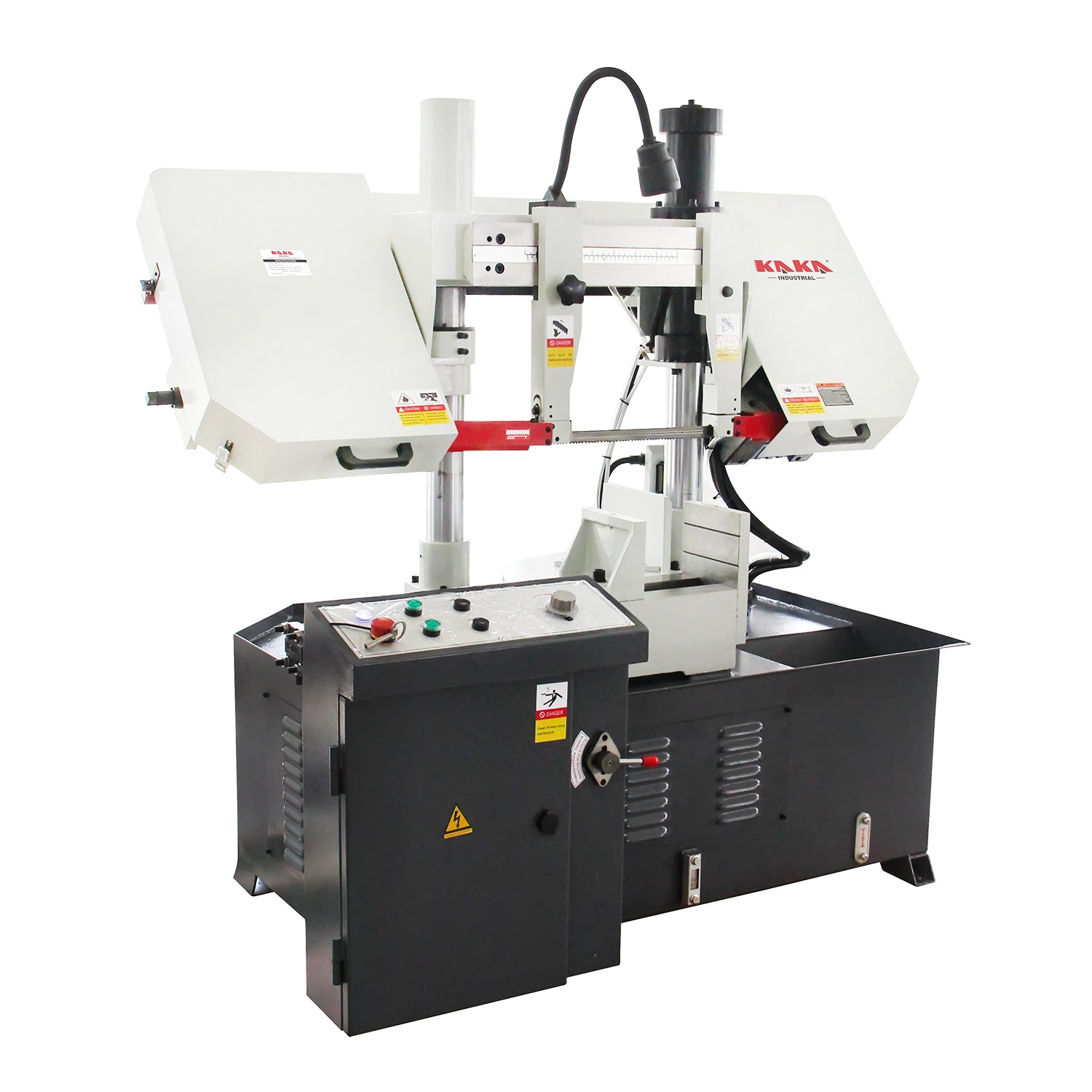

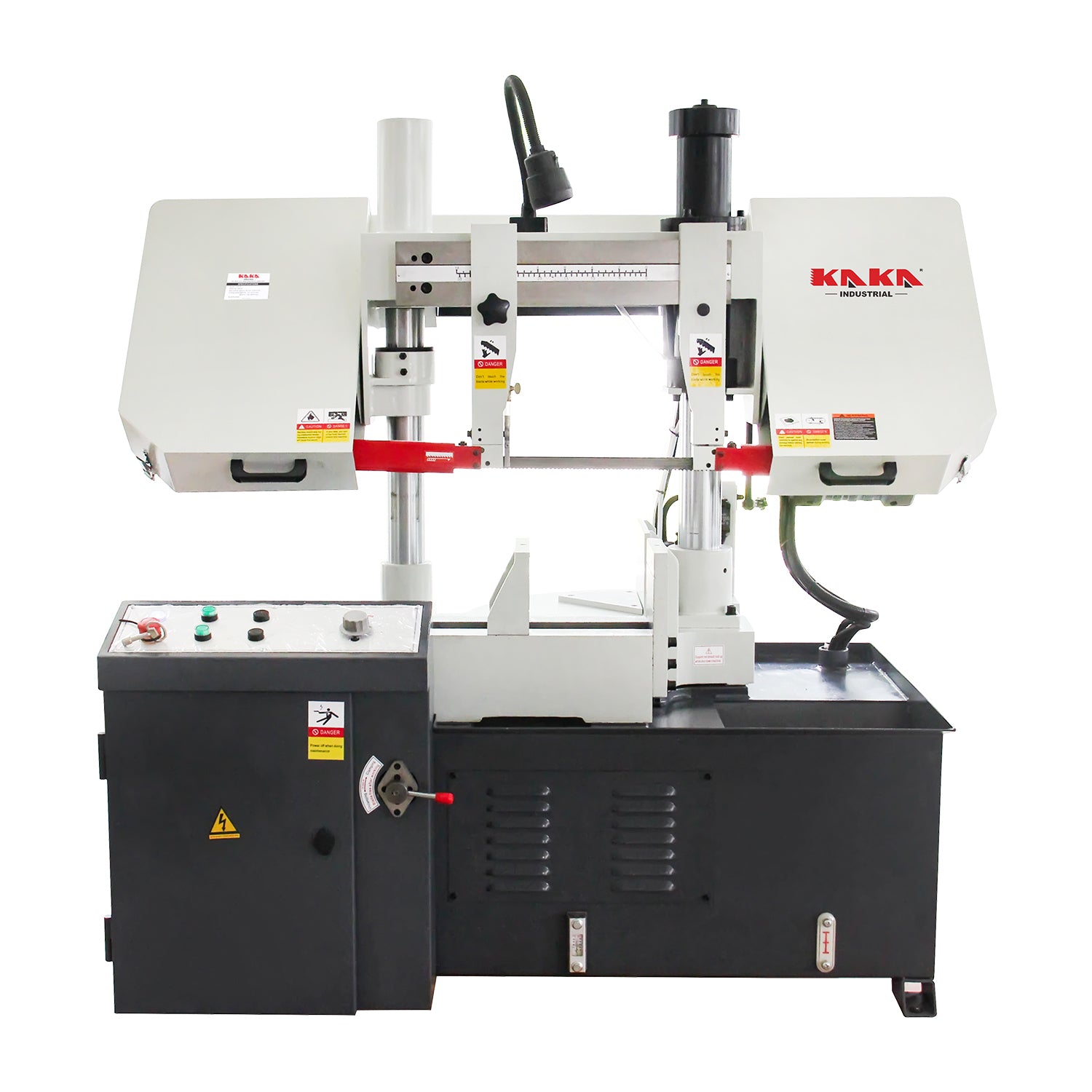

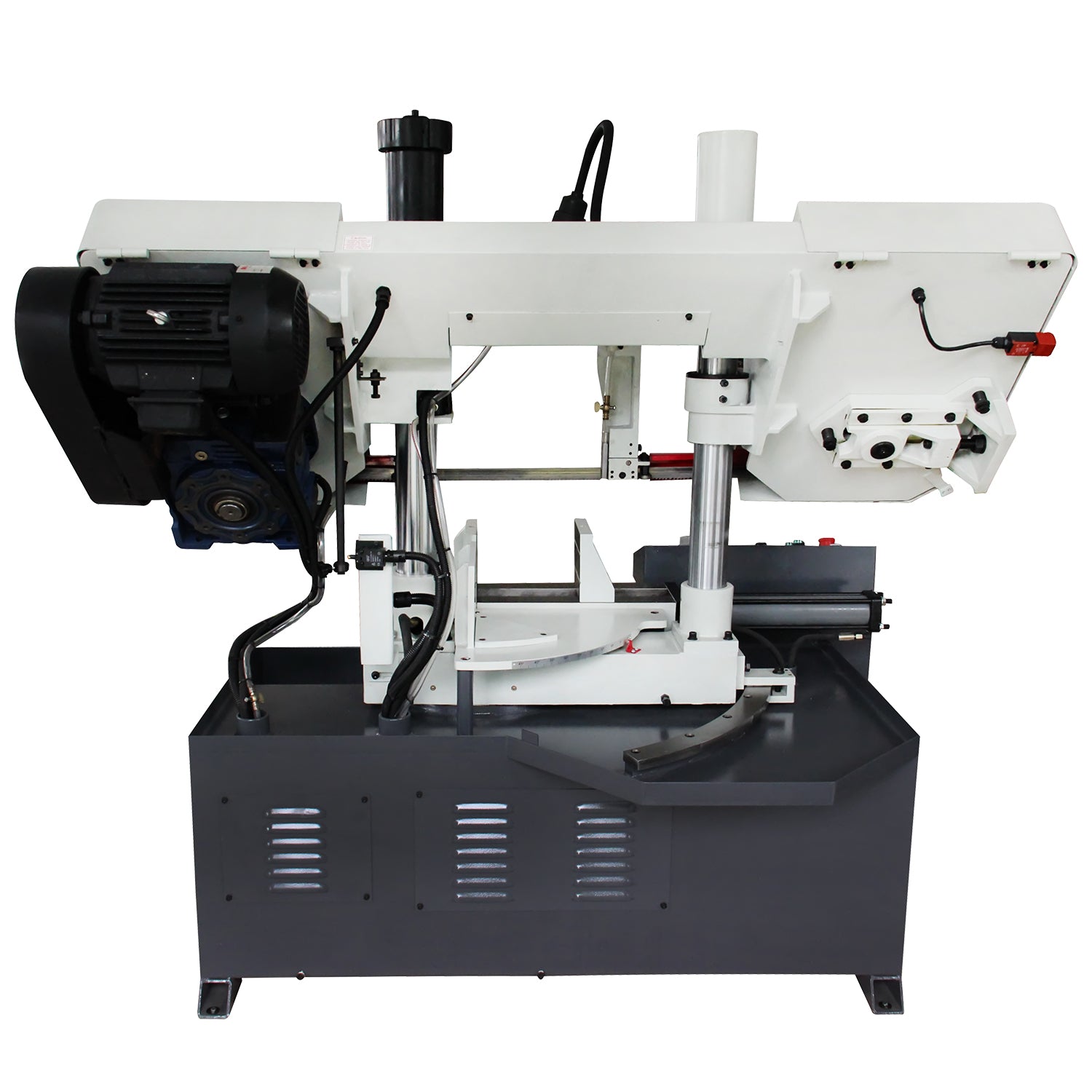

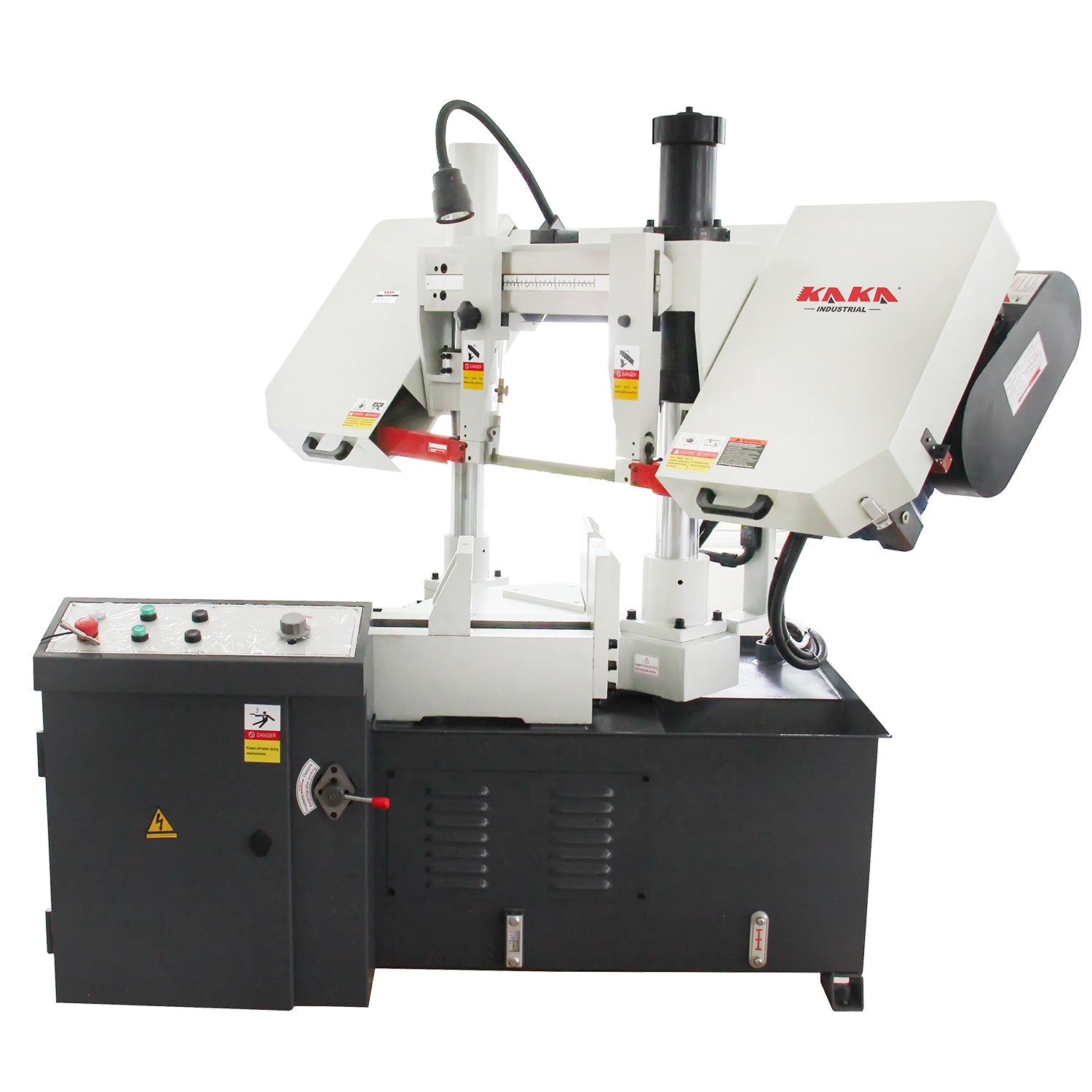

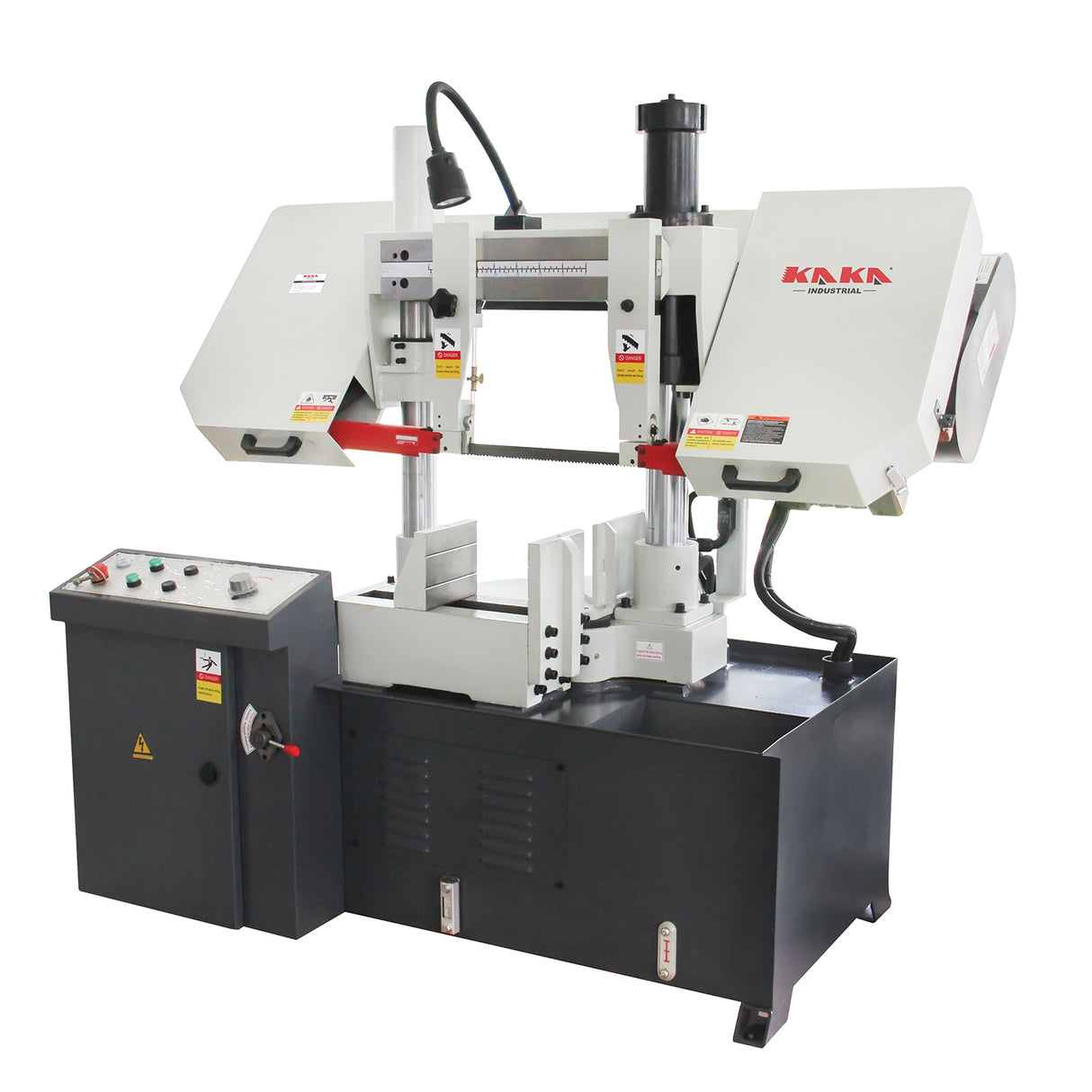

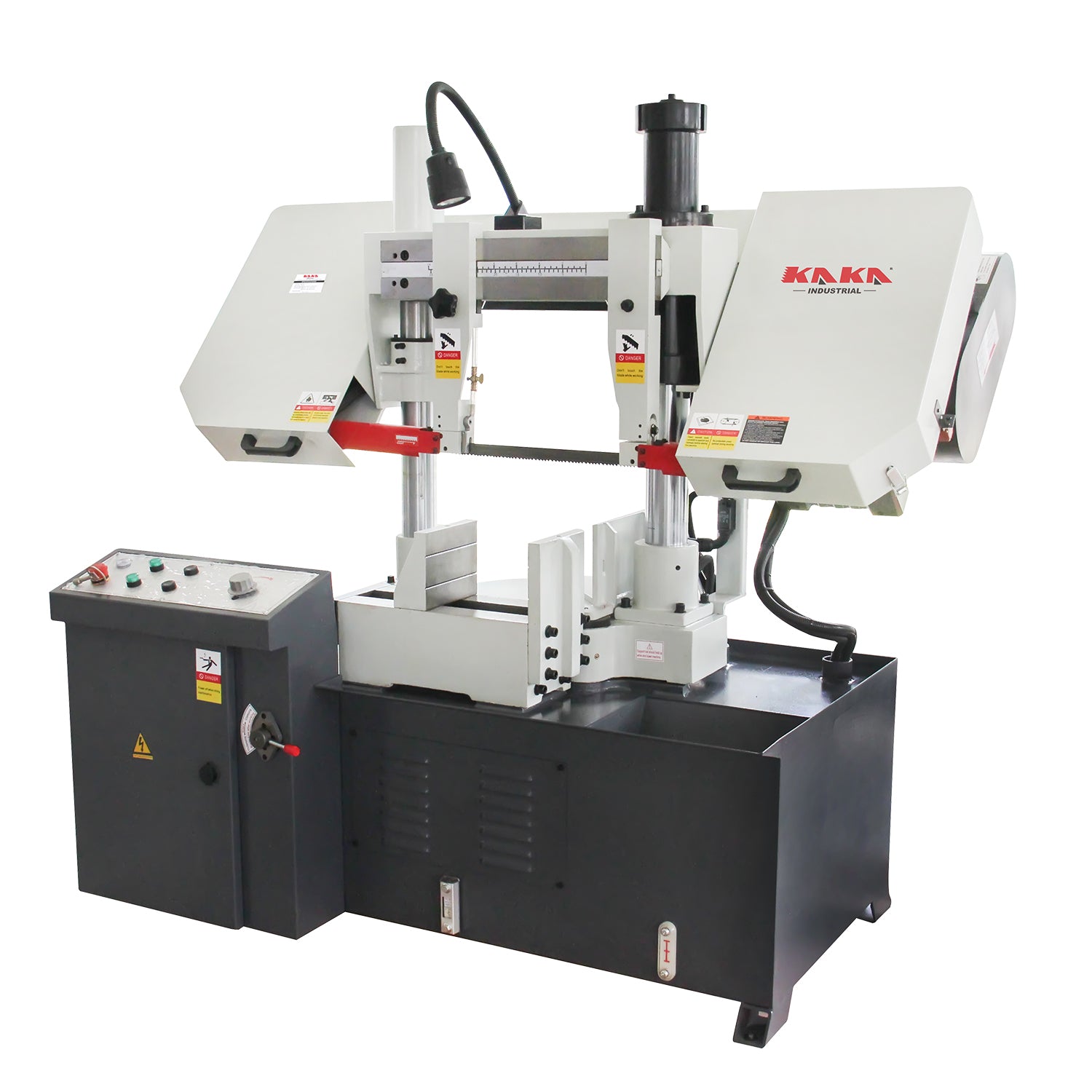

KANG Industrial Double Column Band Saw TBK-11A
Designed for industrial-grade performance, this double-column bandsaw offers exceptional cutting power.
Equipped with 3-speed saw band settings (27, 45, 69 MPM), this saw delivers consistent cutting efficiency across a variety of materials, including metals, plastics, composites, wood, and rubber. The 3.0 kW main motor delivers reliable torque to effortlessly cut through tough materials, while the 0.55 kW oil pump motor ensures smooth operation.
The high cutting efficiency combined with powerful motor performance makes this saw the ideal choice for high-volume production environments that require precision and reliability.
Versatility for Every Job
This hydraulic dual-column design provides unmatched stability and precision, ensuring smooth operation even during long production runs.
The swivel saw frame can be adjusted up to 45 degrees, allowing for easy angled cuts, while the angle indicator ensures accuracy.
The hydraulic clamping system provides effortless control, ensuring stable and efficient cutting.
The hydraulic cylinders ensure smooth and consistent lowering of the blade, delivering uniform cuts with every operation.
A built-in cooling system keeps both the blade and workpiece cool during operation, extending the lifespan of the blade and maintaining cutting efficiency over long periods of use.
Safety Features for Peace of Mind
Safety is a key consideration in the design of this bandsaw. The hydraulic system offers reliable and responsive control, providing operators with a smooth cutting experience. Additional safety features include an automatic shut-off system, ensuring the saw stops if any issues arise, and full belt and blade guards for operator protection.

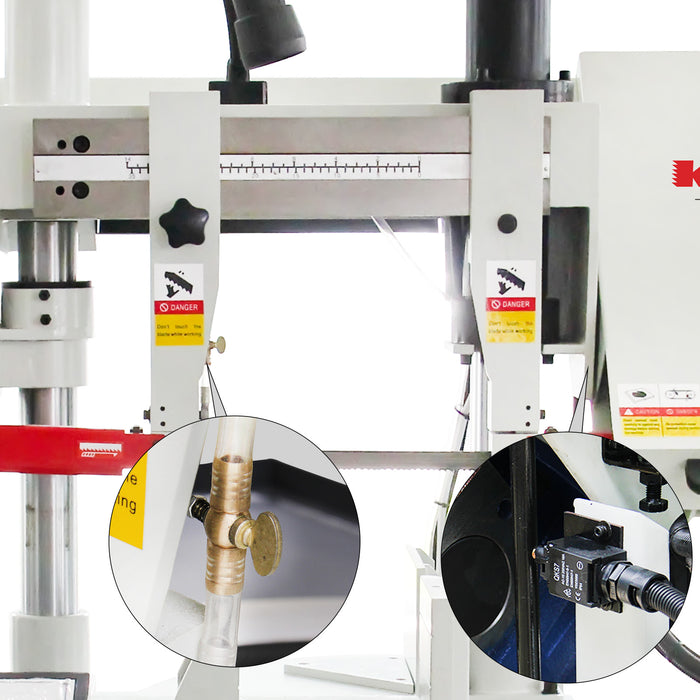

The high-carbon steel blade and brass fittings enhance durability, while the coolant system maintains the cutting environment and reduces heat buildup, preventing overheating and ensuring longer blade life.
Wide-Ranging Applications
This double-column swivel headbandsaw is a versatile tool used in numerous industries, including metalworking, fabrication, maintenance facilities, and educational settings. Whether you're in high-volume manufacturing, a workshop, or a hobbyist’s garage, this saw is designed to meet your cutting needs with speed, precision, and efficiency.

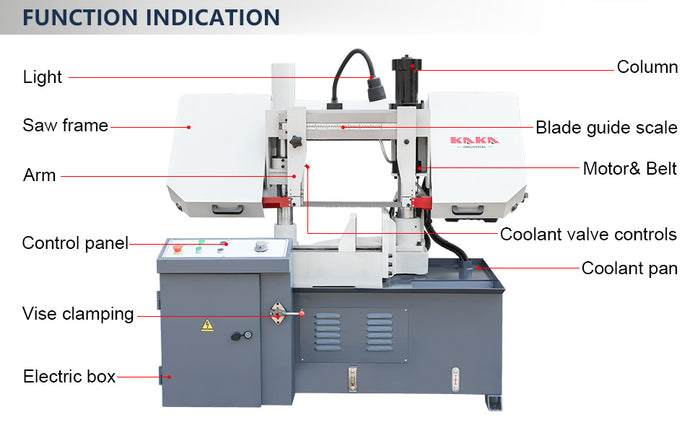

Features
Double-column structure band saw with swivel head

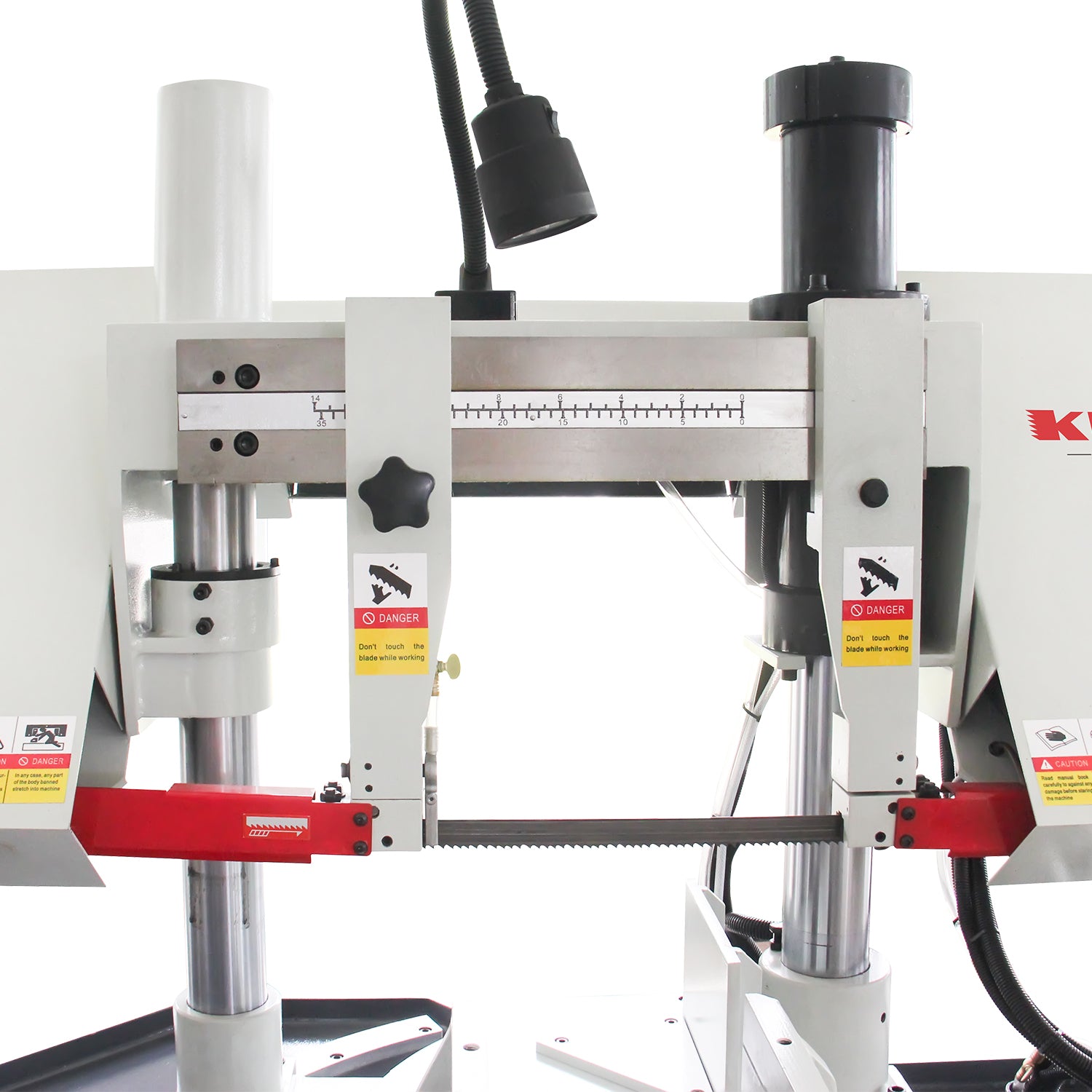

Fine-grained column, make sure the saw moves up and down stably

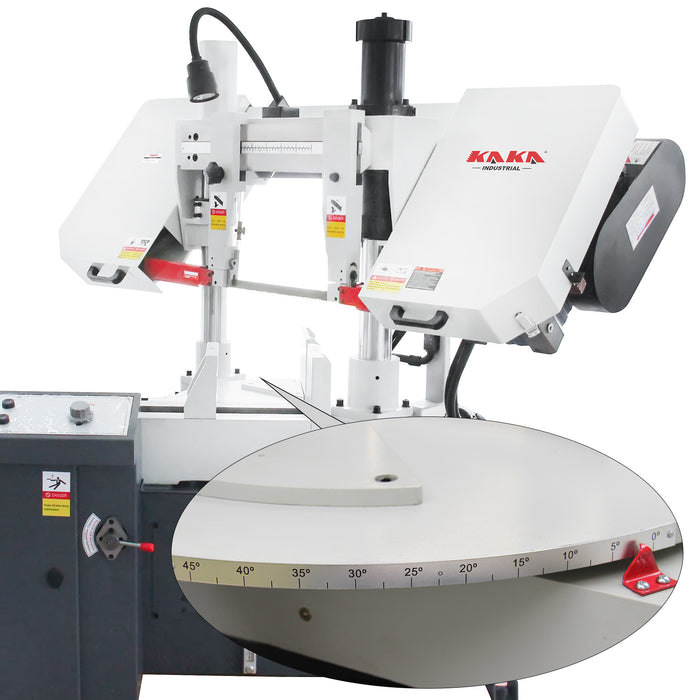

Swivel saw frame up to 45 degrees, with an indicator to show the swivel angle

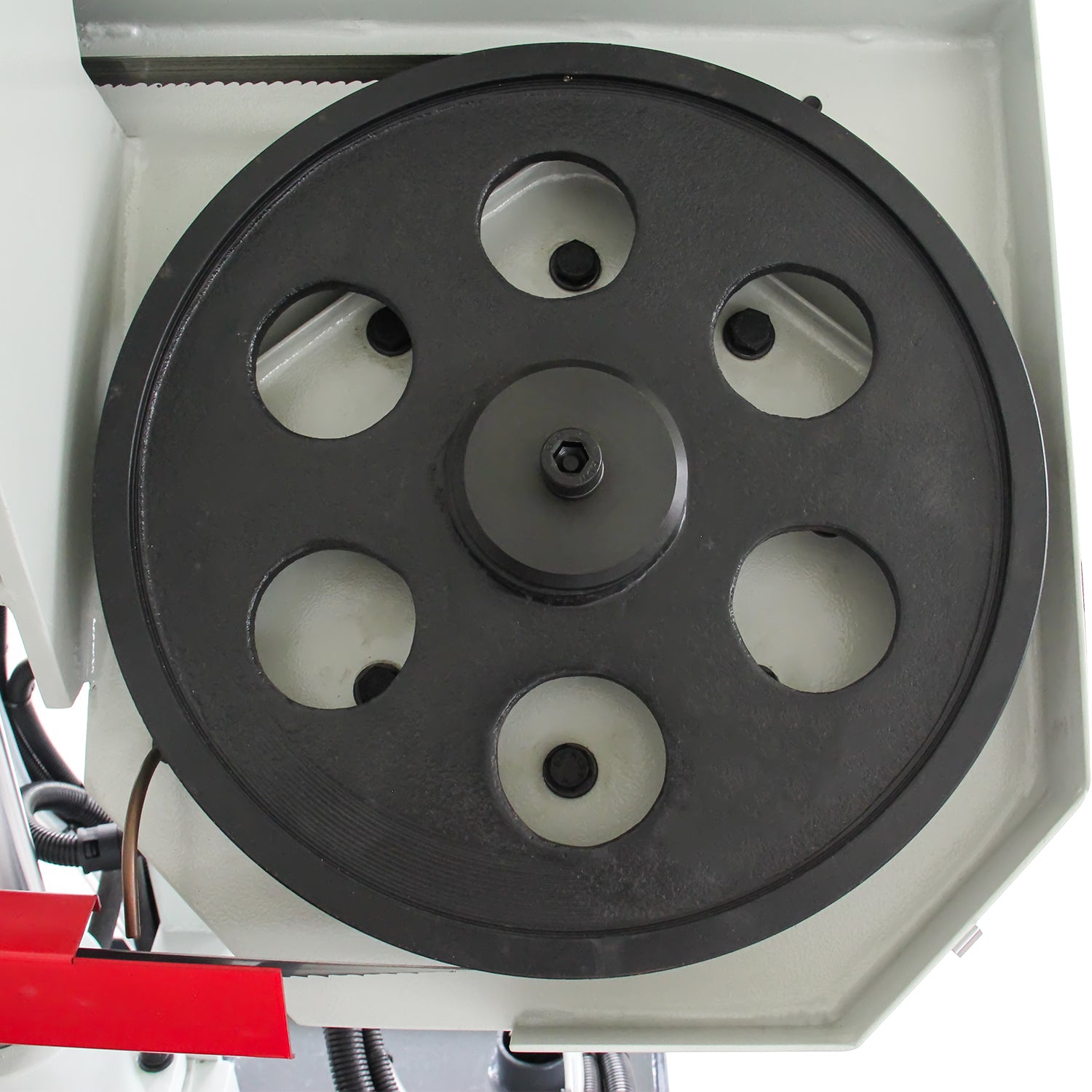

Belt-driven metal cutting saw, 3 cutting speeds: 27, 45, 69 MPM
Hydraulic down-feed control, variable feeding speed
Auto shut off when cutting is completed

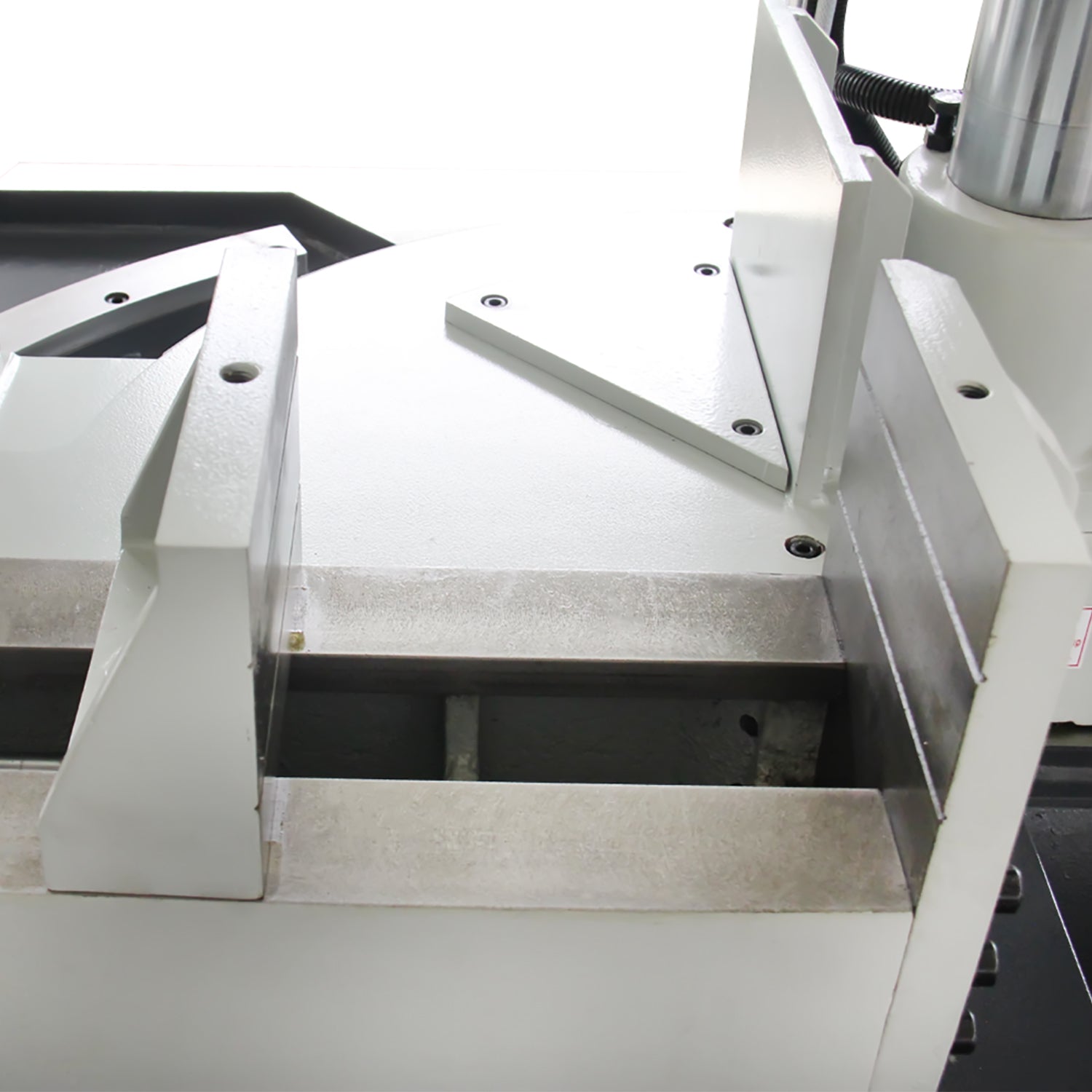

The hydraulic clamping vice ensures that the materials are fixed during the cutting
Standard C/W working light, one material stand with roller, M42 Bi-metal Saw blade
Specifications
| SKU | 271211 |
| Model | TBK-11A |
| Max cutting @90° | ø280mm, 320x280mm (WxH) |
| Max cutting @45° | ø170mm, 170x280mm (WxH) |
| Max cutting @30° | ø260mm, 260x280mm (WxH) |
| Cutting speed | 27, 45, 69 MPM |
| Feeding speed | Hydraulic variable speed |
| Blade size | 27x0.9x3625 mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Mechanical |
| Main motor power | 3.0 kW |
| Oil pump motor power | 0.55 kW |
| Drive | Belt |
| Packing size | 215x130x160 cm |
| N.W./G.W. | 820/965 kg |
Shipping
1. The freight cost for orders Excludes Remote Areas as well as some rural and out lying areas. Our service executive shall contact you shortly after you place orders if you are in a remote areas. To obtain the shipping rates applicable to your address.
2. Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.
3. Residential delivery for heavy package (Over 30kg) would have extra cost, you will be contacted with the Fee, or we deliver package to nearest fright depot.
4. If you need to cancel a purchase after the product has been dispatched, please note that the postage fee may not be refundable. Additional postage fees may apply for re-delivery or re-direction requests.
5. Buyers must agree with the above postage and handling terms before purchase. Thank you very much for your kind understanding.
Returns
1. 10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2. You must obtain a KANG Industrial issued RGA number PRIOR to returning any materials.
3. Please ensure returned goods are well packaged and include the parts/invoice as requested
4. Altered items are not eligible for return.
5. Buyer is responsible for all shipping charges.
6. We reserve the right to charge a minimum 15% restocking fee and in addition charge for "making good" any damaged or used items returned including items damaged in transit.
Warranty
1. KAKA Industrial provides 12 months warranty for this product from the date of purchase.
2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

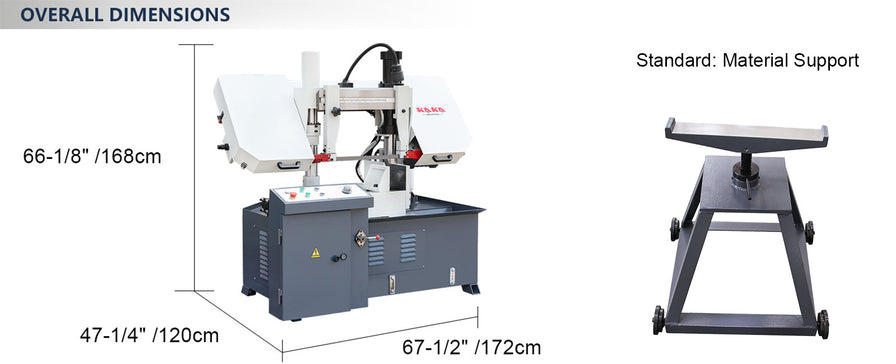

Material Support
Equipped with a convenient material support for long-cutting materials.
