KANG INDUSTRIAL DP-40 Gear Head Pedestal Drill

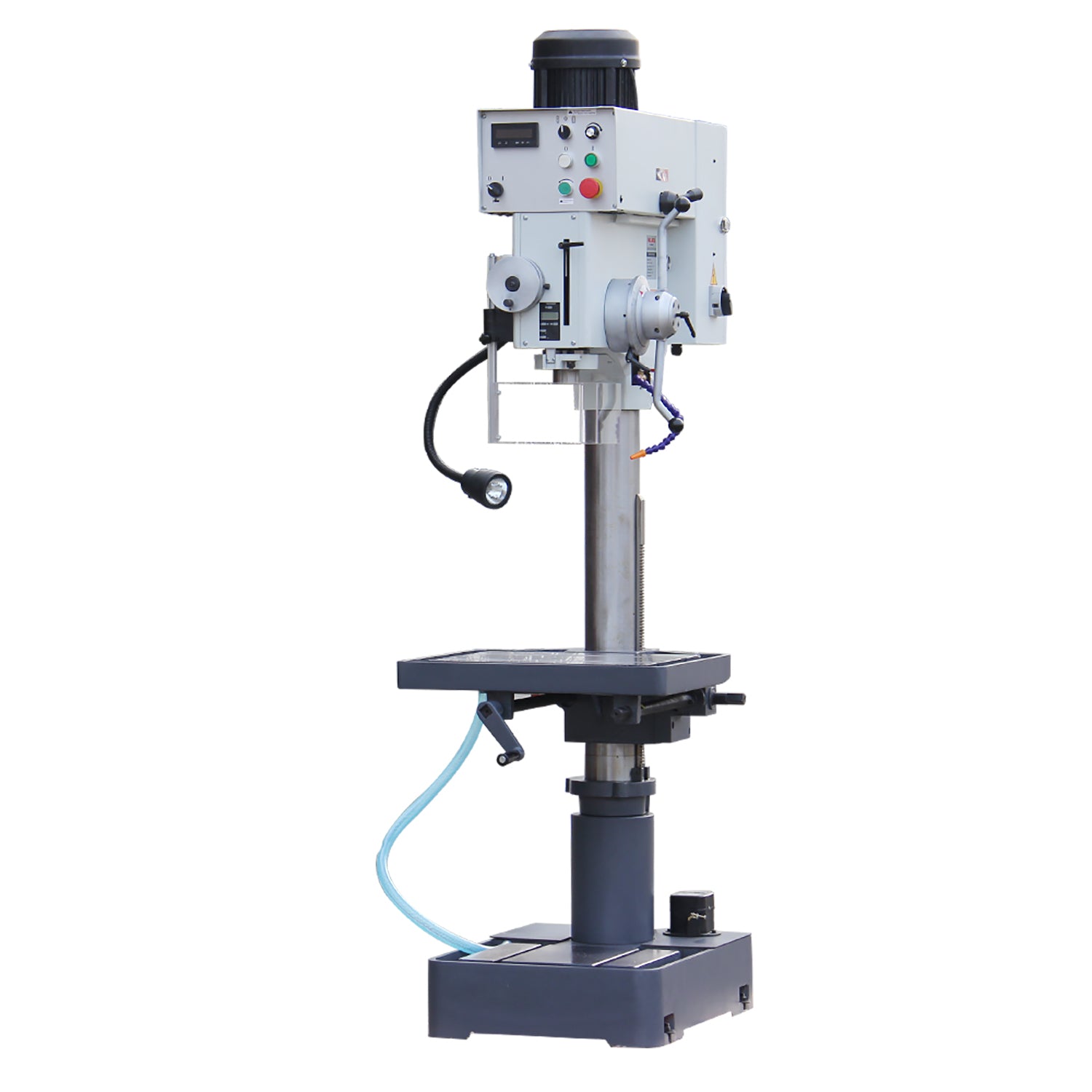

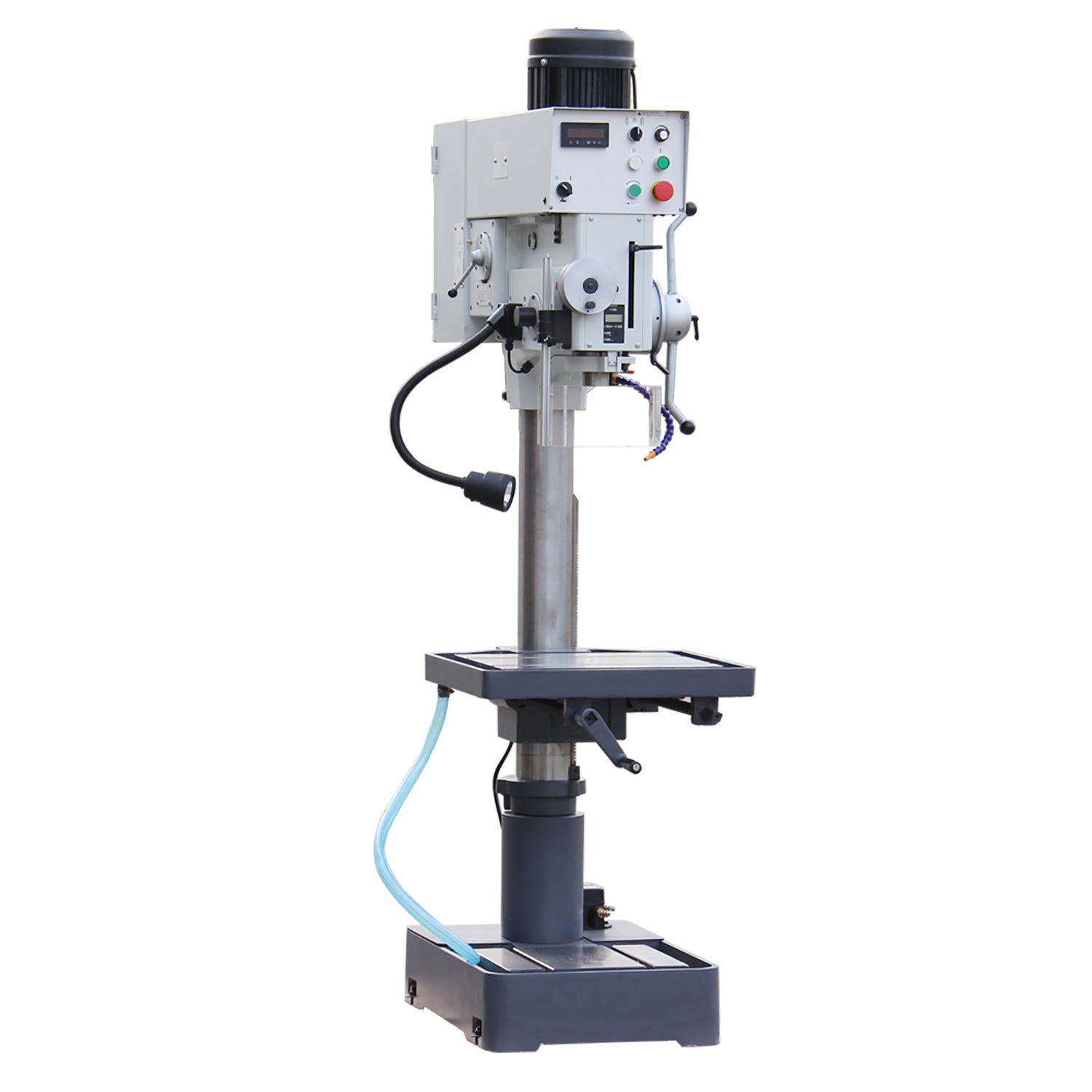

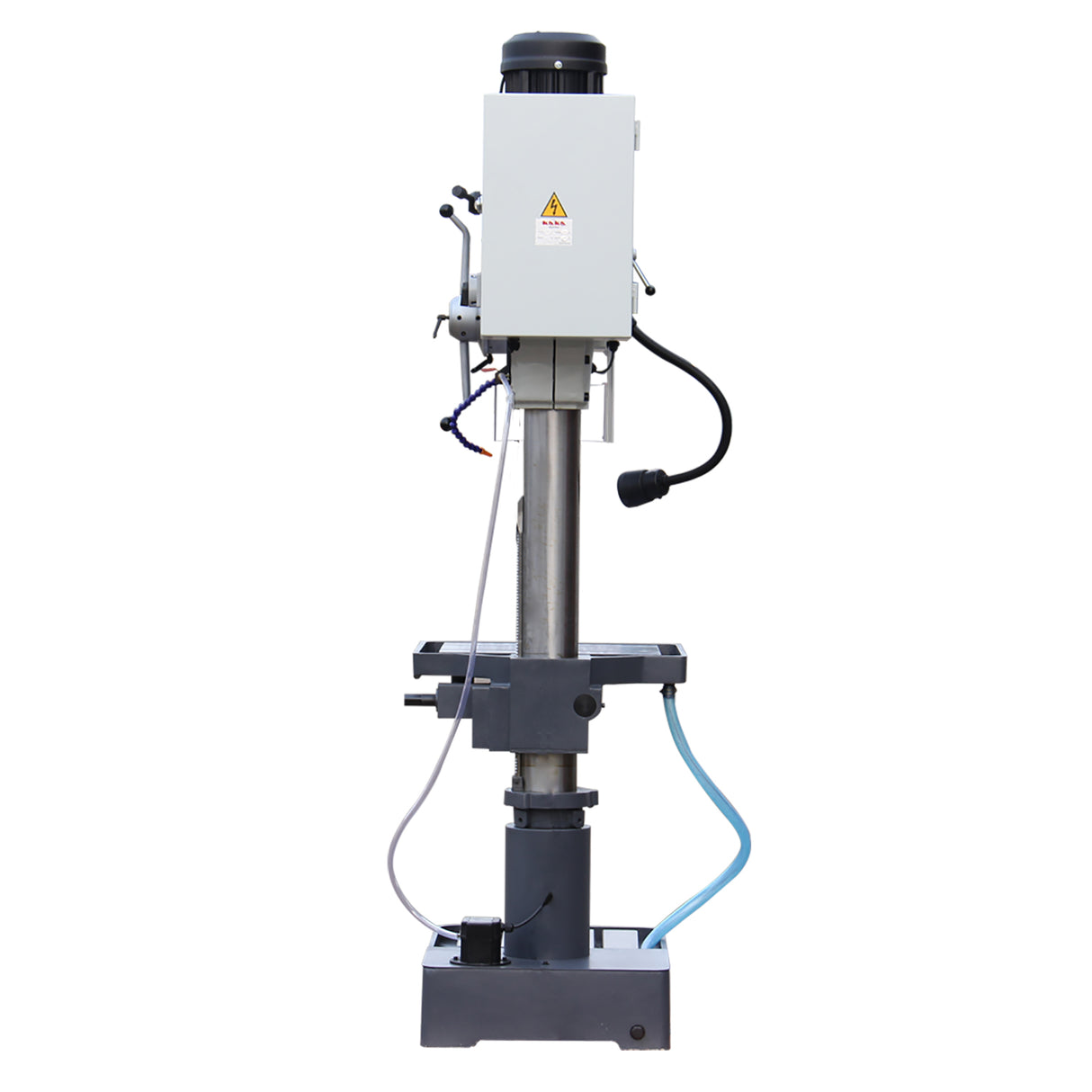

The KANG DP-40 Heavy Duty Pillar Drill is a powerful, industrial-grade floor-standing column drill press. Engineered for demanding metalworking environments, it delivers exceptional precision and torque for drilling large-diameter holes in tough materials. 40 mm drilling capacity plus tapping up to 25 mm, a robust 2.2kW single-phase motor, inverter-driven variable speed control across dual ranges (low: 65–540 rpm; high: 245–2000 rpm with digital readout), MT4 spindle taper, 150 mm quill travel, massive 560 x 475 mm table, generous working envelope (spindle nose to table up to 605 mm, to base 1150 mm), and a heavy 380 kg build with a thick 115 mm column diameter for rock-solid rigidity. It features automatic quill feed (switchable to manual), integrated coolant system, adjustable LED work light, Perspex safety guard with limit switch, emergency stop, and gear-driven transmission for smooth power delivery. Operates on standard single-phase 240V power — fully compatible with all workshops. This machine suits professional fabricators, engineering shops, mining maintenance, automotive heavy repair, or production facilities needing reliable, high-capacity drilling without three-phase power.
Industrial-Capacity Drilling (40 mm). Handles large holes and tough jobs that smaller bench drills can't touch — ideal for fabrication shops, structural steelwork, mining equipment repair, or heavy machinery maintenance where big-diameter precision is essential.

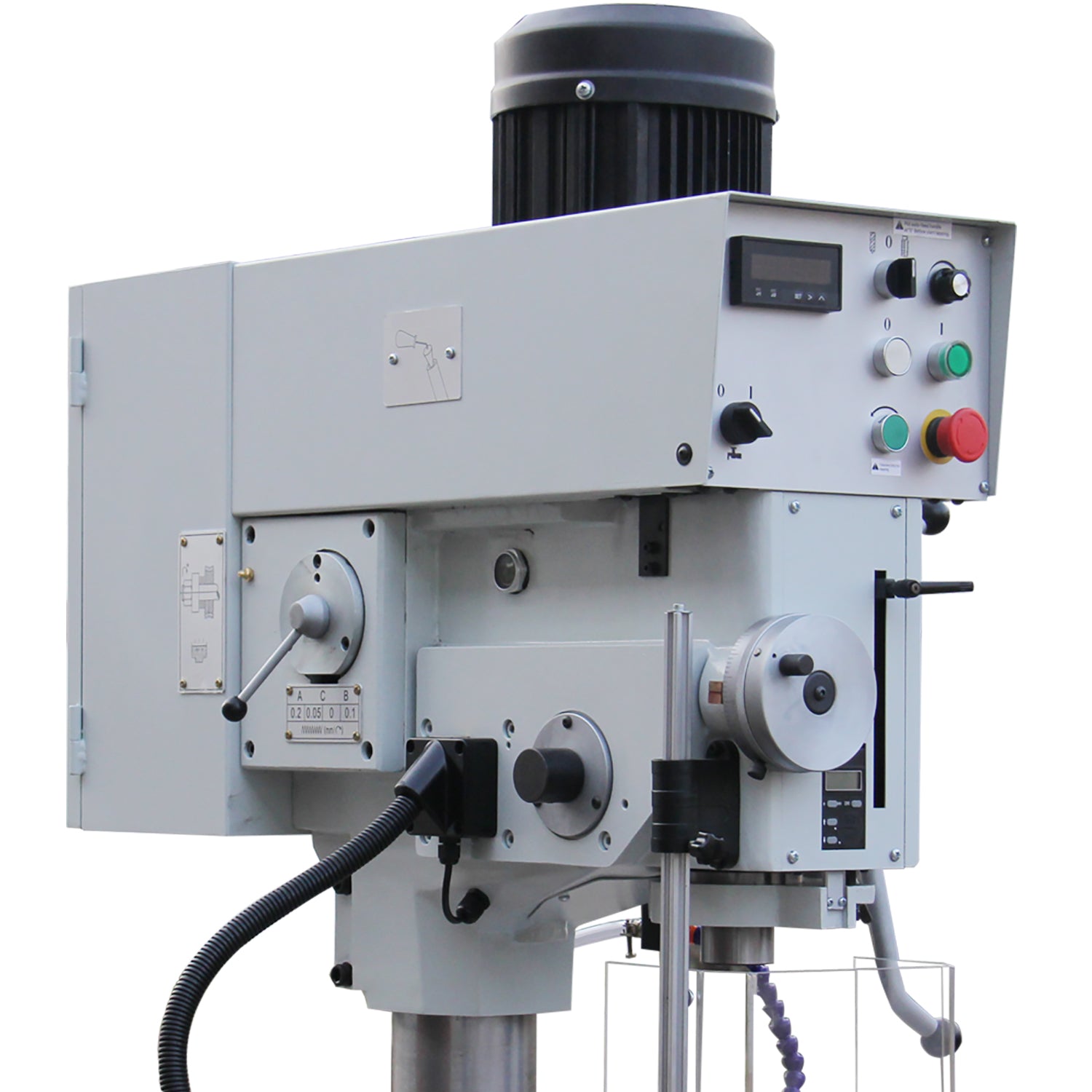

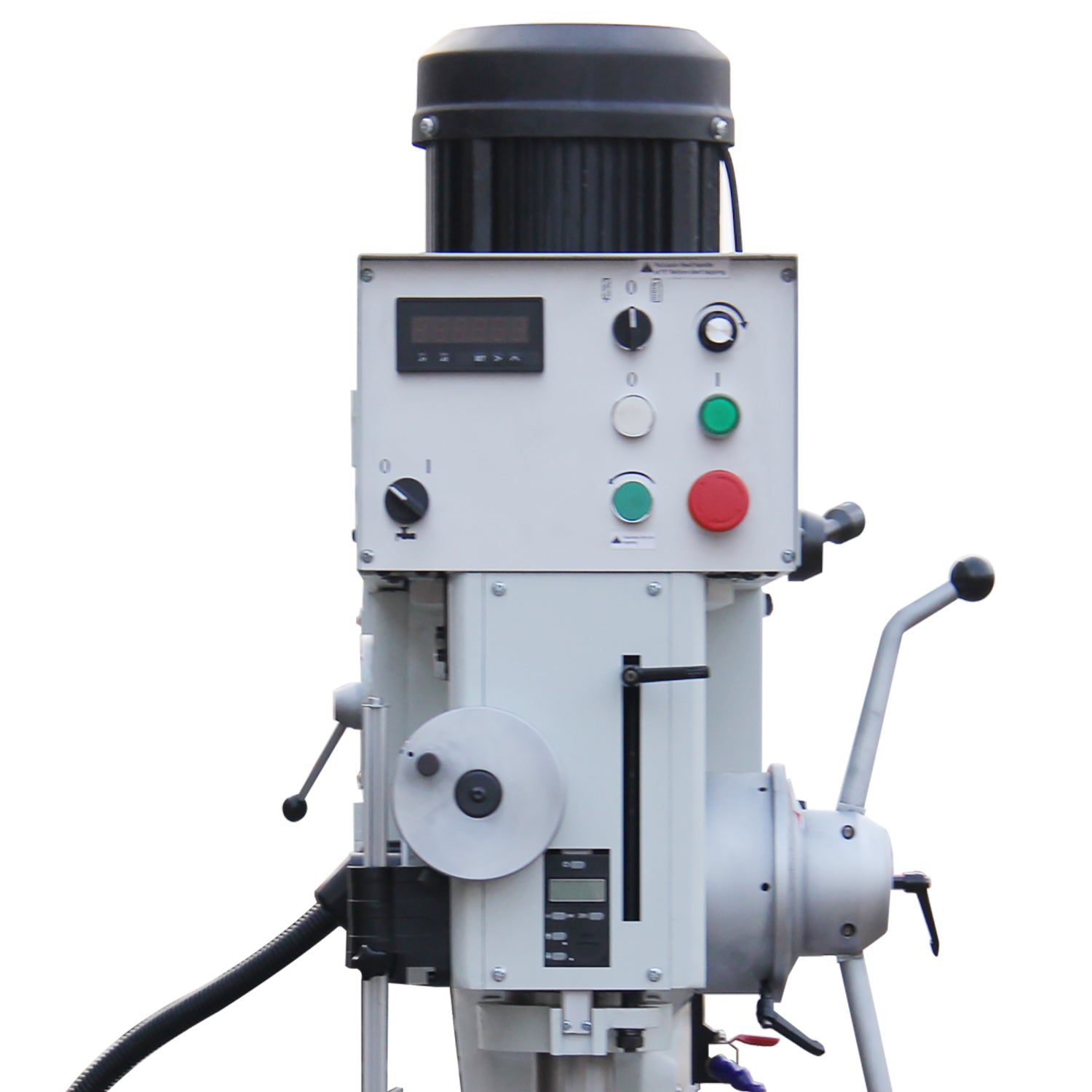

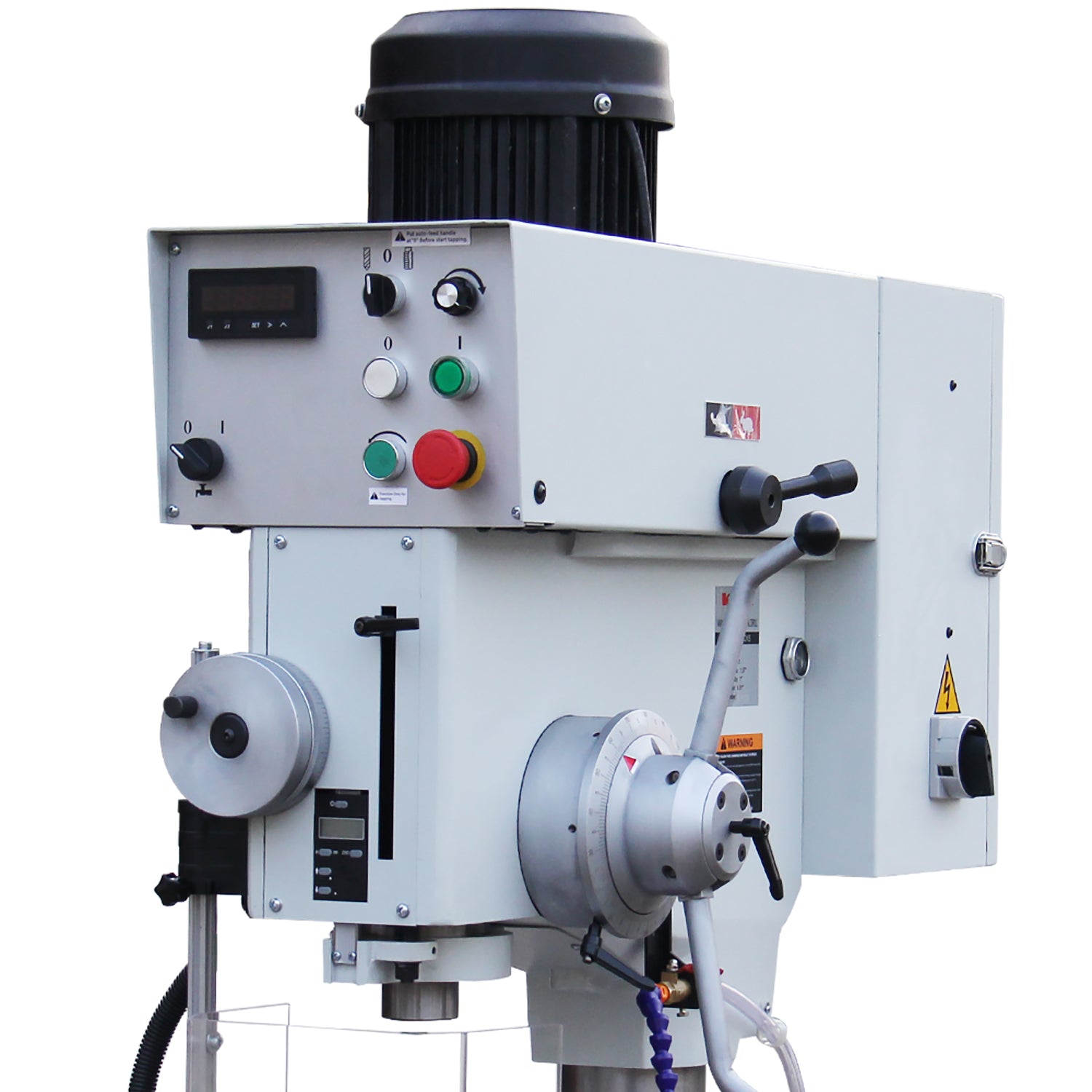

Inverter-Driven Variable Speed Column Drill with Digital Readout. Precise, stepless control from 65–2000 rpm across two ranges — match speed perfectly to material, bit size, or operation (drilling, reaming, countersinking) without belt changes, reducing heat, tool wear, and improving finish quality.
Automatic Quill Feed Drill Machine (Switchable to Manual). Hands-free consistent feed for repetitive or deep-hole work, boosting efficiency and reducing operator fatigue in high-volume production.
Single-Phase 240V Power Pillar Drill. Runs directly from standard household/workshop outlets with no need for three-phase conversion or expensive electrician work — perfect for regional/rural sheds, small-to-medium businesses, or upgrading from single-phase setups common across workshops.
Heavy-Duty Column (115 mm Diameter). Massive, rigid construction eliminates deflection even at full 40 mm capacity, delivers pinpoint accuracy and repeatability for professional results, far superior to lighter machines that wander under load.
Integrated Coolant System & LED Work Light. Flood coolant extends tool life, improves surface finish, and manages swarf on tough steels; bright adjustable LED ensures clear visibility in dimly lit sheds or during long sessions.
Enhanced Safety Drilling Machine. Perspex guard with auto shut-off, emergency stop button, and robust build prioritise operator protection.
Generous Working Envelope & Large Table Drilling Machine. Tall spindle-to-base/table distances and spacious 560 x 475 mm table accommodate big workpieces, fixtures, or vices — versatile for everything from small brackets to large plates or castings.
Built for Continuous Industrial Use Gear Head Drill. Gear-driven head, powerful 2.2 kW motor, and premium components ensure reliability during all-day operation, low maintenance and long service life mean excellent for busy fabricators facing high consumable costs.
Space-Efficient Industrial Footprint. Despite its heavy-duty capability and 380 kg weight, it maintains a relatively modest base (486 x 688 mm) , fits well in established workshops without dominating floor space.
Features
Single-phase power, 2.2kW powerful motor
MT4 spindle taper, max. drilling 40mm dia.
Forward Reverse switch, tapping system, 16mm steel
Standard mechanical automatic feed

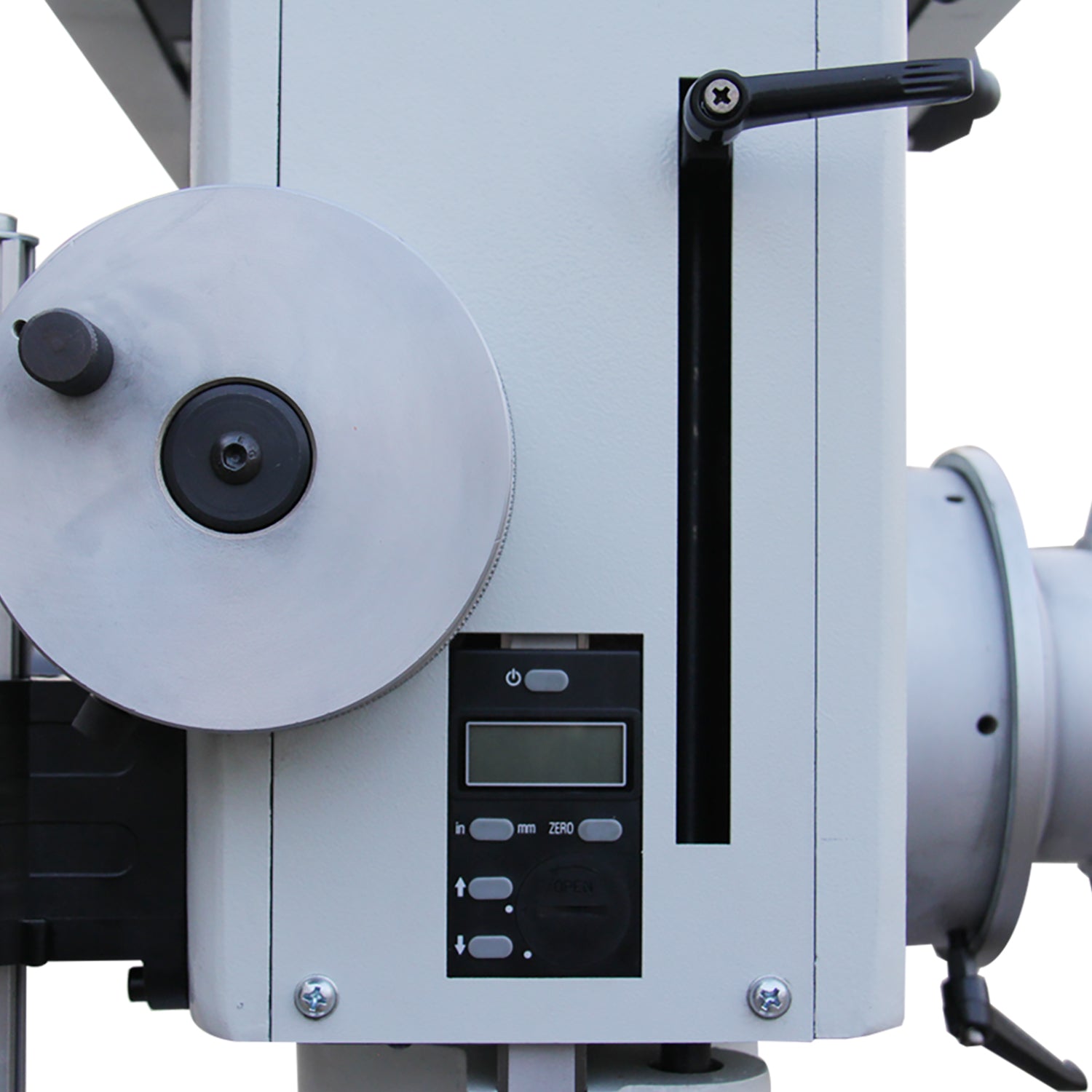

RPM digital display and digital depth reader
Inverter variable drilling speed
Gear drive with high torque
Cast iron frame for long durability
Standard Included:
Led Working Light
Coolant System

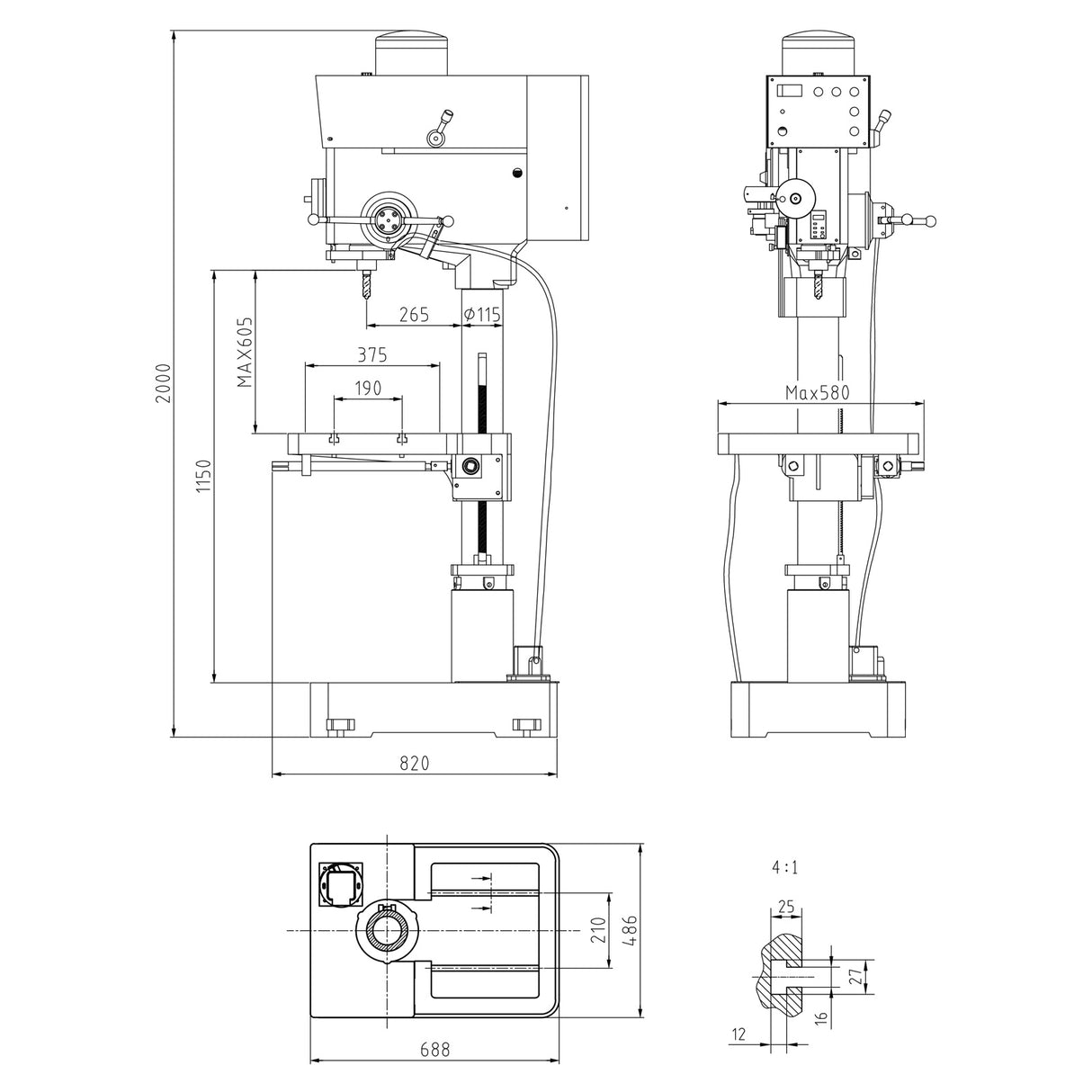

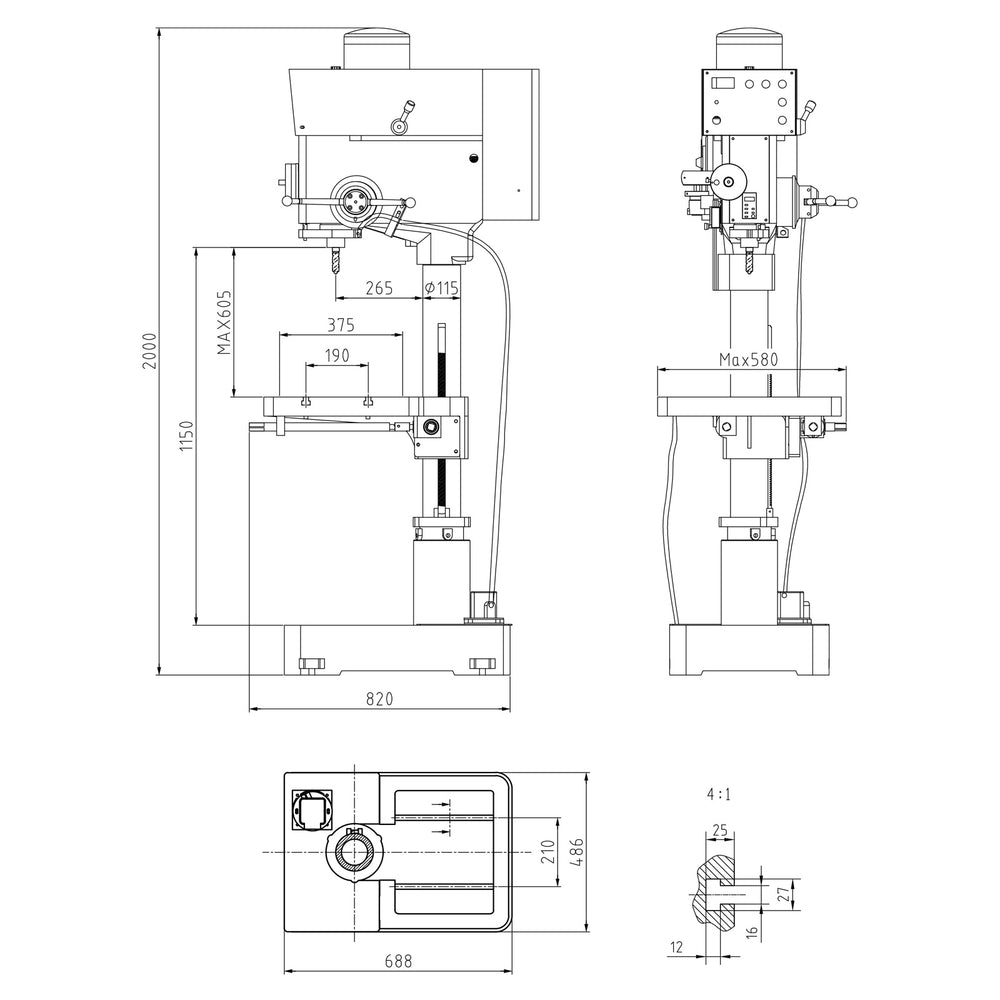

Specifications
| SKU | 190031 |
| Model | DP-40 |
| Drilling capacity | 40 mm |
| Tapping capacity | M25 |
| Swing | 323 mm |
| Spindle taper | MT4 |
| Spindle travel | 150 mm |
| Spindle speed | High: 245-2000 rpm, Low: 65-540 rpm |
| Spindle nose to table | 605 mm |
| Spindel nose to base | 1150 mm |
| Quill dia. | 75 mm |
| Column dia. | 115 mm |
| Table size | 560x475 mm |
| Table slot | 16 mm |
| Base size | 688x486 mm |
| Motor power | 2.2 kW |
| Packing size | 96x65x229 cm |
| N.W./G.W. | 382/445 kg |
