DP-2 Dividing Plate

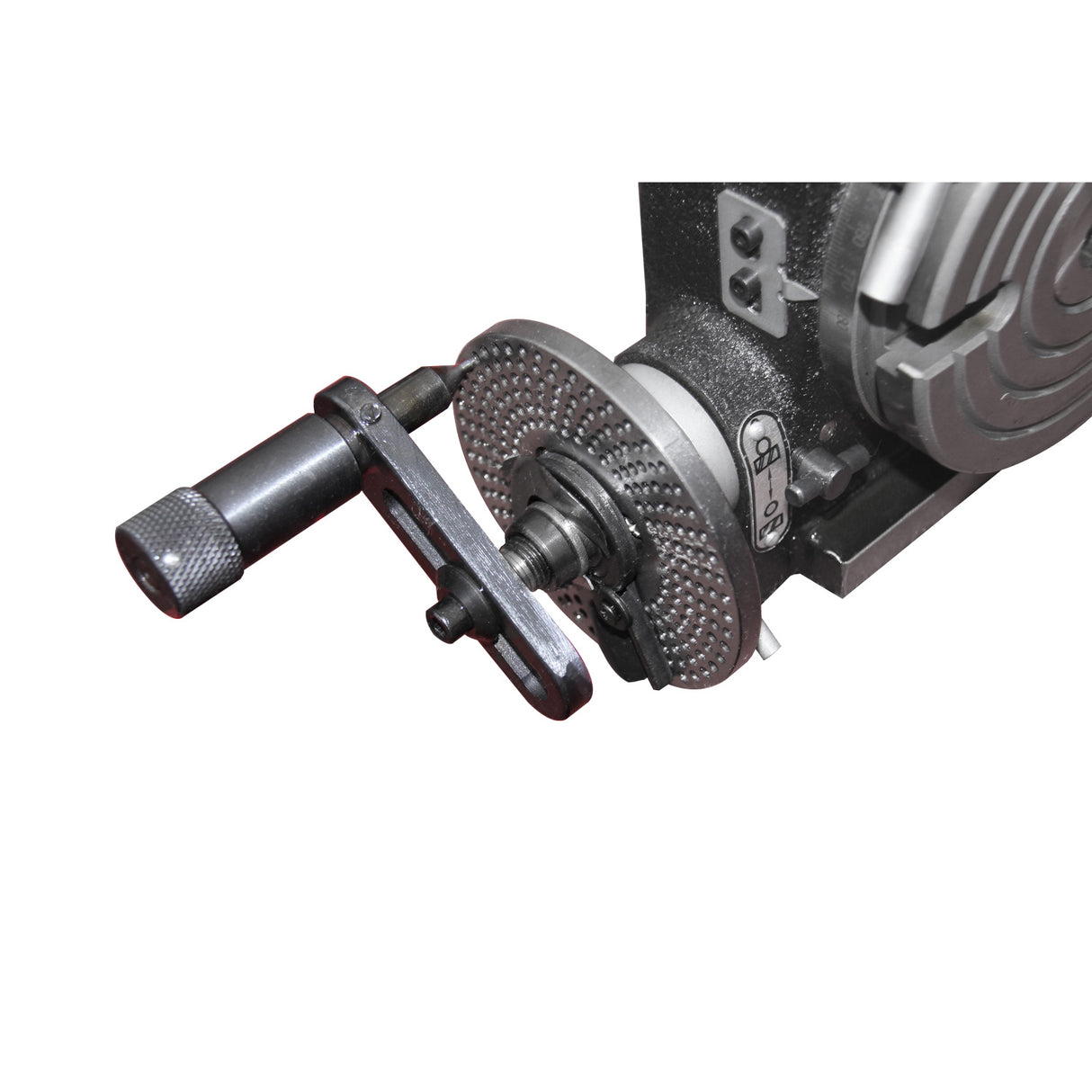

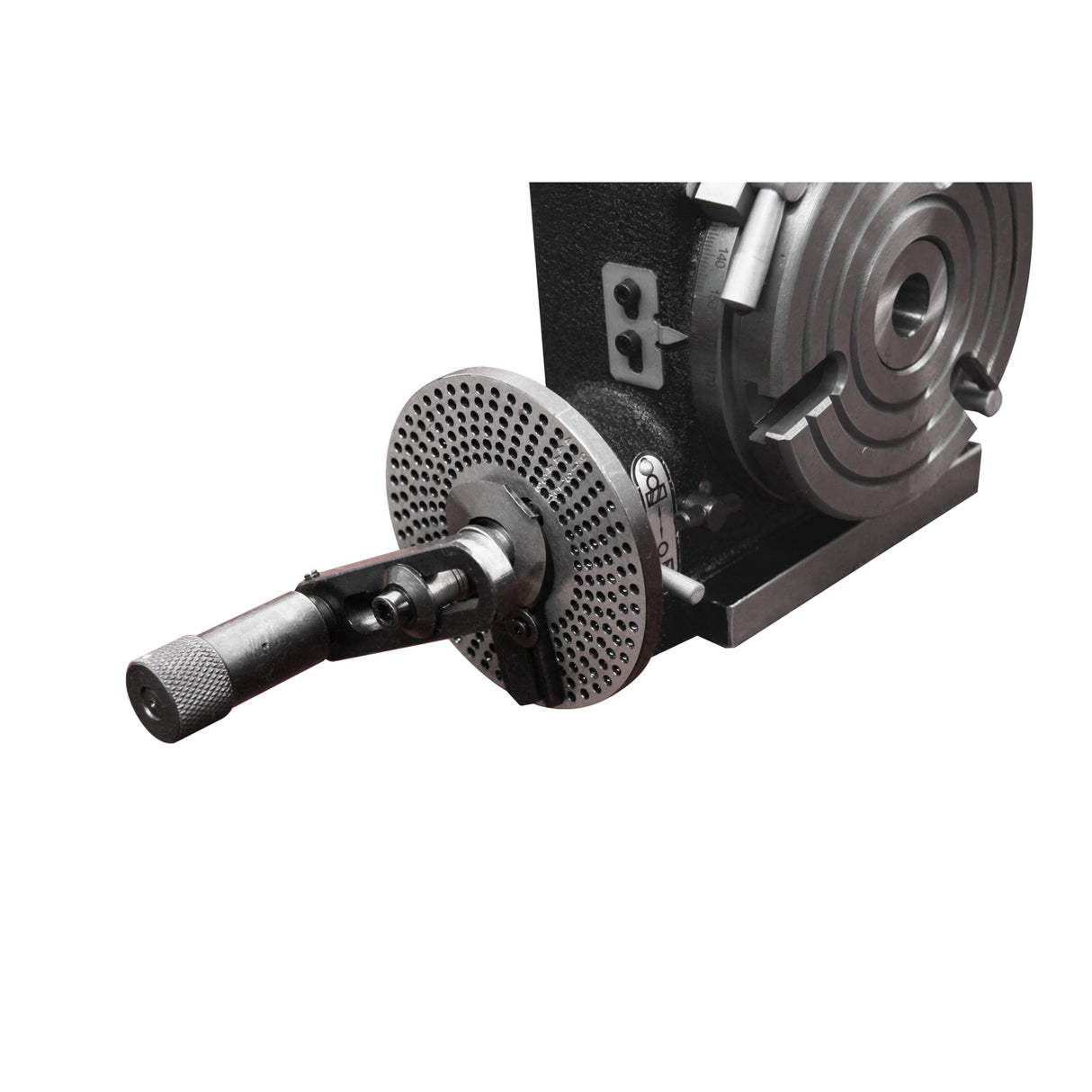

The KANG Dividing Plate Set DP-2 is an essential accessory designed specifically for the rotary table, HV-8, HV-10 & HV-12, enhancing its capabilities for precise indexing in machining applications. This set allows users to perform accurate angular divisions, making it ideal for tasks such as gear cutting, milling flutes, or creating polygonal shapes on workpieces. It includes two indexing plates (A and B) with a variety of hole configurations to support a broad range of division options, along with additional components like a crank handle, screws, sector, and U-washer for easy setup and operation. Plate A features hole counts of 26, 28, 30, 32, 34, 37, 38, 39, 41, 43, 44, 46, 47, 49, 51, 53, 57, and 59, while Plate B typically complements with additional patterns for even more versatility.
Precision and Versatility Indexing Plate. Enables exact divisions with multiple hole patterns on two plates, supporting a wide array of indexing needs for complex machining projects, which is especially useful in DIY and industrial sectors.
Enhanced Compatibility. Seamlessly integrates with the popular HV-8, HV-10 & HV-12 rotary tables, allowing users to upgrade existing equipment without needing full replacements.
Durability and Build Quality Milling Accessory. Constructed from robust materials suitable for heavy-duty use, ensuring long-term performance in harsh workshop conditions common in Australian manufacturing and mining industries.
Ease of Use Indexing Plate Set. Comes with essential accessories like a crank handle and sector for straightforward installation and operation, reducing setup time and making it accessible for both beginners and experts.
Features

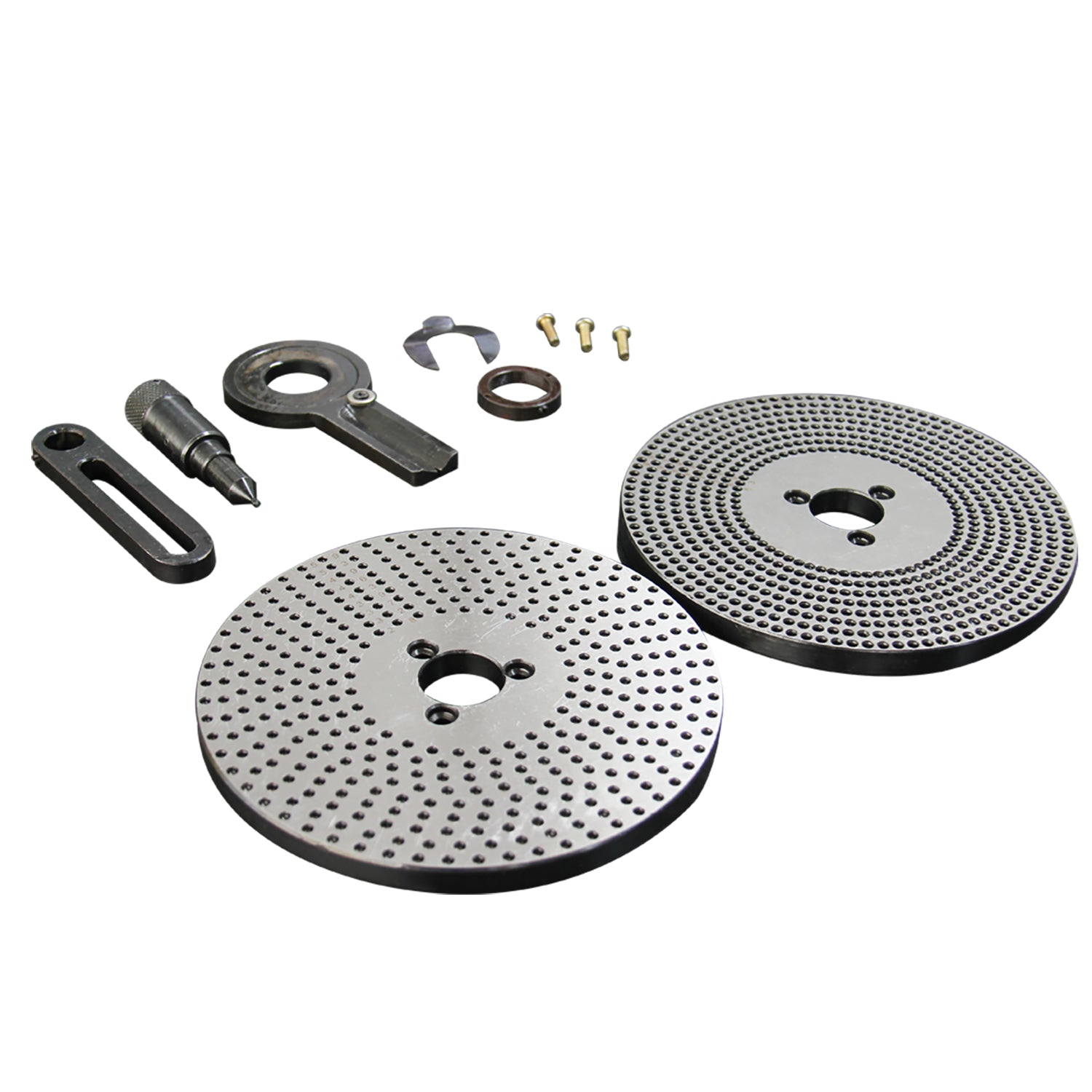

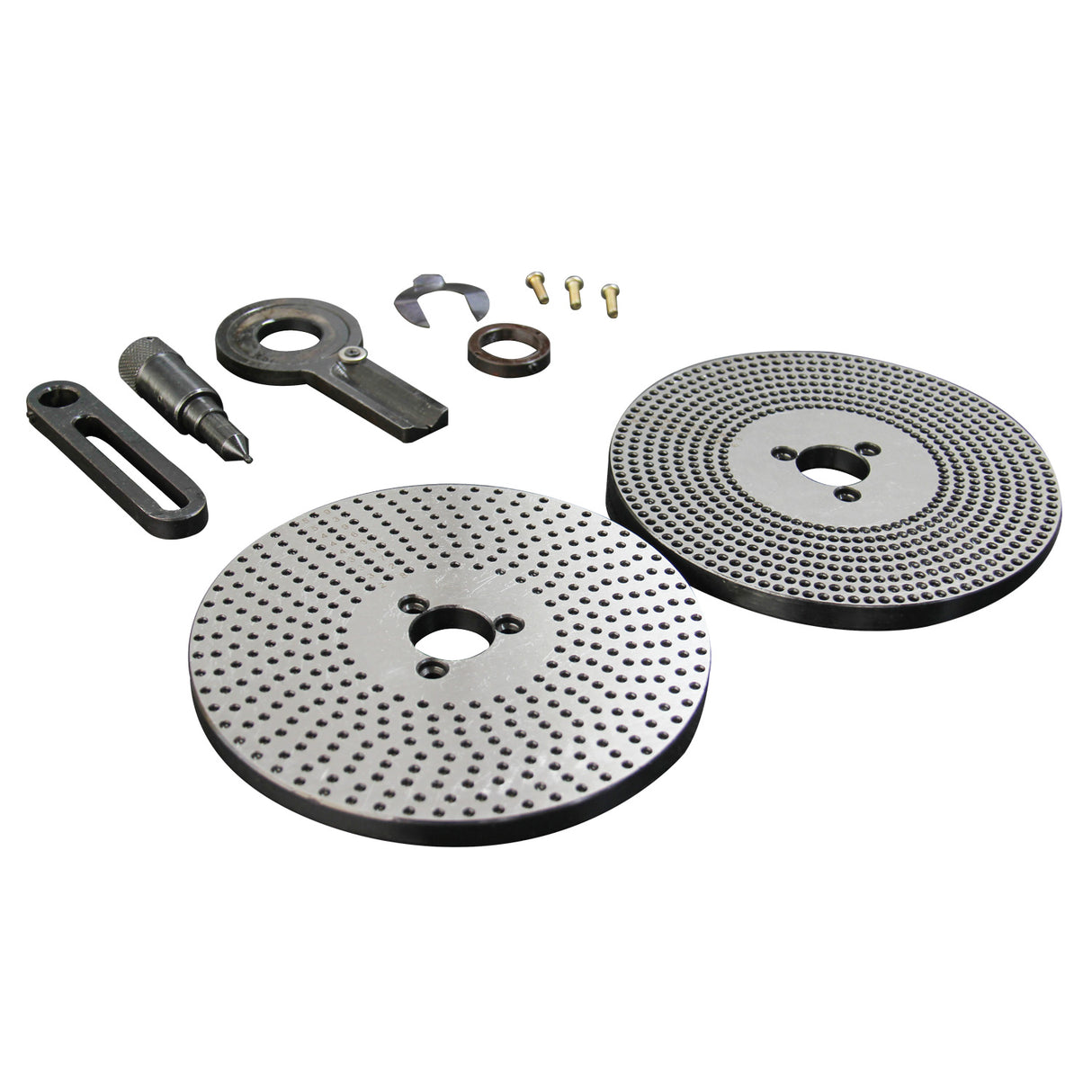

The indexing plate includes 2 pcs of index plate, 1 pc of crank, 3 pcs of screw, 1 pc of U washer
The indexing plate is made from cast iron to be more durable
Suit KANG INDUSTRIAL HV-8, HV10 & HV-12
Number of holes on the dividing plates
A Plate: 26, 30, 34, 38, 41, 44, 47, 51, 57
A Plate: 28, 32, 37, 39, 43, 46, 49, 53, 59
B Plate: 61, 67, 71, 77, 81, 87, 91, 97
B Plate: 63, 69, 73, 79, 83, 89, 93, 99
SKU: 161002
