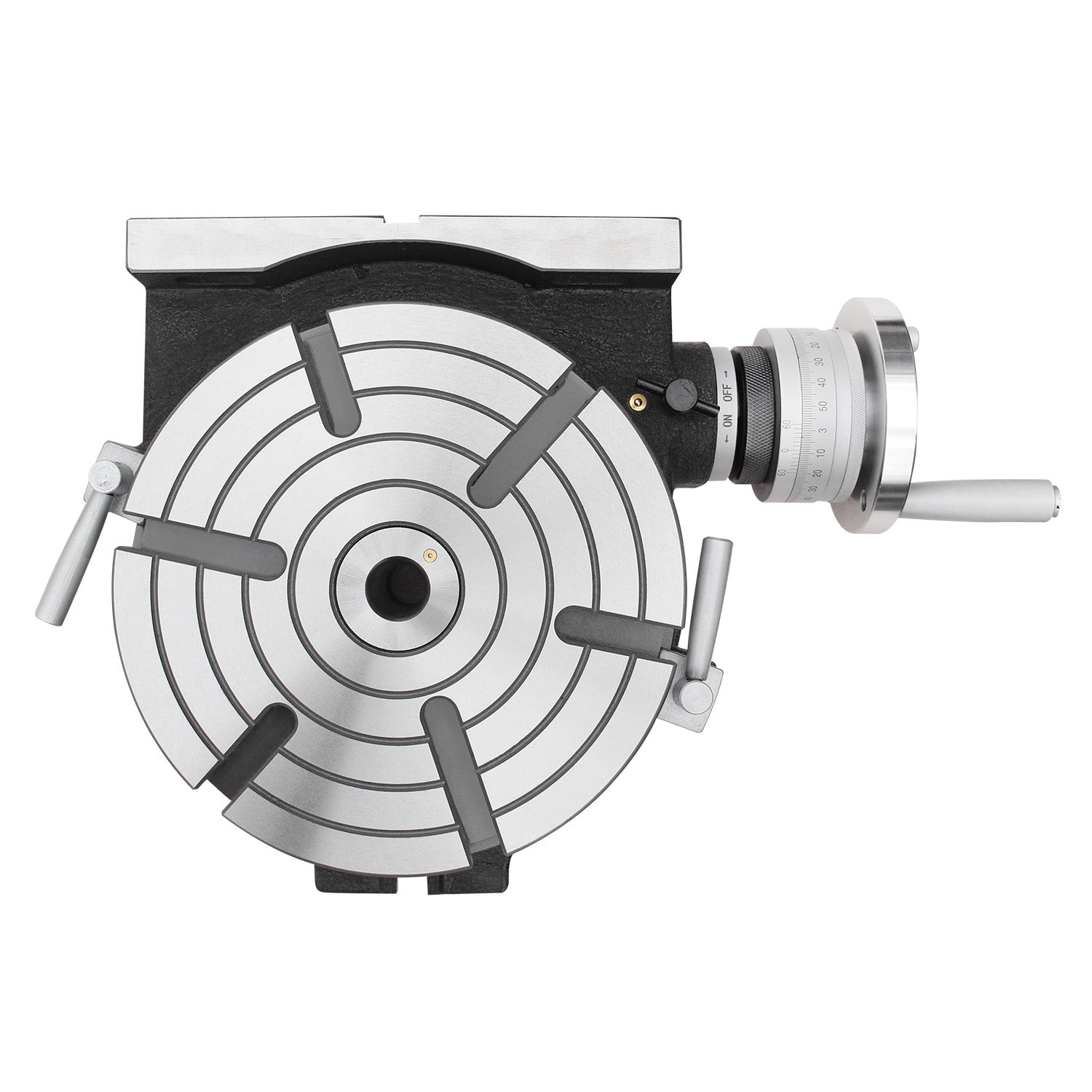

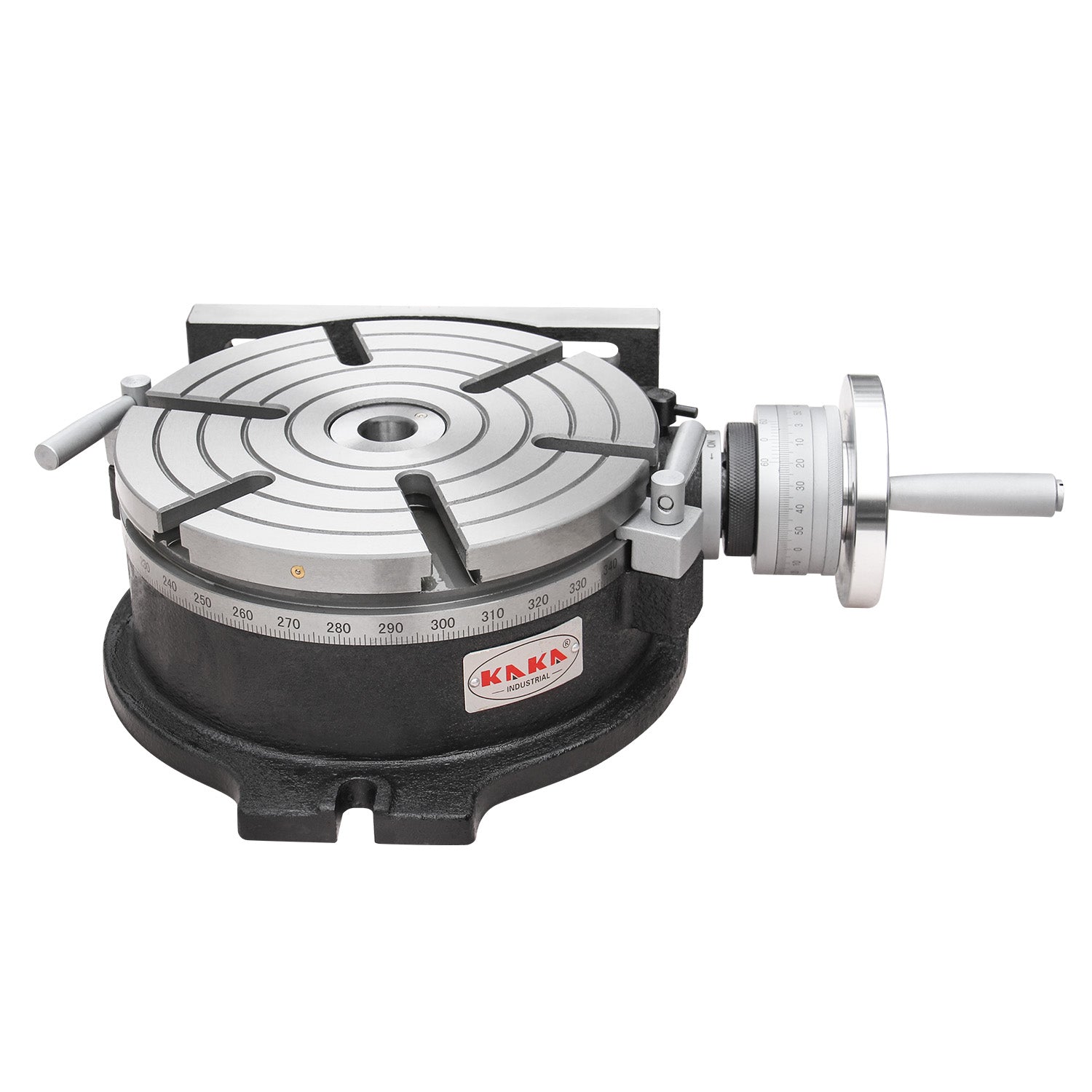

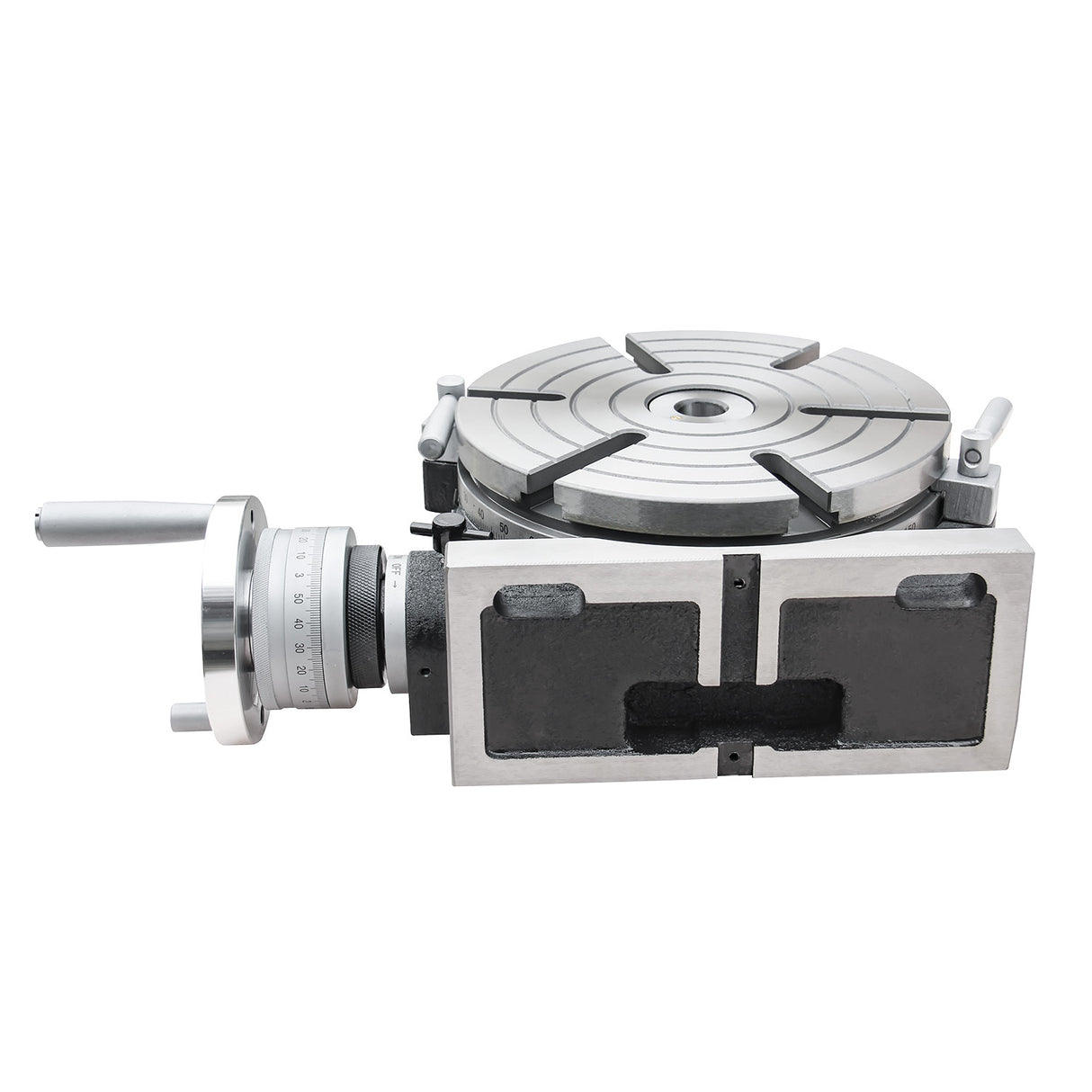

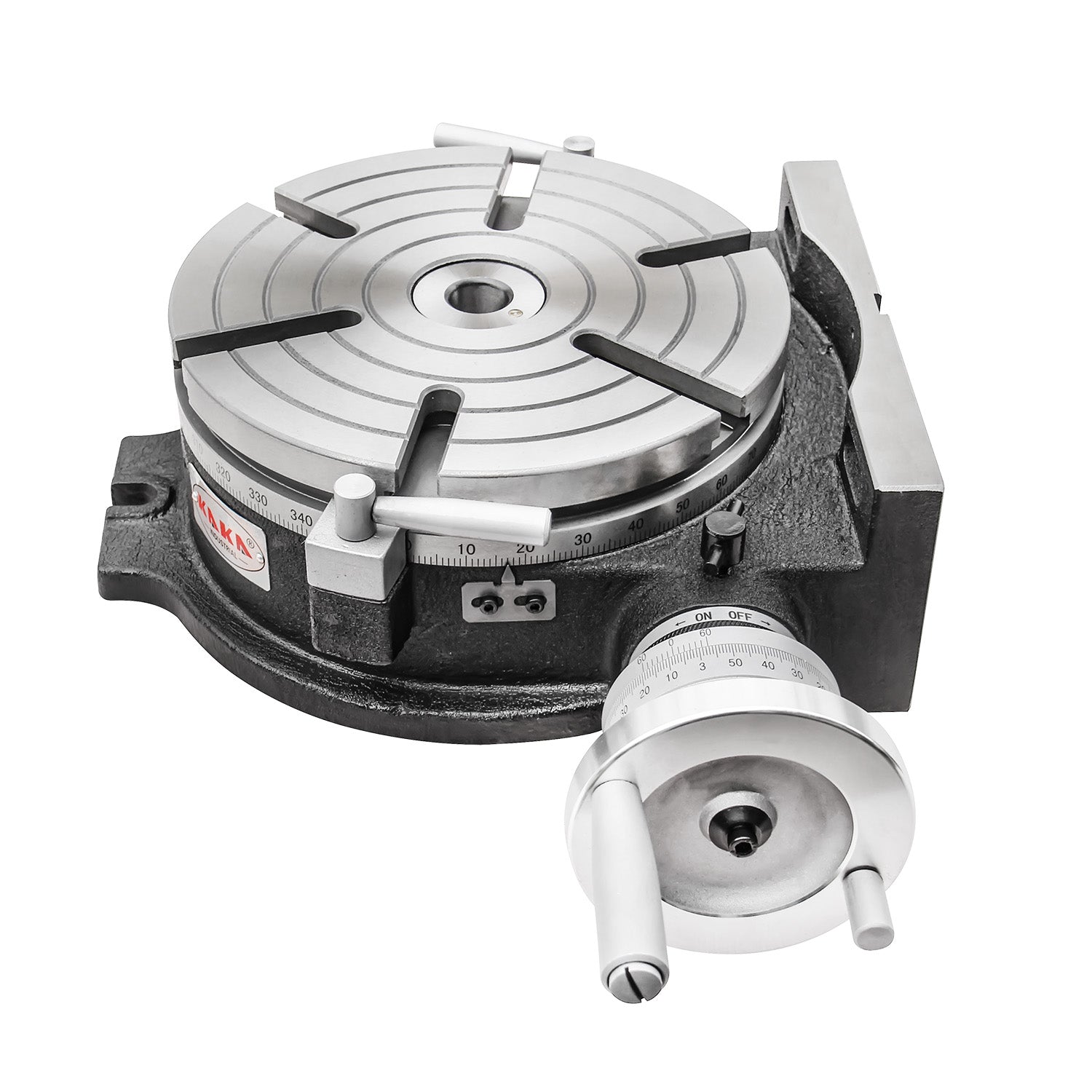

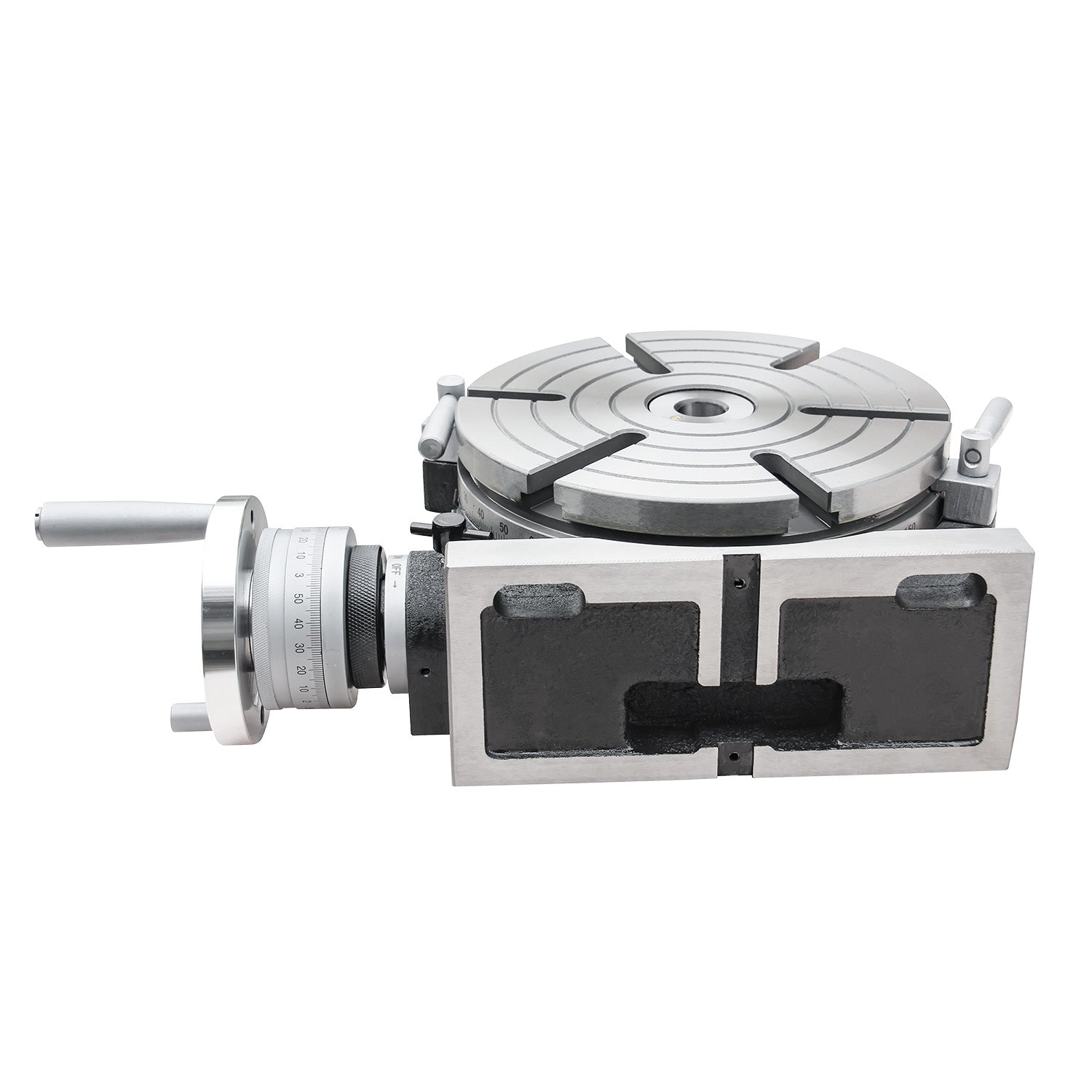

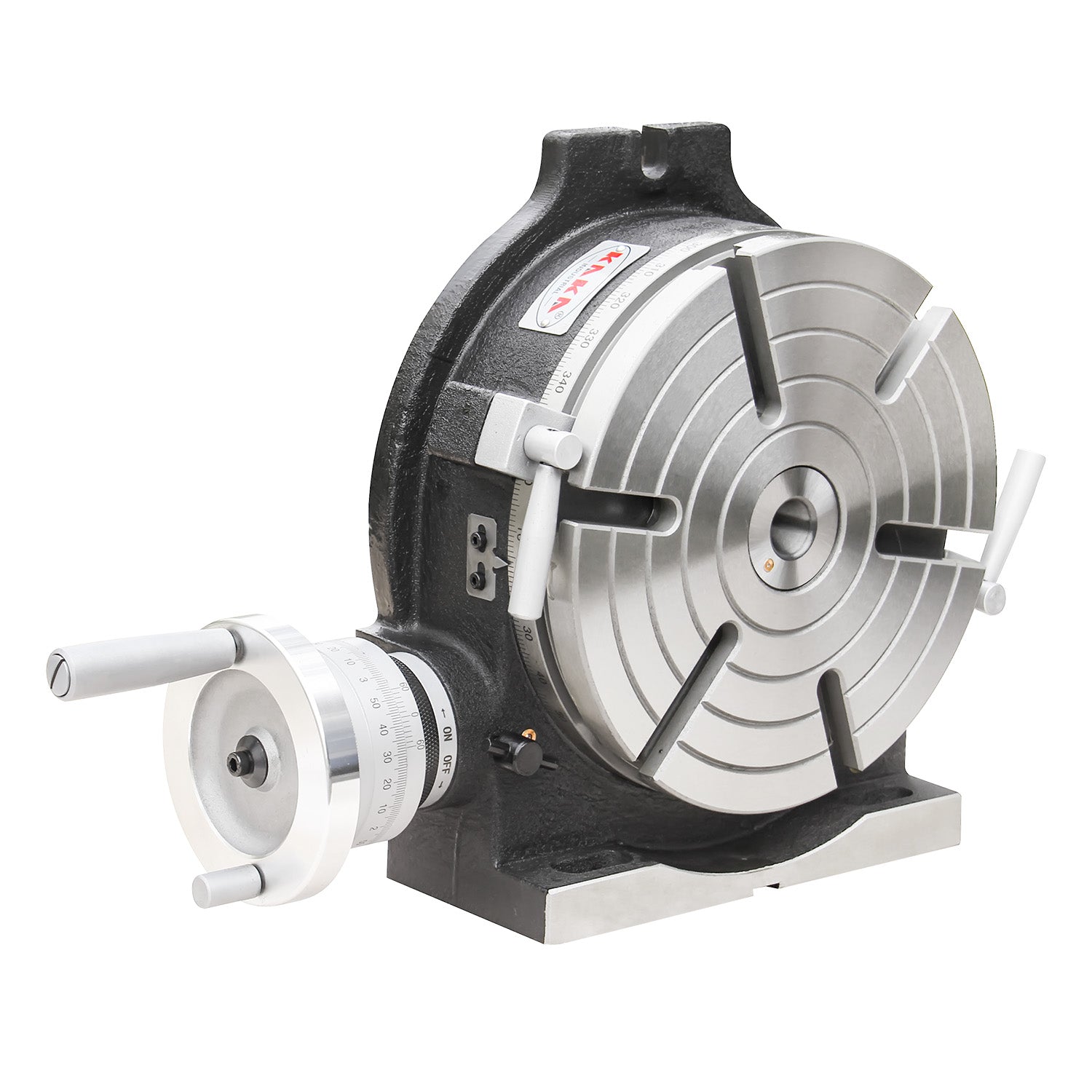

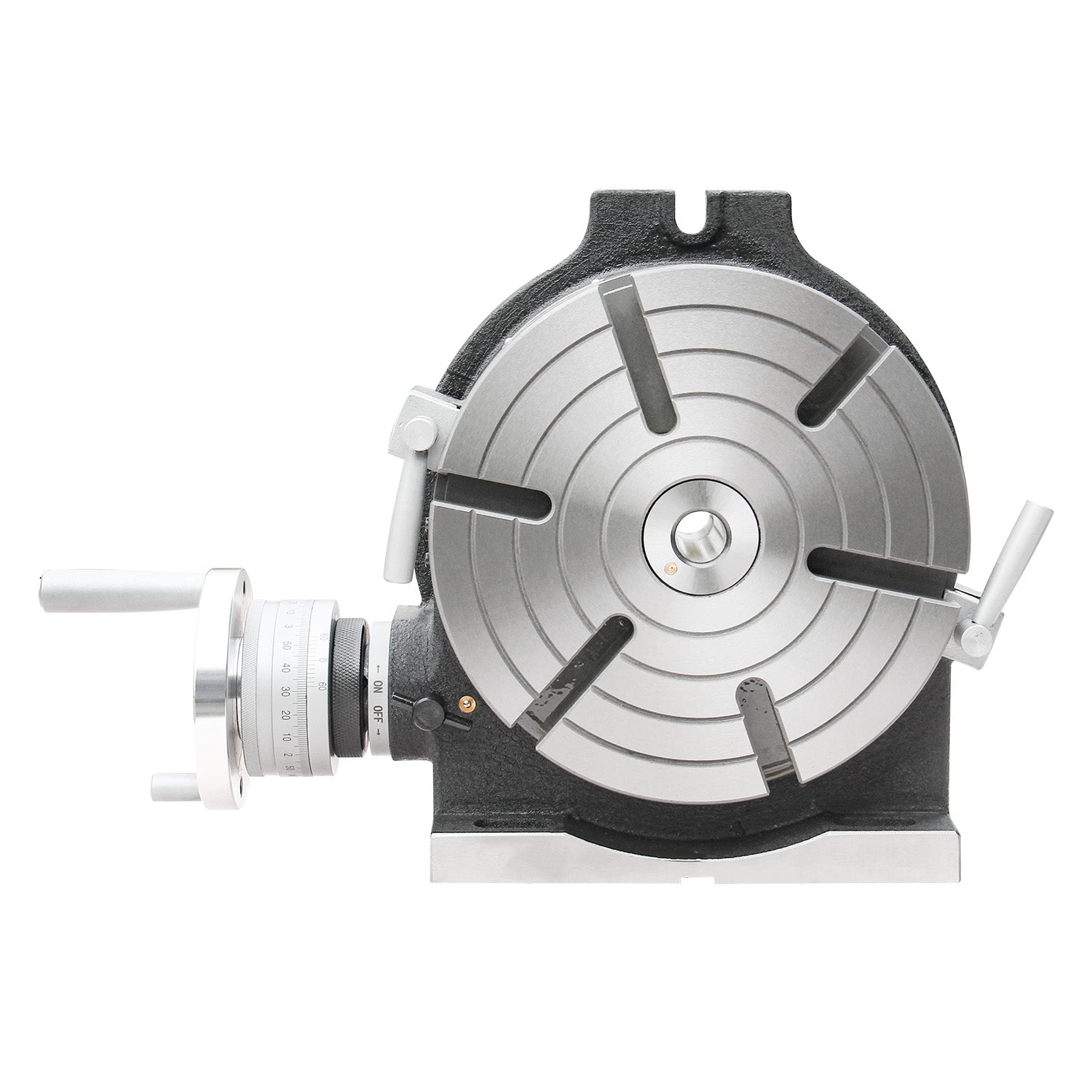

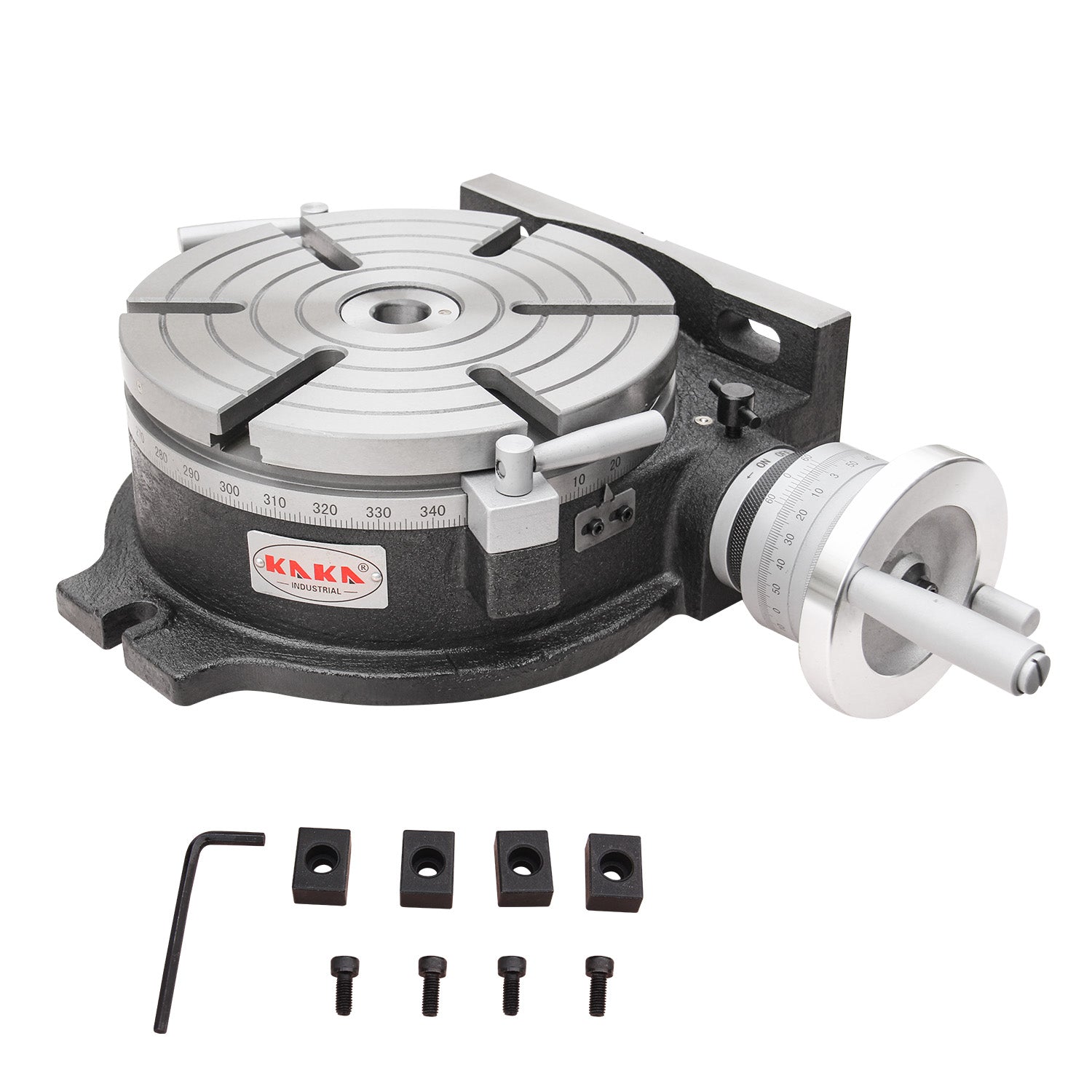

Kang Industrial Horizontal & Vertical Rotary Table
OD250mm table
Features
Suitable for milling and drilling works
MT3 Spindle taper

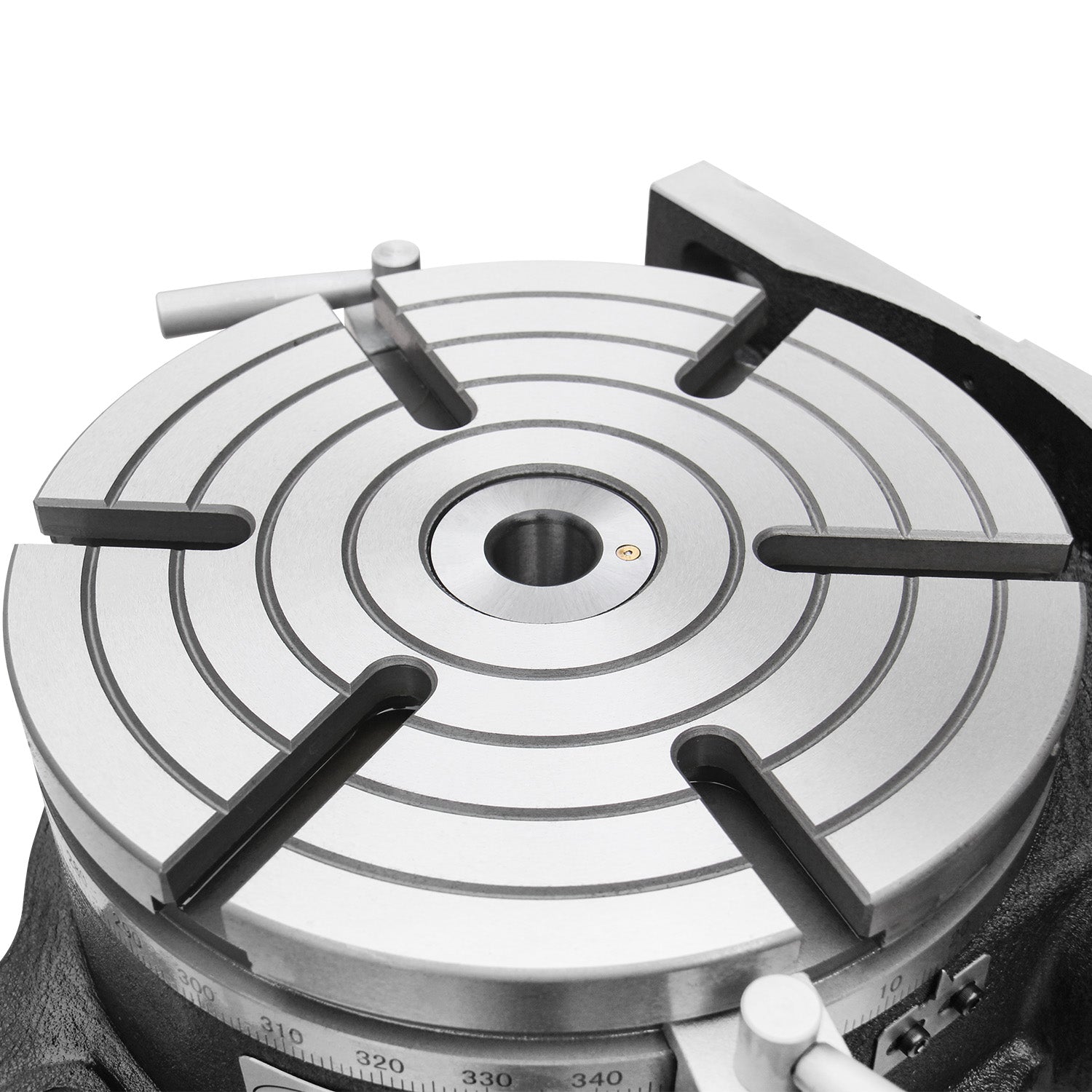

Table made of high-quality cast iron, sturdy structure
Hardened and grounded worm shaft
2 clamping lever for clamping of the table

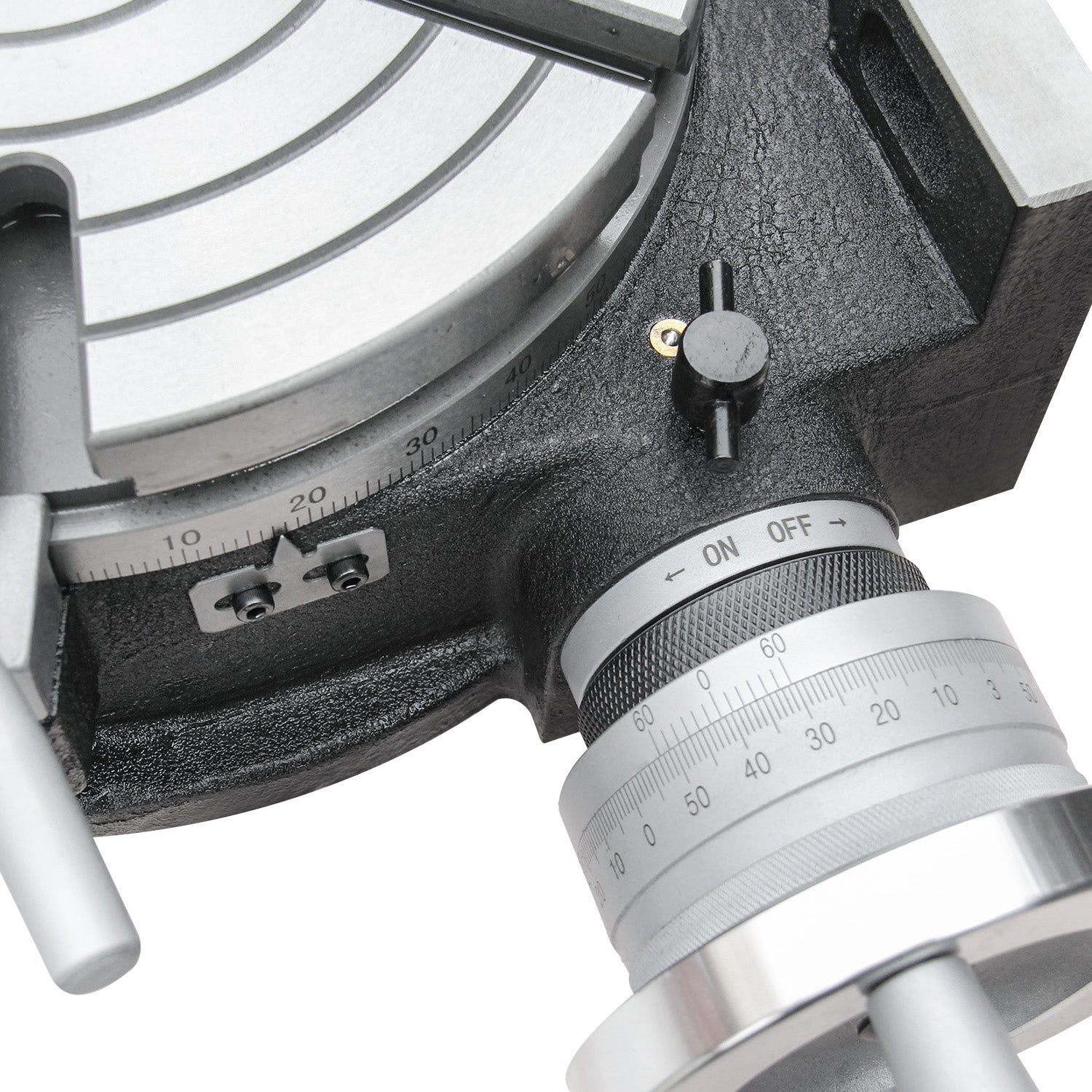

Direct indexing via 360° scale mounted on the table

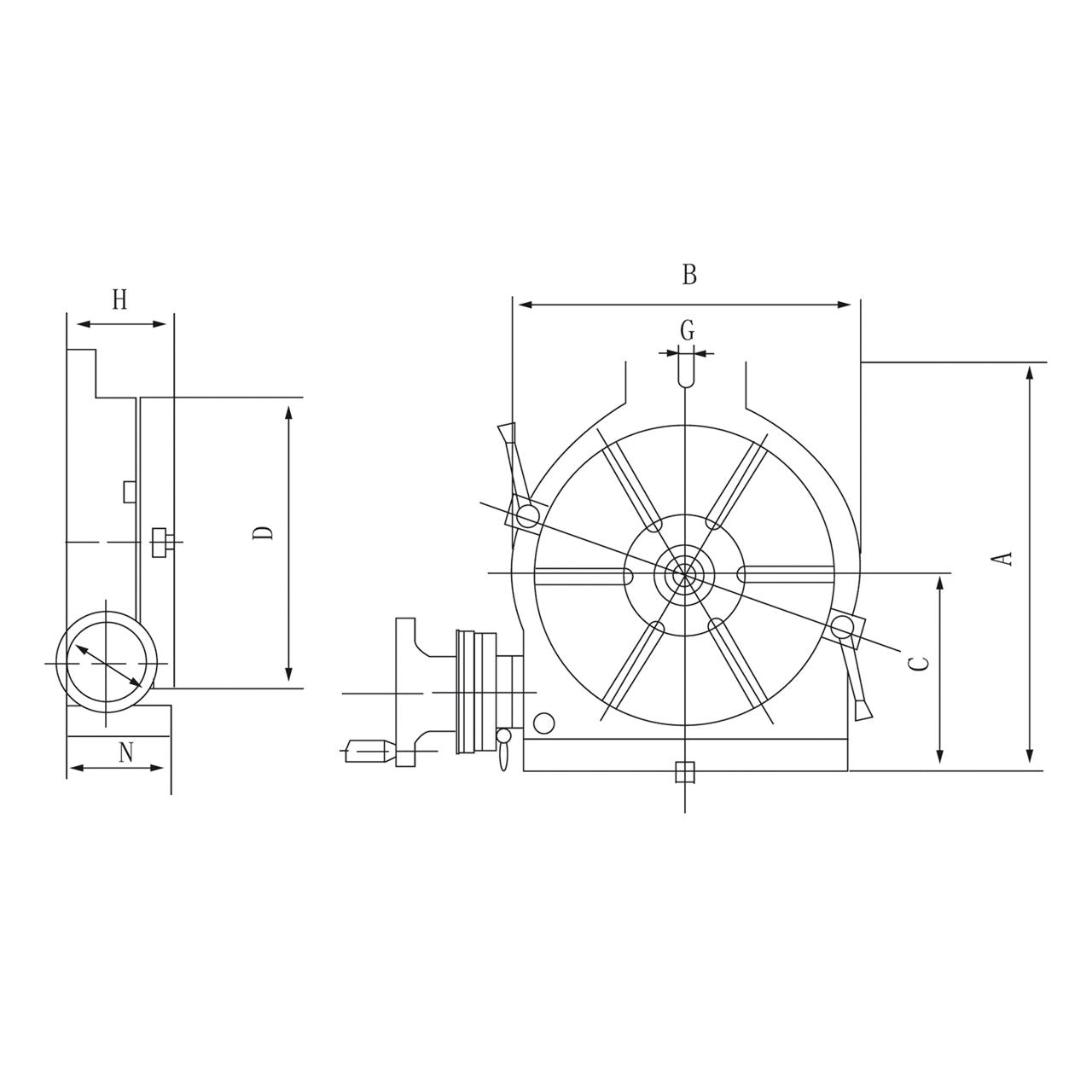

| A | B | C | D | E | G | H | N |
| 325 mm | 280 mm | 165 mm | 250 mm | 16 mm | 17 mm | 115 mm | 113 mm |
Specifications
| SKU | 161110 |
| Model | HV-10 |
| Table dia. | 250 mm |
| Morse taper of the center hole | MT3 |
| Height of center | 165 mm |
| Width of T slot | 12 mm |
| Adjacent angle of T slot | 60° |
| Width of the locating key | 16 mm |
| Modules of worm and worm gear | 2 |
| Transmission ratio of the worm gear | 1:90 |
| Graduation of the table | 360 ° |
| Rotating angle of the table with one revolution of the worm | 4” （1‘ per graduation) |
| Min. value of vernier | 10" |
| Indexing accuracy | 60" |
| Max. loading (Table horizontal) | 200 kg |
| Max. loading (Table vertical) | 100 kg |
| Packing size | 43x35x18 cm |
| N.W./G.W. | 43/45 kg |
