Kang Industrial Horizontal Vertical Collet Index

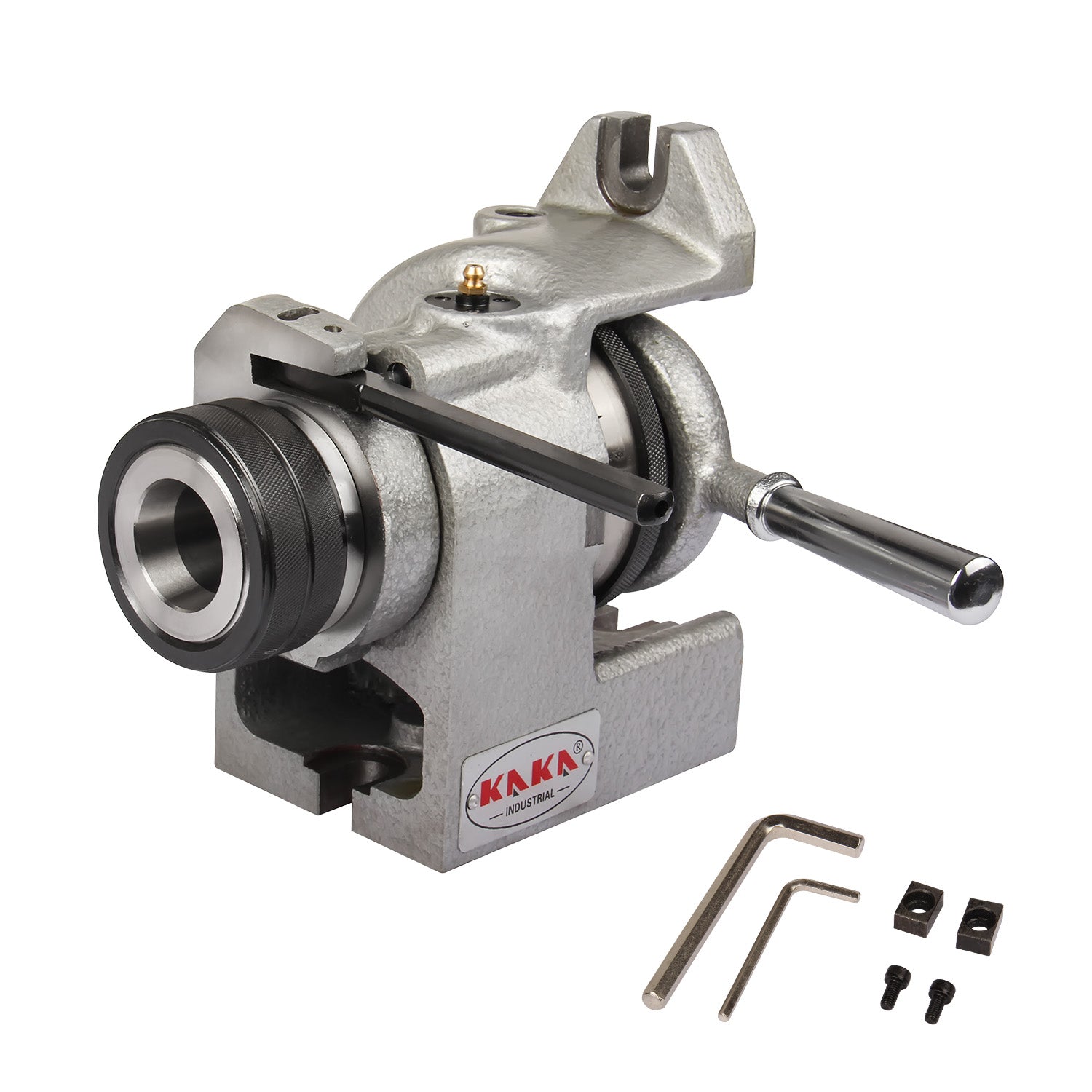

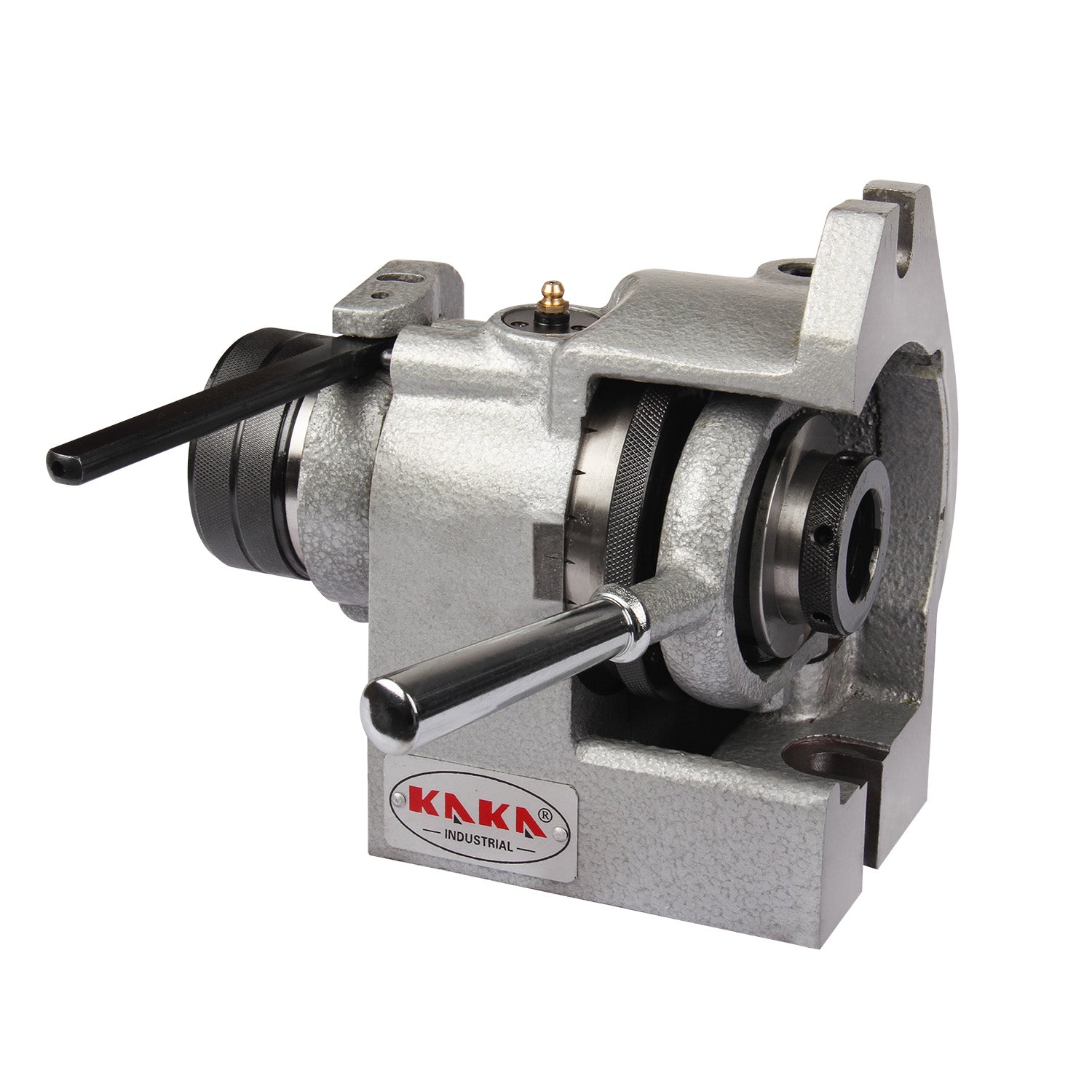

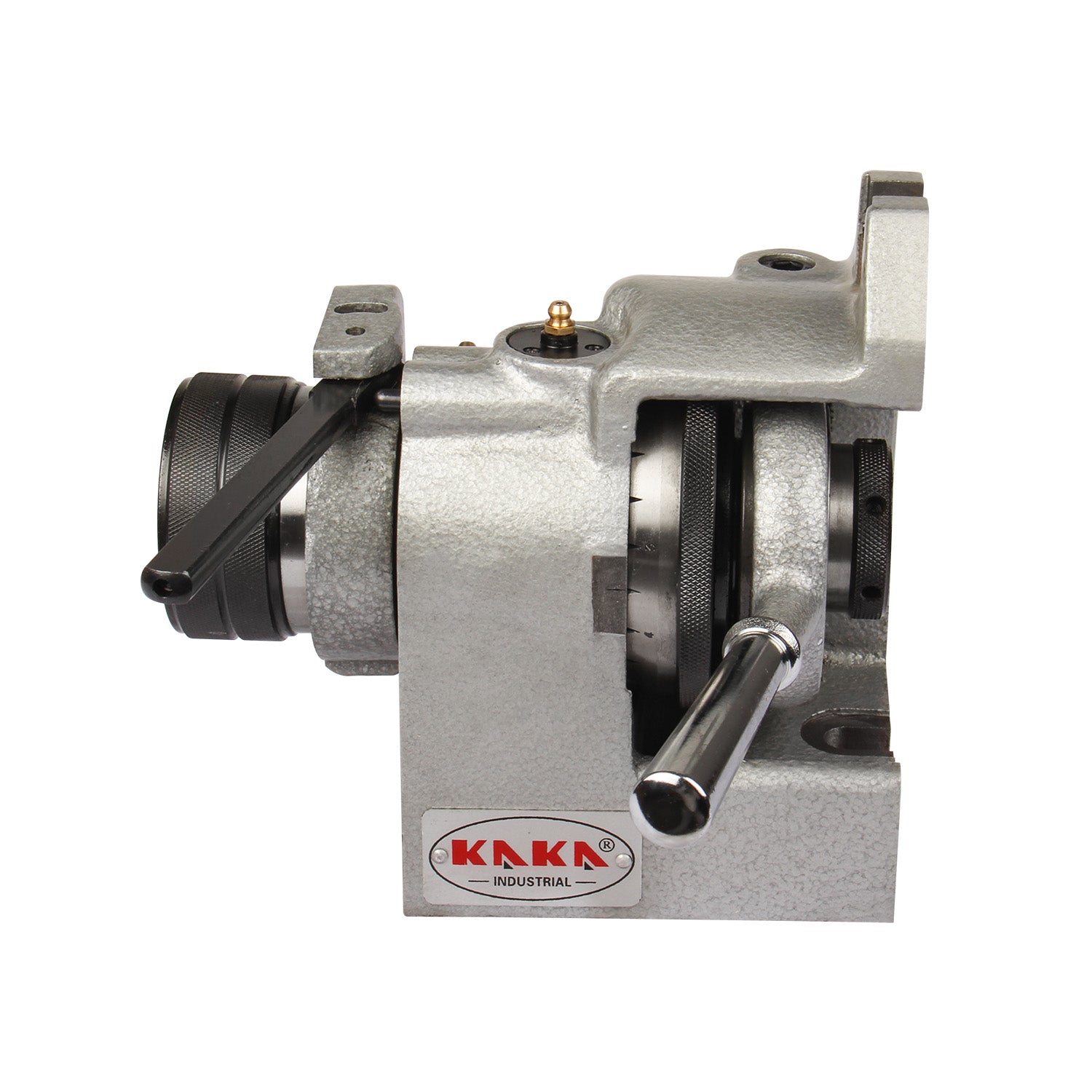

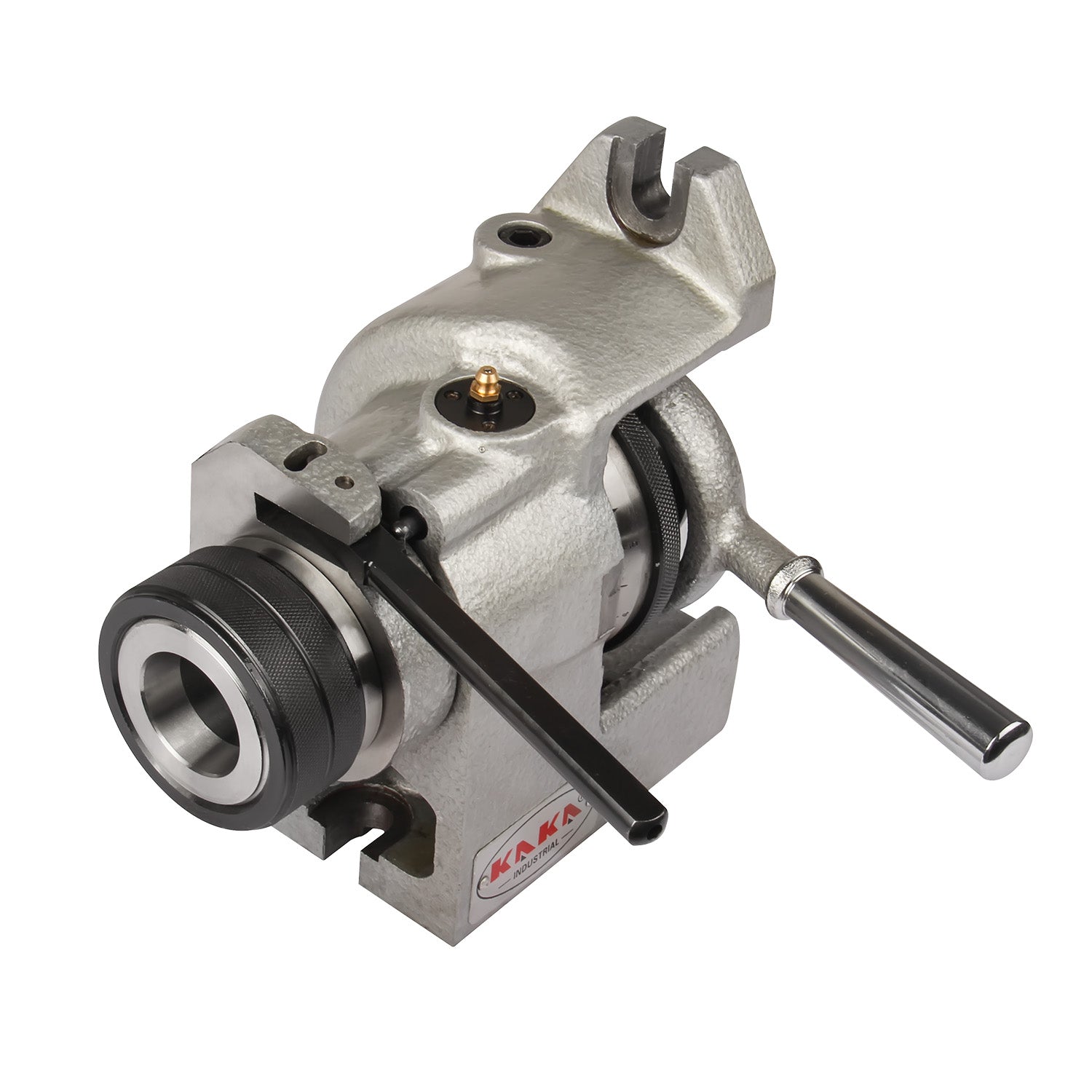

The KANG 5C Horizontal/Vertical Collet Index FNL100B is a precision collet indexer designed for accurate workpiece positioning in milling, drilling, grinding, and inspection tasks. It supports both horizontal and vertical orientations, utilizing standard 5C collets (Sold separately) for secure holding of round, hex, or square stock. The tool features a hardened and ground threaded spindle (24-8 TPI) with a taper seat in the body frame for enhanced rigidity and concentricity. A patented single-lever action activates the indexing mechanism, paired with a convenient front-mounted ratchet for rapid indexing. The precision-ground index plate provides 24 fixed positions at 15-degree increments, with the ability to mask off locations for customized divisions.
Superior Precision at Entry-Level Price Indexing Tools. Delivers tight tolerances for professional-grade results, ideal for hobbyists, apprentices, and small workshops seeking accuracy without the cost of full semi-universal dividing heads.
Fast and User-Friendly Operation Indexing. Patented single-lever indexing and 100:1 leverage collet closer enable rapid setup and changes, saving time in busy or home-based Australian machining setups where efficiency matters.
Versatile Horizontal/Vertical Index Use: Easily switches orientations for diverse tasks like milling flats, drilling bolt circles, or grinding, fitting well in space-constrained garages or mobile workshops.
Compact and Durable Build: At 15 kg and sturdy construction, it's easy to store/move and built to withstand variable workshop conditions (dust, humidity).
Quick Indexing for Common Tasks. 24-position plate (15° steps) covers most everyday divisions (e.g., hex, square, octagon), with masking for custom needs — perfect for trades like toolmaking, prototyping, or restoration work Down Under.
Features
Indexing Positions: 24 at 15° increments
Spindle: Hardened/ground, threaded 2-1/4"-8 TPI, taper seat
Height to Spindle Center: 101.6 mm (from base)

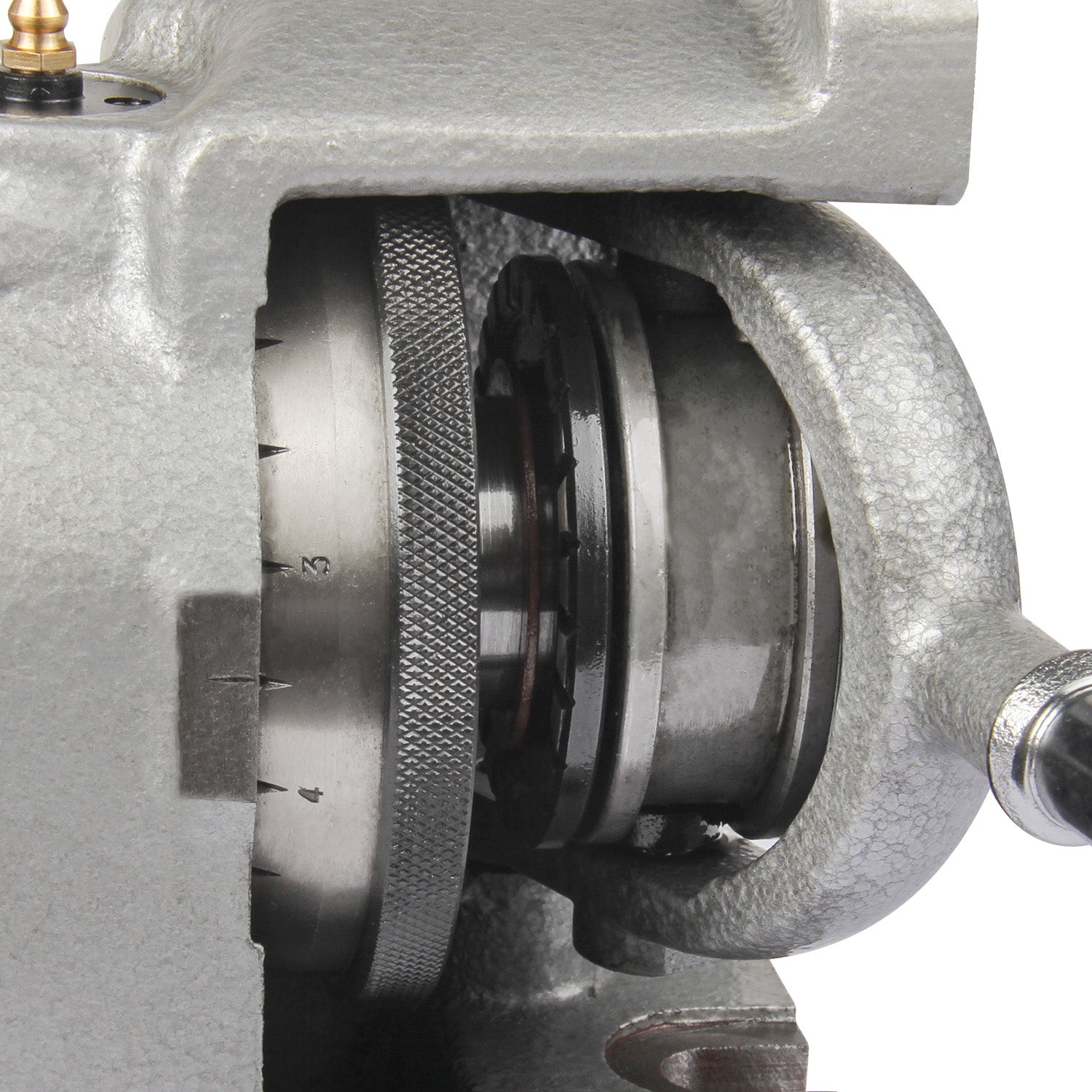

Furnished with a 24-space indexing plate, with indexing specifications of 2, 3, 4, 6, 8, 12, and 24

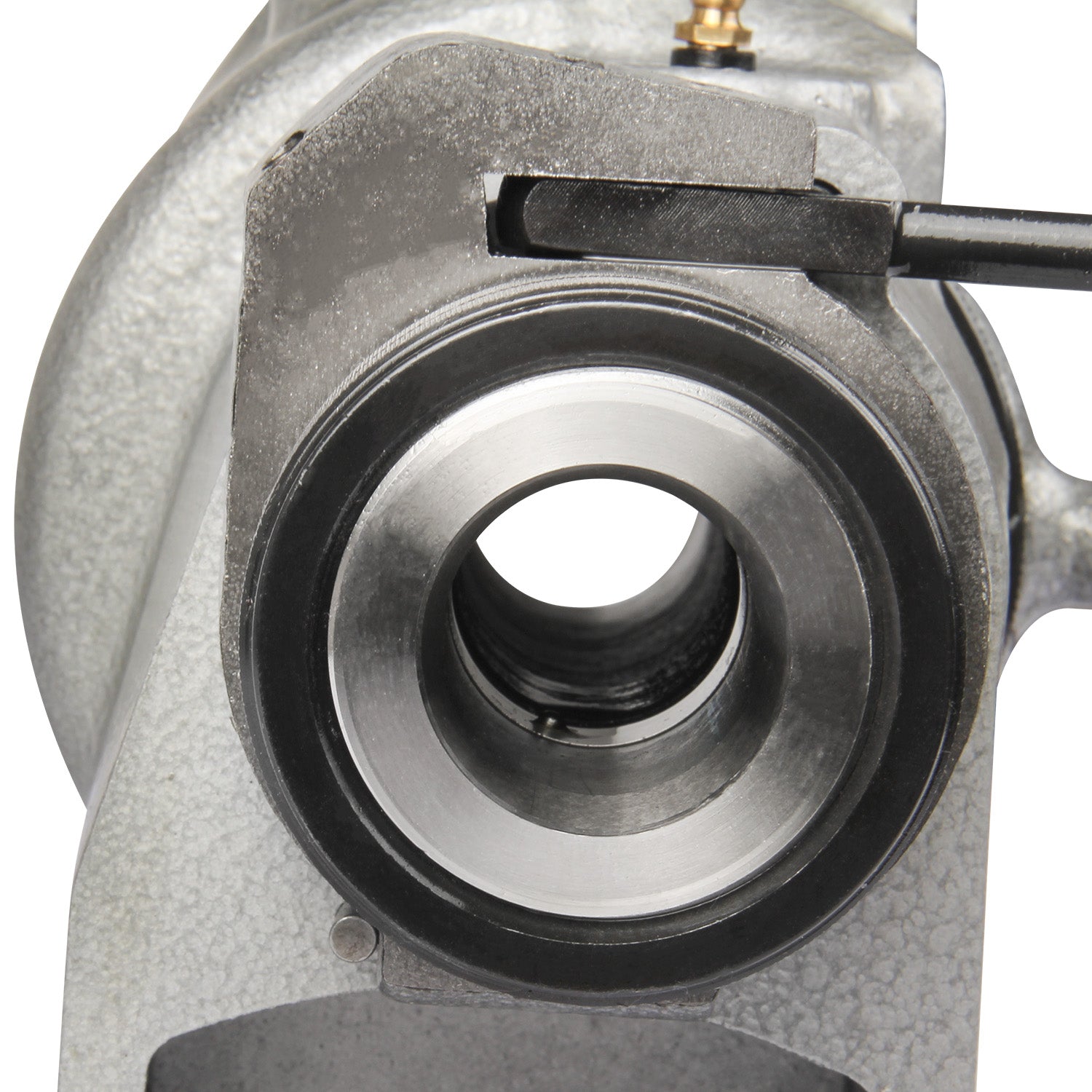

Utilize 5C collets (standard, not included)
Single lever action activates the indexing mechanism
A convenient ratchet mounted on the front of the spindle provides rapid indexing
Specifications
| SKU | 162325 |
| Model | FNL100B |
| Center height | 101.6 mm |
| Min. ID of spindle | ø 31.75 mm |
| Divisions | 2、3、4、6、8、12、24 |
| Spindle screw | 2-1/4x8 |
| Collet Type | 5C (Standard, not included) |
| Dividing accuracy | ±3' |
| Packing size | 29x26x26 cm |
| N.W./G.W. | 12/15 kg |
