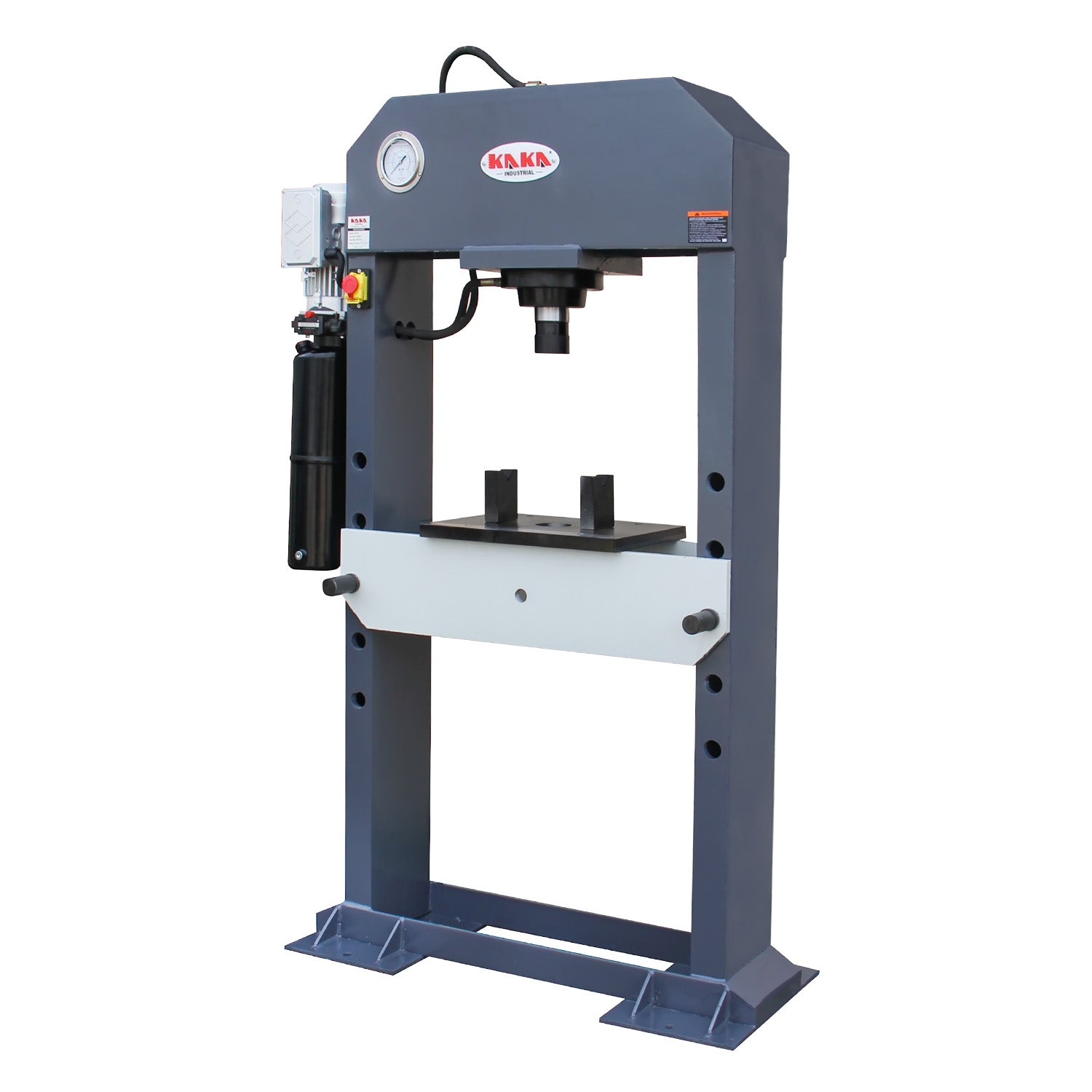

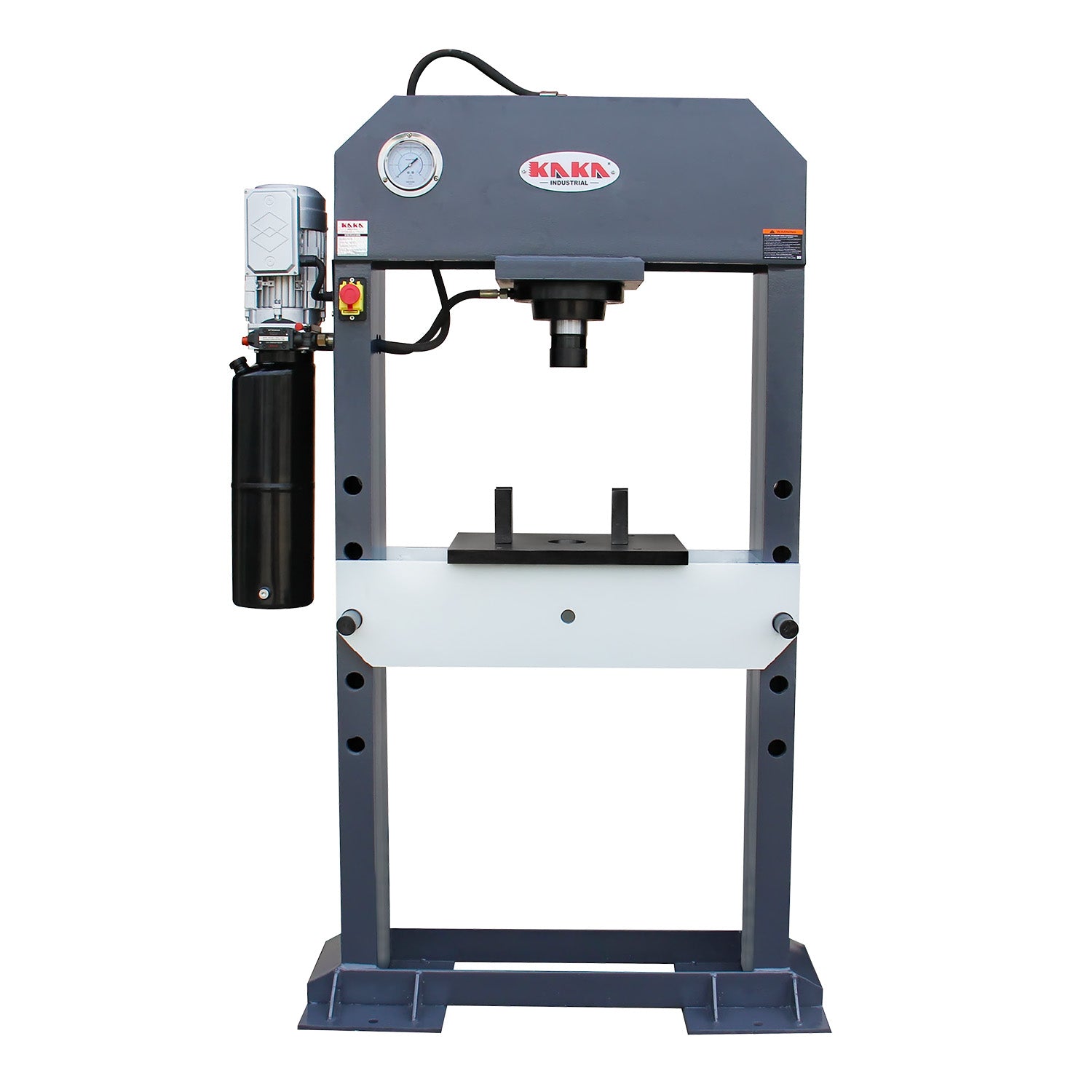

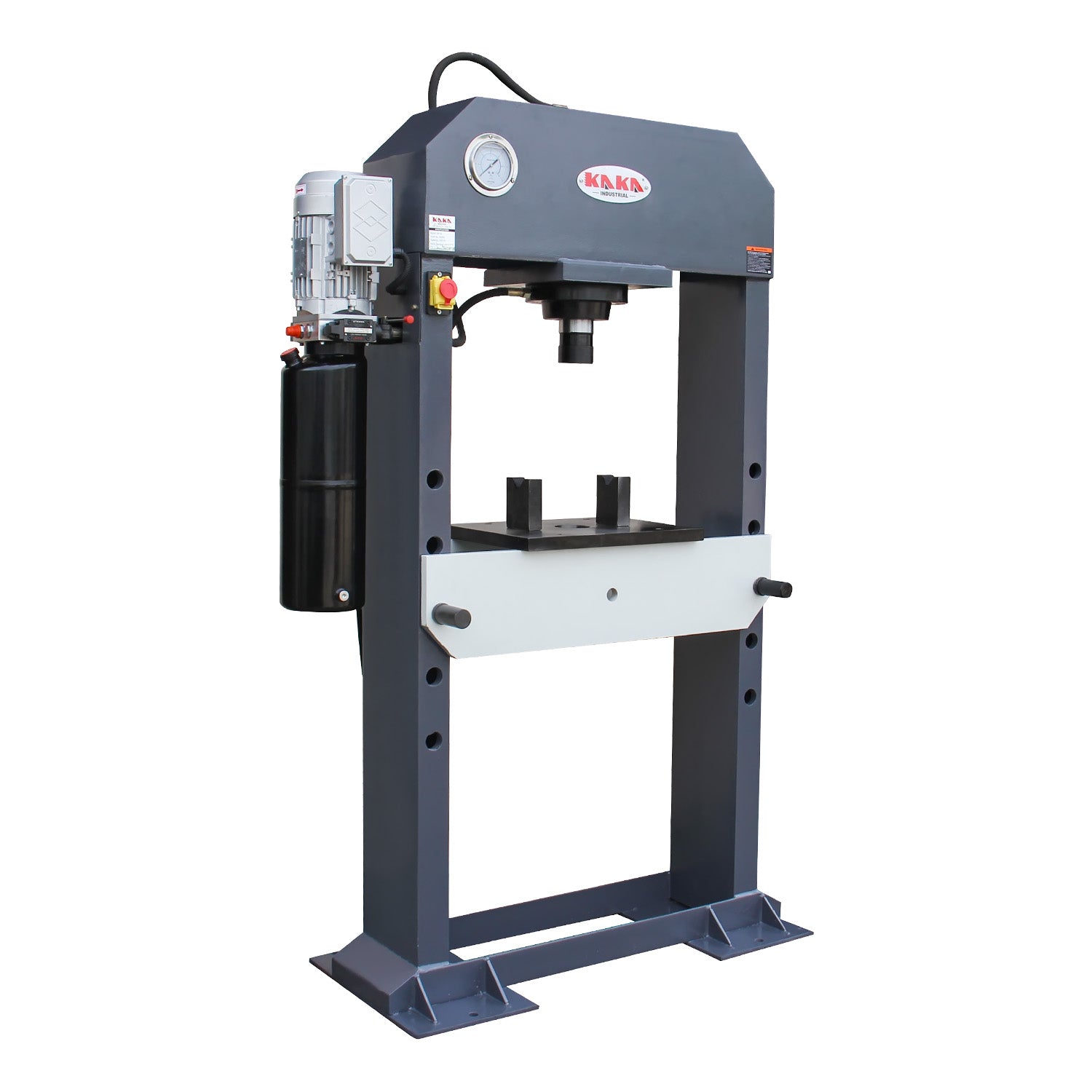

KANG INDUSTRIAL HP-50 Hydraulic Workshop Press
50T pressure, 2 pcs V-Blocks
Features
50-ton Capacity motorized hydraulic press

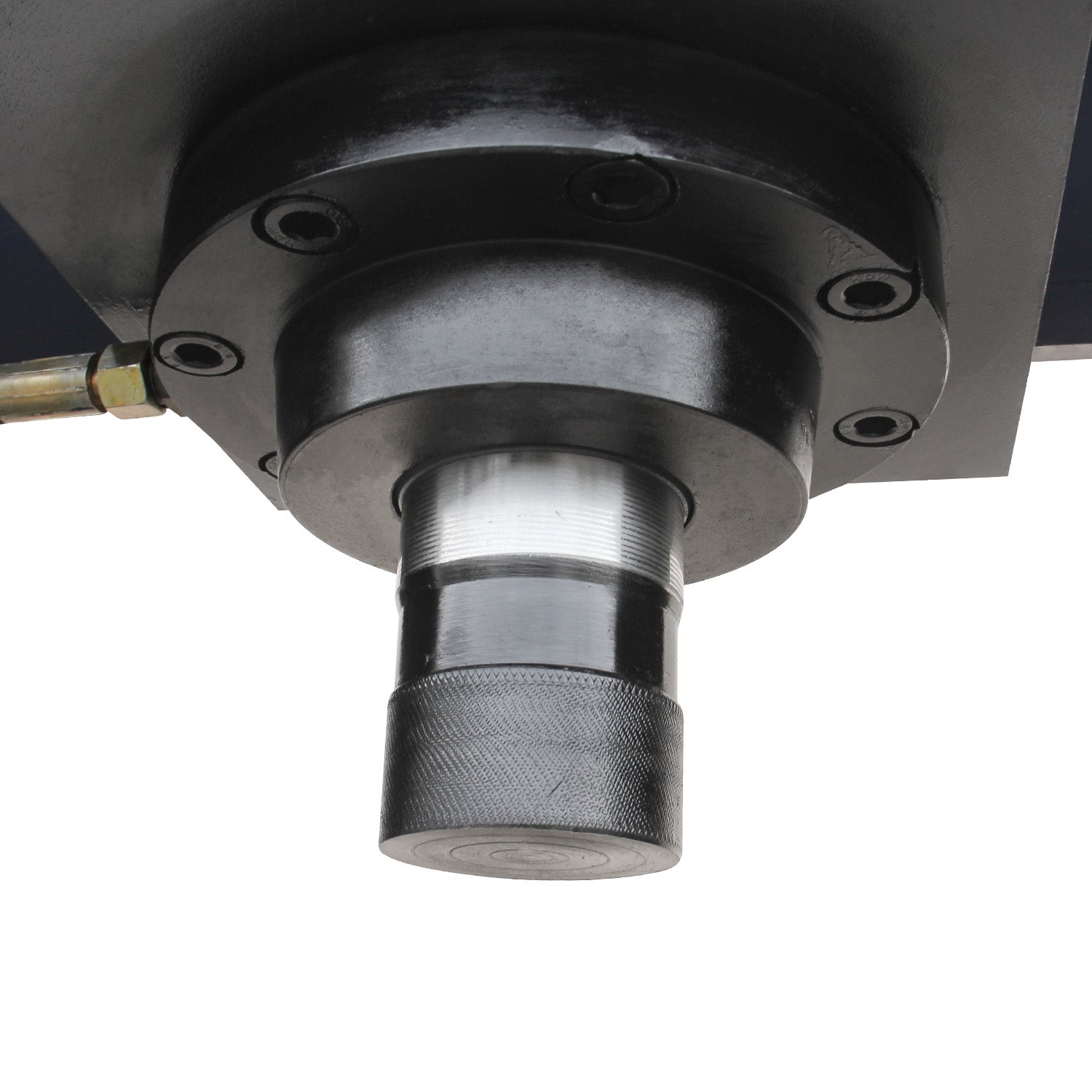

Fixed central cylinder delivers 25 MPA pressure
Fully welded steel frame, robust structure workshop press
Distance between uprights, 800 mm
Dual speed control with manual direction valve

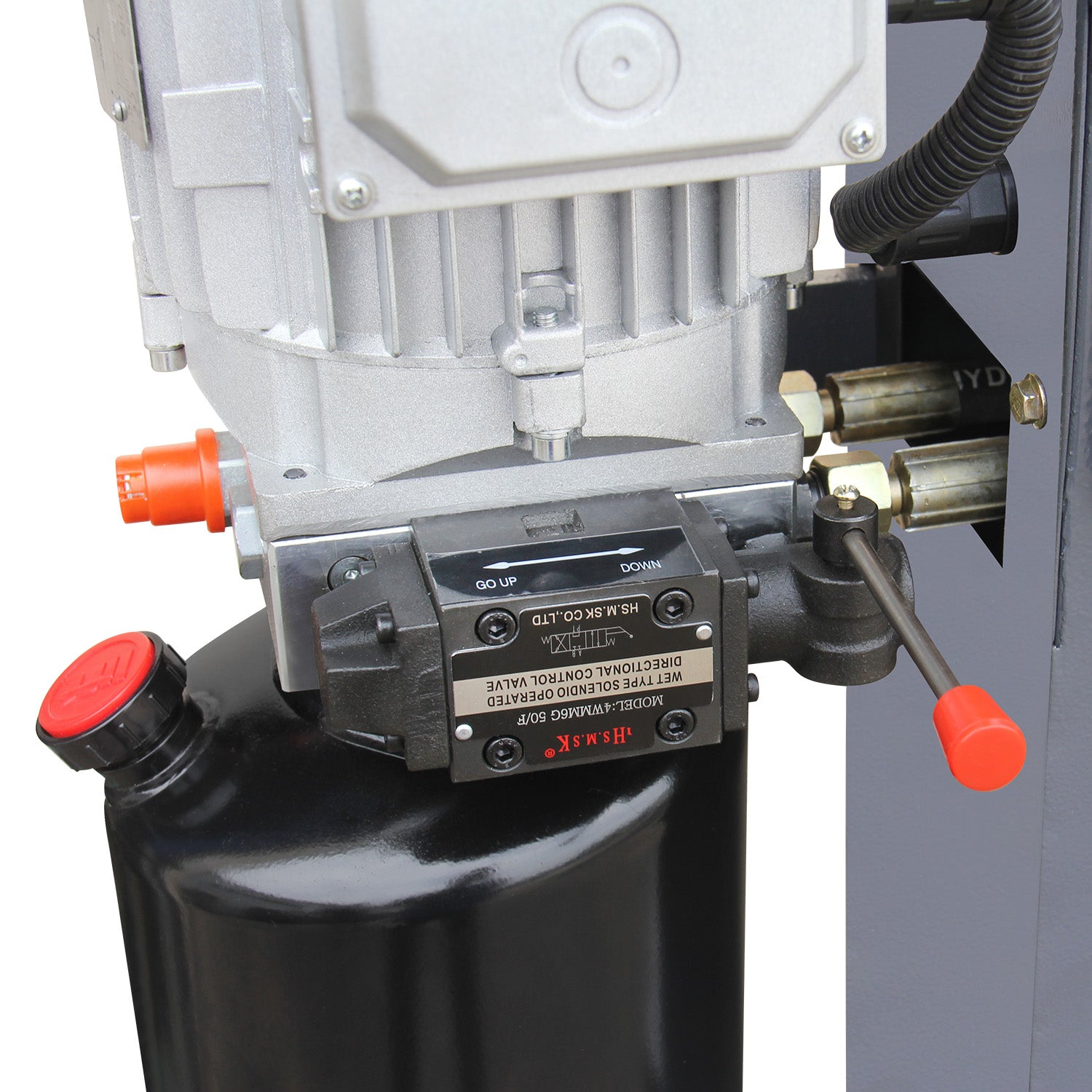

Gear pump with 12L hydraulic tank
Standard with a press gauge on the machine body
Specifications
| Model | HP-50 |
| Item ID. | 182002V240 |
| Capacity | 500 kN |
| Pressure | 25 Mpa |
| Hose Length | 500/500/600 |
| Reservoir Capacity | 12L |
| Max. Piston Stroke (mm) | 220 |
| Hydraulic Cylinder OD (mm) | 193 |
| Piston Rod Diameter (mm) | Piston 160 / Rod 80 |
| Piston Speed | Down 5.1 mm/s, Up 6.8 mm/s |
| Max. Distance: Ram to Table (mm) | 660 |
| Min. Distance: Ram to Table (mm) | 120 |

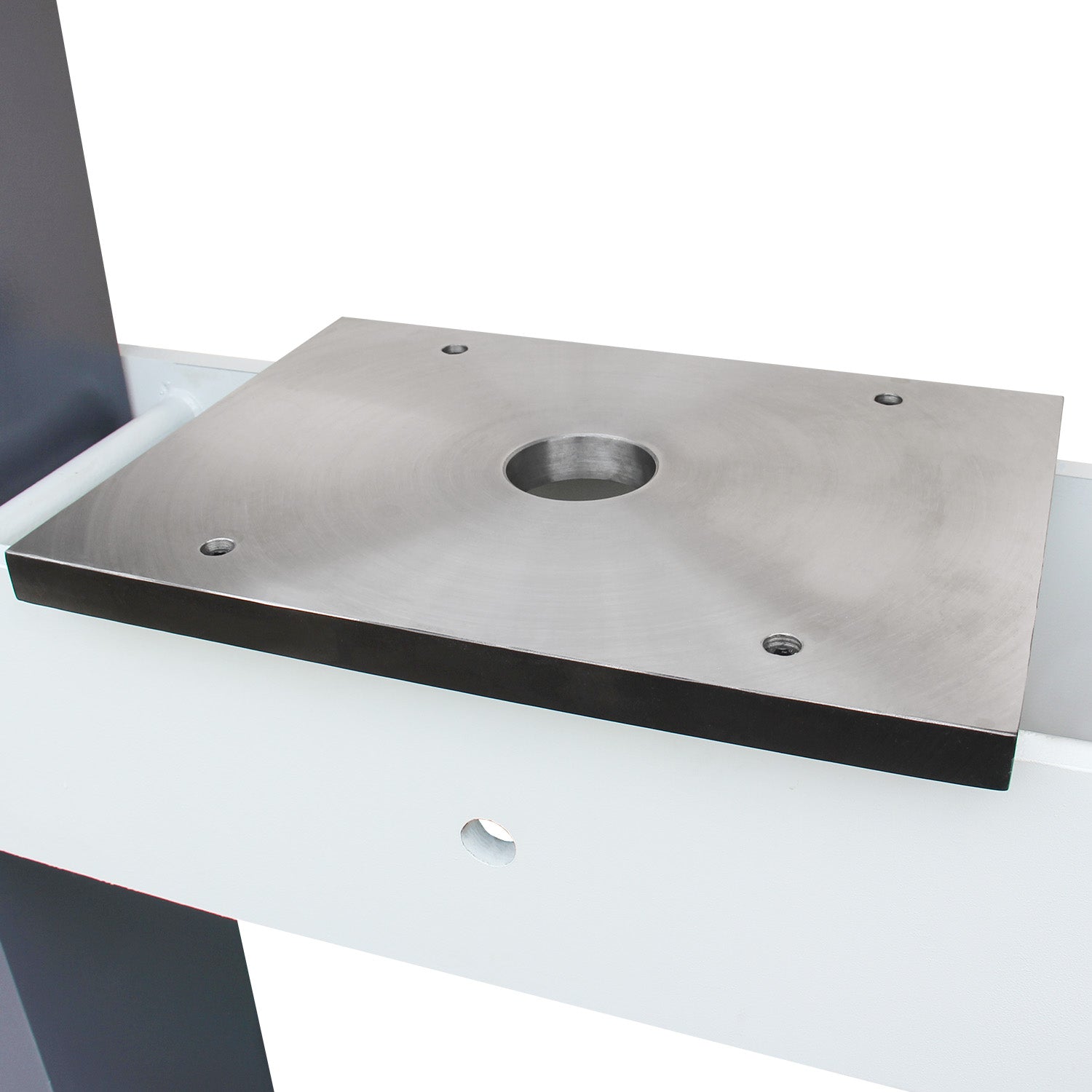

| Table Length (mm) | 480 |
| Table Width (mm) | 360 |
| Table Pin Diameter | Φ38.5 |
| Number of Adjustment Holes | 5 |
| Adjustment Hole Spacing (mm) | 135 |
| Overall Height (mm) | 1770 |
| Overall Width (mm) | 500 |
| Overall Length (mm) | 1070 |
| Adjustment Hole Diameter | Φ40 |
| Inner Frame Width (mm) | 800 |
| Packing size | 148x64x200 cm |
| N.W./G.W. | 520/593 kg |
