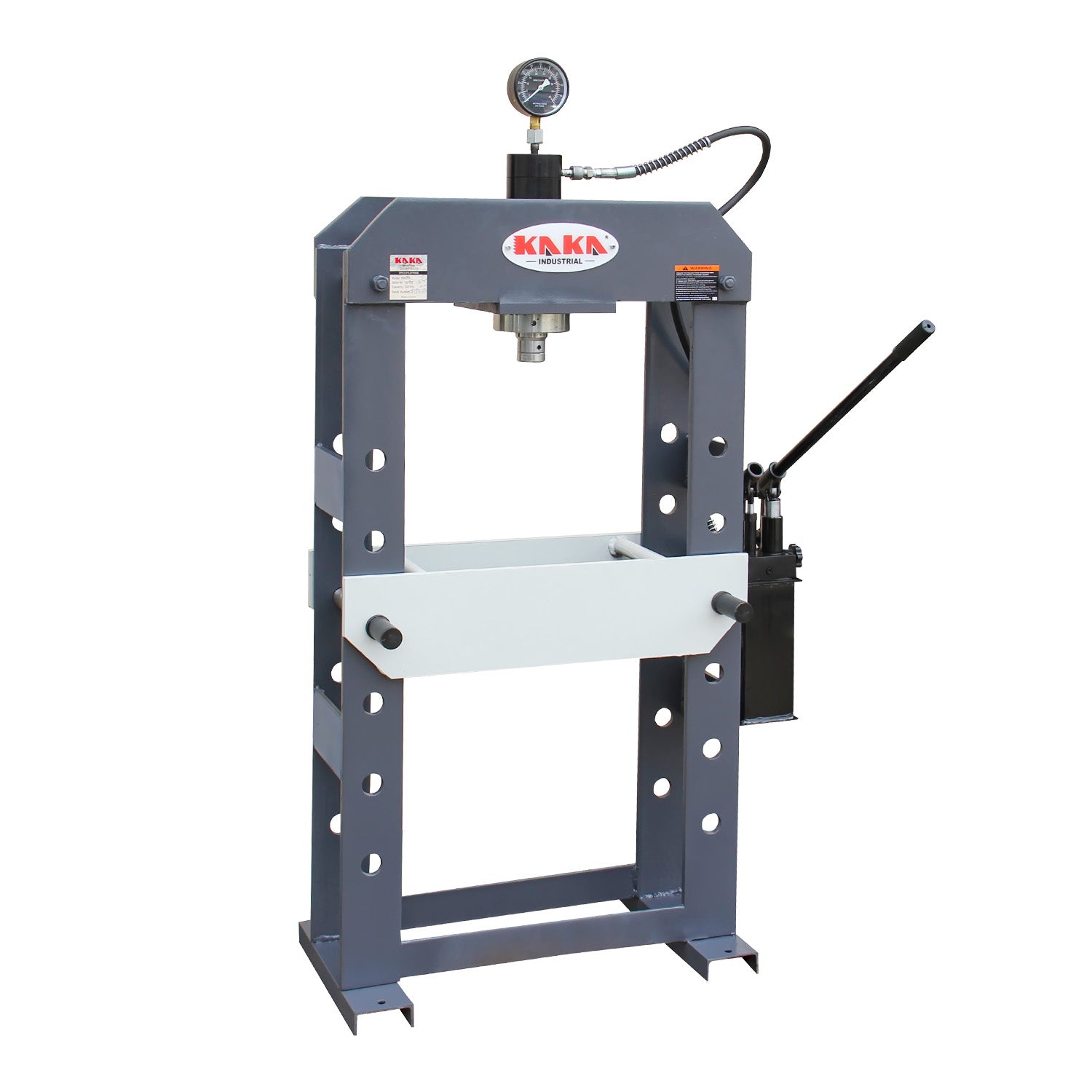

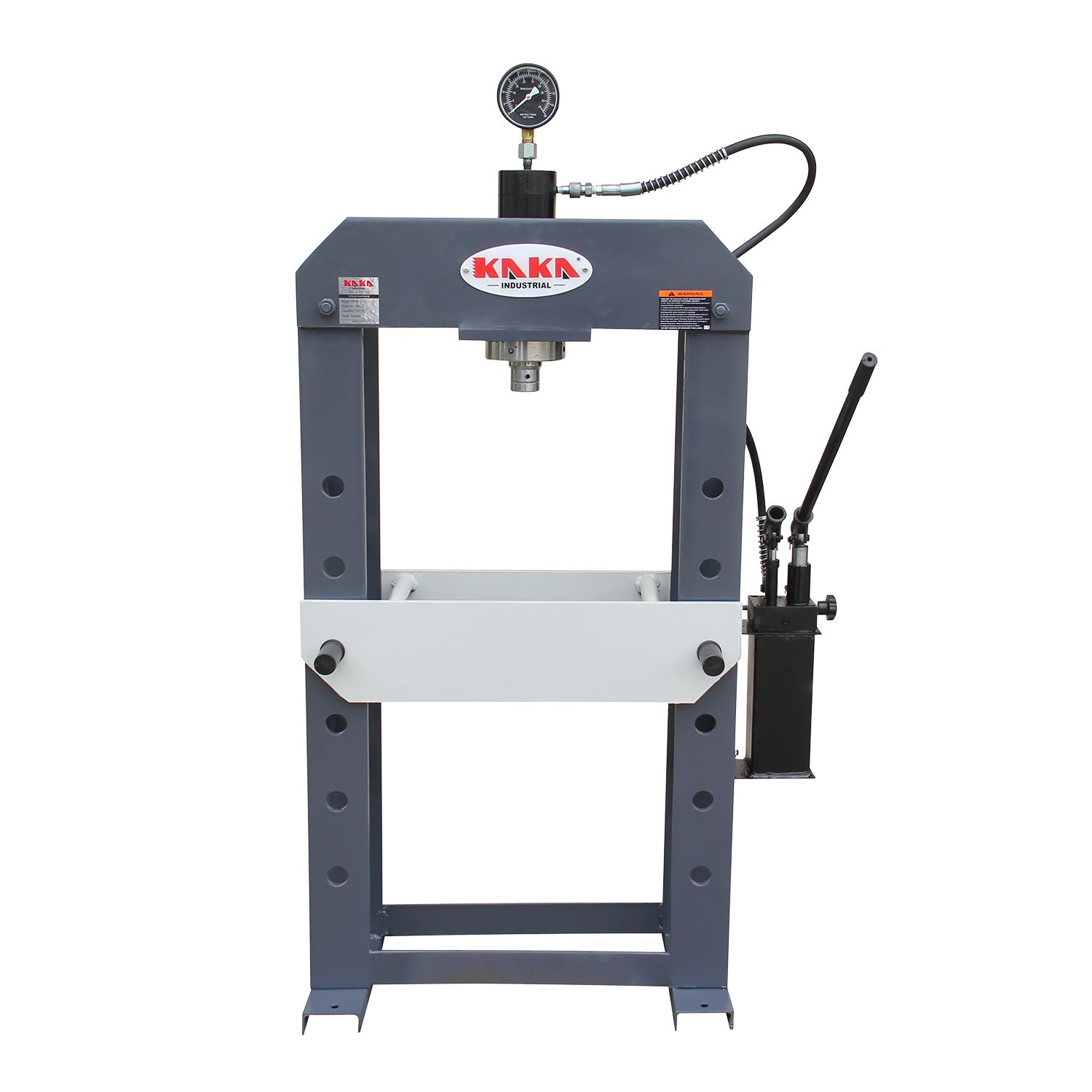

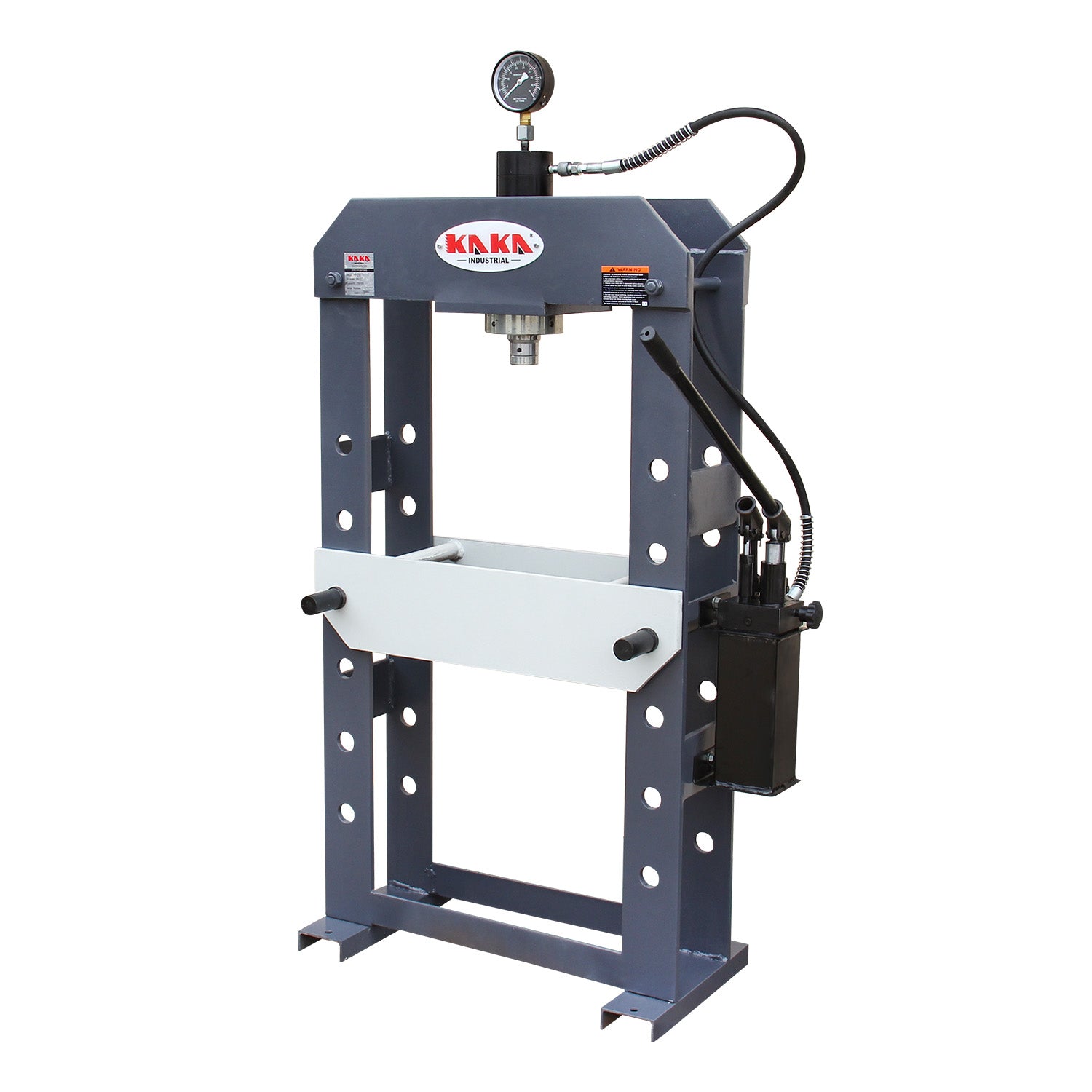

Kang Industrial Manual Hydraulic Press HP-25S

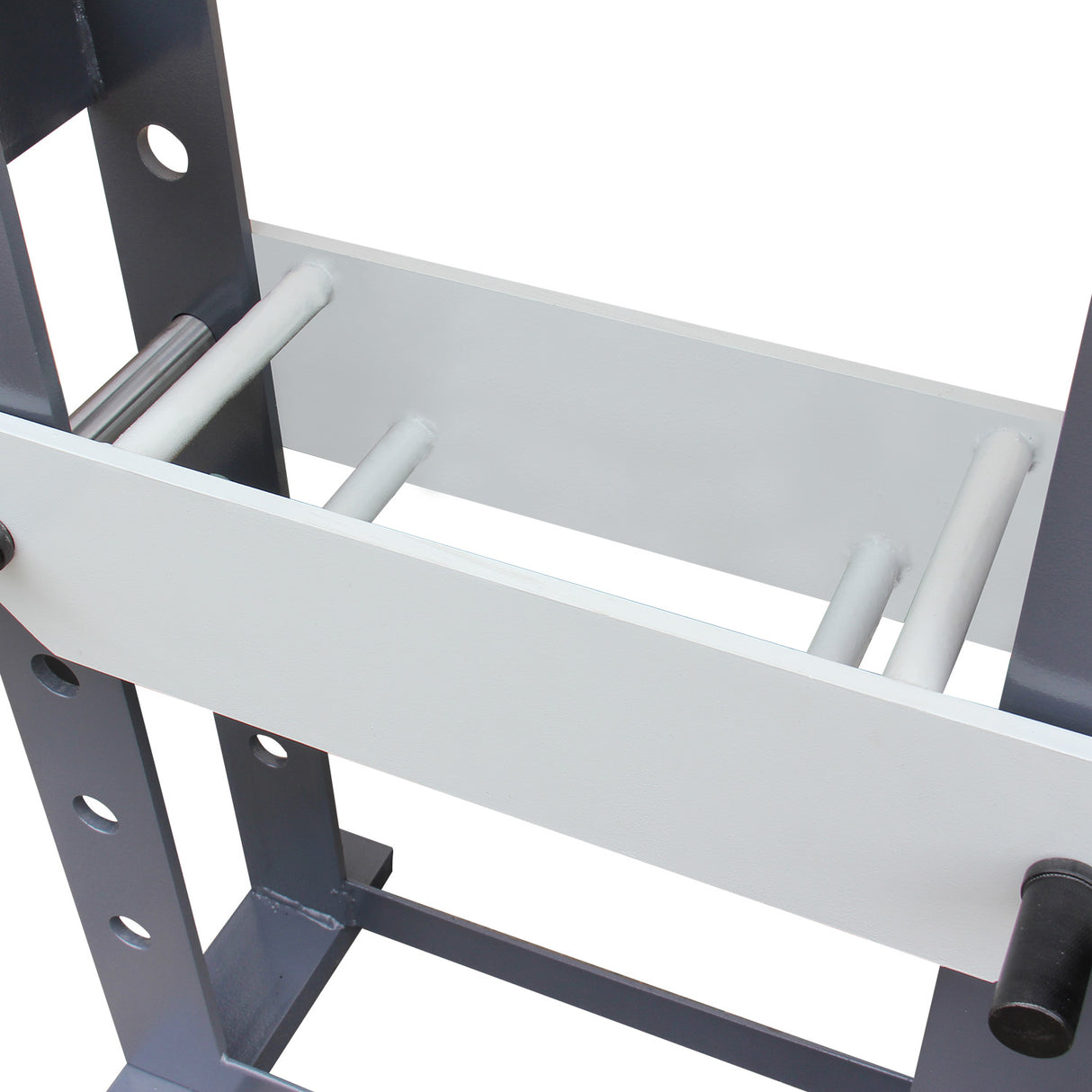

25 Tonne pressure H-frame workshop press, two Bending V-blocks included
Features
Steel welded H-frame workshop press, 25-tonne pressure
Fixed central position ensures precise pressing during the operation

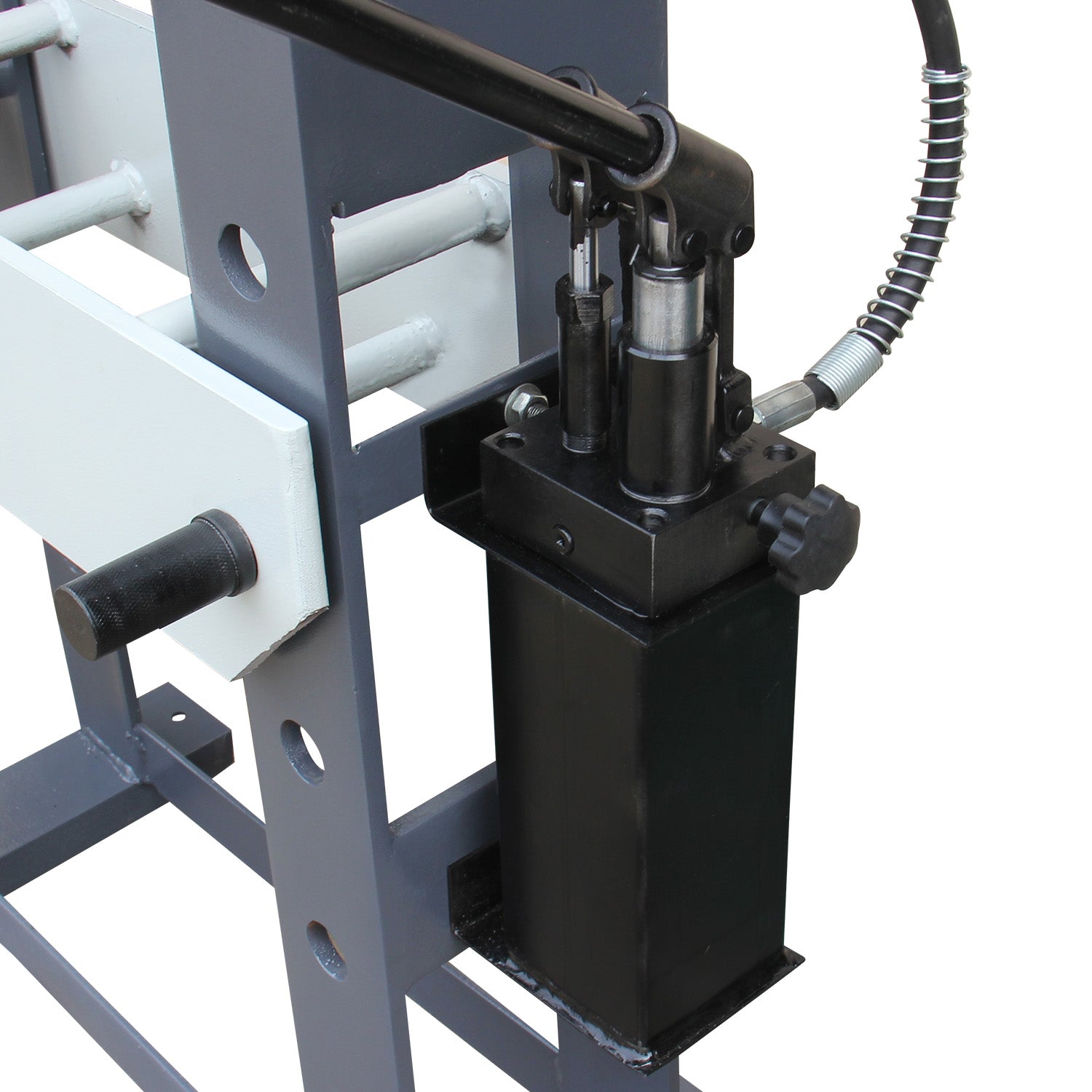

Double-speed control of the hydraulic cylinder by the hand pump
Quickly release the pressure of the pressure machine

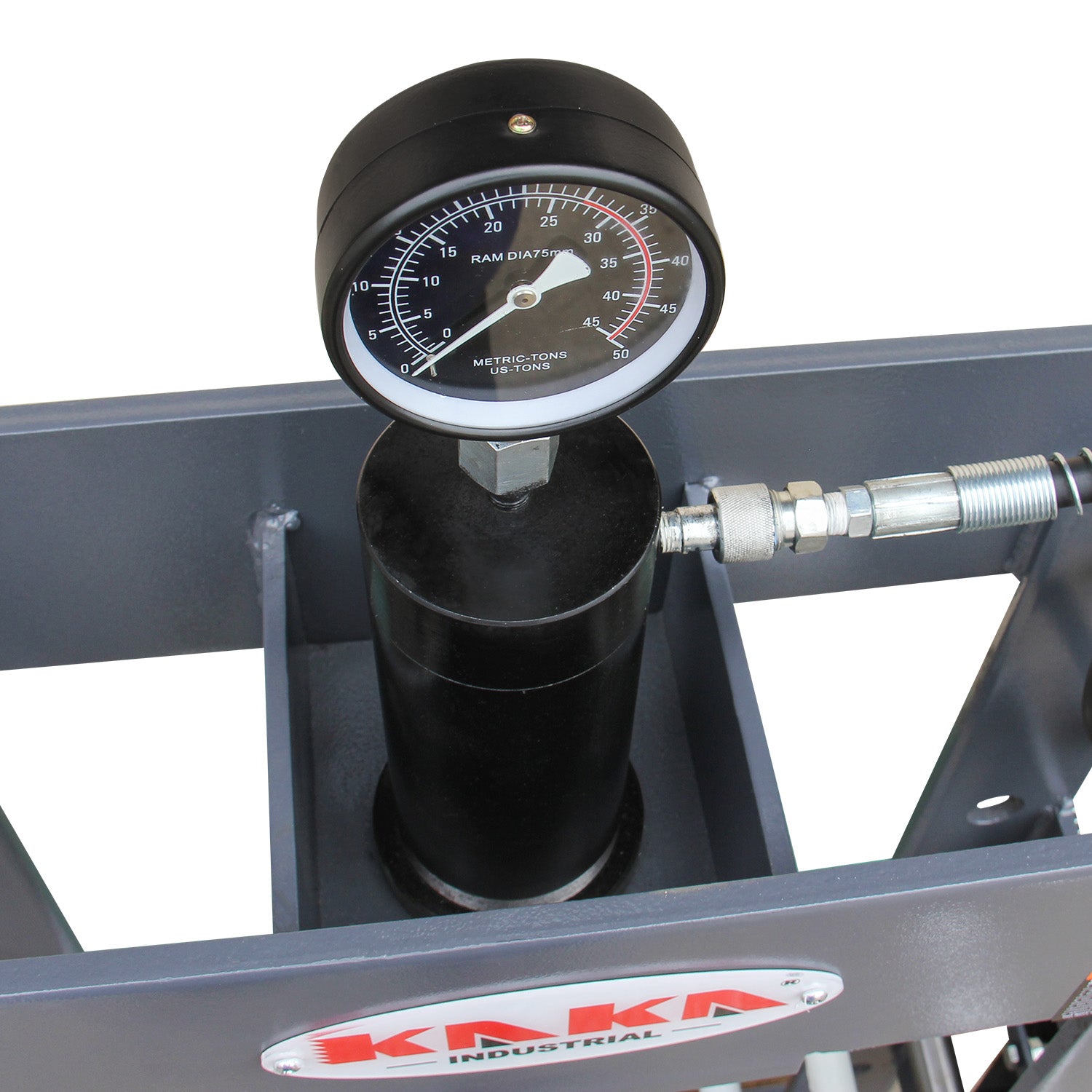

Built-in pressure gauge provides exact pressure reading, ideal for professional mechanics or industrial workshops
For the removal and press-fit of bearings, bushings, etc. Provide a wide application for your workshop with this H-frame shop press
Specifications
| Model | HP-25S |
| Item ID. | 182122 |
| Pressure | 25 Tonne |
| Hydraulic ram operation | Hand Pump |
| Sliding ram (left-right) | No. |
| Hose Length | 1400 |
| Reservoir Capacity | 2L |
| Max. Piston Stroke (mm) | 200 |
| Hydraulic Cylinder OD (mm) | 95 |
| Piston Rod Diameter (mm) | Piston 48 / Rod 56 |
| Piston Speed | 3 mm/press |
| Max. Distance: Ram to Table (mm) | 690 |
| Min. Distance: Ram to Table (mm) | 40 |
| Table Length (mm) | 310 |
| Table Width (mm) | 245 |
| Table Pin Diameter | Φ33 |
| Number of Adjustment Holes | 6 |
| Adjustment Hole Spacing (mm) | 135 |
| Overall Height (mm) | 1550 |
| Overall Width (mm) | 400 |
| Overall Length (mm) | 840 |
| Adjustment Hole Diameter | Φ34.5 |
| Inner Frame Width (mm) | 500 |
| Packing size | 173x98x60 cm |
| N.W./G.W. | 168/210 kg |
