KANG INDUSTRIAL PTY LTD  |  SKU: 188017V240

Mitre Band Saw BS-108G, Swivel Head Horizontal Metal Cutting Bandsaw, 260x200mm Round & Rectangular Cutting, 60° Miter Angle, 1.1kW 240V Motor for Steel, Aluminum, Metal Fabrication

$3,050.00 $3,229.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

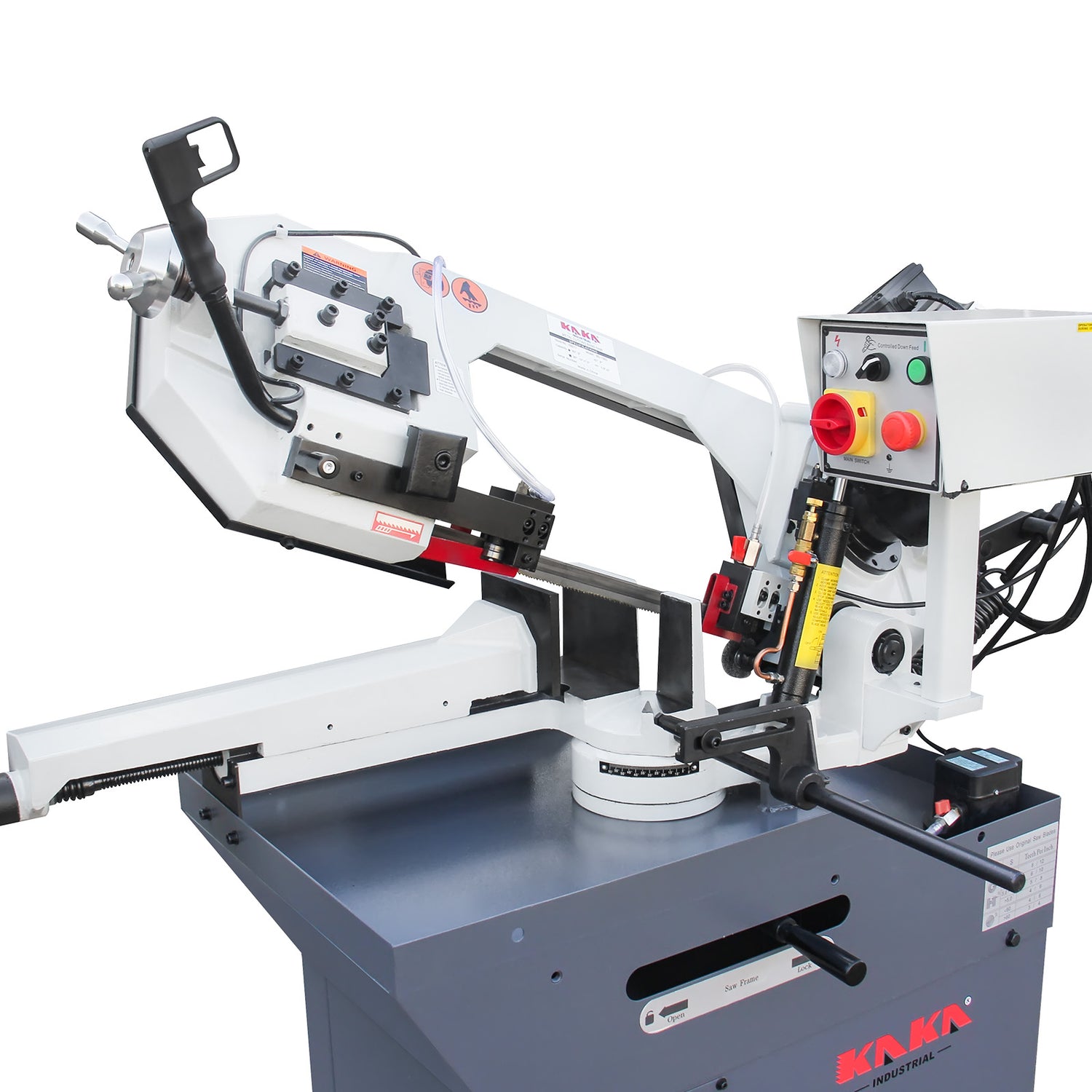

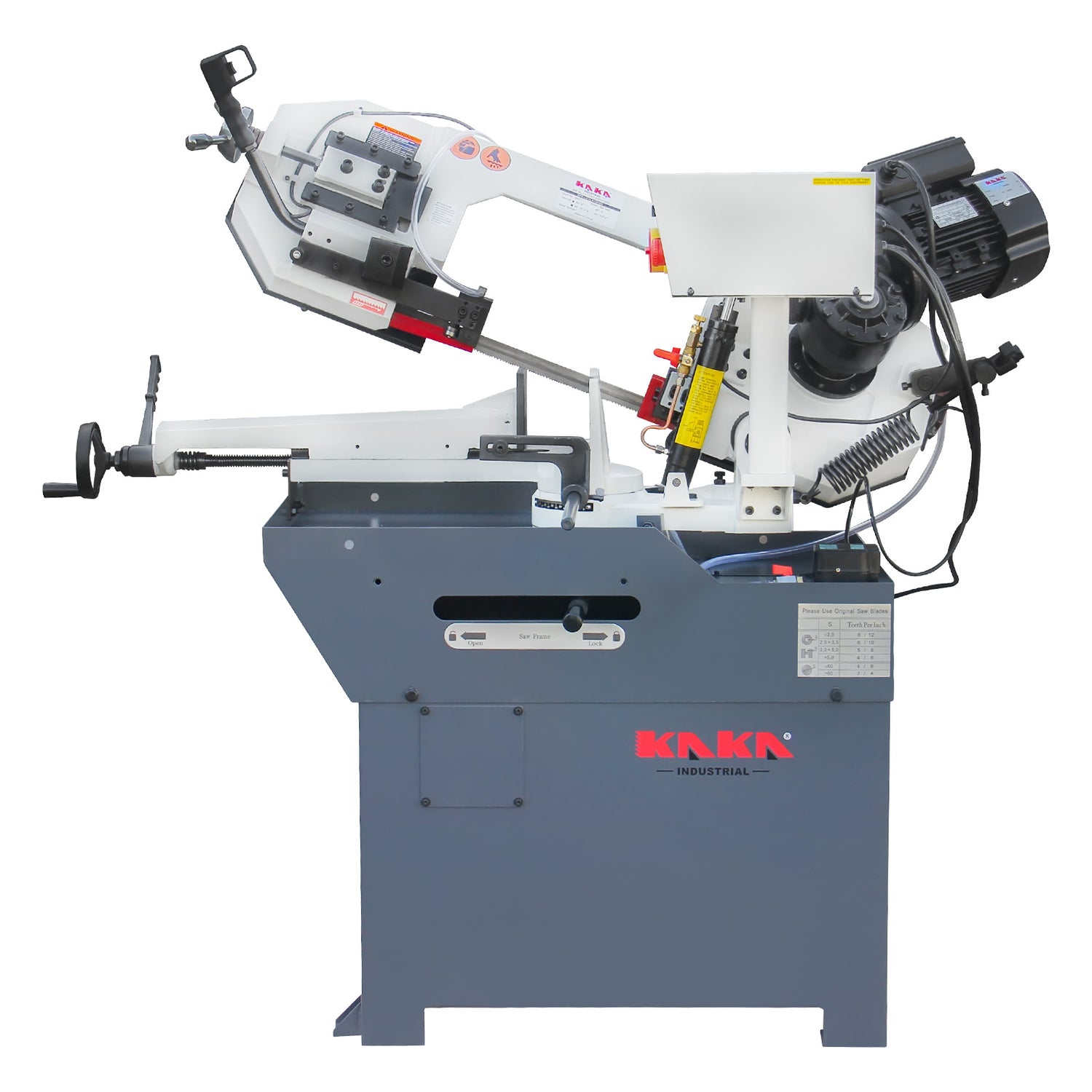

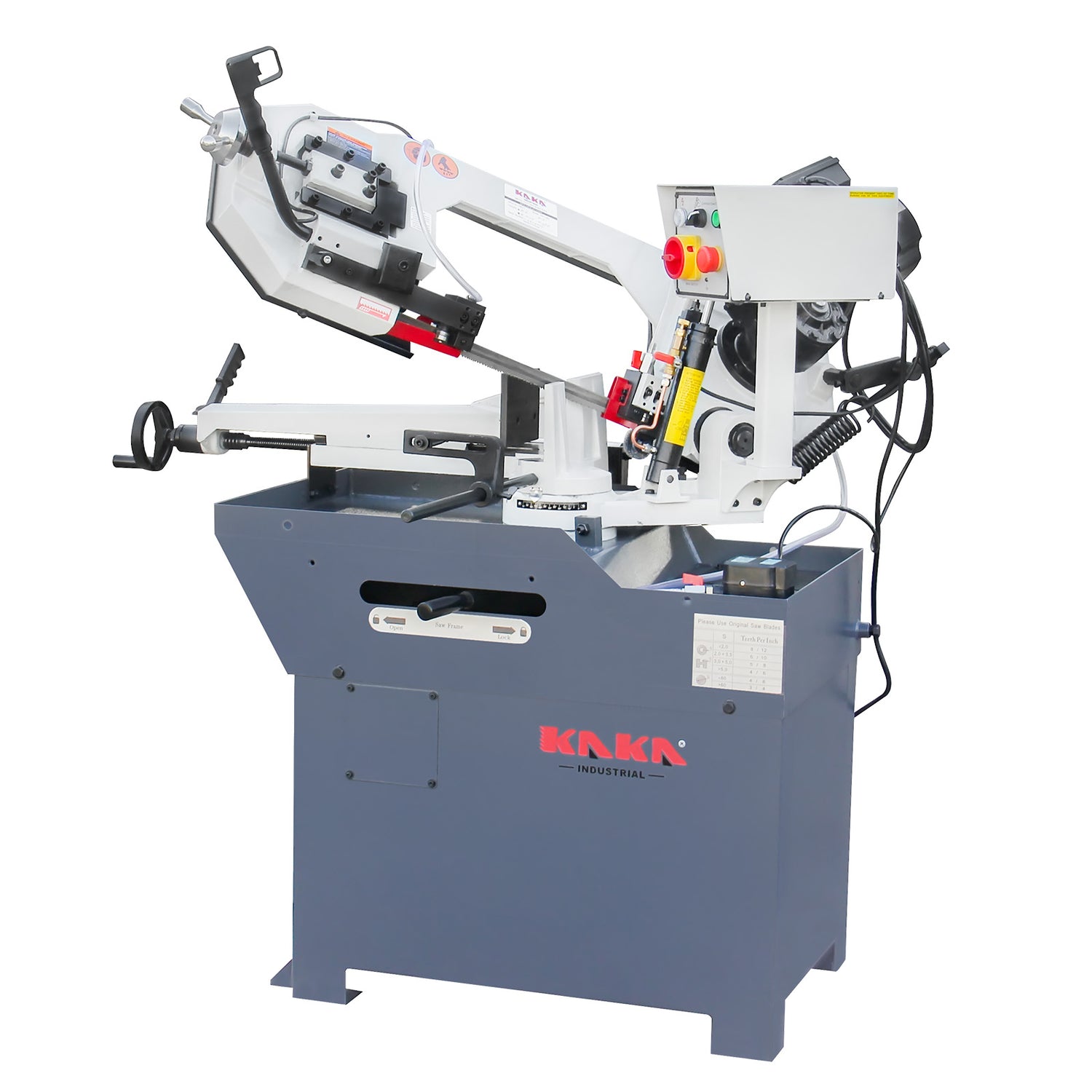

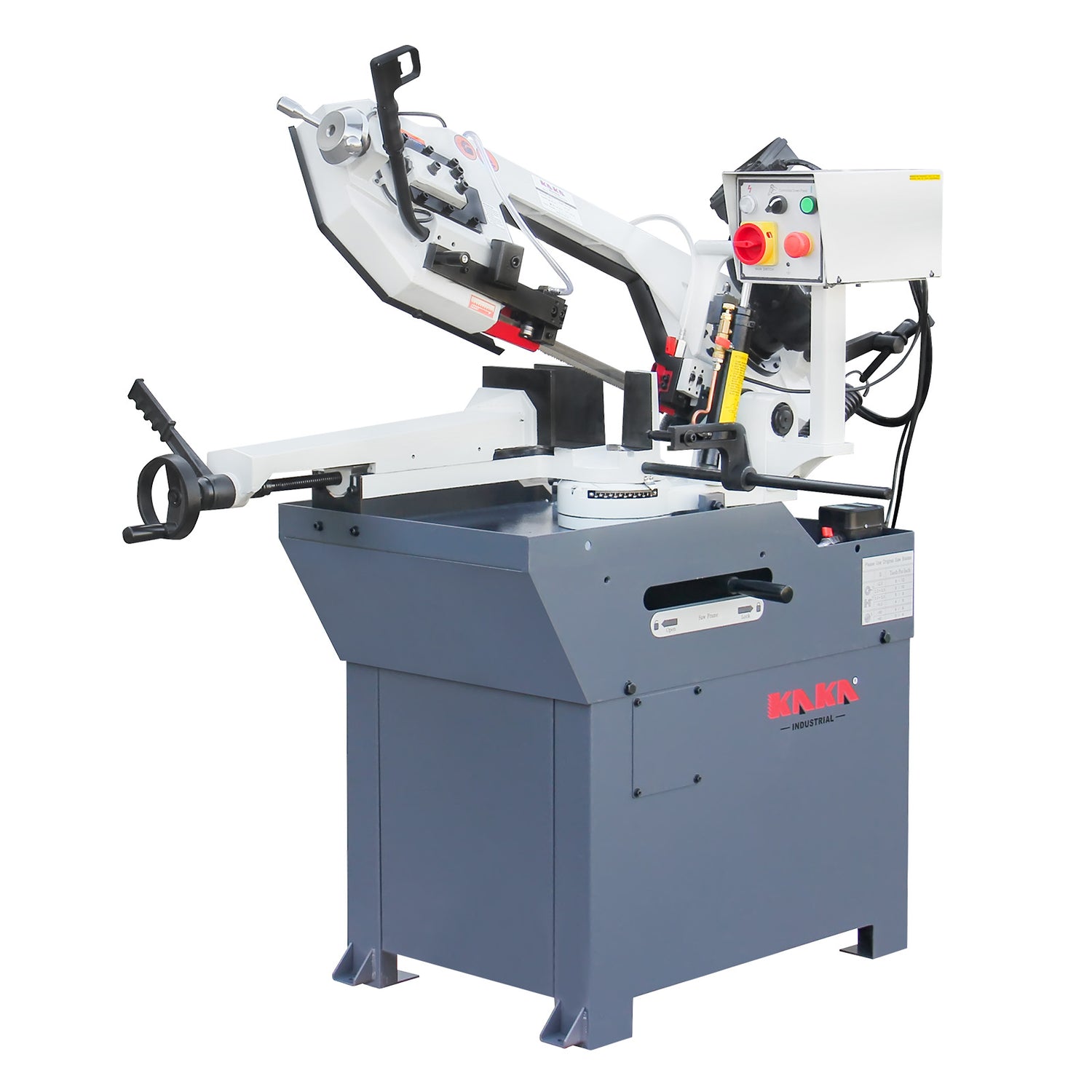

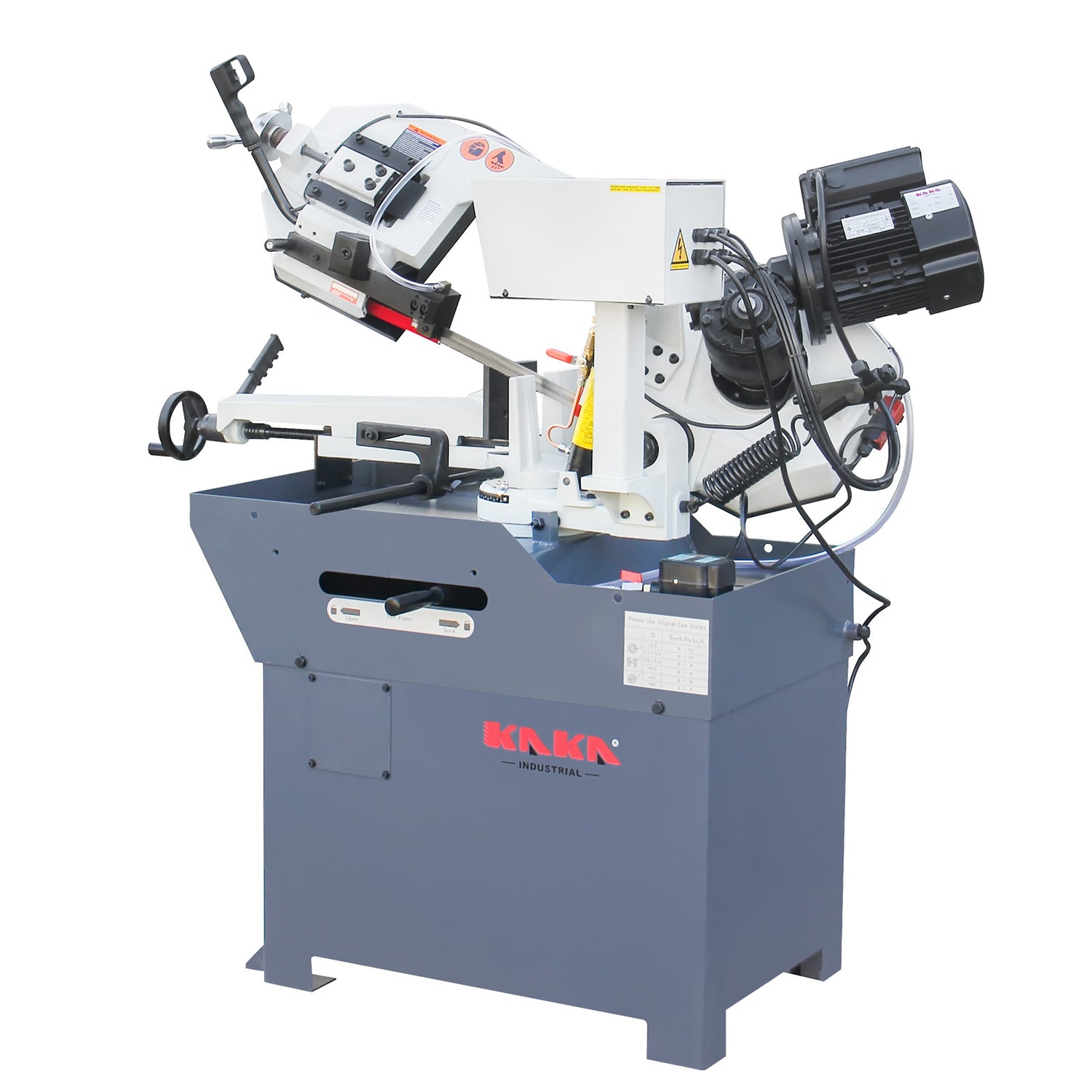

Kang Industrial Swivel Head Band Saw BS-108G

Tackle pipes, bars, and profiles with ease using the KANG BS-108G Metal Band Saw, a compact, precision swivel frame bandsaw for medium-duty fabrication and maintenance. This horizontal bandsaw offers adjustable mitre cuts up to 60 degrees. A single-phase motor makes this bandsaw suitable for home use, DIY projects, and the industrial workshop. With its user-friendly design and efficient coolant system, the bandsaw BS-108G delivers clean, burr-free cuts while keeping your workshop tidy, the reliable choice for auto shop, metal worker or DIY pros seeking professional results.

Adjustable Mitre Cutting: Swivel frame bandsaw, swivel from 0 to 60 degrees for versatile straight and angled cuts on RHS, CHS, Solid bar, etc, perfect for pipe fittings or structural work.

Generous Cutting Capacity: Handles workpieces up to OD 227mm round or 260x200mm rectangular at 90 degrees, making it suitable for heavy-duty workshop tasks involving bars, tubes, and profiles.

Precision and Accuracy: Equipped with a carbide blade guard, ensures accurate tracking and extended blade life.

Robust Construction Band Saw: Heavy-duty frame ensures vibration-free operation and long-term reliability.

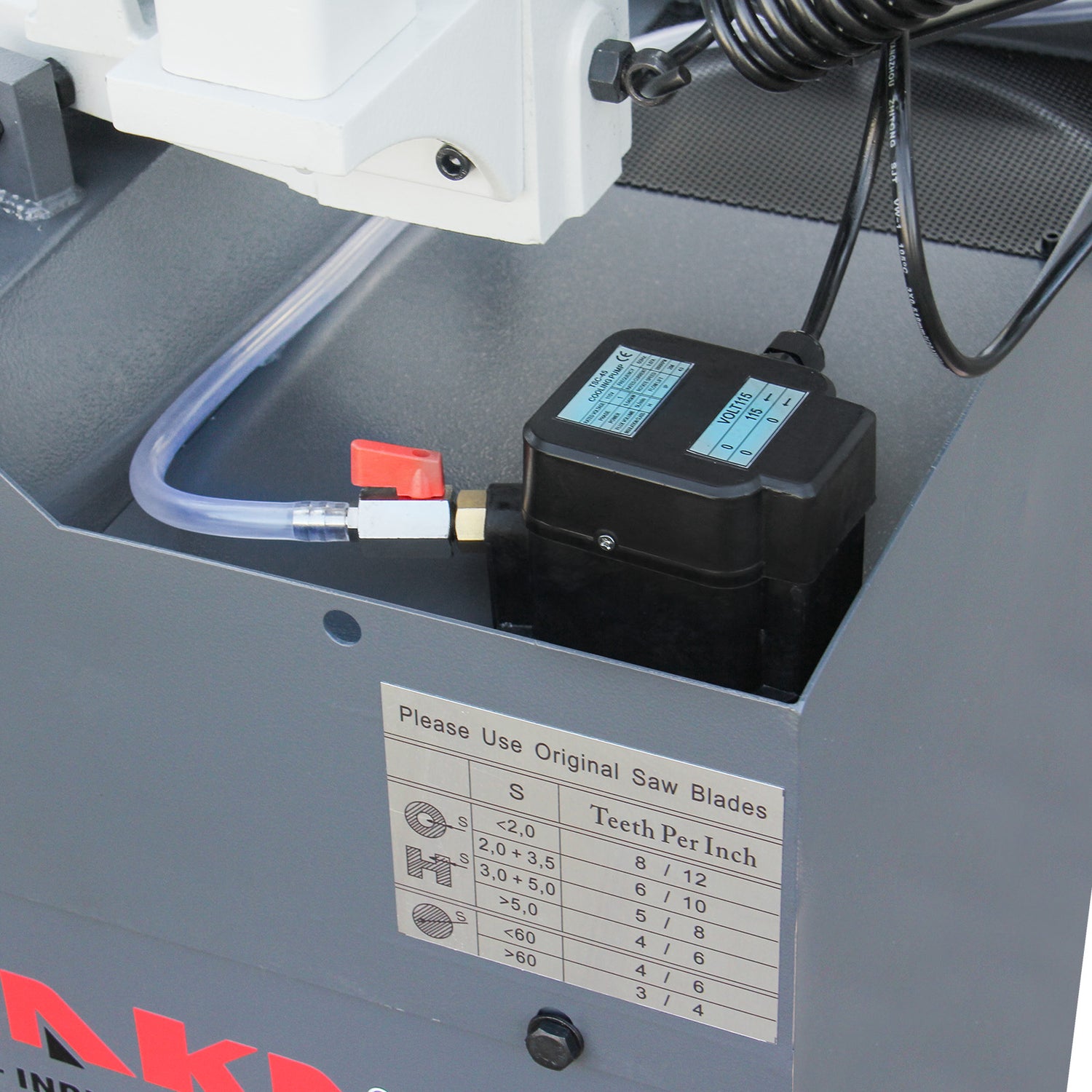

Integrated Coolant System: Built-in coolant pump with adjustable nozzles, efficient chip flushing, and blade cooling for smoother cuts and minimal heat distortion, prolongs blade sharpness.

Features

Runs on 240V single-phase power, industrial or home use, metal cutting saw

Swivel head, mitres up to 60 degrees for angle cutting

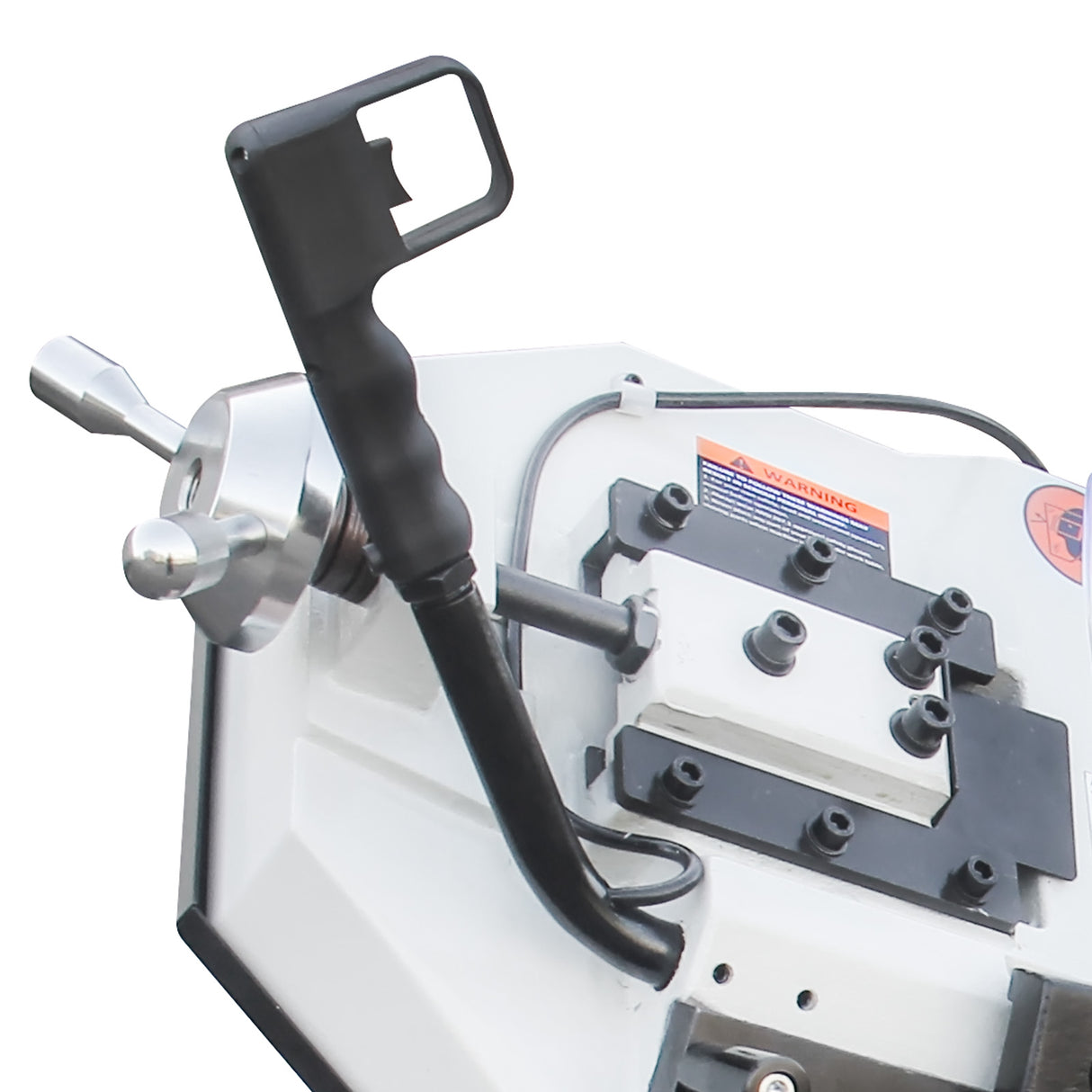

Quick action lever lock/release the swivel head

Gear drive saw, powerful metal cutting

The hydraulic control saw frame descends

Bi-Metal Bandsaw Blade (Pre-installed, 27x0.9x2455mm, TPI 5/8)

Optional TPI 6/10 Blade

Optional Coolant



Specifications

SKU 188017
Model BS-108G
Cut circular @90 ° 227 mm
Cut rectangular @90 ° 260x200 mm
Cut circular @60° 90 mm
Cut rectangular @60° 85x85 mm
Cut circular @45° 150 mm
Cut rectangular @45° 150x125 mm
Blade speed 68 MPM
Blade size 27x0.9x2455 mm
Motor power 1.1 kW
Drive Gear
Packing size 145x72x102 cm
N.W./G.W. 220/275 kg

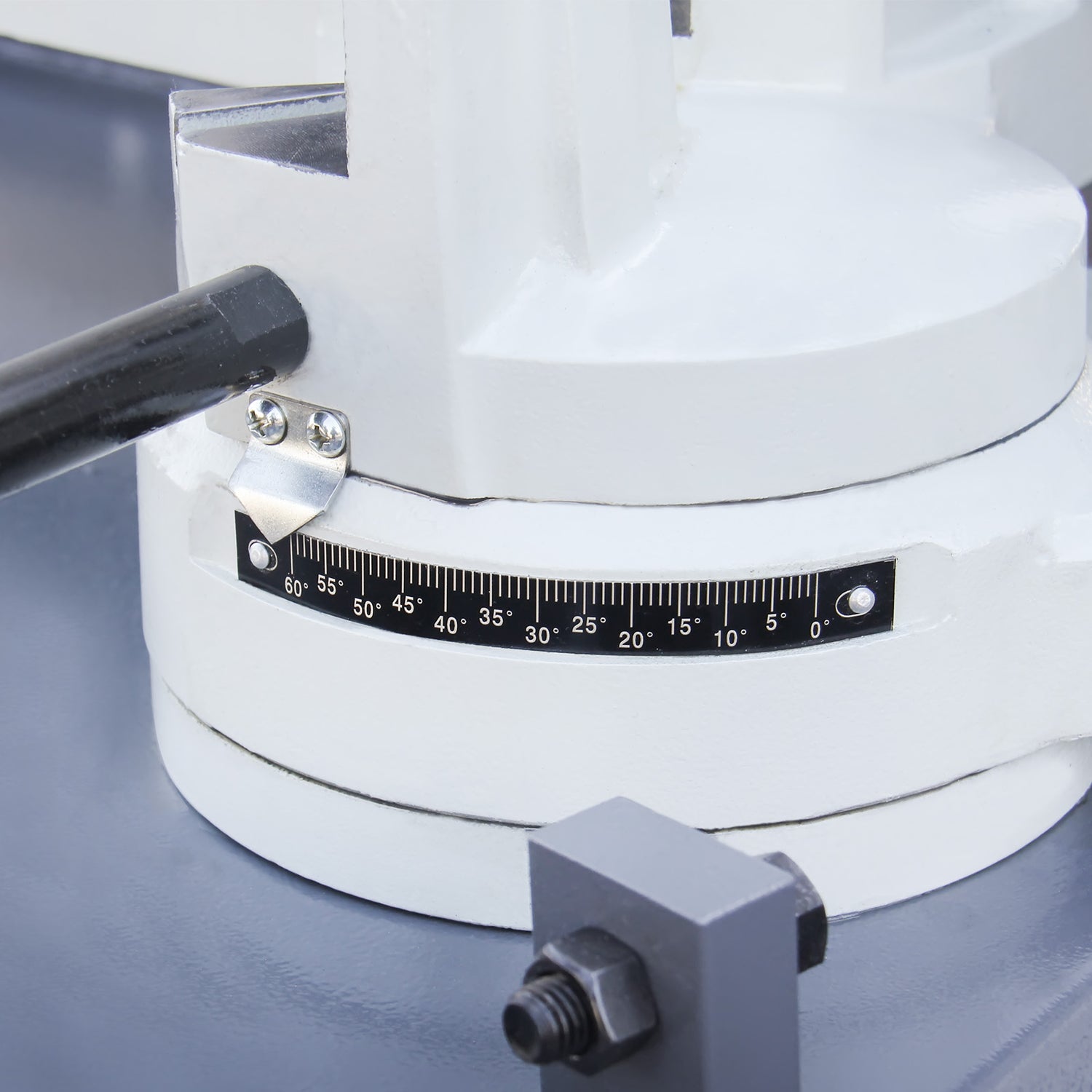

1、0° to 60° swivel base with degree scale

2、Adjustable hydraulic downfeed with automatic shut-off

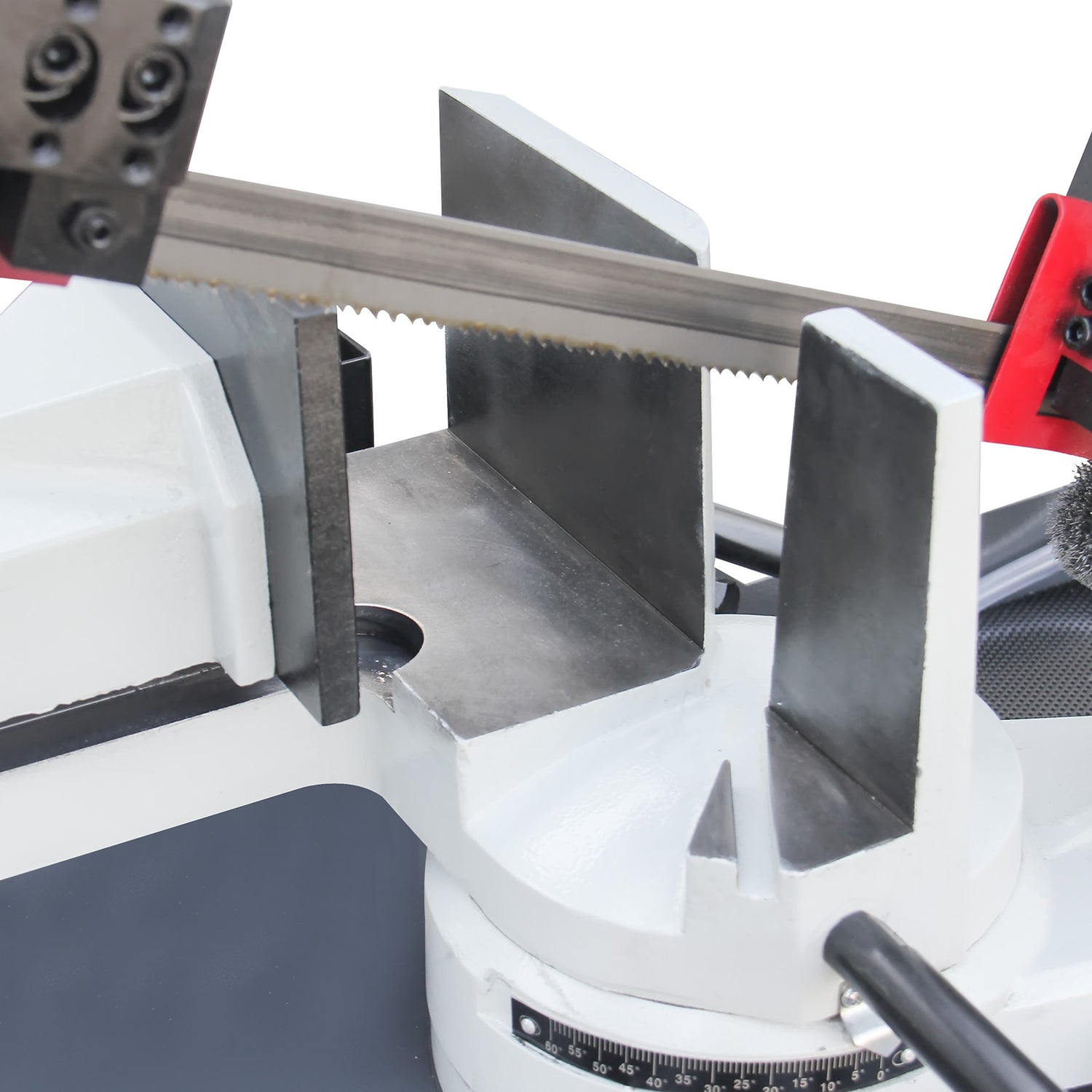

3、Quick-release vise and length stop allow for a quick transition to make repeatable cuts

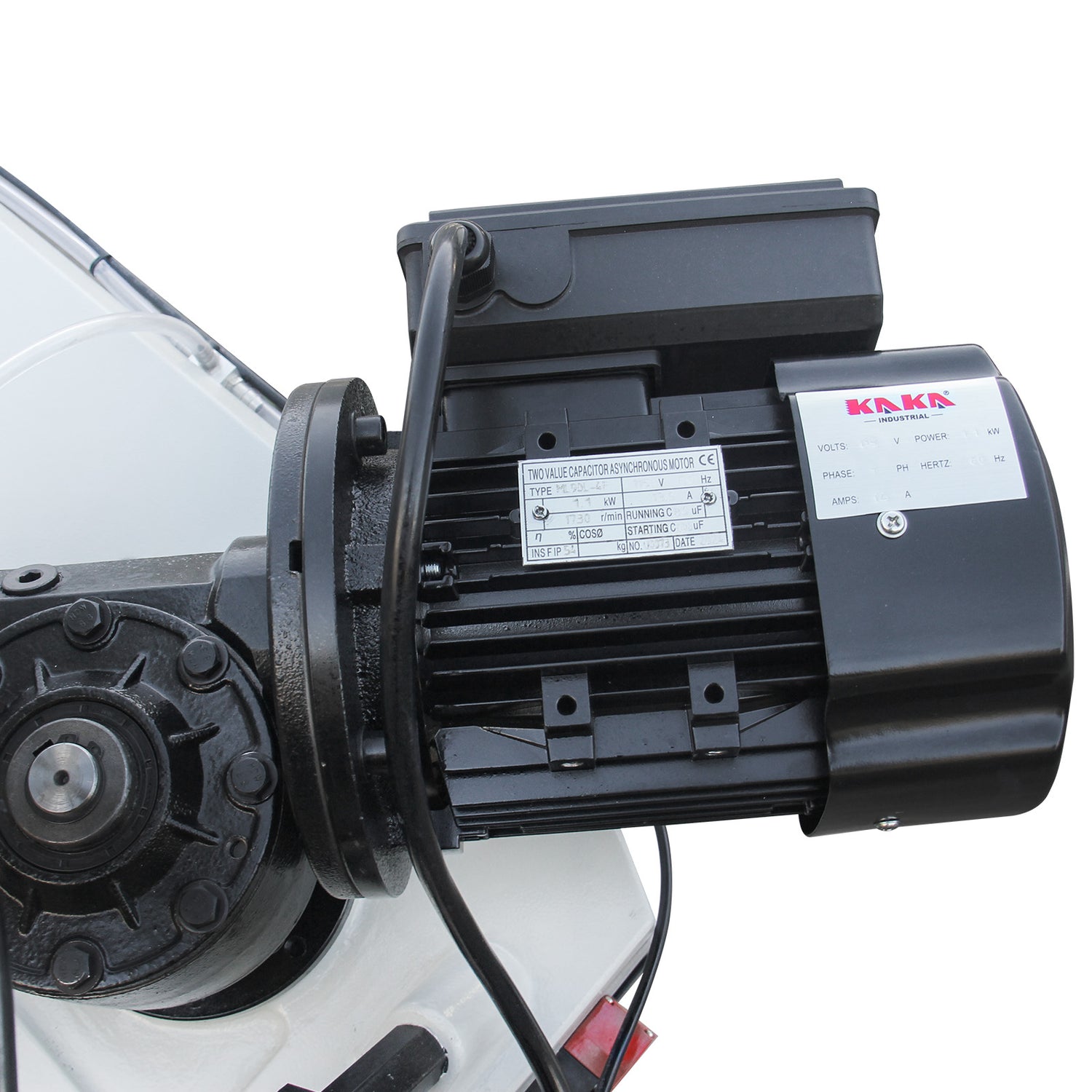

1. Powerful 1.1kW Motor: 1.1kW single-phase motor with 240V-50Hz power supply. Cuts 227mm round stock and 260x200mm rectangular stock.
2. 60° Miter Angle Precision: 60° max swivel head with angle indicator for precise bevel cuts. Quick-lock handle reduces setup time between cuts.

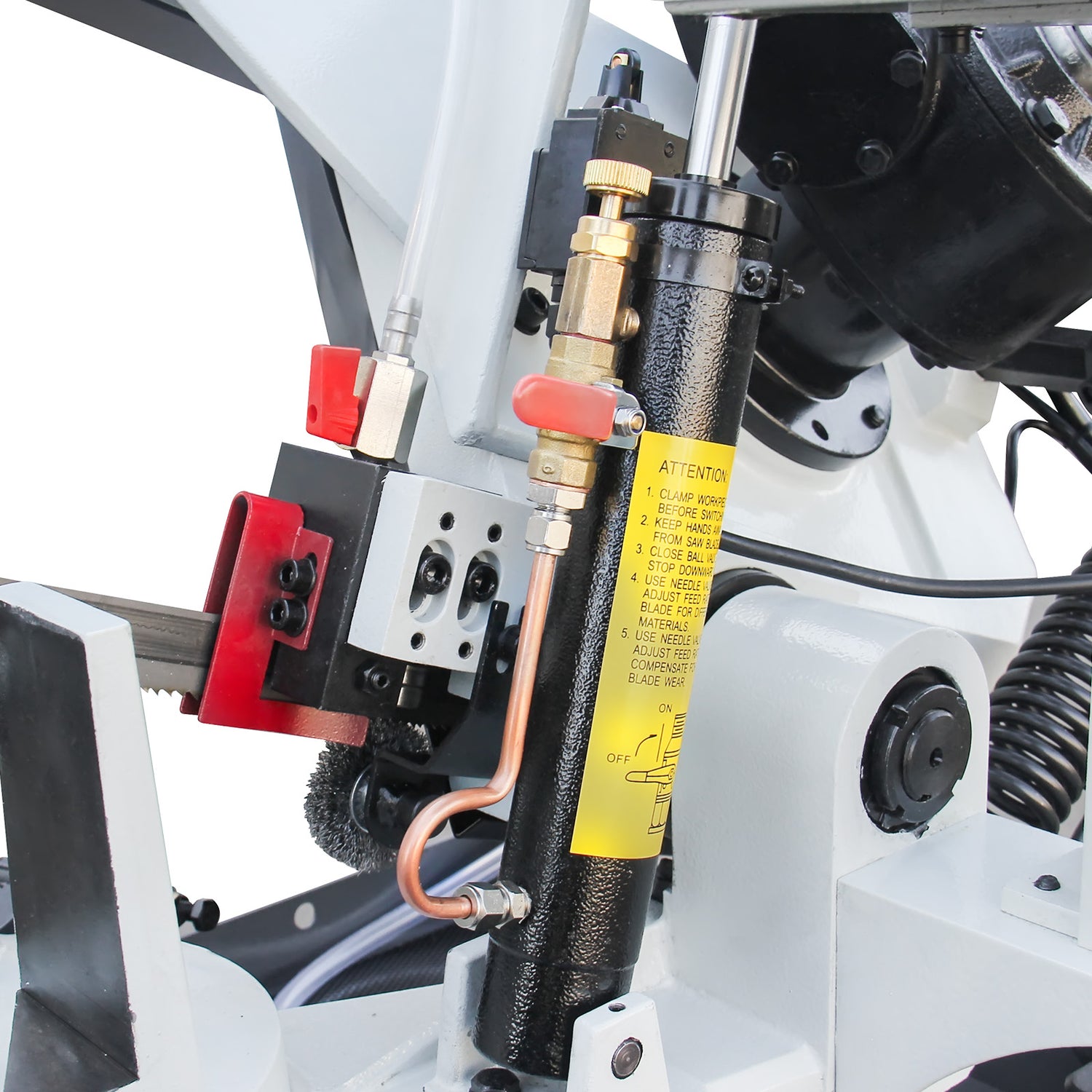

3. Hydraulic Control & Auto Stop: Hydraulic blade descent for controlled cutting. Auto-stop function activates when cut is complete. Built-in cooling system extends blade life.

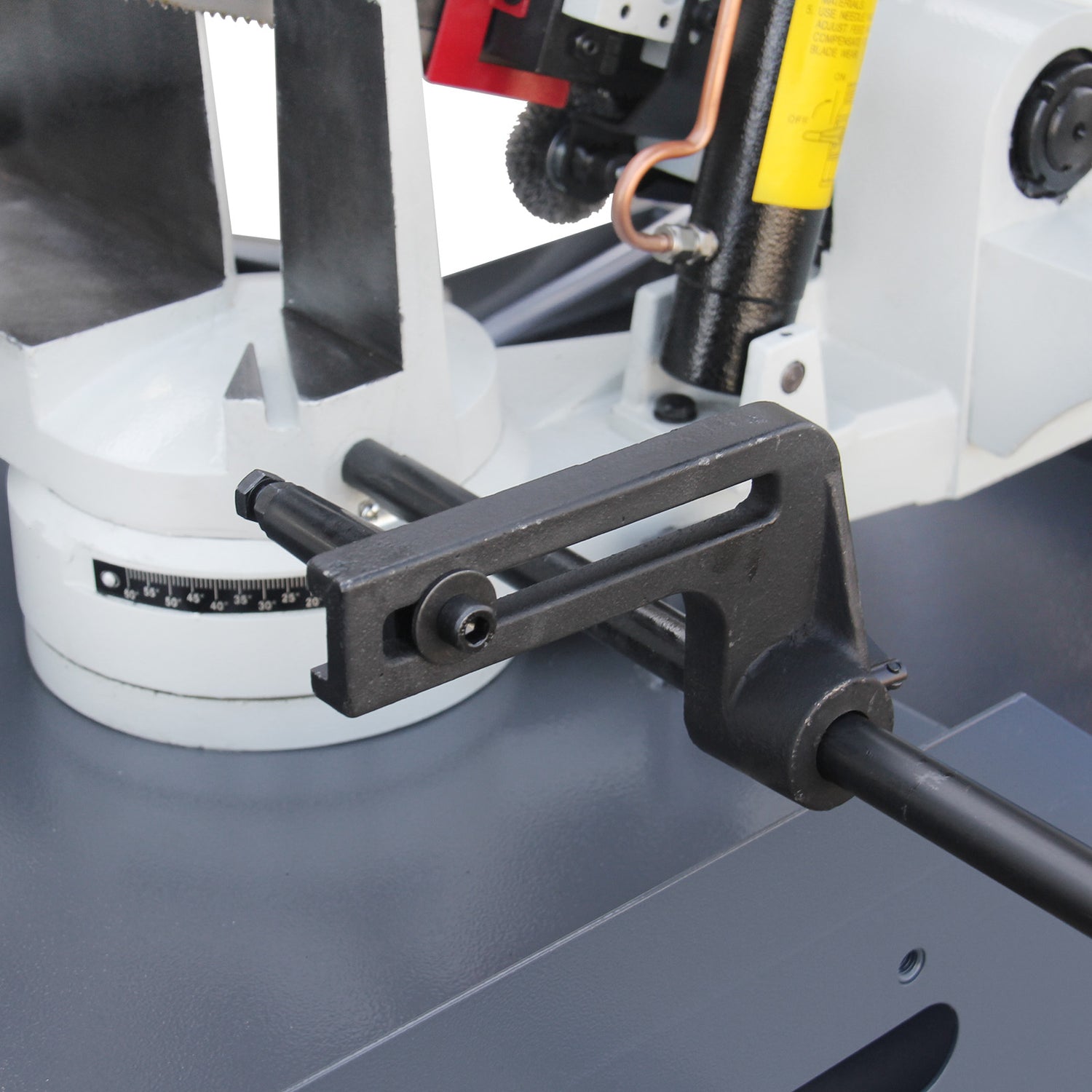

4. Smooth Gear Drive & Repeat Cuts: Direct gear drive minimizes vibration. Adjustable material stop ensures identical repeat cuts for pipe framing or brackets.

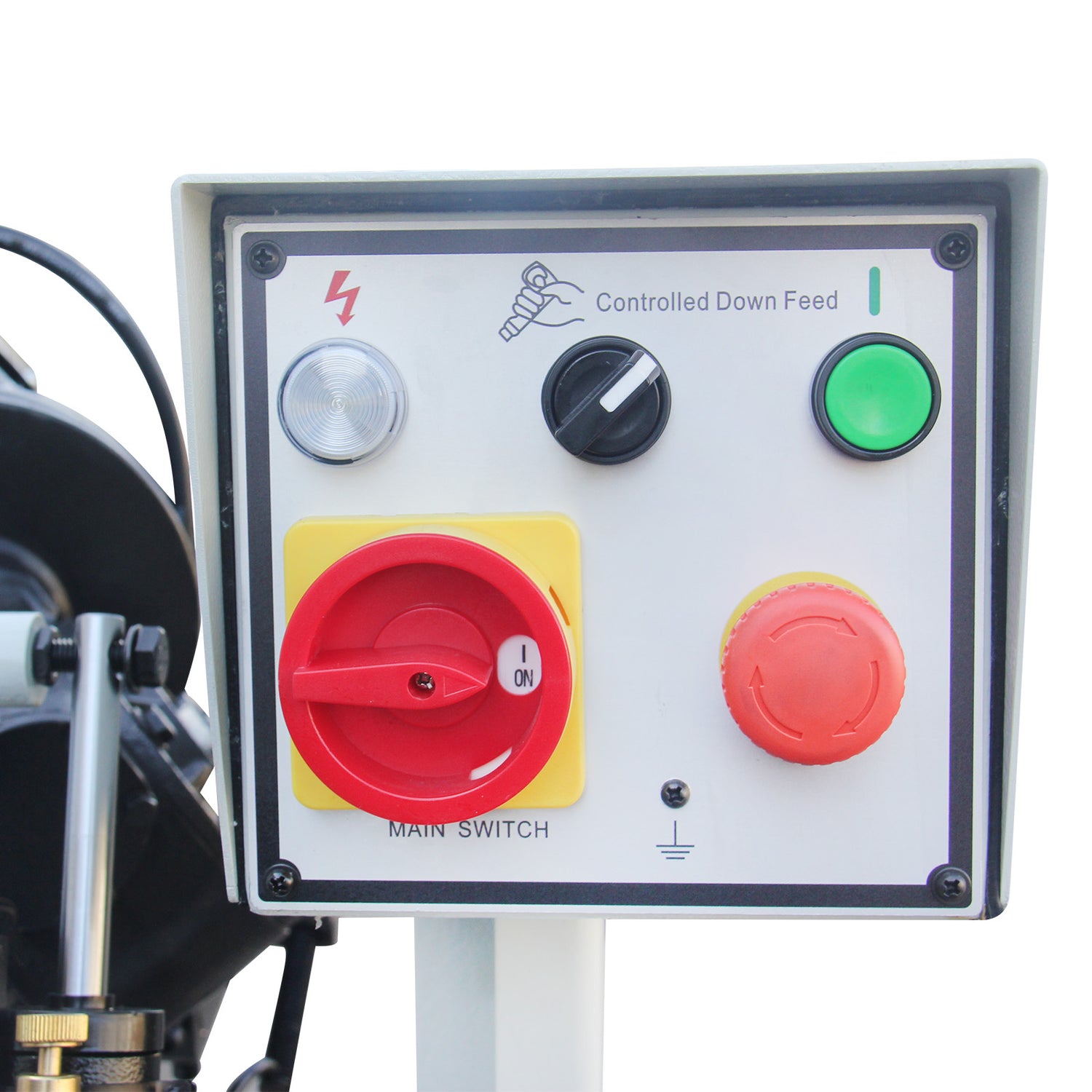

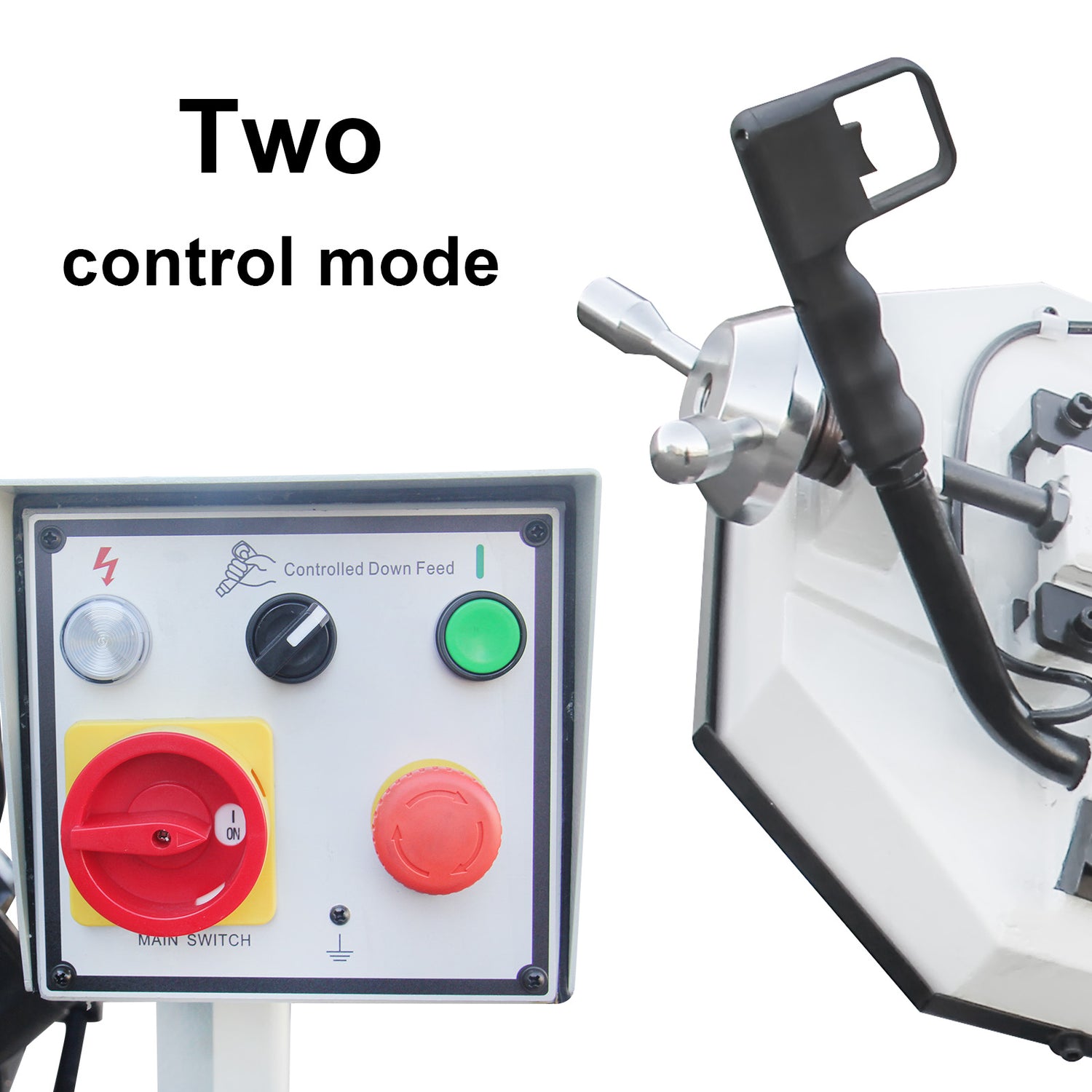

5. Durable Steel Frame: Heavy-duty steel frame supports continuous workshop use. Centralized control panel for safe operation in auto shops or fabrication.

Item No.
188017
Model
BS-108G
Circular @ 90°
227mm
Rectangular @90°
260x200mm
Circular @ 60°
90mm
Rectangular @60°
85x85mm
Circular @45°
150mm
Rectangular @45°
150x125mm
Blade speed @60Hz
34 MPM
Blade size
27x0.9x2455
Motor power
1.1KW 1.5HP
Drive
Gear
Packing size
145x72x102cm
N.W./G.W.
220/275kg

  • Rotary Saw Bow

    The bow can be swiveled between 0° and 60°

  • Roller & carbide Guide Block

    Fully sealed bearings and carbide guide blocks ensure the cutting accuracy of the saw blade.

  • 45° & 60° Angle Stop

    With the help of angle stop, you can get the 45° & 60° within seconds.
