KANG INDUSTRIAL PTY LTD  |  SKU: 188304V415

Kang Industrial TGK-16A, ø400mm-400x400mm Dual Column Bundle Cutting Saw, Hydraulic Band Saw Machine, 415V Power

$16,600.00 $17,600.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

Business at home is treated as Residential

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

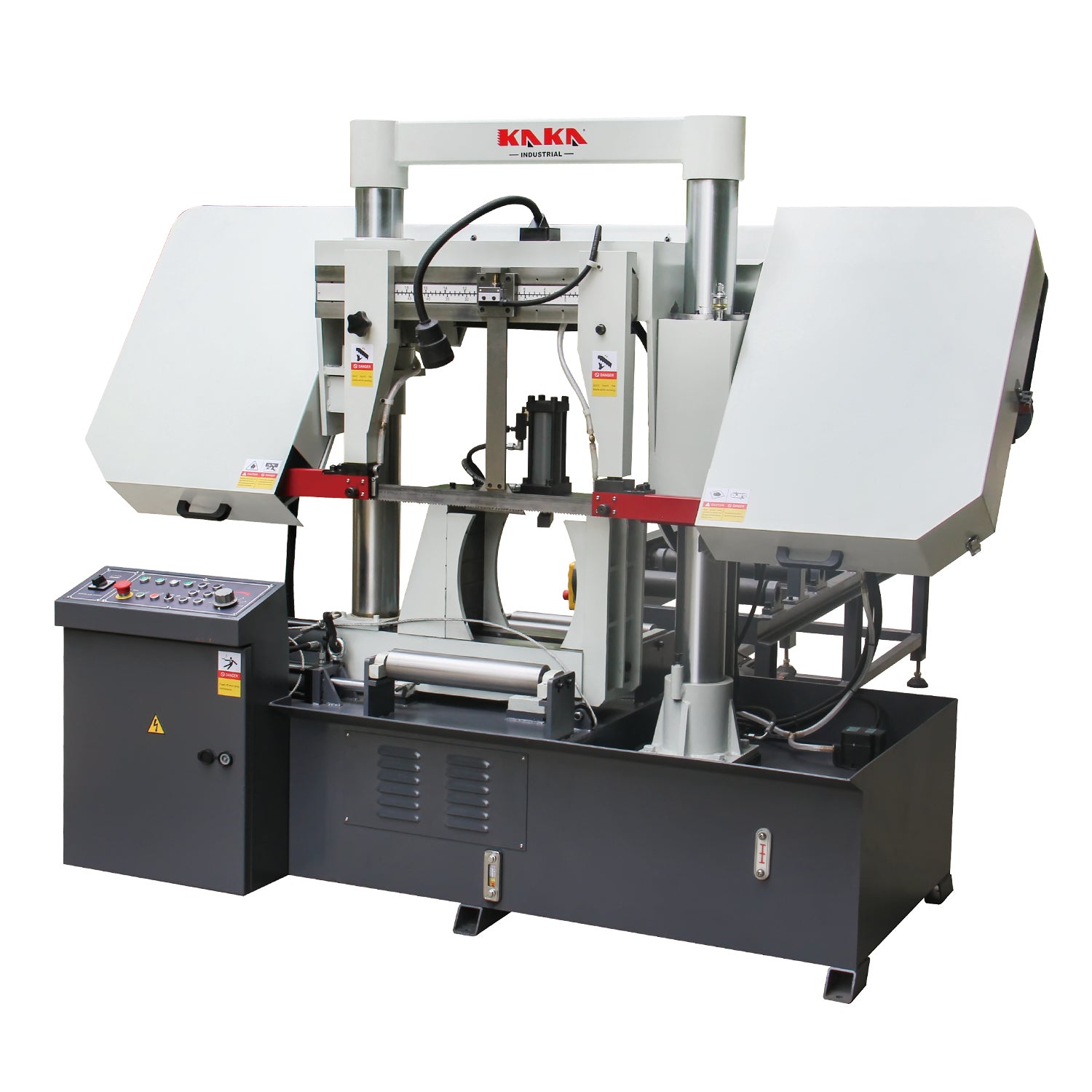

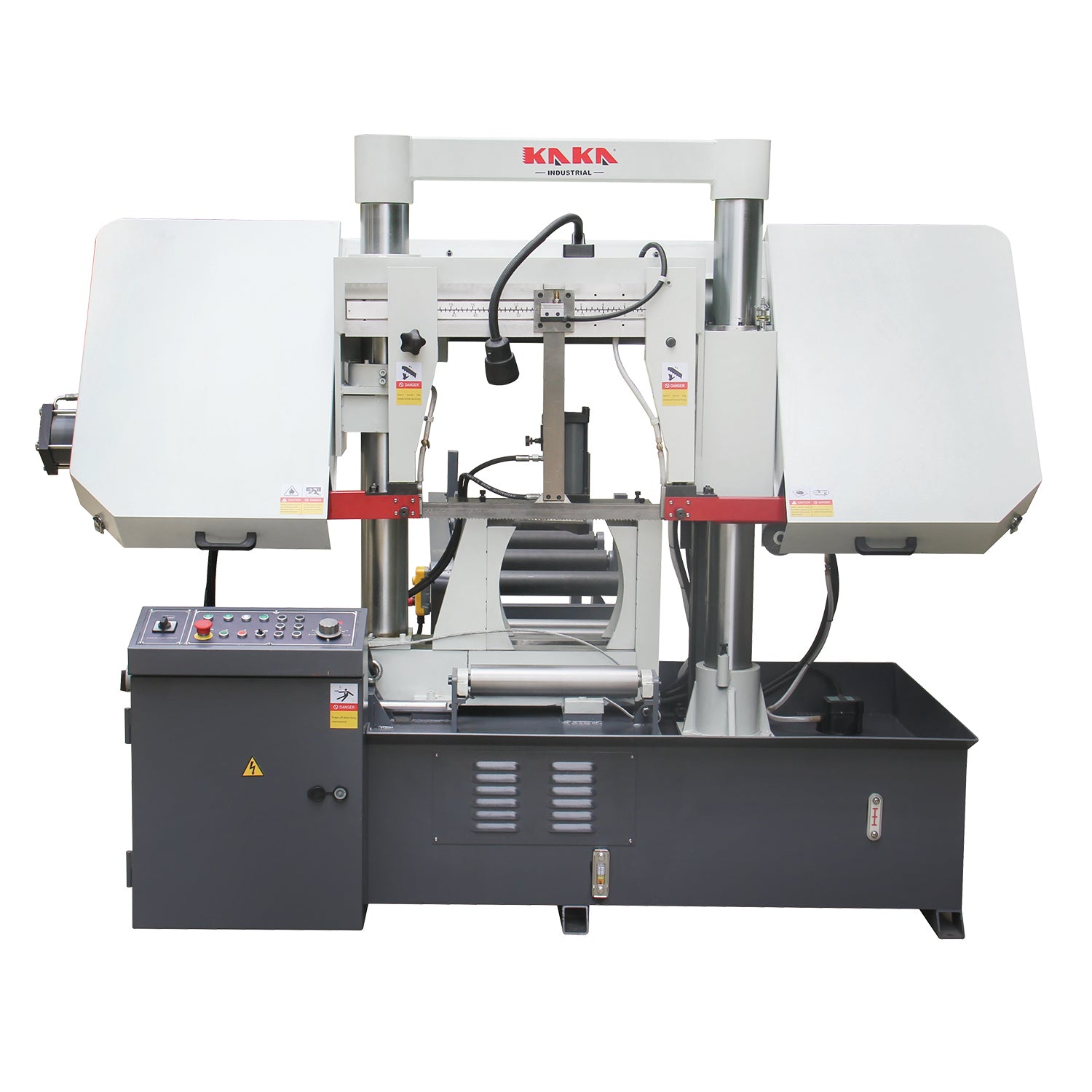

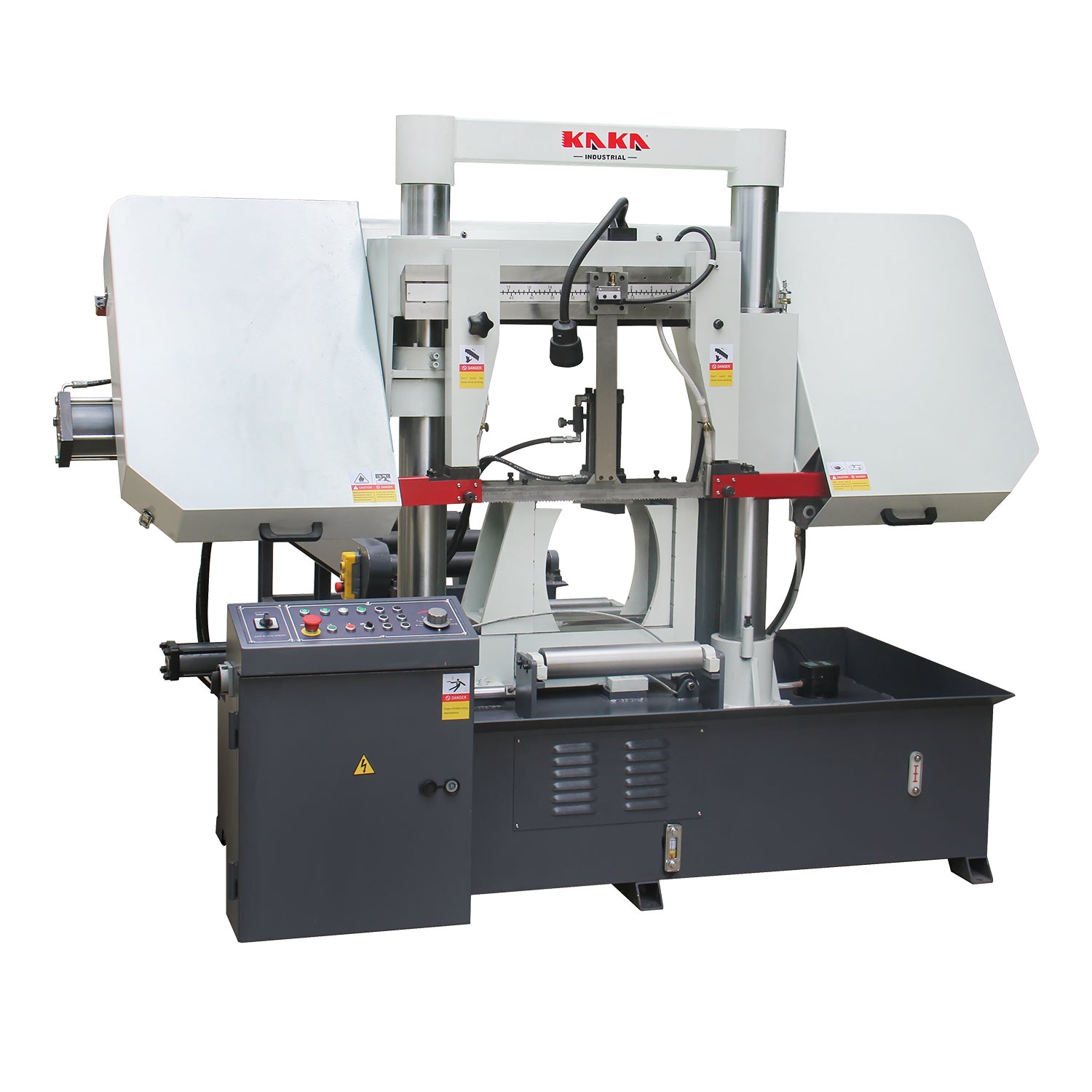

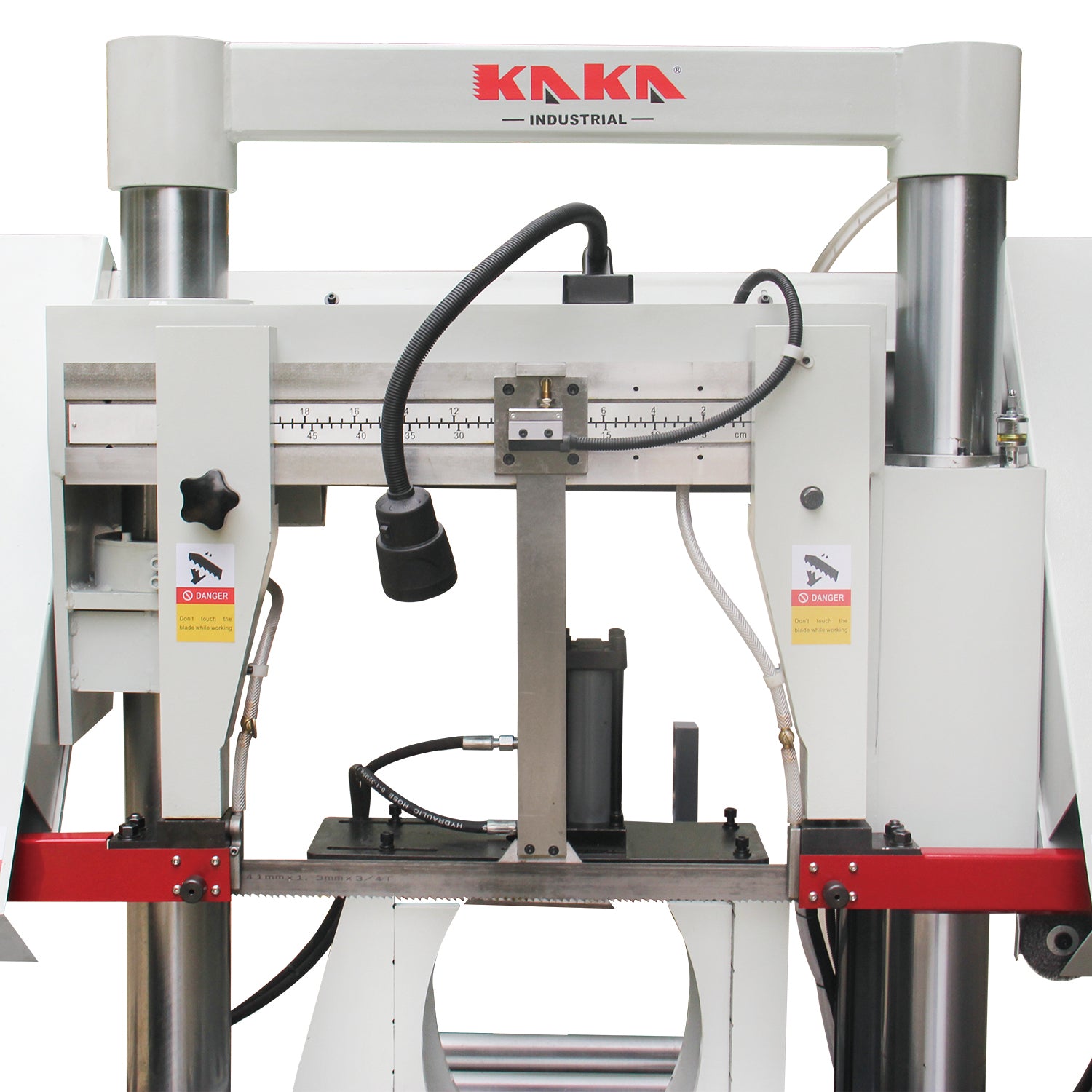

    KANG Industrial TGK-16A Double Column Band Saw

    Cut 400mm OD and 400x400 square solid material, with an Extra Vice to cut Bundle material



    Features

    Runs on 415V power, industrial grade metal cutting band saw

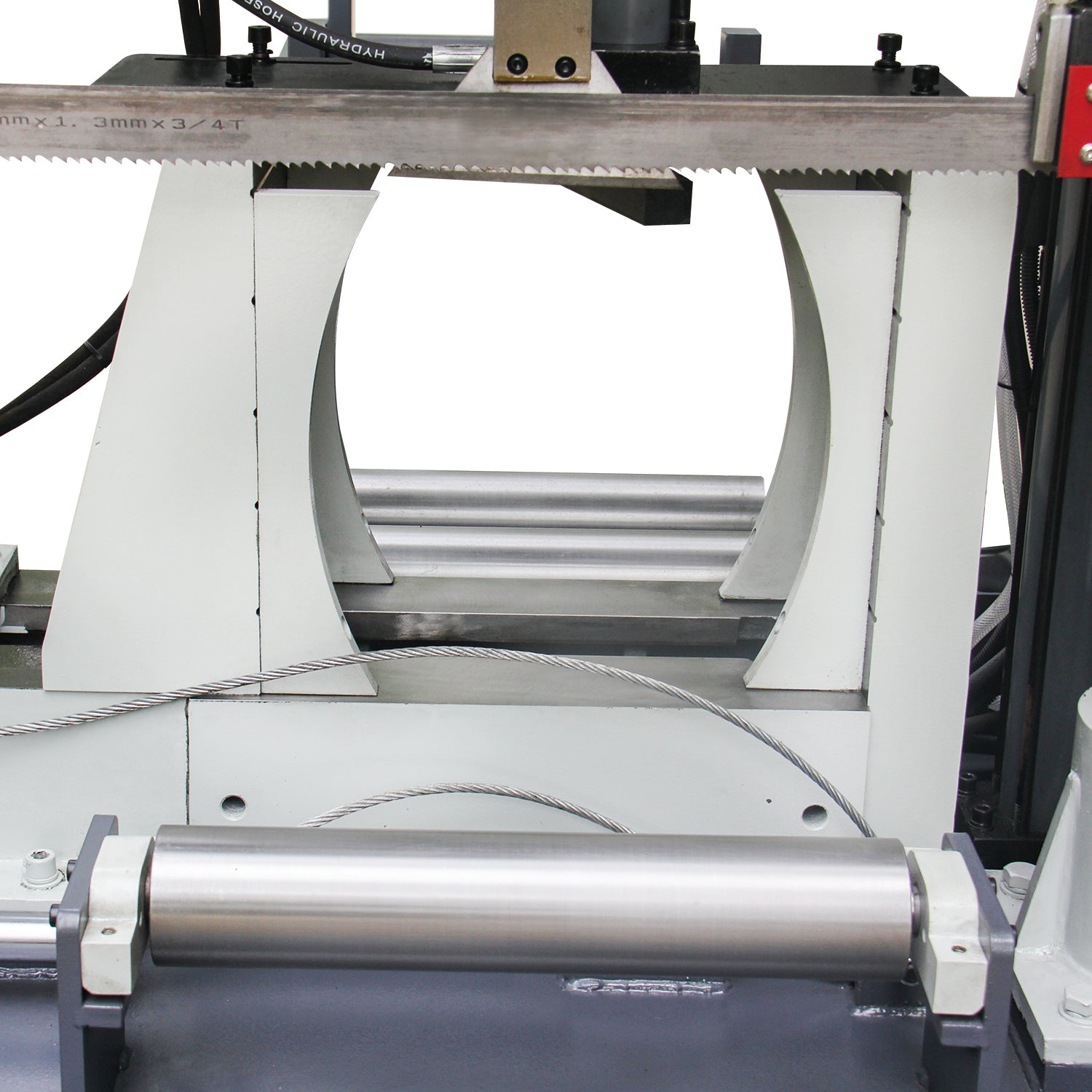

    Standard extra clamp for hexagonal bundle material cutting

    3.0/4.0 kW double speed motor to get two saw blade speed, 36,56 m/min

    Double column structure, saw frame vertical lifting, high stability

    Saw frame descent by hydraulic control, variable speed

    Hydraulic clamping vice and hydraulic blade tension adjustment

    Hydraulic blade tension is standard

    Standard working light and cooling system



    Specifications

    SKU 188304
    Model TGK-16A
    Max. cutting capacity ø400-400x400 mm
    Cutting speed 36,56 m/min
    Feeding speed Hydraulic, variable speed
    Balde size 41x1.1x5000 mm
    Workpiece clamping Hydraulic
    Blade tensioning Hydraulic
    Main motor power 3.0/4.0 kW
    Oil pump motor power 0.75 kW
    Coolant pump motor power 0.9 kW
    Drive Gear
    Packing size 270x135x215 cm
    N.W./G.W. 1350/1610 kg

    Kang Industrial TGK-16A Double Column Band Saw is an industrial grade metal cutting band saw that operates on 415V power.
    KANG INDUSTRIAL PTY LTD

    Kang Industrial TGK-16A, ø400mm-400x400mm Dual Column Bundle Cutting Saw, Hydraulic Band Saw Machine, 415V Power

    $16,600.00 $17,600.00

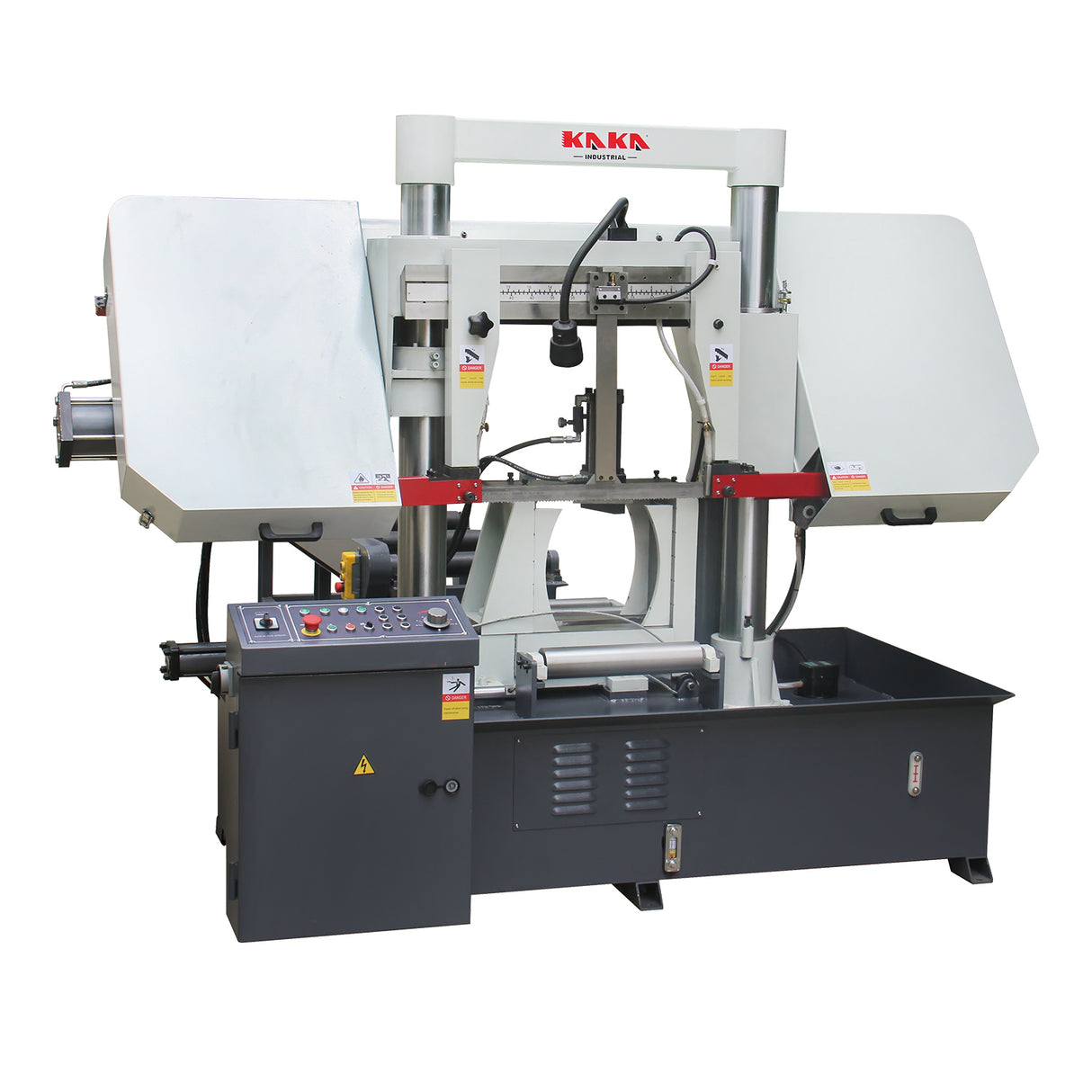

    KANG Industrial TGK-16A Double Column Band Saw
