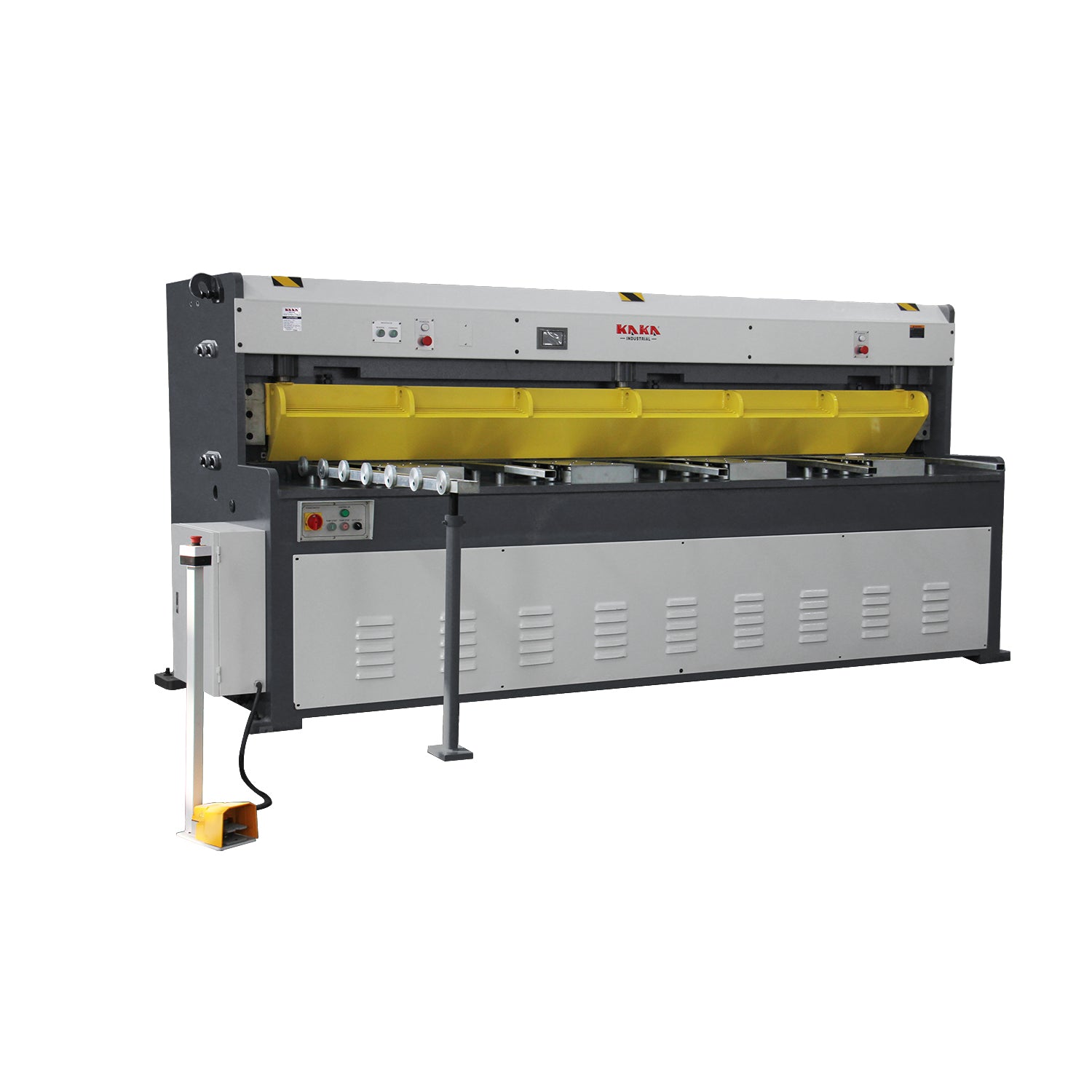

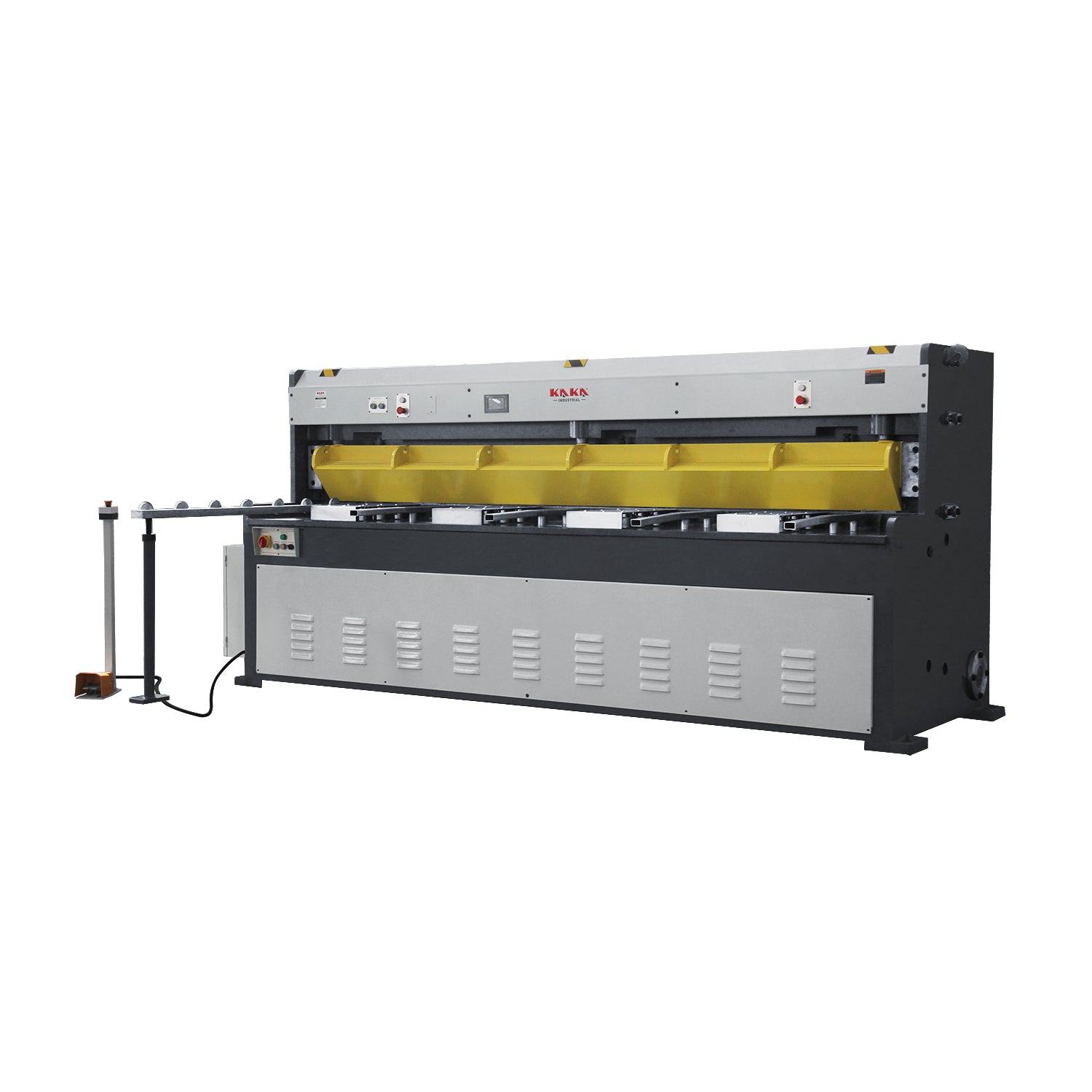

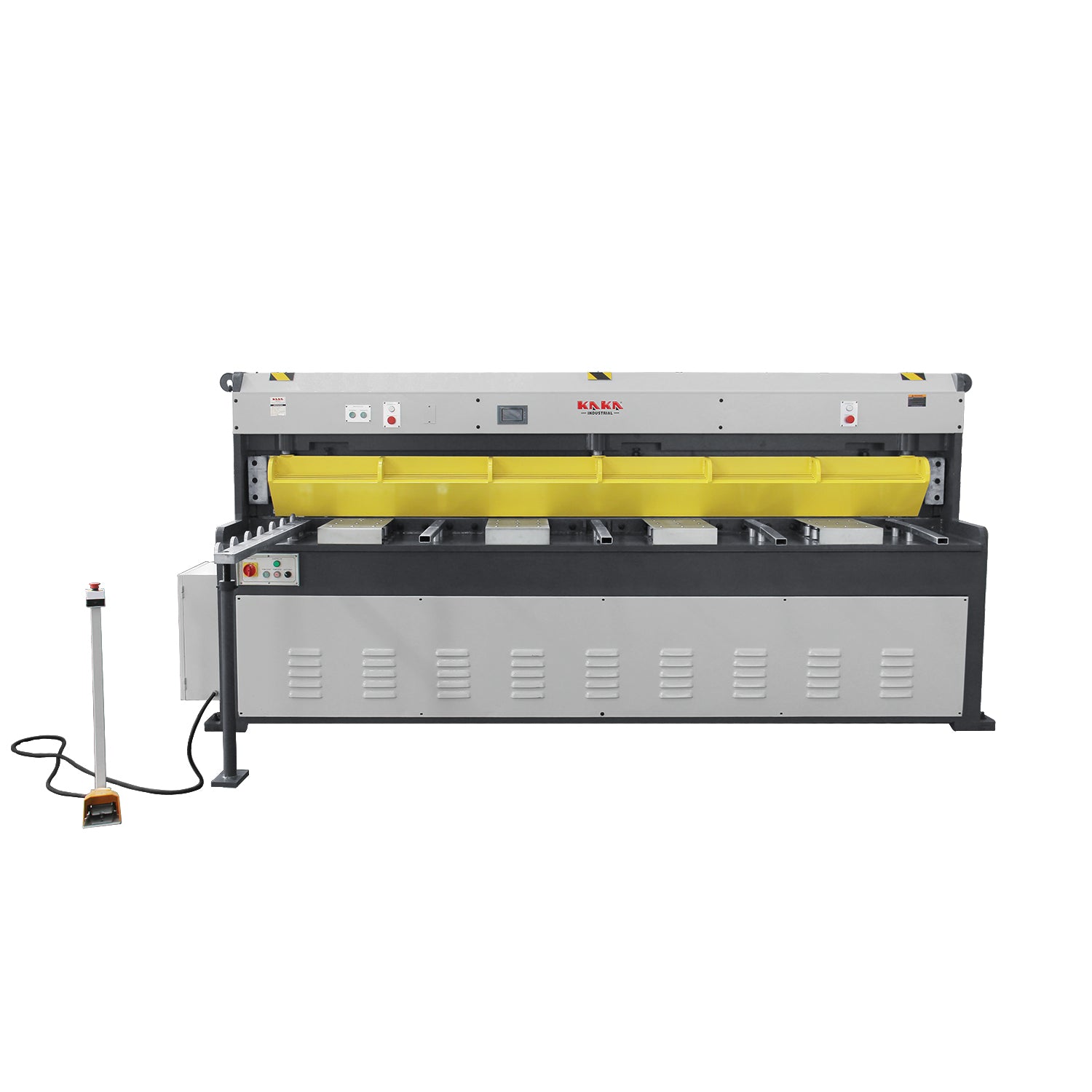

Kang Industrial Hydraulic Guillotine Shear
The KANG HQ11-12003 is a robust and versatile hydraulic shearing machine engineered for precise metal cutting in industrial applications. With a maximum cutting length of 3050 mm, it handles mild steel up to 6.5 mm thick and stainless steel up to 4.0 mm, making it ideal for fabrication shops, manufacturing facilities, and metalworking operations across Australia. This model features a heavy-duty construction with high-carbon/chrome blades (2-edge top and 2-edge bottom for extended usability), a blade angle of 2°, and manual blade clearance adjustment for optimized performance on various materials.
Precision and Versatility Hydraulic Guillotine. Adjustableblade clearance allows for tailored cuts on mild or stainless steel, a shadow line for straight cutting guidance, reducing material waste, and improving accuracy in diverse metal fabrication sectors like construction and automotive.
Enhanced Safety Features. Full finger guard, emergency stops, protection, and minimising risks for operators in busy workshops.
Ease of Use and Efficiency Sheet Metal Cutting. Ball transfer plates simplify loading heavy sheets, while the quiet hydraulic system and auto-cycle modes speed up operations, ideal for busy workshops where time savings translate to cost reductions.
Durability and Low Maintenance Guillotine Shear. Indexable hardened blades and a robust all-steel frame offer long-term reliability, with the one-year warranty providing peace of mind for remote or high-usage operations where service access might be limited.
Quiet and Ergonomic Sheet Metal Shear. The centrally located hydraulic system ensures low noise levels, and the compact control panel improves operator comfort during extended shifts.
Versatile Applications. The Hydraulic Guillotine is suitable for cutting up to 6.5 mm thick materials with shadow line guidance for accuracy, making it a valuable asset for businesses in engineering, signage, or HVAC fabrication needing consistent, high-quality results.
Motorised Backgauge & Servo Motor. The hydraulic guillotine features a servo motor drive backgauge, ensuring high precision cutting length each time, and a touch screen to show detailed data.
Features
15 kW powerful motor runs on 415V power
Comes with NC motorised backgauge (servo motor) with touch screen
Hydraulic clamping ensures a clean cut
Shadow-line lighting clearly indicated the cutting line
Wide plate support table with ball transfer for heavy material infeed
Rear-mounted safety lights
Two Cutting Model:
Inch Mode: Jog the control, easy to adjust the blade clearance
Auto Mode: Continuous cutting when keeping press the foot pedal
Standard Included:
1 each 150 cm squaring arm with inlaid inch/metric dual scale
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 4-edge on the bottom & 4-edge on upper
4 each 610mm front support arms
Hydraulic hold-downs with anti-mar neoprene
Full-length viewable finger guard
Removable safety foot pedal
Specifications
| SKU | 186204 |
| Model | HQ11-12003 |
| Max. cutting length | 6.5 mm |
| Max. cutting width | 3050 mm |
| Shearing angle | 2° |
| No. of stroke (per min.) | 12 |
| Motor power | 15 kW |
| Back gauge | 920 mm (motorised) |
| Packing size | 413x210x190 cm |
| N.W./G.W. | 6095/6245 kg |
