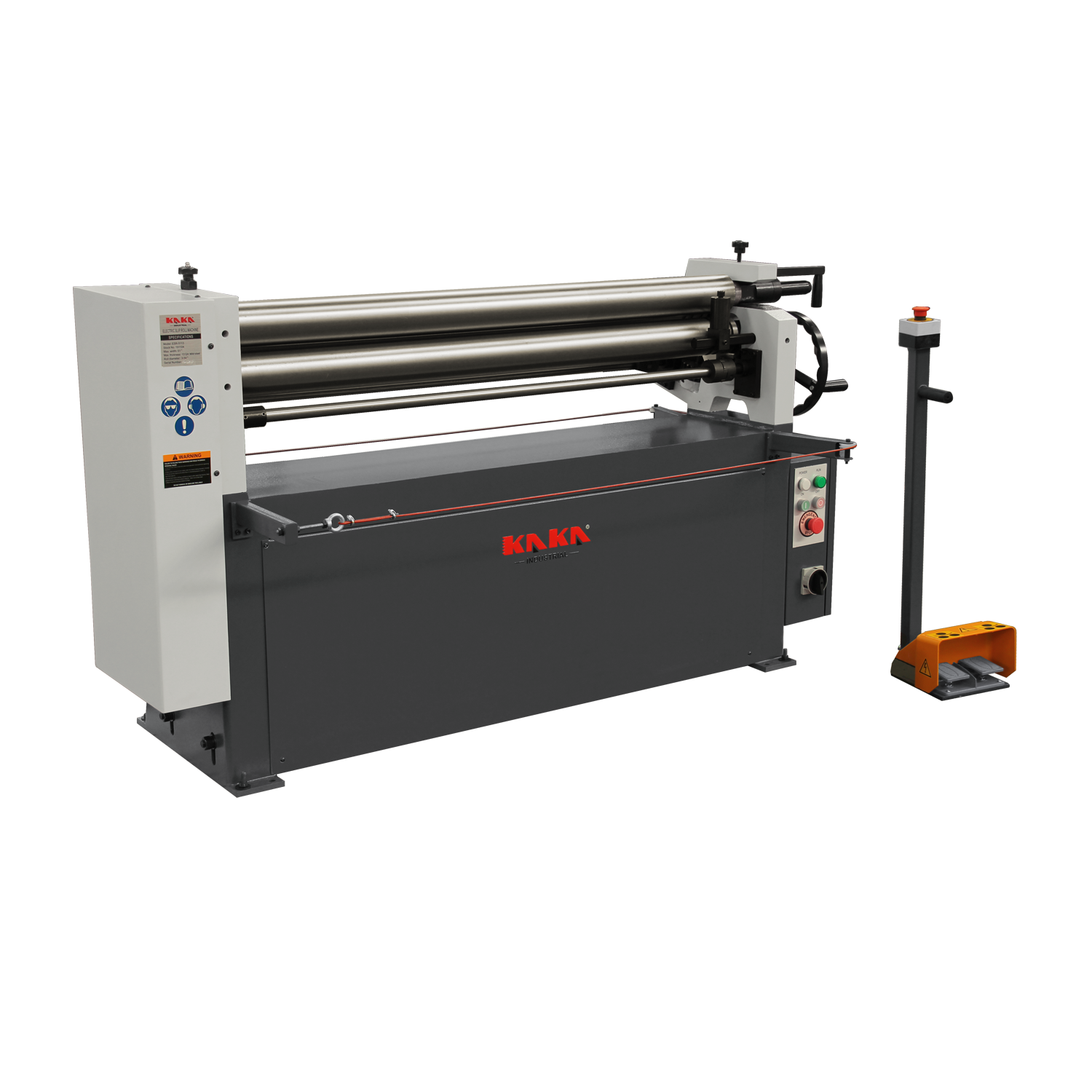

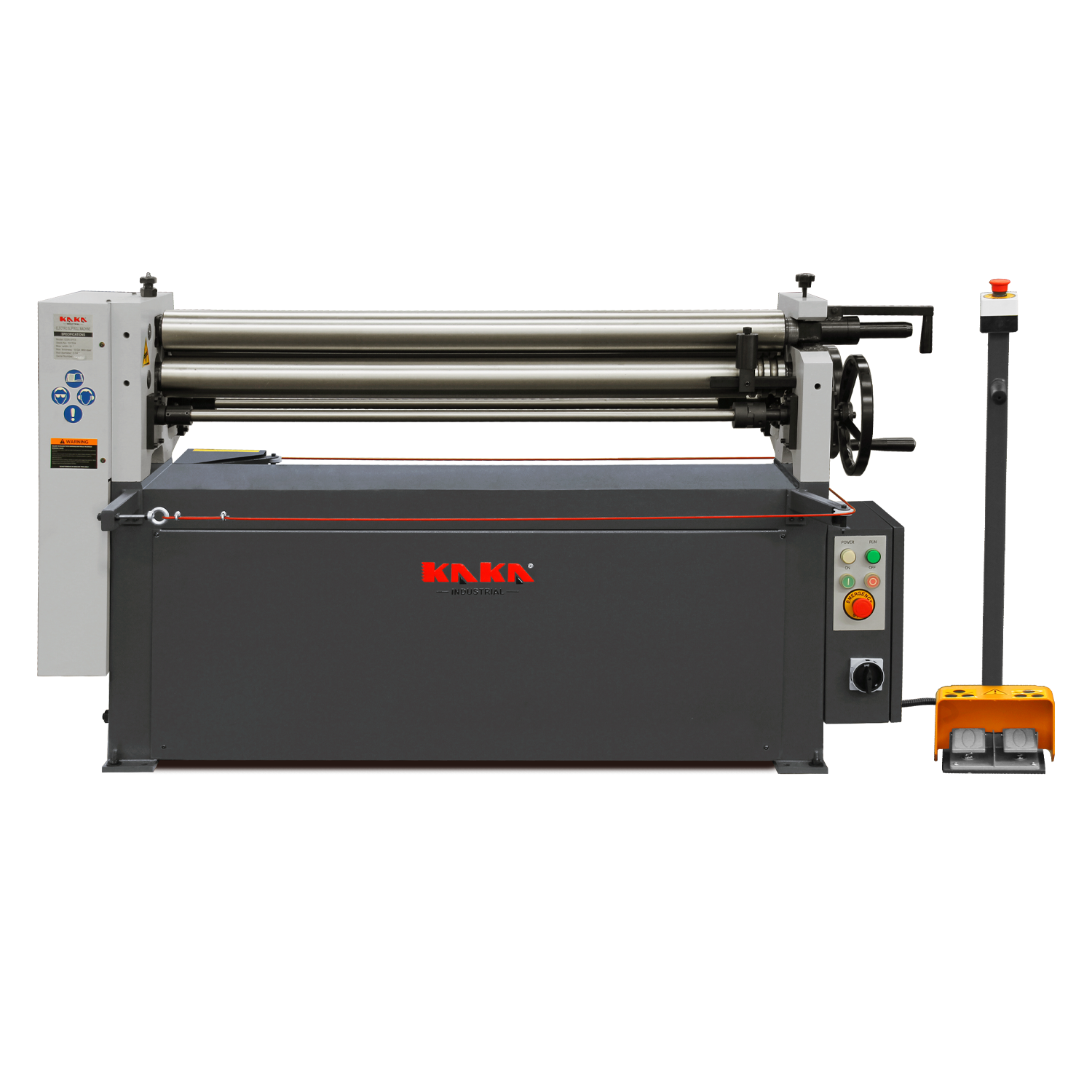

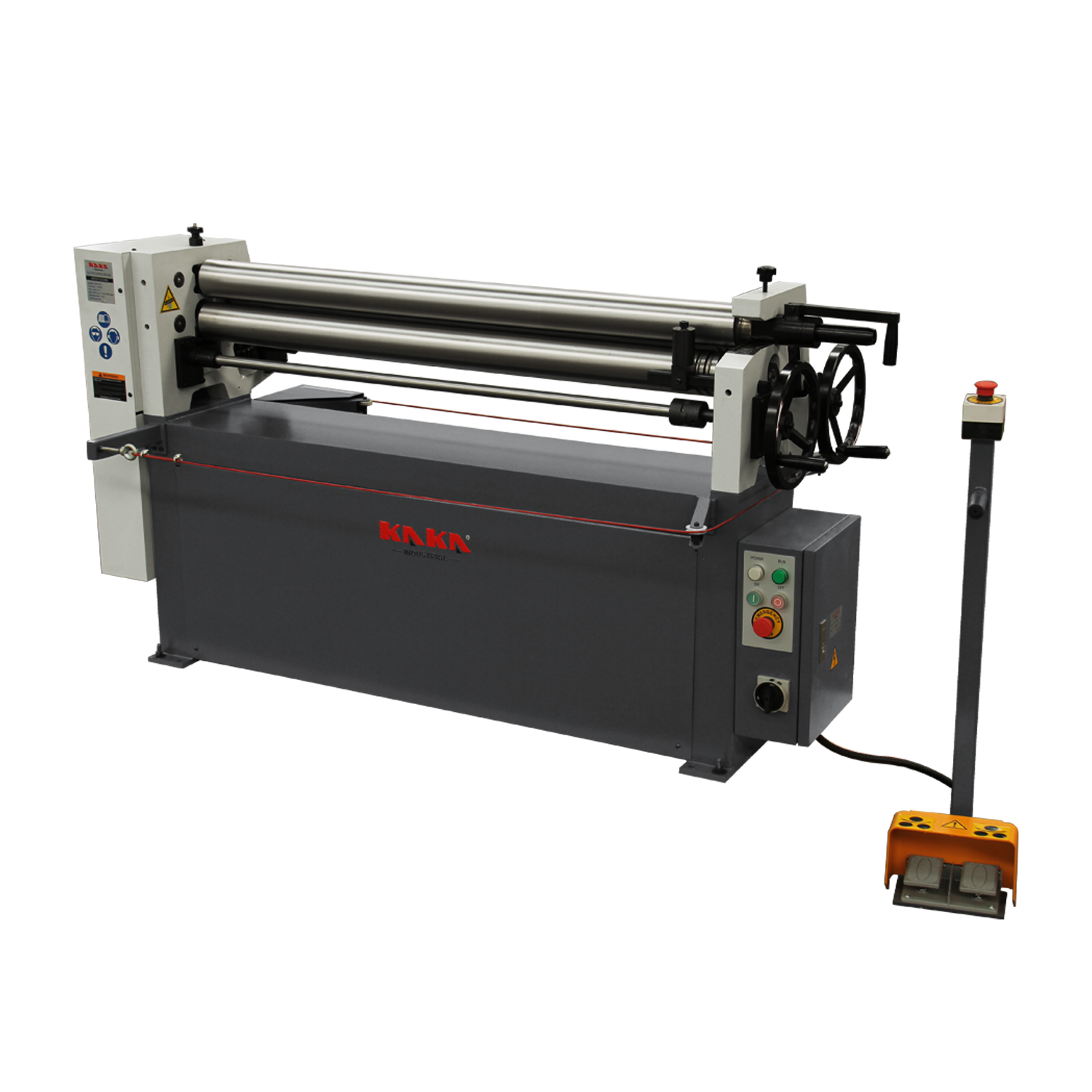

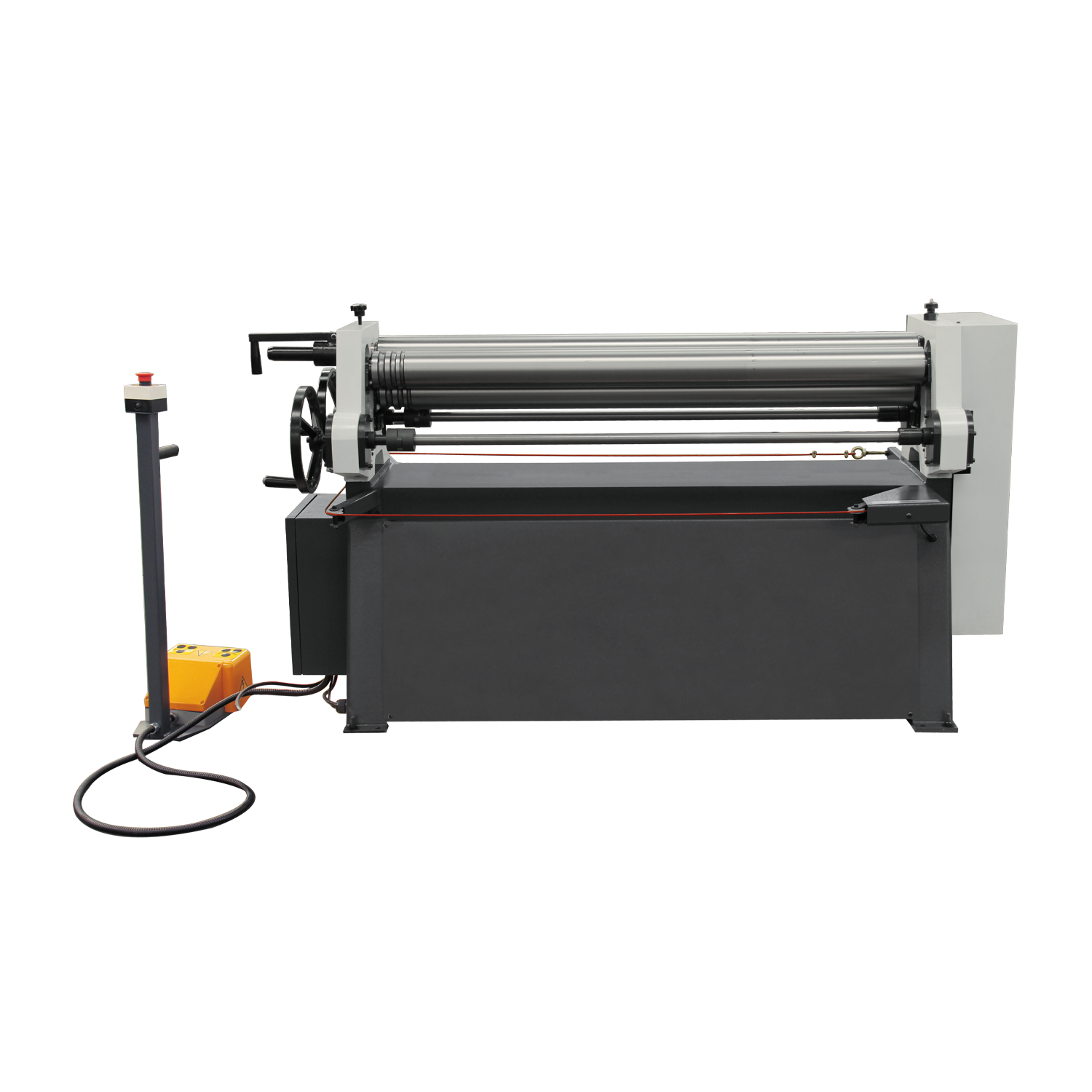

KANG Industrial ESR-5113, 2.5x1300mm motorised plate curving rolls

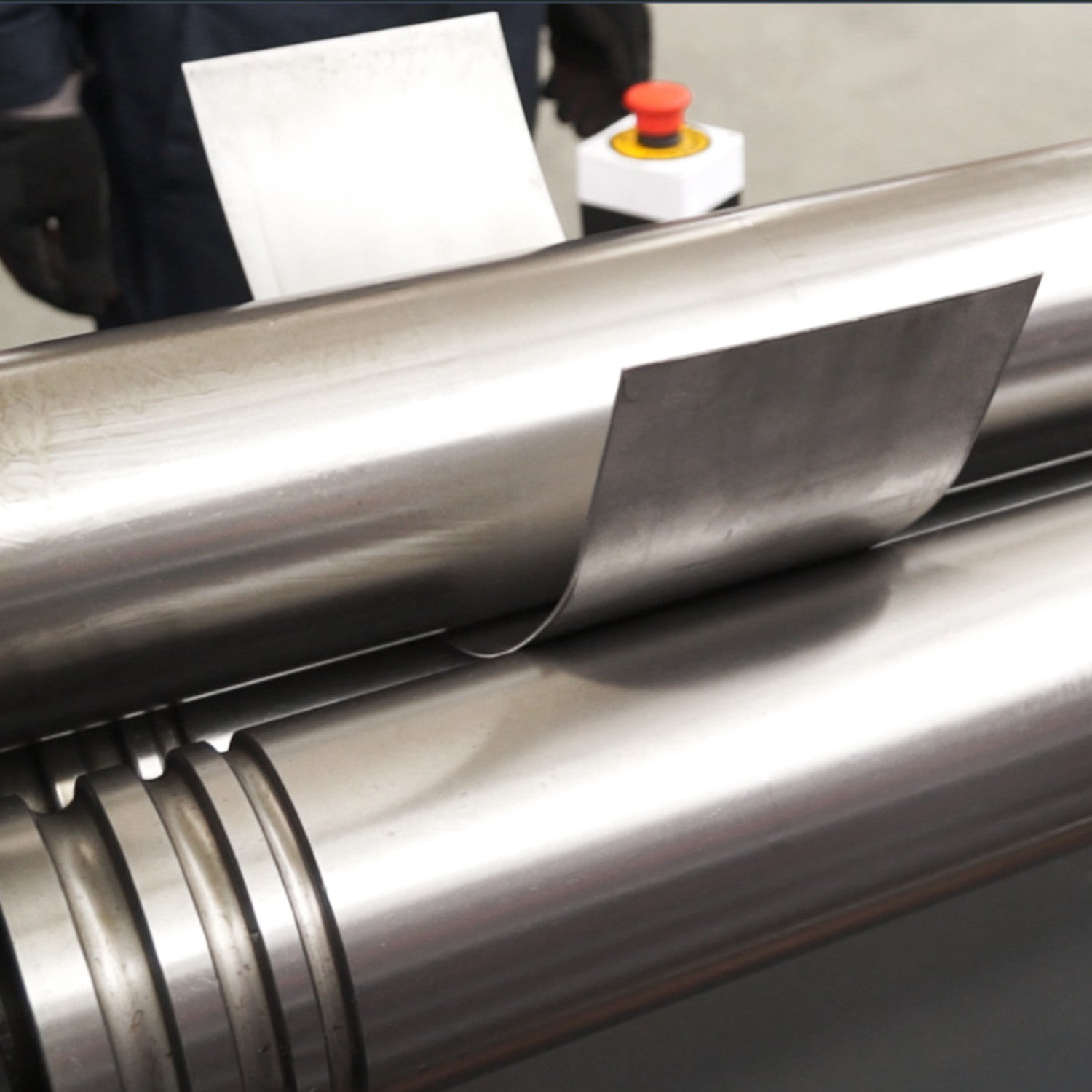

The KANG ESR-5113 is a high-performance, motorised 3-roll initial-pinch plate curve roller. With a substantial working width of 1300mm and the ability to roll mild steel up to 2.5mm thick. Built with high-quality, hardened steel rollers, this machine features a fixed top roller and adjustable lower and rear rollers to accommodate various material thicknesses and desired radii. It is powered by a robust 1.5kW (2.0hp) motor, delivering consistent torque for smooth, even rolling across the entire width of the workpiece.
High Versatility-1300mm x 2.5mm Capacity Slip Roller. Capable of handling common Australian sheet materials, including steel sheet, stainless steel, and aluminium, making it suitable for automotive, HVAC, and architectural metalwork.

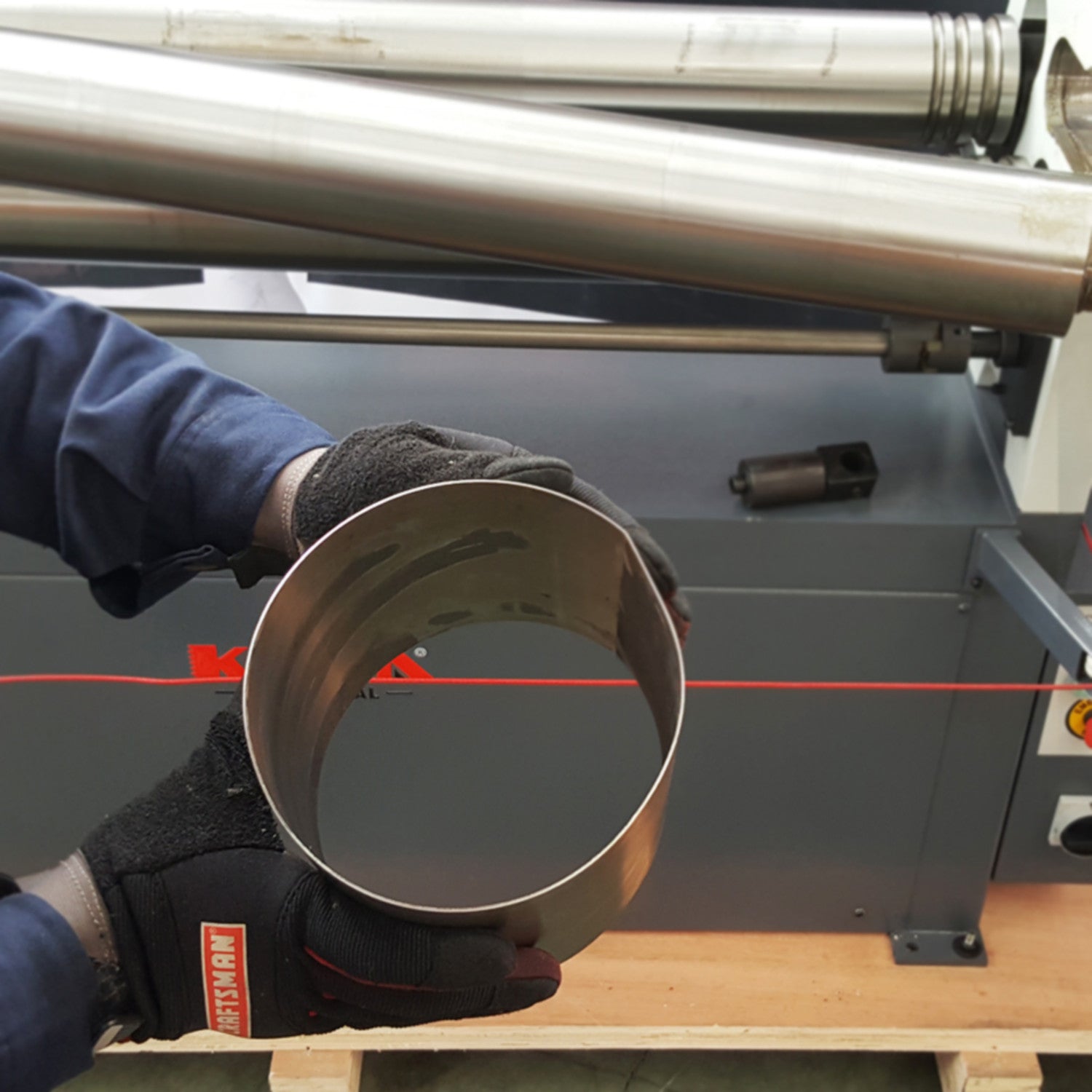

Easy Workpiece Removal Roller Machine. The swivelling upper roller streamlines the production process, allowing for fast and effortless removal of completed, closed workpieces (e.g., cylinders).
Enhanced Safety. Mobile foot pedal with emergency stop and safety rope reduces risks in busy workshops.
Conical Bending Device Included. Allows for the production of conical shapes (tapers) without the need for additional attachments, increasing the machine's utility.
Professional Durability Sheet Plate Roller. Heavy steel construction ensures long-term reliability and minimal deflection.
Safety Interlock. Includes an emergency stop safety line/interlock system, crucial for workshop safety
Features
Three-roll Initial-pinch plate rolls
Runs on 415V-3PH power
Working width up to 1300mm
Could roll 2.5mm max. across the full width
Safety line interlock system with emergency stop

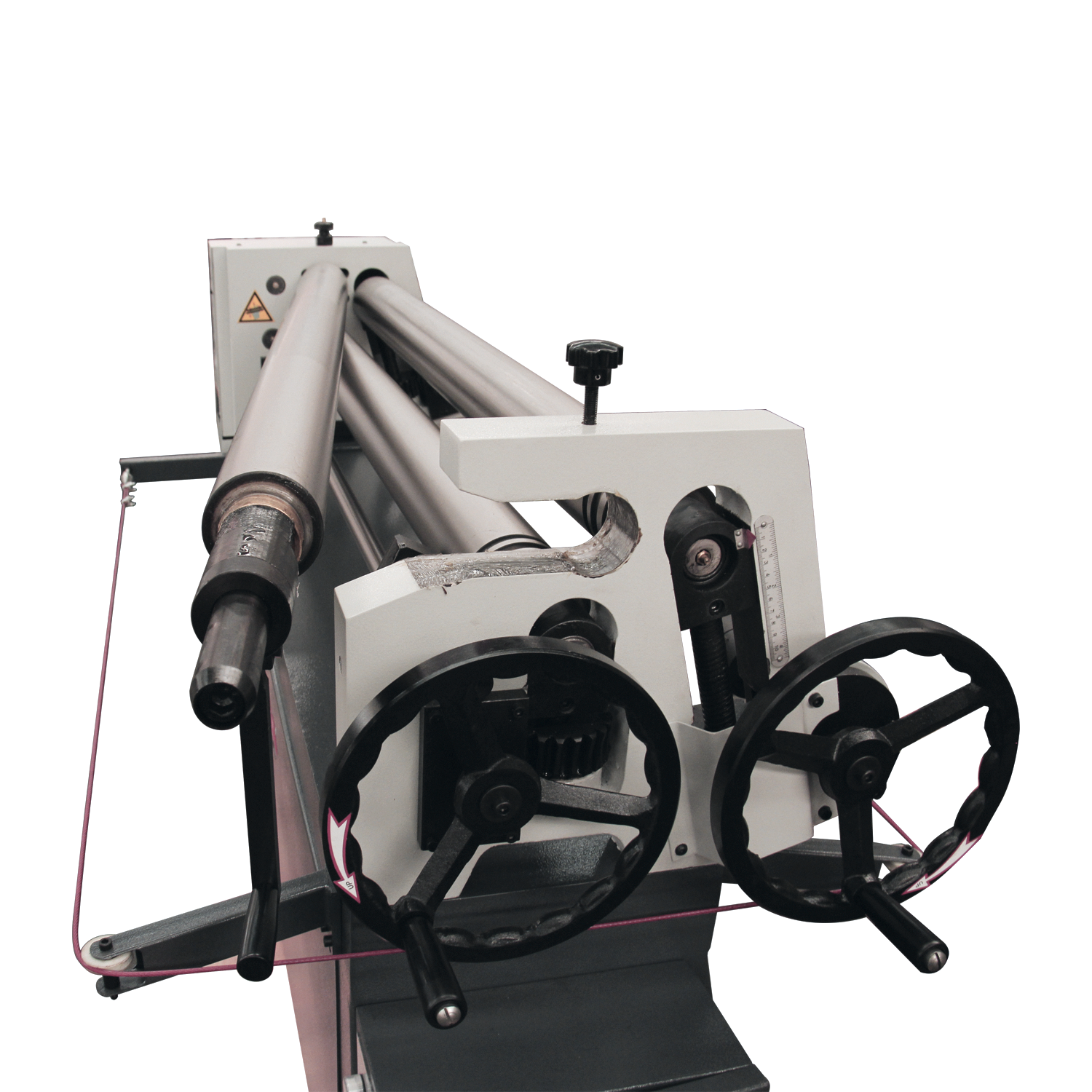

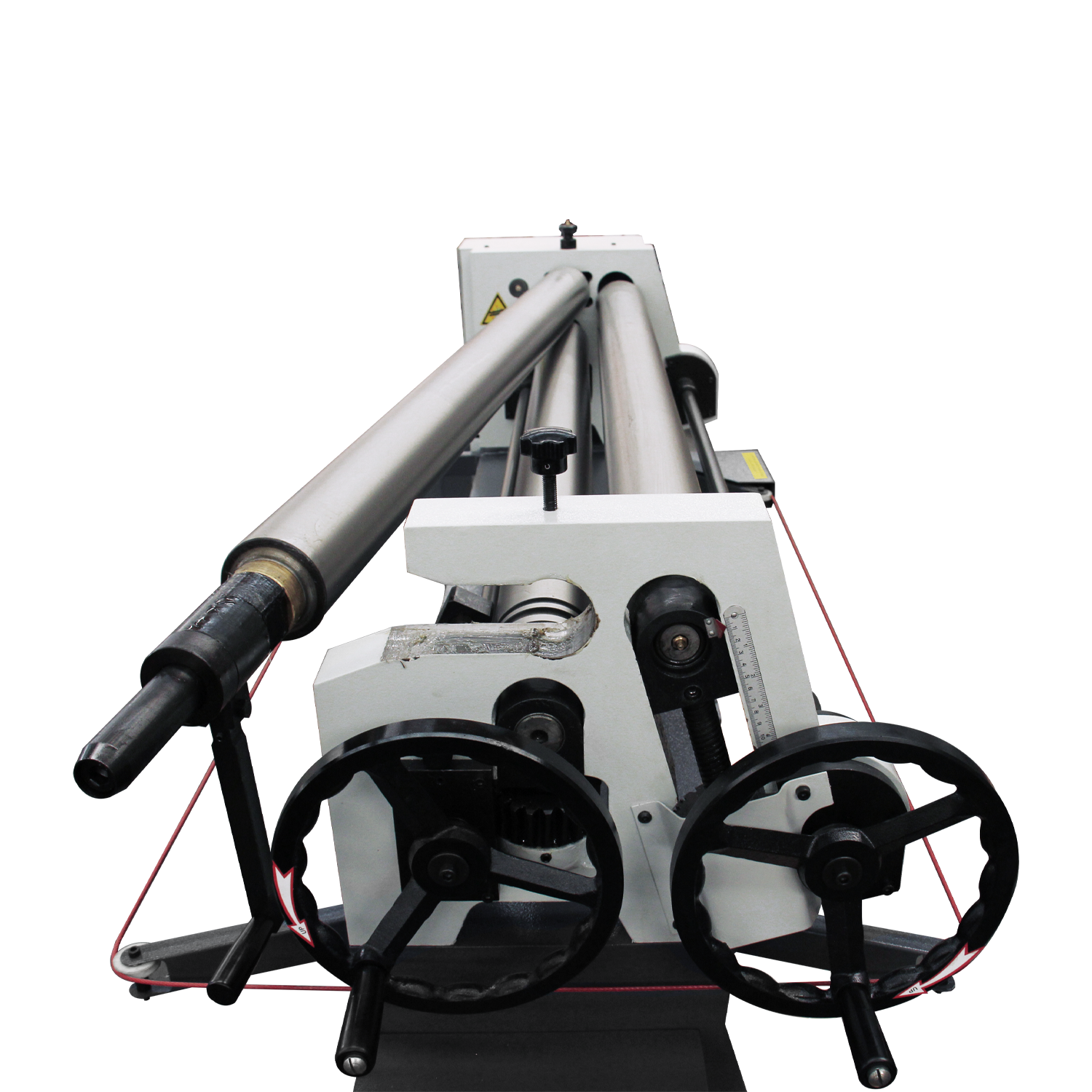

Top roll swings out across the cam lock to take out the workpiece

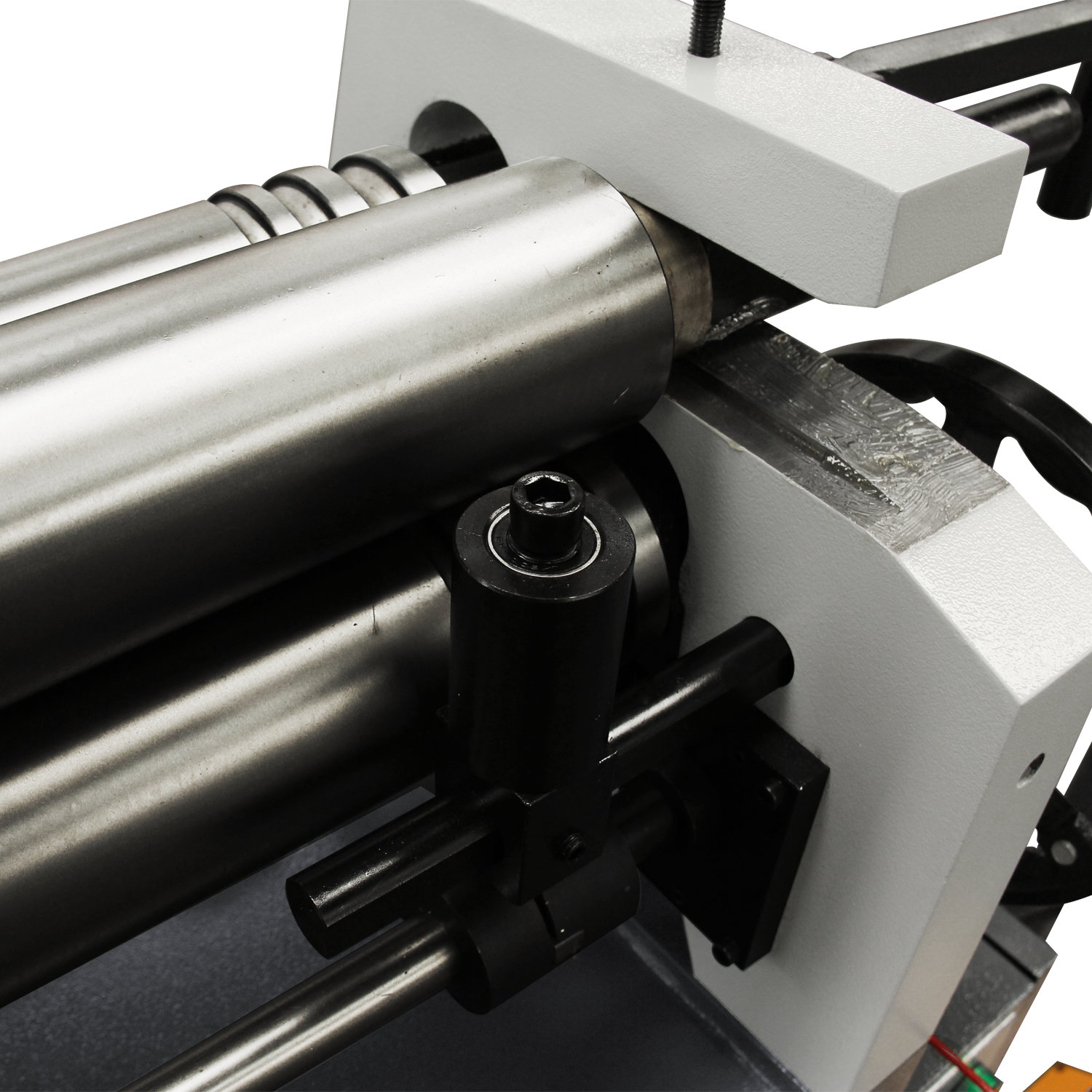

Standard with wire core grooves for wire rolling
Different sizes are available:
ESR-5108E (1300x4.5mm, motorised rear roller)
ESR-9812E (2500x2.5mm, motorised rear roller)
Specifications
| SKU | 191104 |
| Model | ESR-5113 |
| Max. rolling thickness | 2.5 mm |
| Max. rolling width | 1300 mm |
| Dia. of roller | 90 mm |
| Min. Rolling dia. | 100 mm |
| Motor power | 1.5 kW |
| Roller speed | 8.8 rpm |
| Packing size | 200x70x120 cm |
| N.W./G.W. | 545/630 kg |
