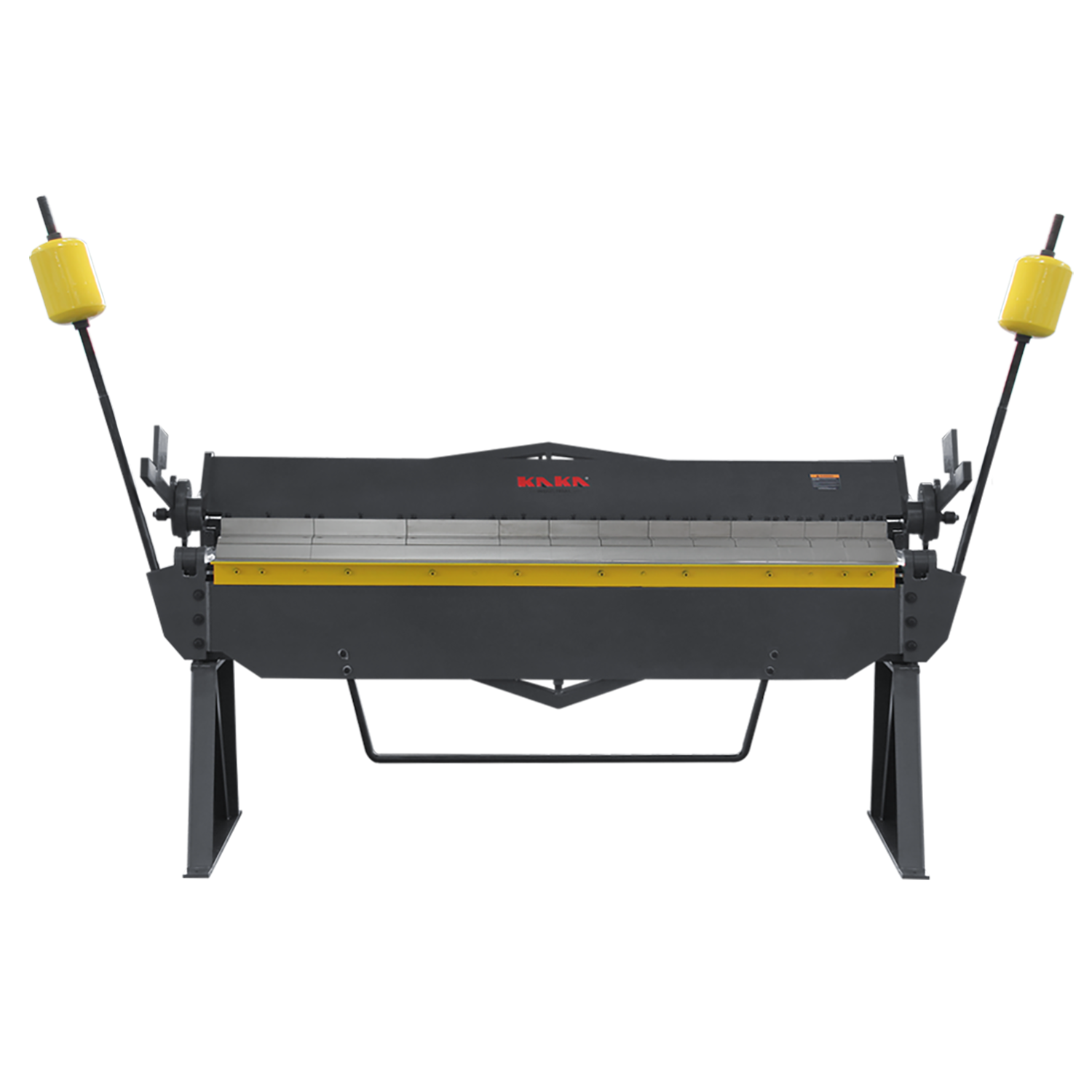

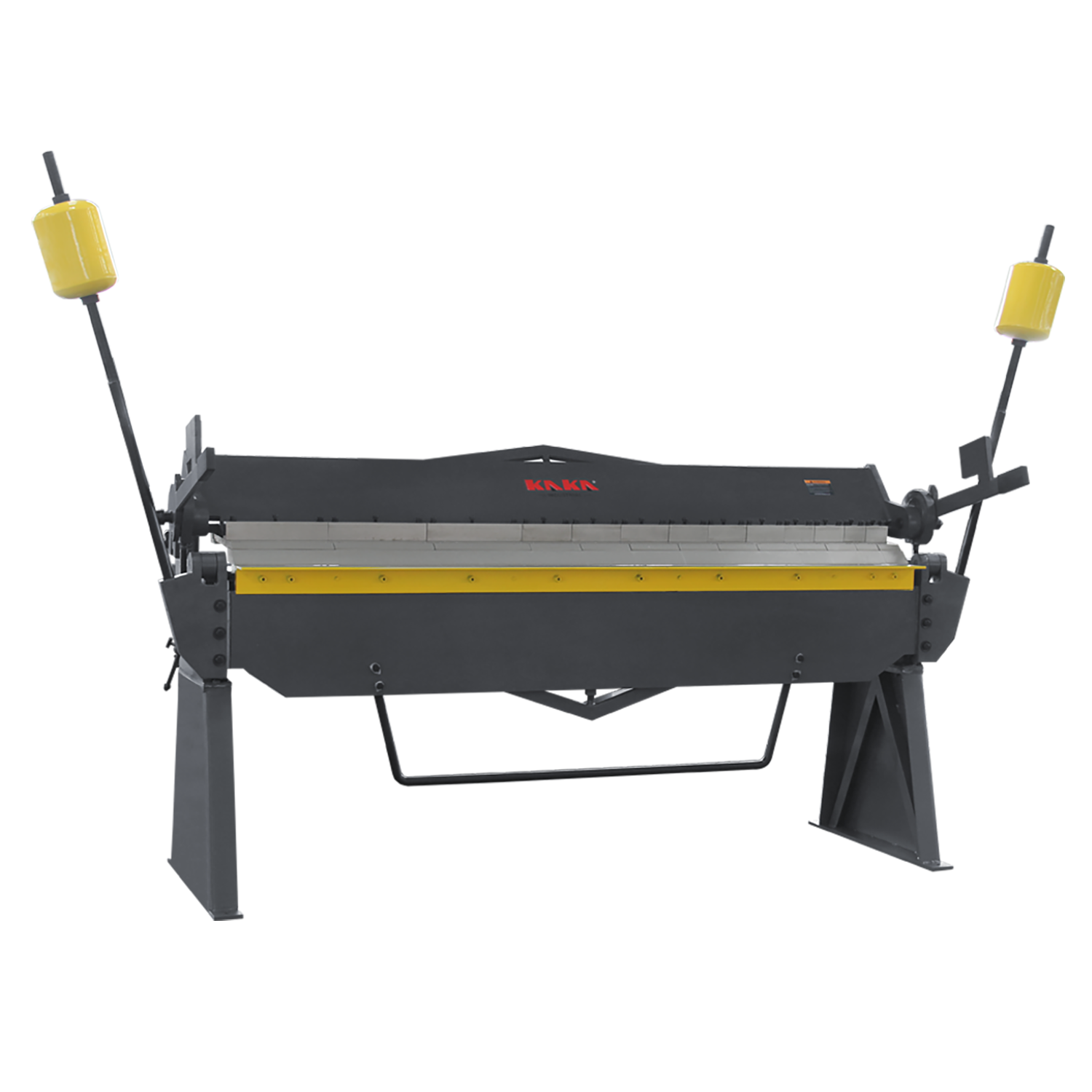

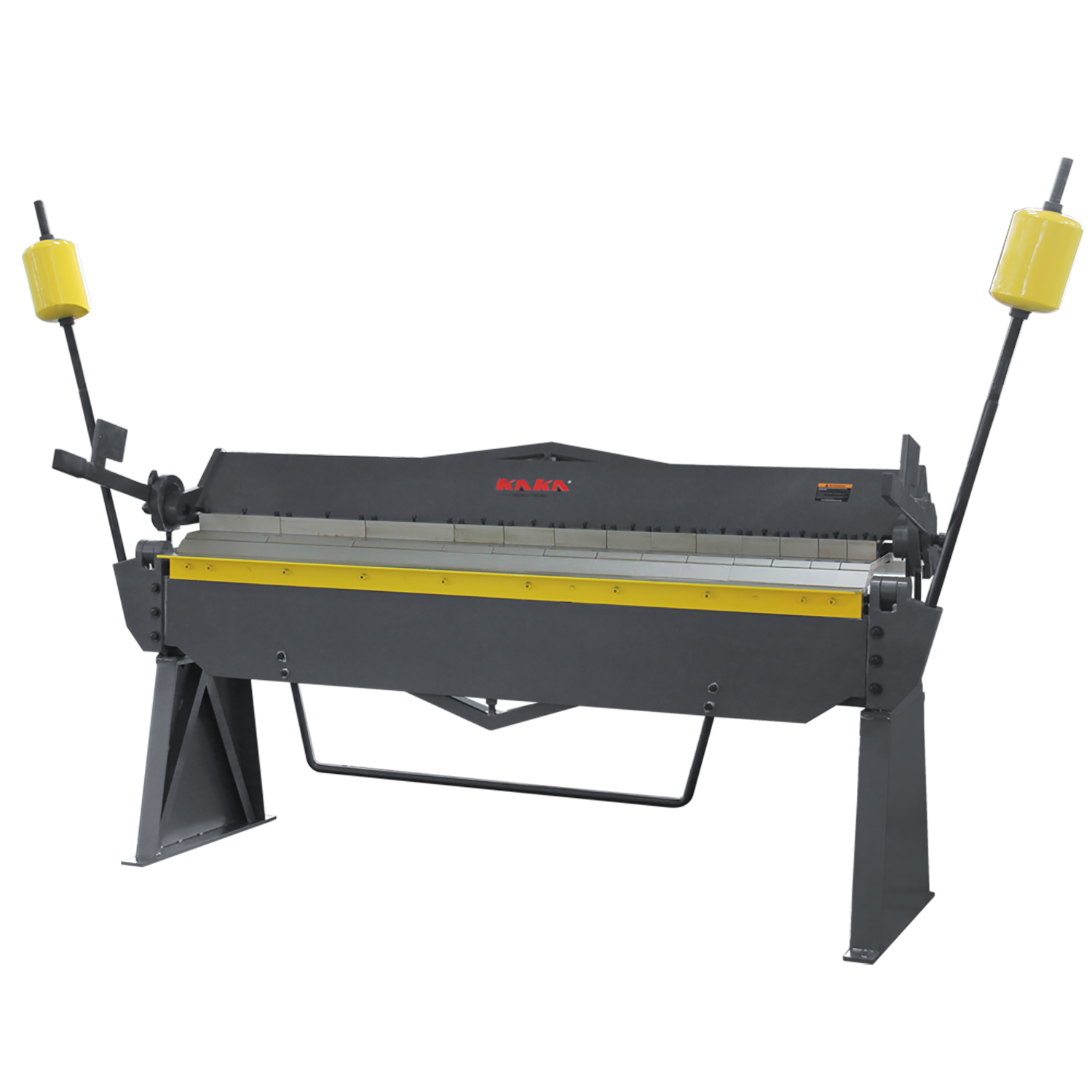

KANG Industrial 2040mm Width Manual Panbrake W-8012A
KANG Manual Pan Brakes– 2040 mm x 2.5 mm Heavy-Duty Manual Segmented Finger Brake

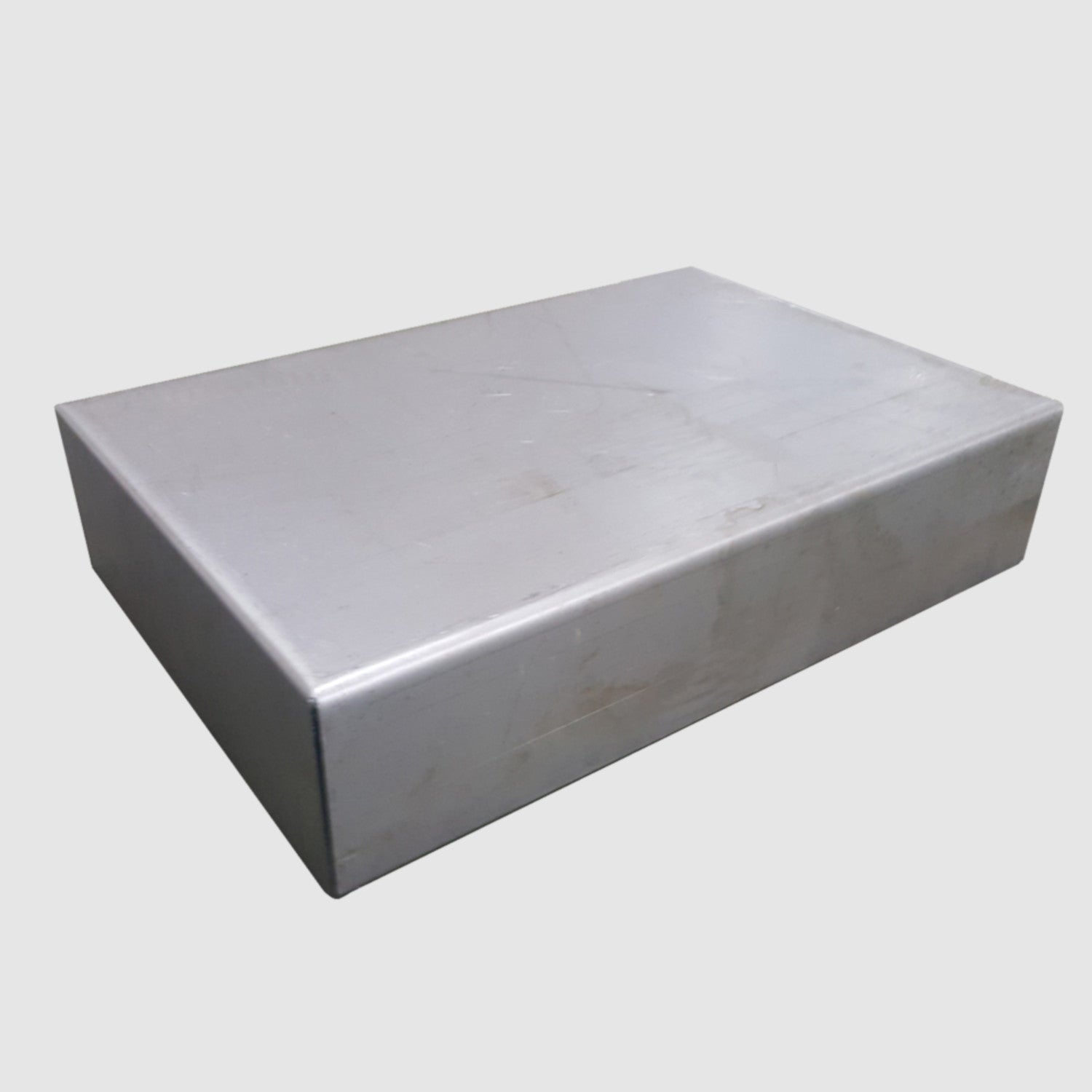

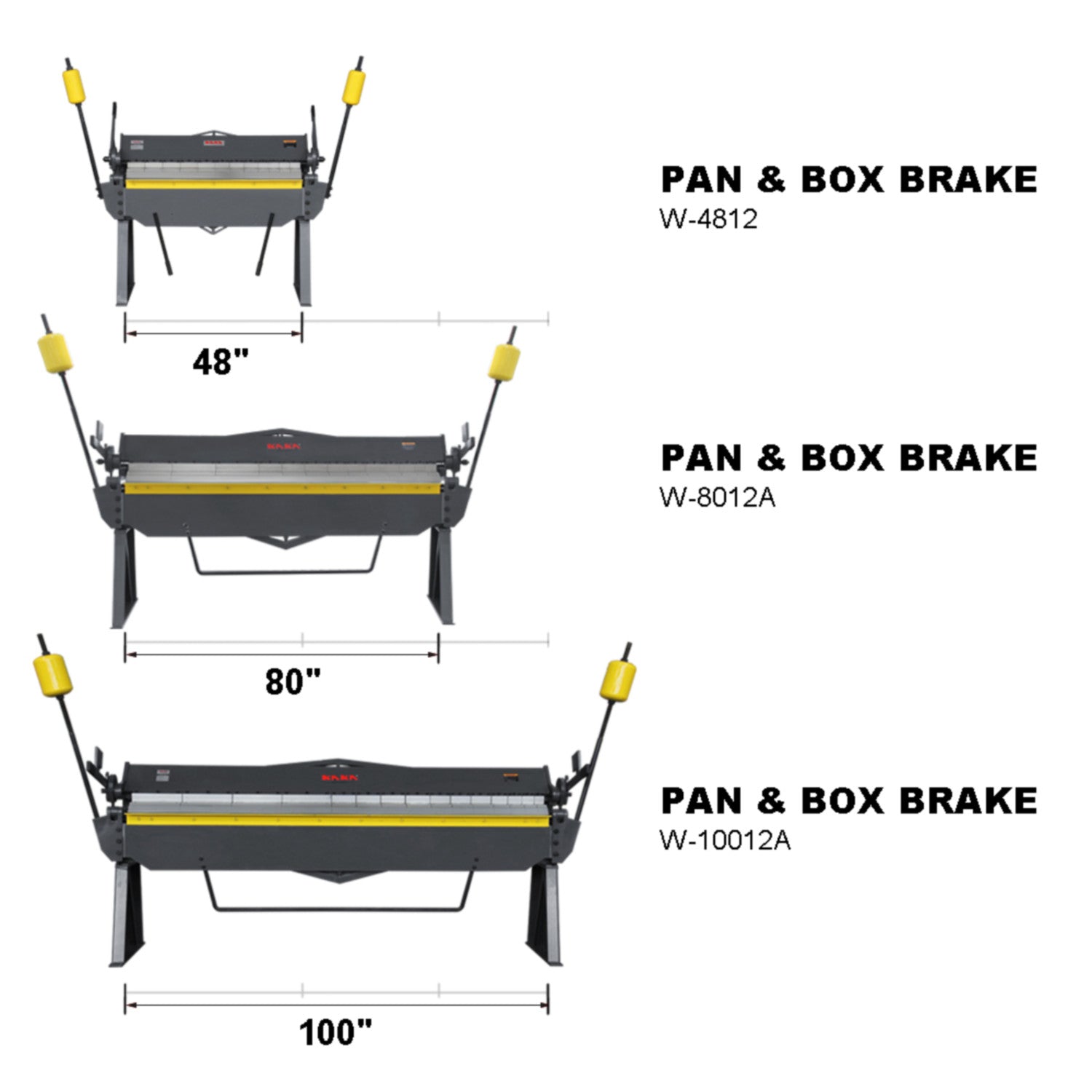

This is a robust manual panbrake folder from KANG. Engineered for professional fabrication workshops, it specializes in forming deep boxes, pans, channels, trays, and custom profiles with precise bends. The W-8012A is a larger, heavier-duty sibling to the W-4812 (1220 mm model), offering double the length for handling full industrial sheets in HVAC, boiler-making, and enclosure production. Its all-steel welded construction emphasizes rigidity for thick materials, with removable hardened fingers for versatility.
Industrial-Length Capacity. Full 2040mm length, bends a larger sheet in one hit – no joins, no seams, no repositioning. Perfect for long HVAC ducts, electrical cabinets, roofing flashings, truck side panels, etc.
Robust Manual Power. Designed to apply the necessary force for bending materials up to 2.5 mm mild steel (typical of conventional folders in this size), ensuring maximum capacity without the cost or complexity of a hydraulic system.
Rigid Construction Bender. Conventional folders of this size are built with heavy-duty, welded steel frames to handle the stress of long bends. This prevents frame deflection and ensures the folding angle is consistent from one end of the sheet to the other.

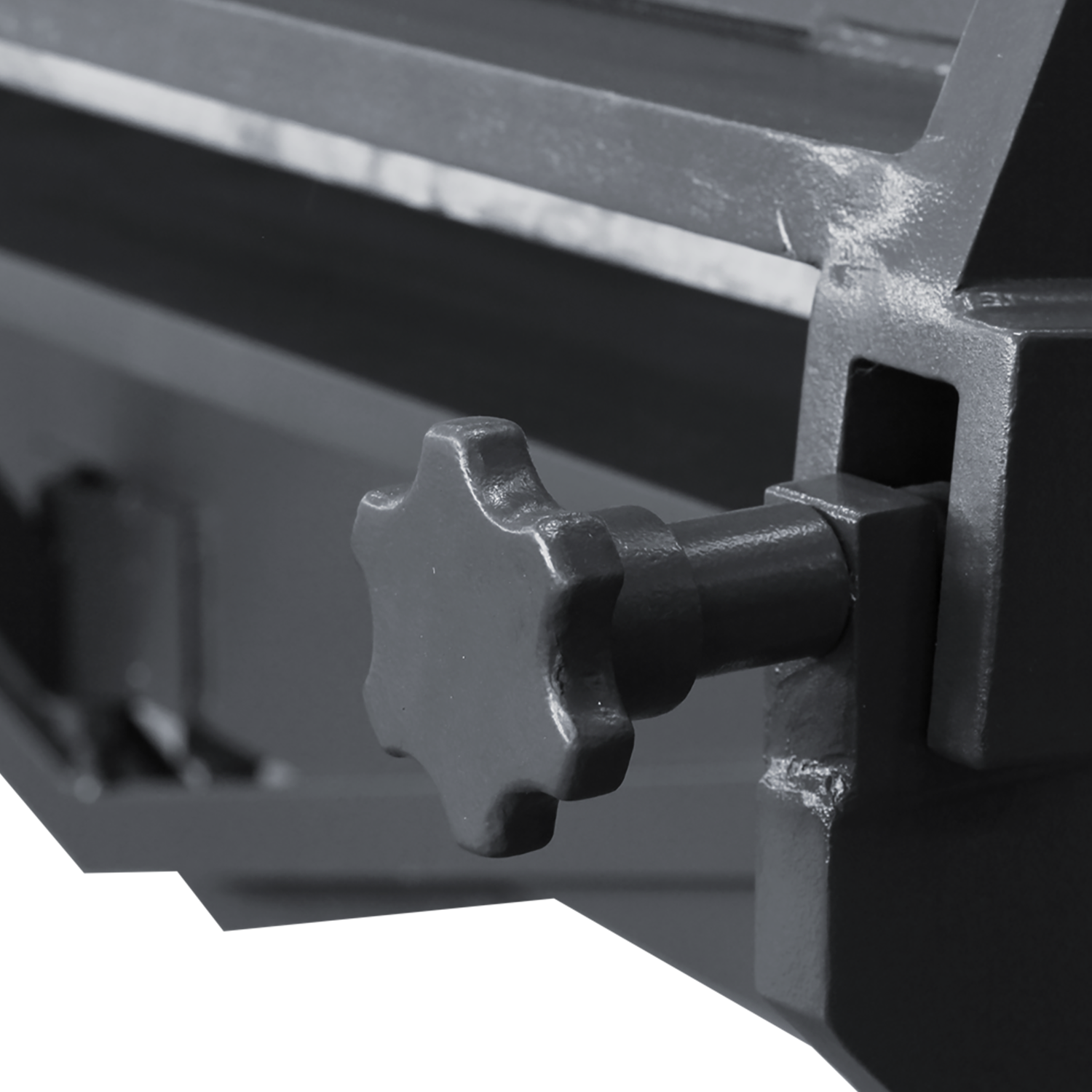

Accurate Control. Manual adjustment points for the clamping beam and apron allow for fine-tuning of clamping pressure and bend radius, giving the operator precise control over the final part geometry.

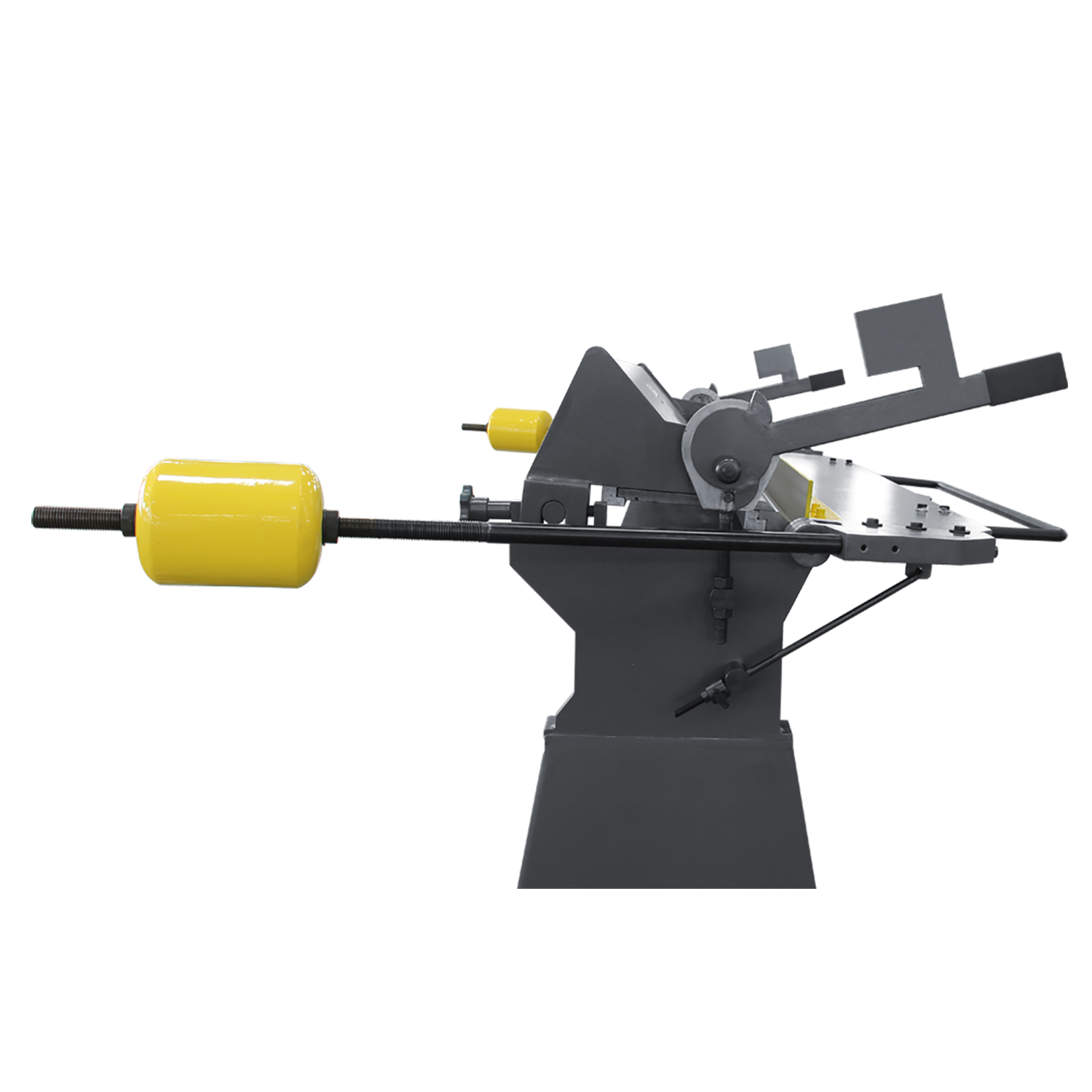

Counterweight-Assisted Operation. Built-in balance system eases deep bends, reduces operator fatigue on long runs, a step up from pure manual levers on basic models.
Features
Heavy-duty steel construction manual panbrakes
2.5x2040mm mild steel plate capacity sheet metal bending machine

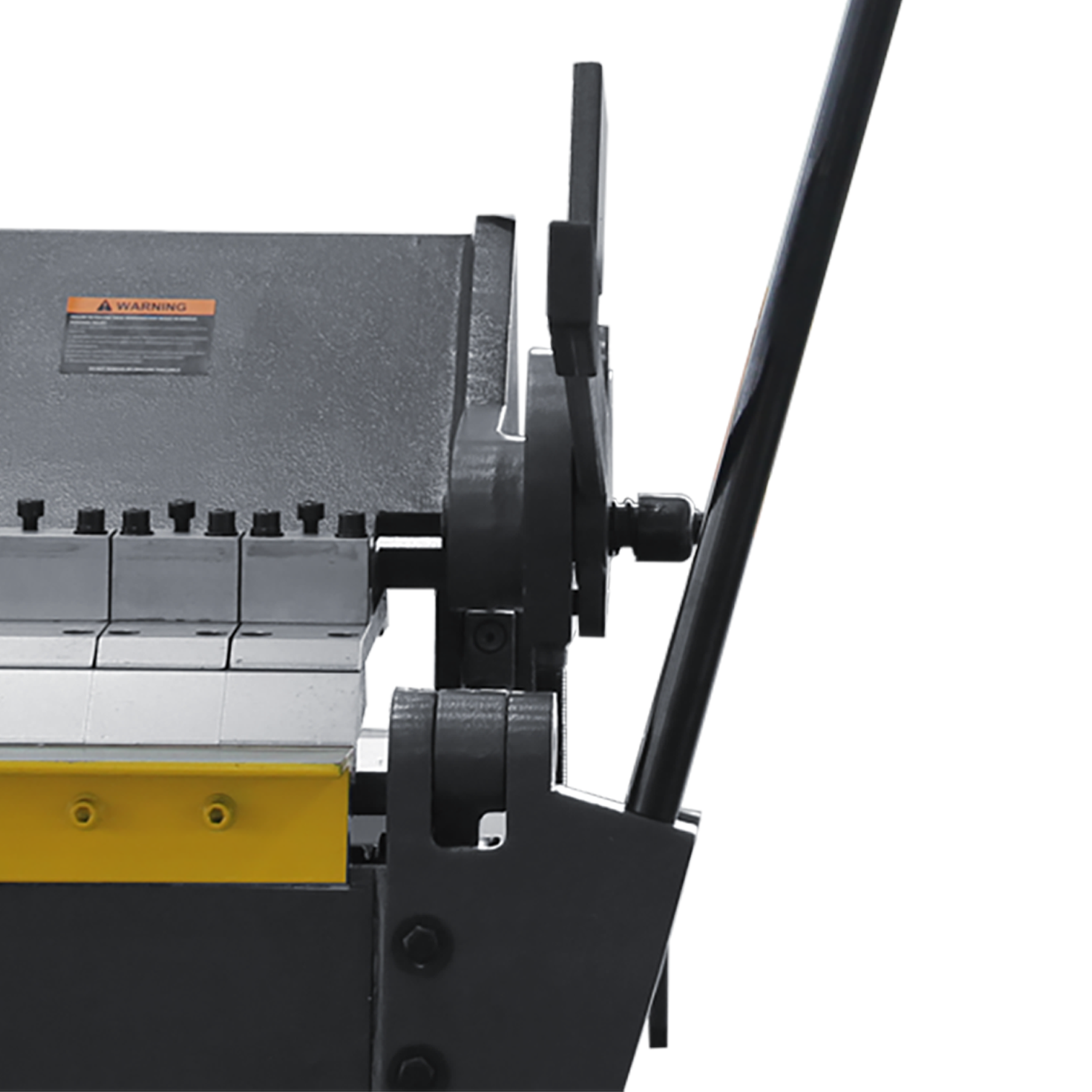

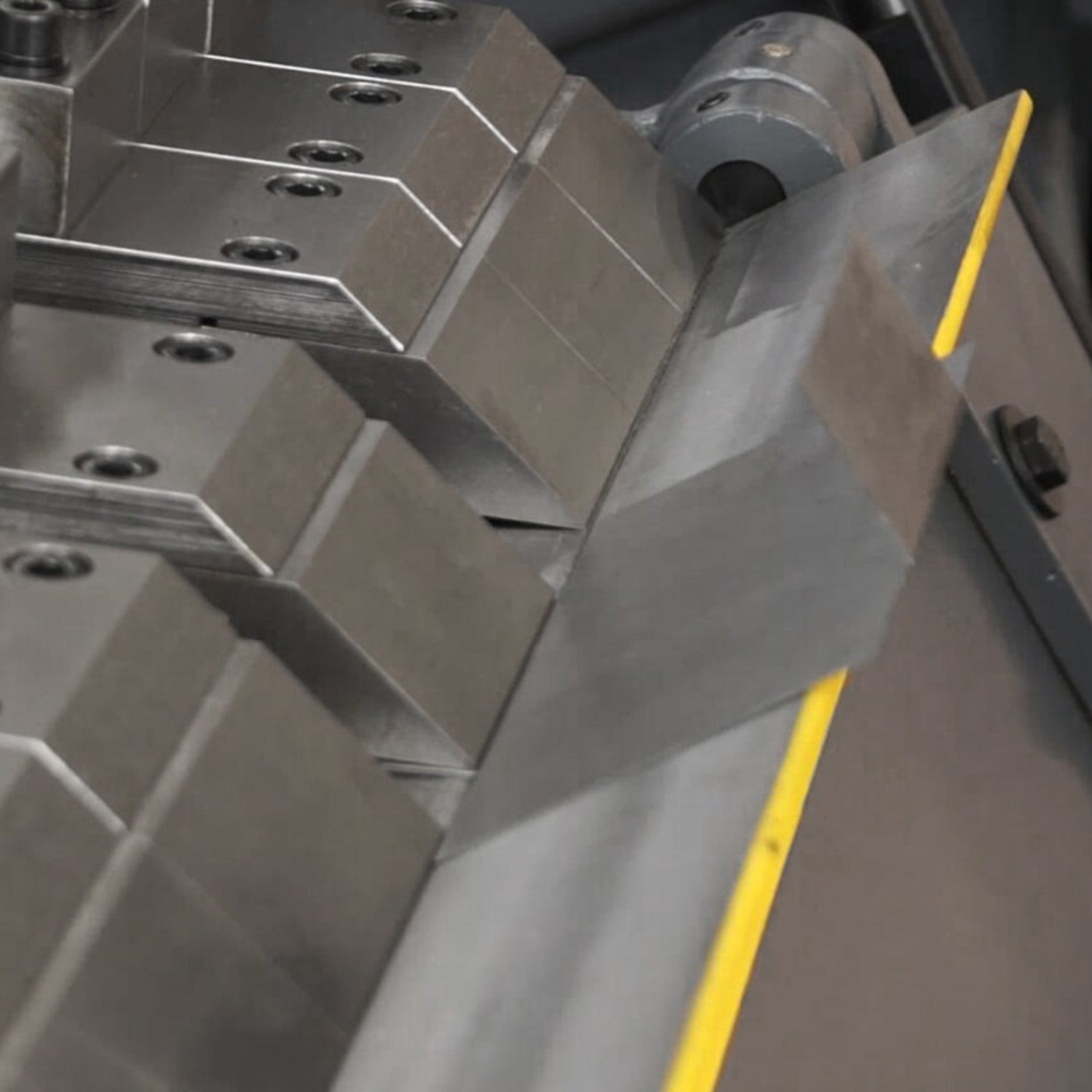

Removable individual bending fingers for pans & boxes bending
Finger sizes: 2 pcs of 76.2mm, 2 pcs of 101.6mm, 3 pcs of 127mm, 3 pcs of 152.4mm, 1 pc of 279.4mm.
0-135 degrees bending range panbrake folder
Equipped with two massive bending counterweights, fatigue is low even at full capacity, efficient folding applications

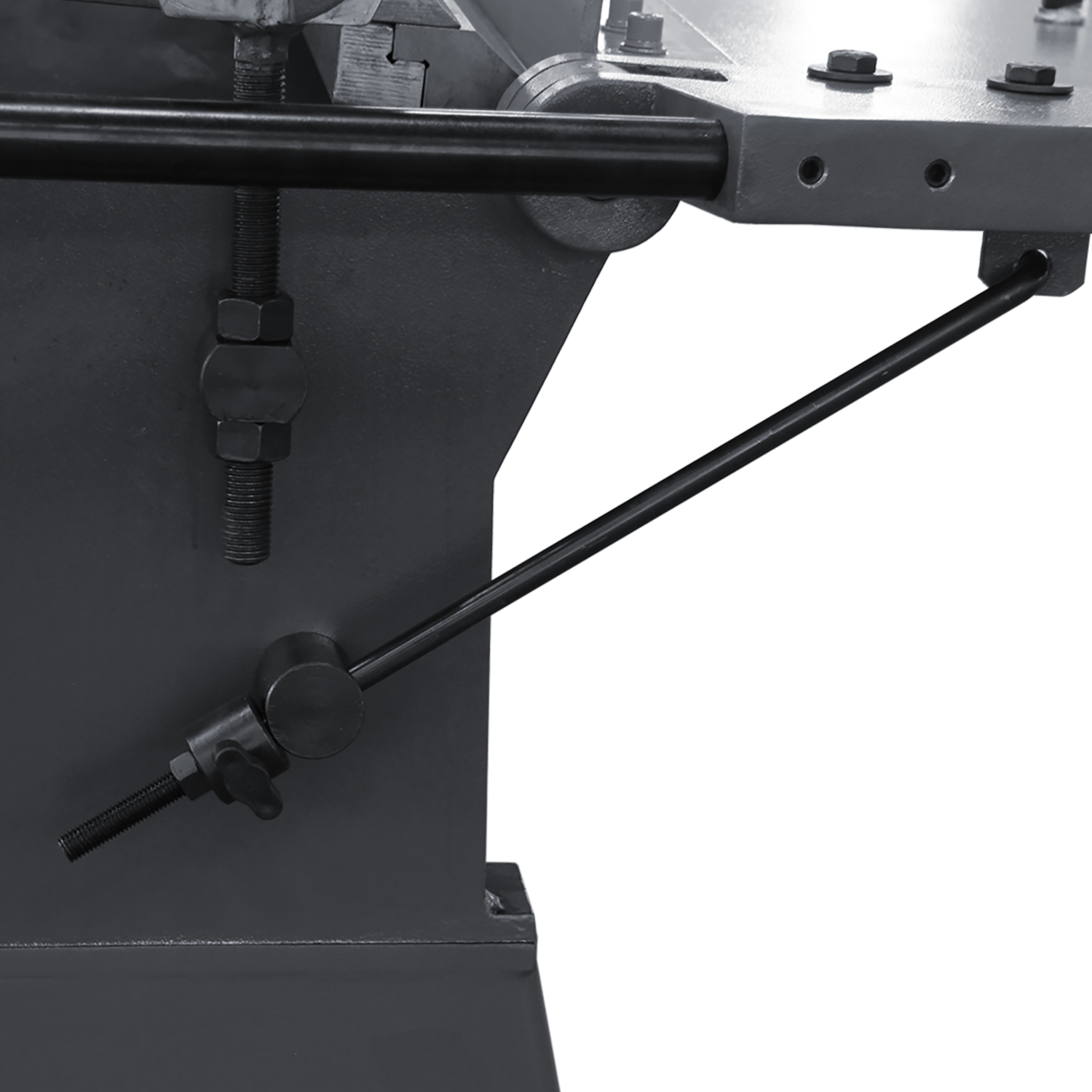

Quick action bending beam adjustment, to suit different thicknesses of materials and get different bending radius
Specifications
| SKU | 173127 |
| Model | W-8012A |
| Bending width | 2040 mm |
| Bending thickness | 2.5 mm |
| Bending angle | 135 degrees |
| Packing size | 253x76x101 cm |
| N.W./G.W. | 1060/1170 kg |
