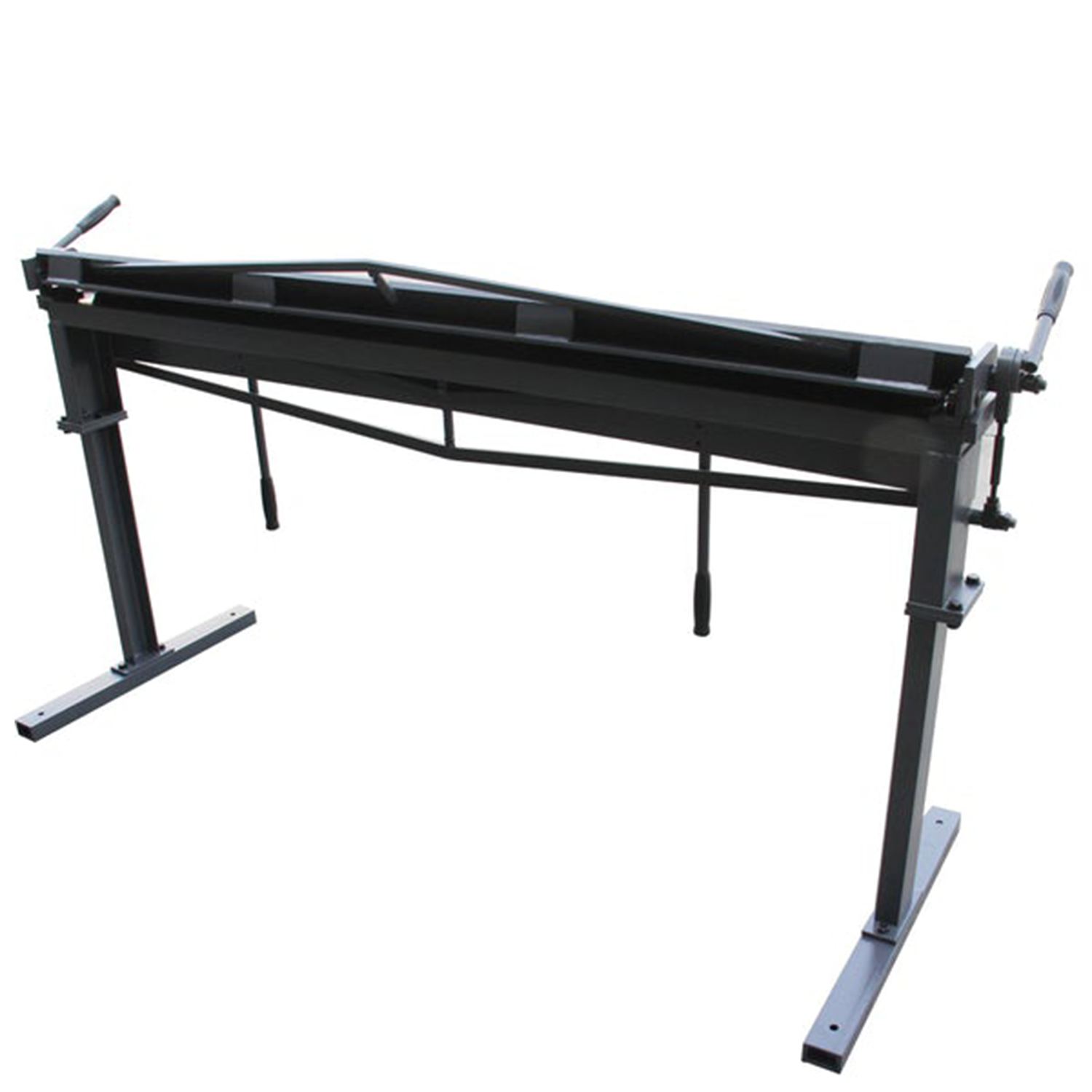

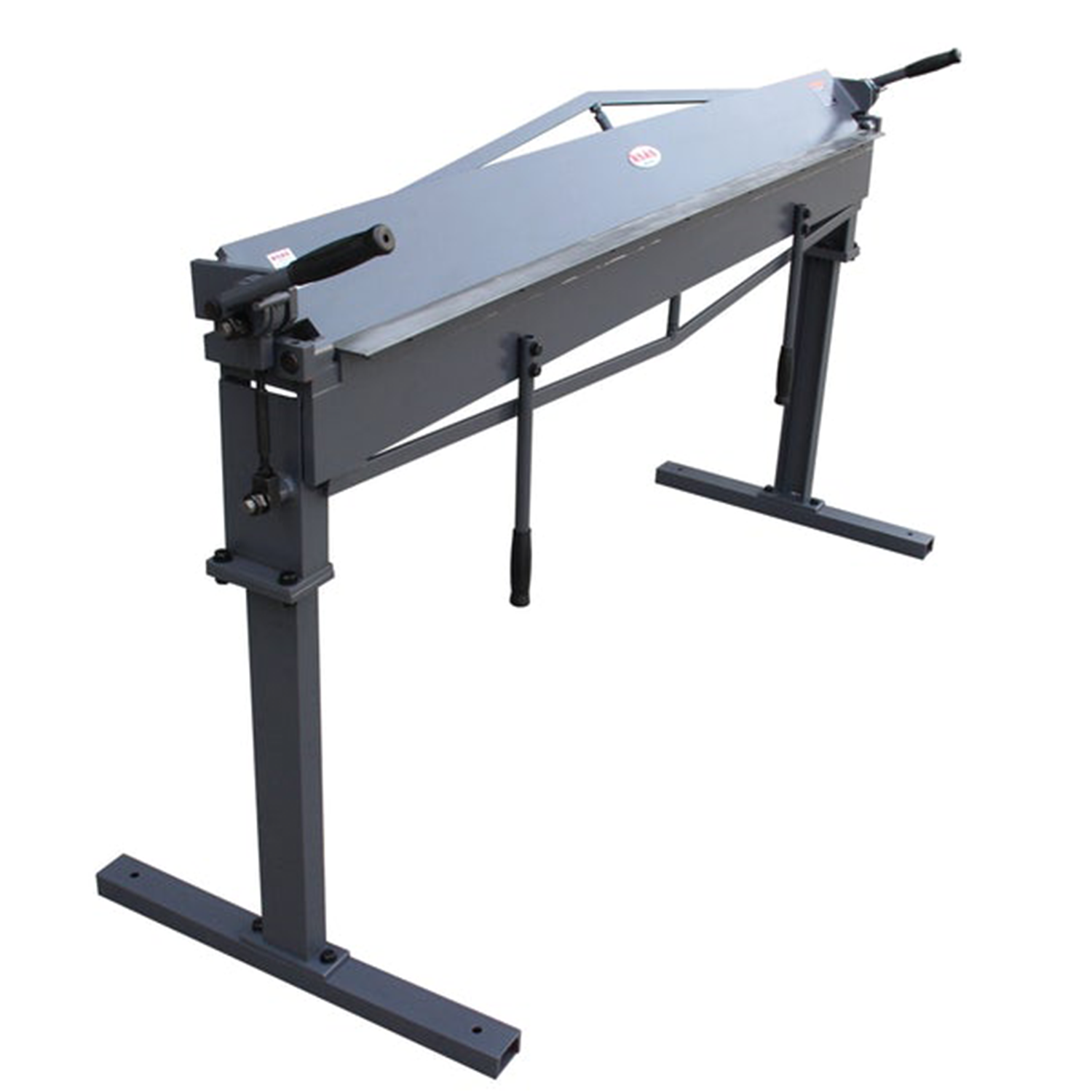

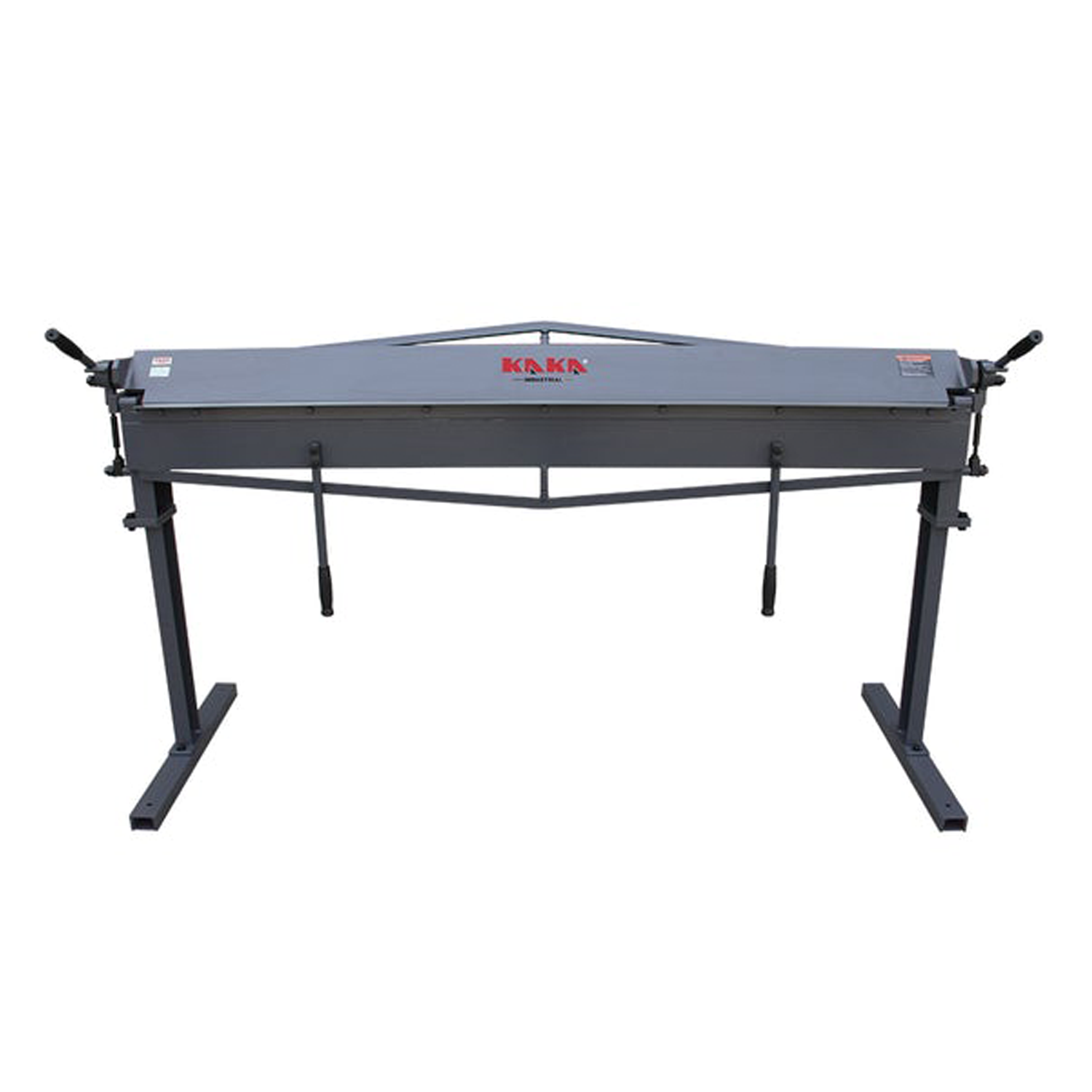

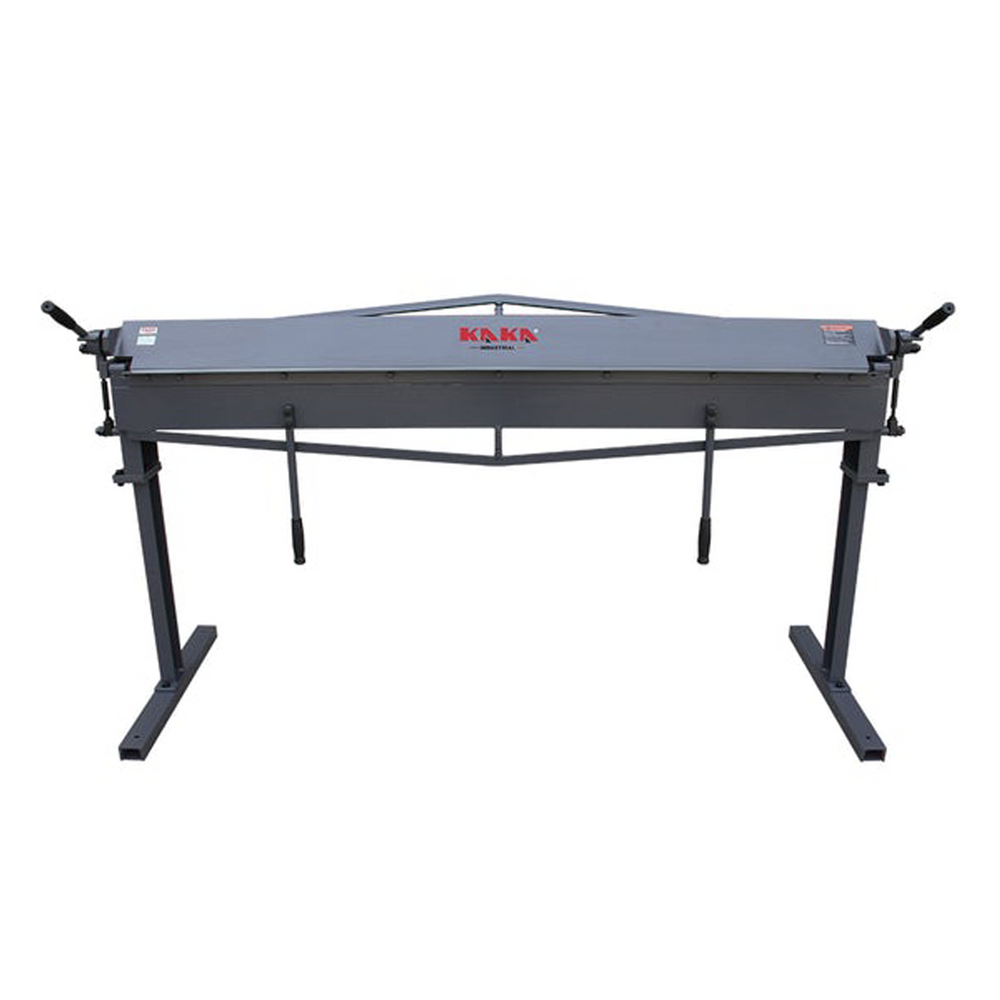

KANG Industrial Manual Straight Brake, 1830mm Width
The KANG MB-72 Straight Brake is an industrial-grade sheet metal machine designed specifically for the needs of HVAC contractors and professional fabricators. With a 1830mm bending length and 0.8mm mild steel capacity, this floor-model brake is engineered for precision and durability.
Ideal for commercial and residential ductwork, the MB-72 excels at cross-braking and stiffening 4-foot duct sections. It features a rugged, heavy-plate fabricated frame and comes standard with a bolt-on apron angle for crisp, clean bends. Built for a lifetime of service, it includes bronze-bushed pivot points with grease zerks for easy maintenance and a spring steel nose bar for superior longevity
Perfect for HVAC Ductwork. The 1830mm length allows it to handle standard 1220 mm sheet metal widths diagonally. This makes it the perfect machine for "cross-braking"
Industrial Durability. This is a heavy steel floor model. It features bronze bushings at pivot points rather than plastic or direct metal-on-metal wear points. This means it can withstand daily commercial use for decades
Precision Bending. It comes with a bolt-on apron angle. This attachment stiffens the bending leaf, preventing it from bowing in the middle when bending efficiently at full capacity. This ensures the bend is straight from end to end, not curved
Serviceable Design. The machine is designed with grease fittings. This allows the user to easily lubricate the moving parts without disassembly, a feature professional shops look for to minimise downtime.
Versatility for Box & Pan Depth. While it is a straight brake (not a box and pan brake with removable fingers), it offers a 2-inch (50mm) clearance, allowing for the fabrication of standard pans and boxes with shallow sides (up to 3 sides
Features
Max. bend 0.8mm mild steel at the full width of 1830mm
Angle up to 120°

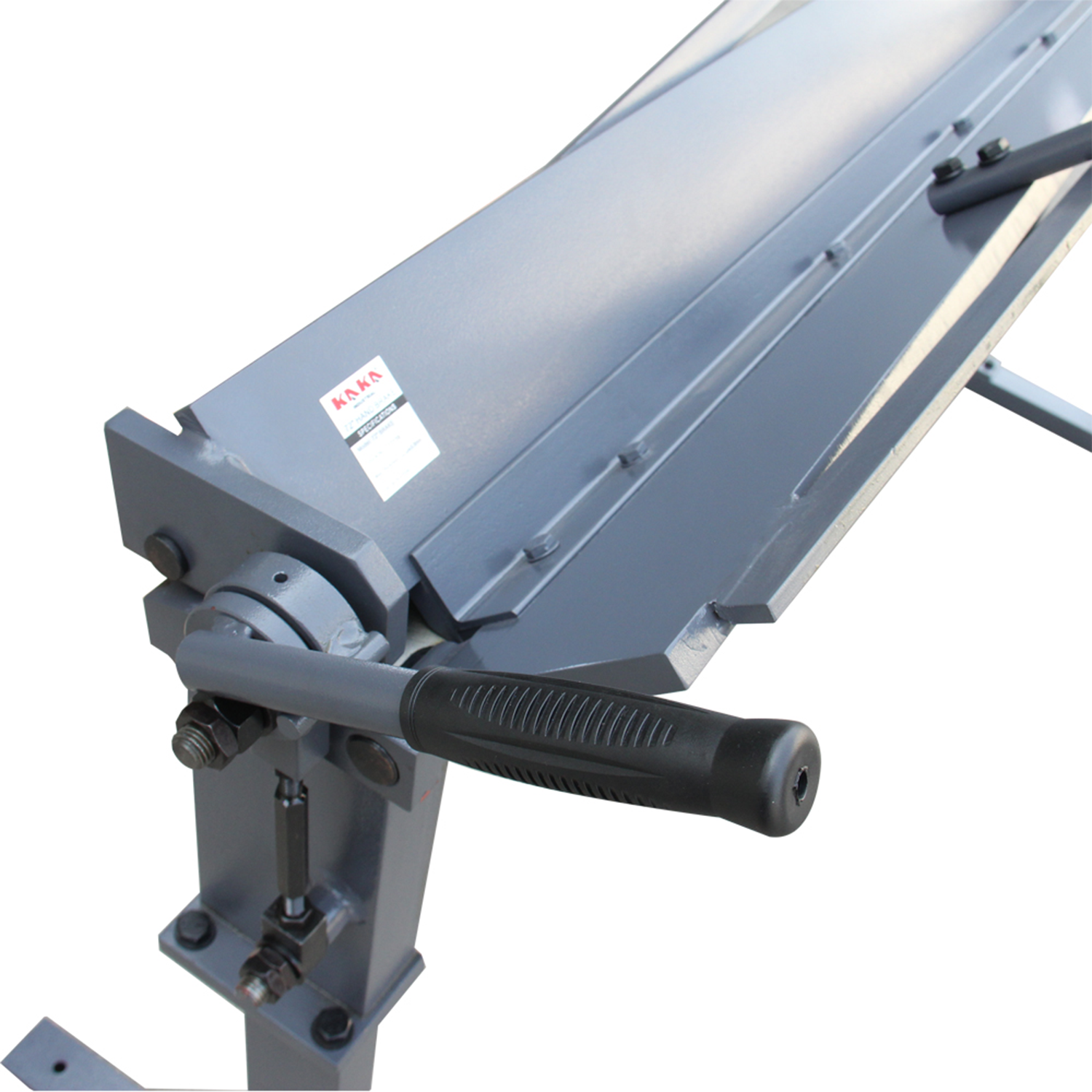

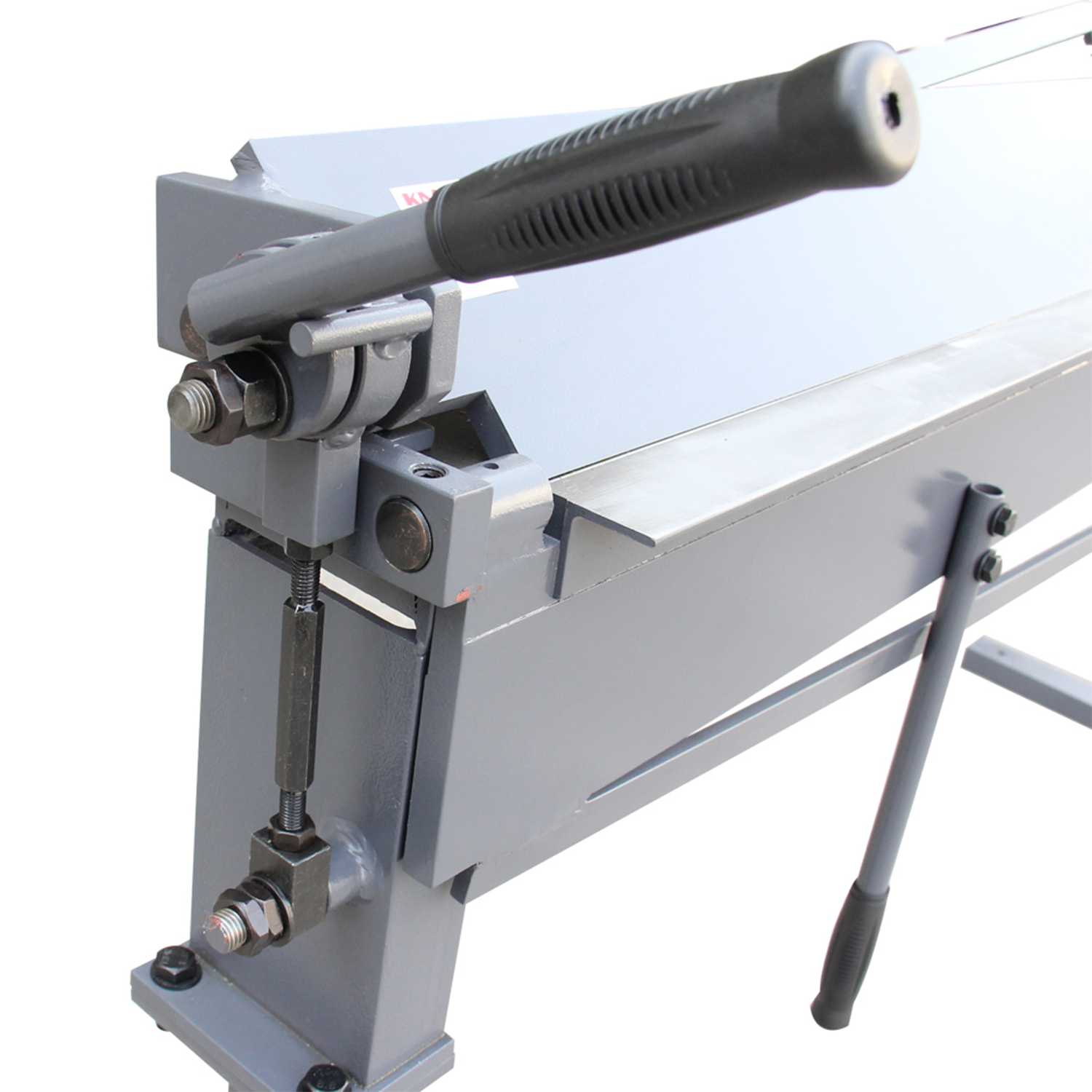

Left and right precision cam arm to clamp the material
Adjustable clamping pressure
Standard with the steel floor stand
Specifications
| SKU | 173139 |
| Model | 72" |
| Bending width | 1830 mm |
| Bending thickness | 0.8mm mild steel |
| Bending angle | 0-120° |
| Packing size | 217x36x64 cm |
| N.W./G.W. | 145/180 kg |
