Motorised Swage and Jenny ETB-40, Heavy Duty Bead Bending Machine with Four Standard Dies, 415V/3PH Motor
Motorised Swage and Jenny ETB-40, Heavy Duty Bead Bending Machine with Four Standard Dies, 415V/3PH Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.
Regional Australia address many need extra shipping cost
Business at home is treated as Residential
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

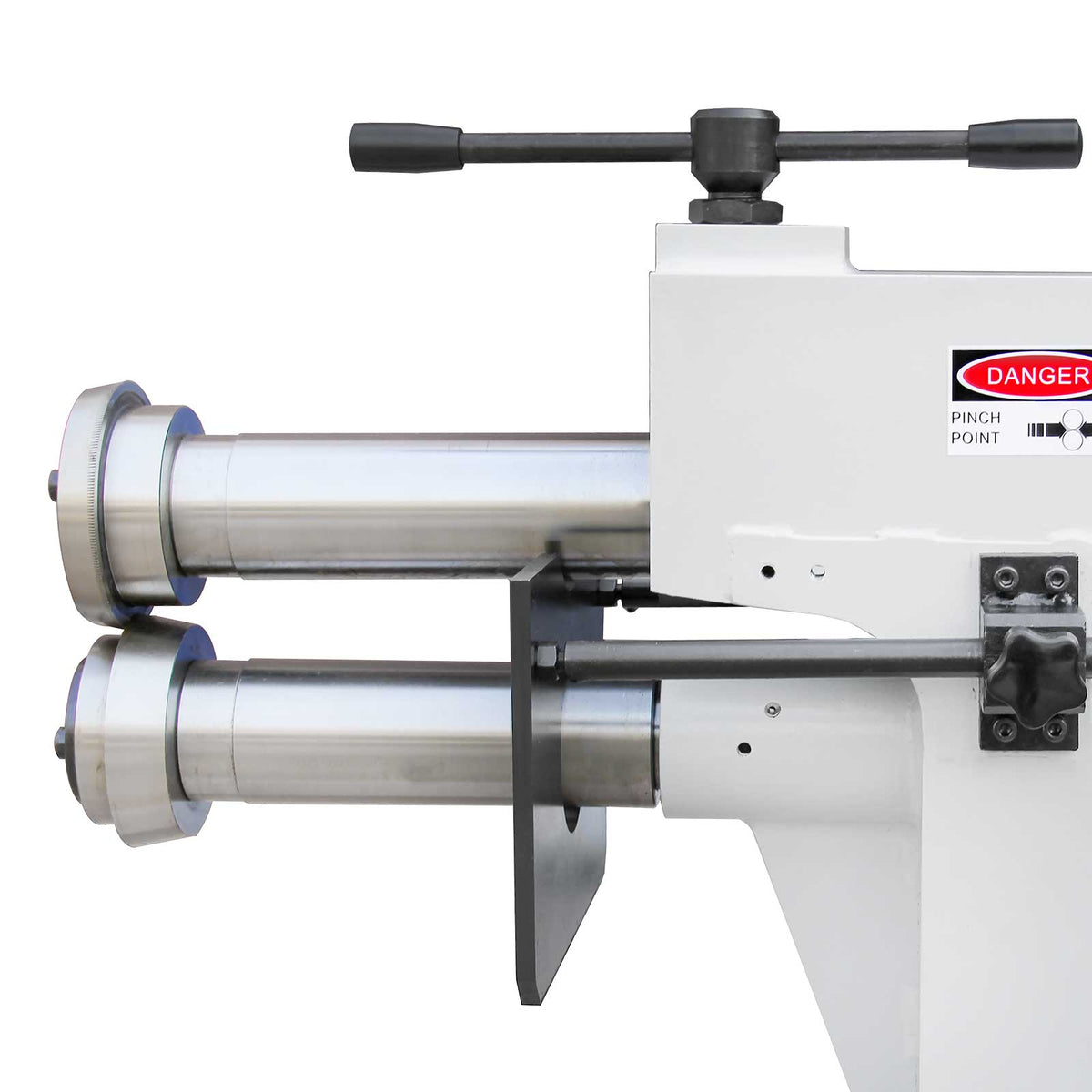

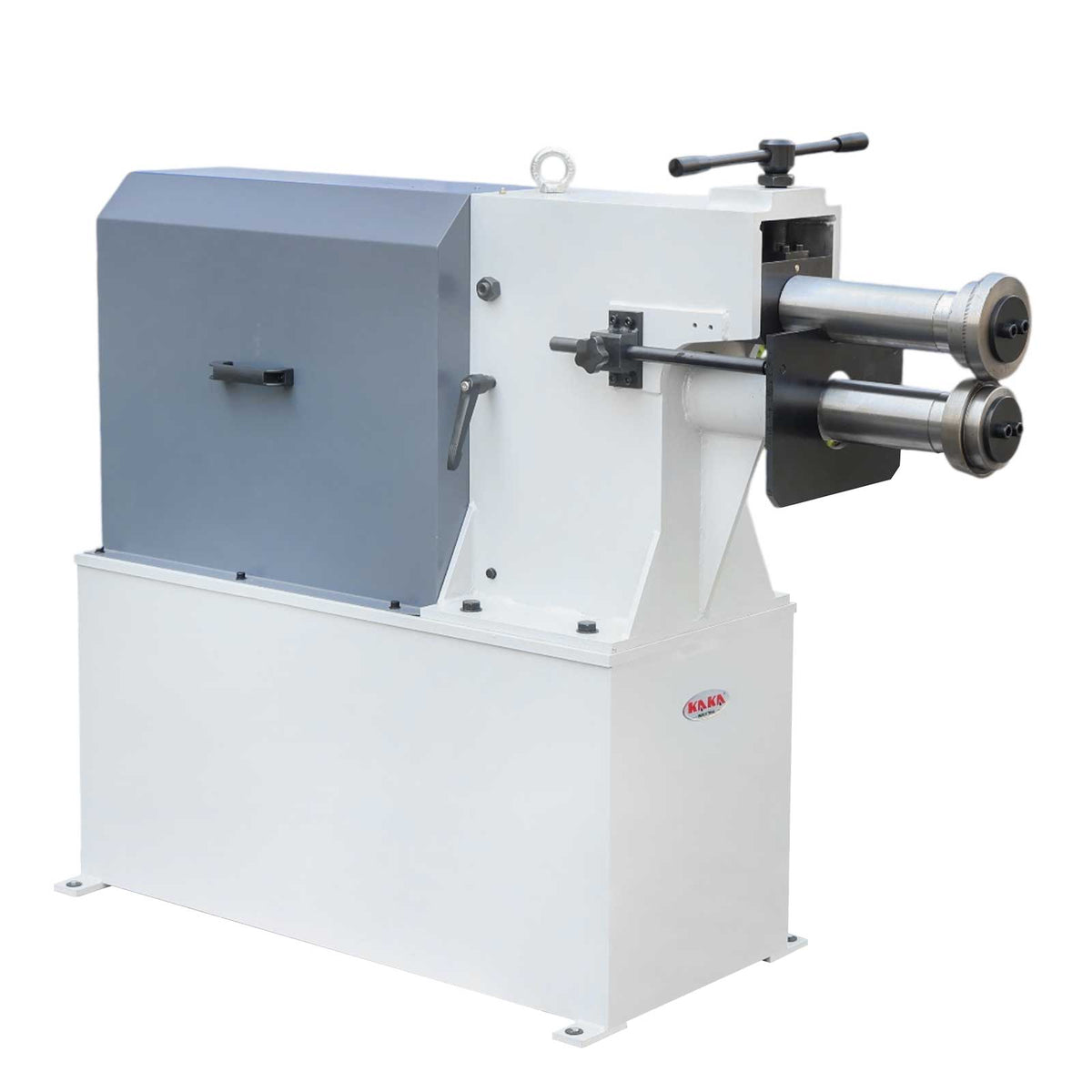

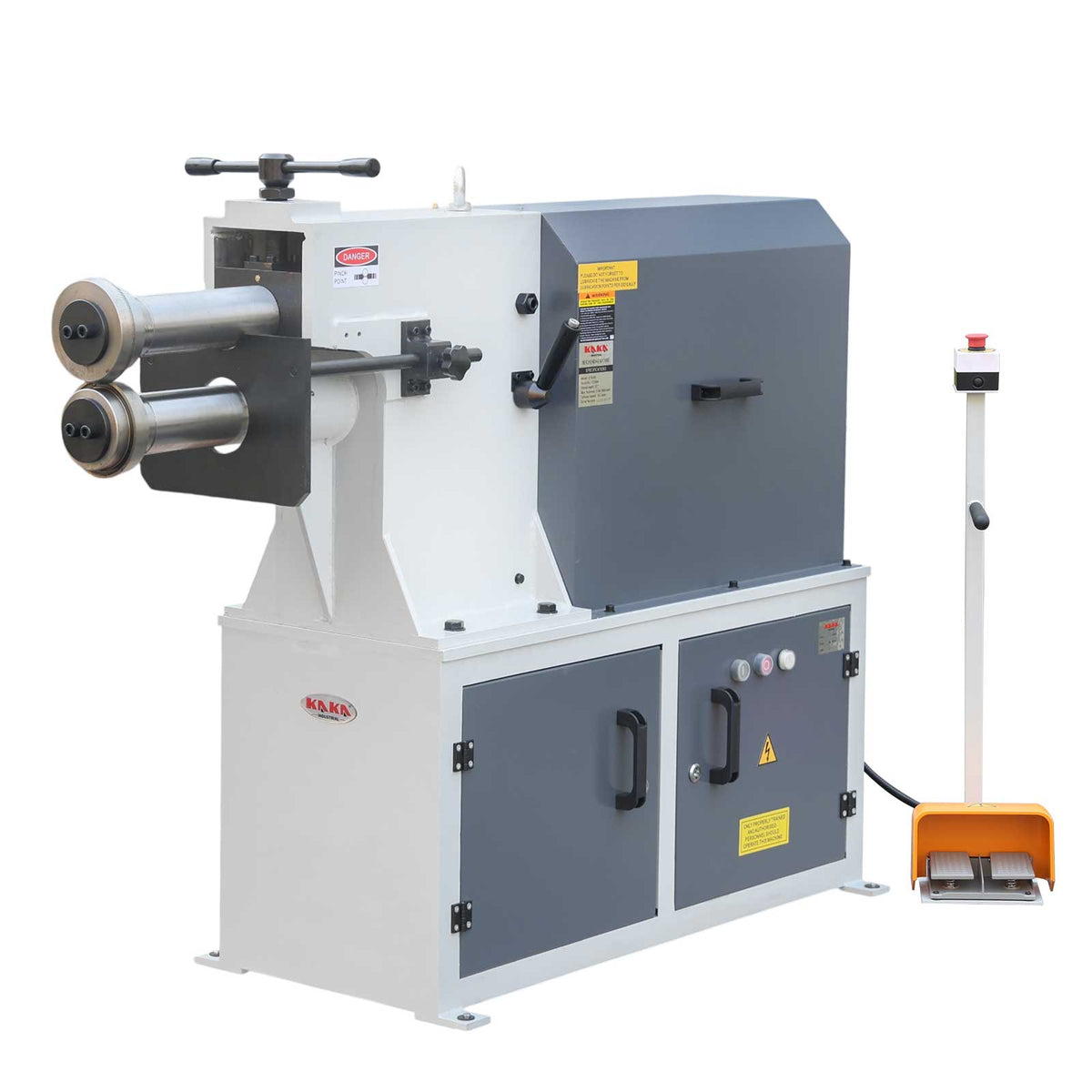

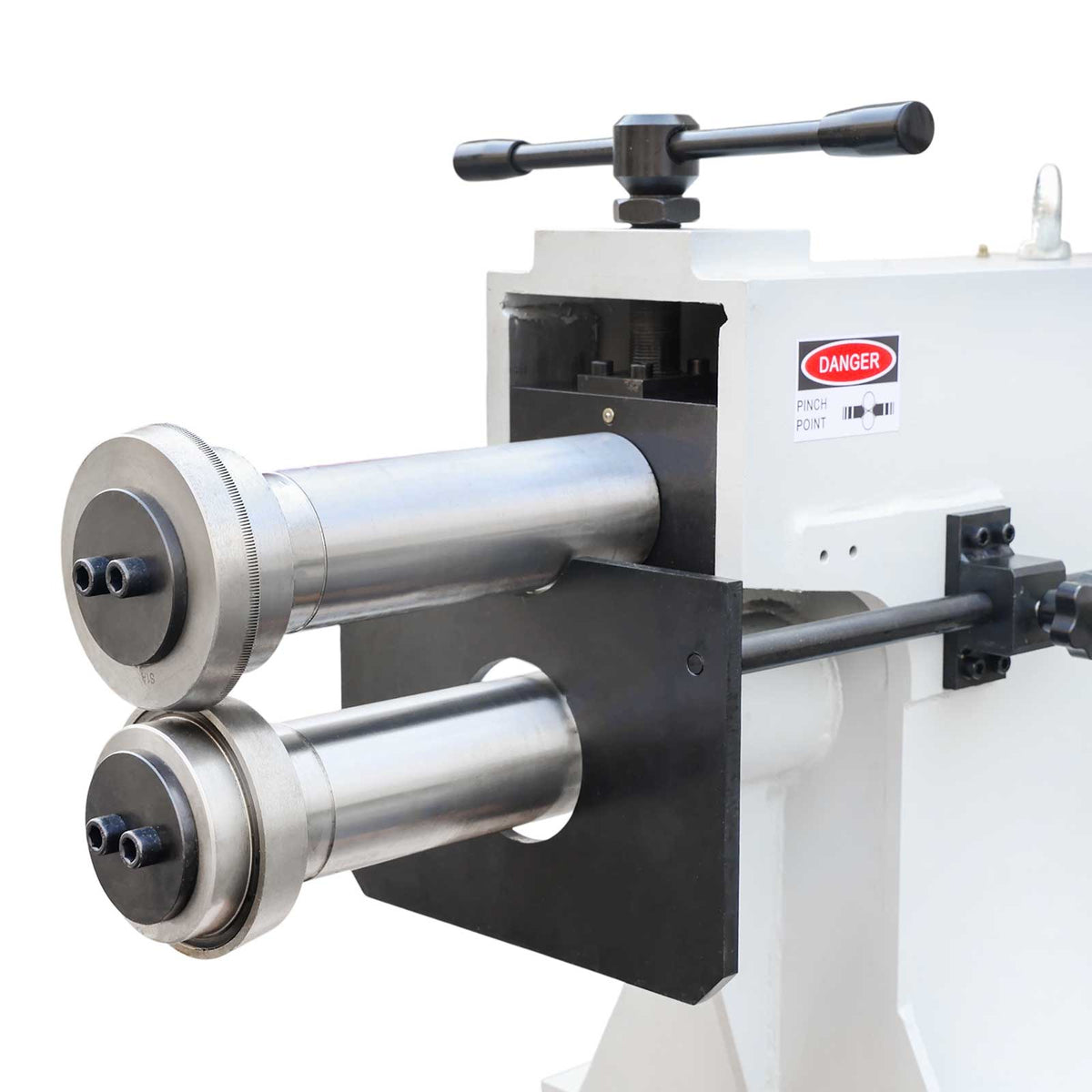

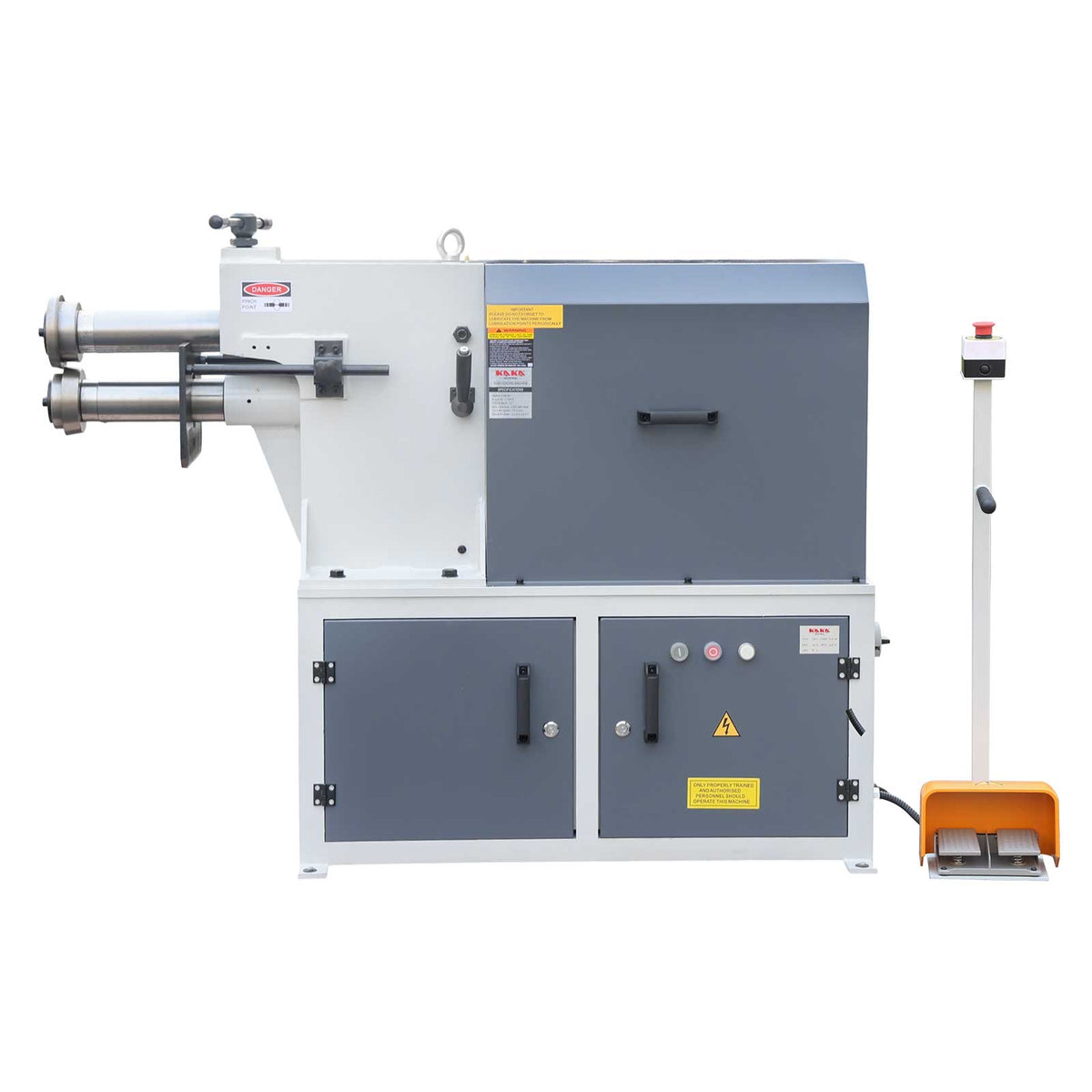

KANG Industrial Bead Roller ETB-40
The KANG ETB-40 Motorised Swaging Jenny is a heavy-duty, motorised sheet metalworking tool engineered for professional fabrication tasks such as swaging, jennying, beading, crimping, and edge forming. It boasts a robust cast-iron construction with a 4.0 mm mild steel capacity and a 300mm throat depth for handling larger workpieces. Powered by a 2.2 kW brake motor typically running on 415V three-phase electricity, it operates at 15.3 rpm for efficient, fatigue-free performance. The machine includes self-braking motor features, adjustable bottom spindle, and comes with four standard roll sets for immediate versatility.
Enhanced Productivity with Motorisation. The motorised swaging machine features a 2.2 kW motor and 15.3 rpm speed, enabling efficient, hands-free operation, reducing manual labour for fabricators in high-output shops like automotive restoration or HVAC, allowing more pieces to be processed daily without operator fatigue.
Exceptional Heavy-Duty Capacity Sheet Beading Machine. Handles up to 4.0 mm mild steel with a deep 300mm throat, built from heavy cast iron to withstand rigorous use in diverse climates, from coastal humidity to inland dust, ensuring longevity for professional workshops.
Versatile and Out-of-Box Ready. Includes 4 roll sets (Shearing, Beading and 2 x Flanging) for various forming tasks, ideal for small to medium Aussie businesses or hobbyists in metalworking, minimising additional purchases and supporting custom projects like panel beating or duct fabrication.
User-Friendly Design. Superior precision with the brake motor. The brake motor stops the roller instantly when release the foot pedal, ensuring high precision. The reduction gearbox delivers high torque, preventing overheating and premature motor failure, ensuring the beading machine can handle continuous industrial use in a busy workshop.
Versatile Applications of Motorised Swager/Jenny Machines. Motorised swager/jenny machines are highly versatile tools for sheet metal fabrication: HVAC and Ducting Fabrication, Automotive Restoration and Custom Panels, General Sheet Metal Fabrication, Roofing and Architectural Metalwork, Custom and Artistic Projects
Features
Powerful 3HP motor runs on 415V-3PH power
Up to 300 mm throat depth
Steel welded construction
Industrial-grade gearbox
Adjustable plate depth stop provides a solid surface to guide you and get a straight bead
Foot pedal control, let your hands hold the material
Standard with 4 sets of tooling: Shear, Round Bead, and Flanging Bead (8mm &12mm, two sets)
Specifications
| SKU | 173804 |
| Model | ETB-40 |
| Max. thickness | 4.0 mm |
| Throat depth | 305 mm |
| Cylinder speed | 15.3 rpm |
| Motor power | 2.2 kW |
| Packing size | 165x58x140 cm |
| N.W./G.W. | 360/440 kg |
