Slotting Machine B5013

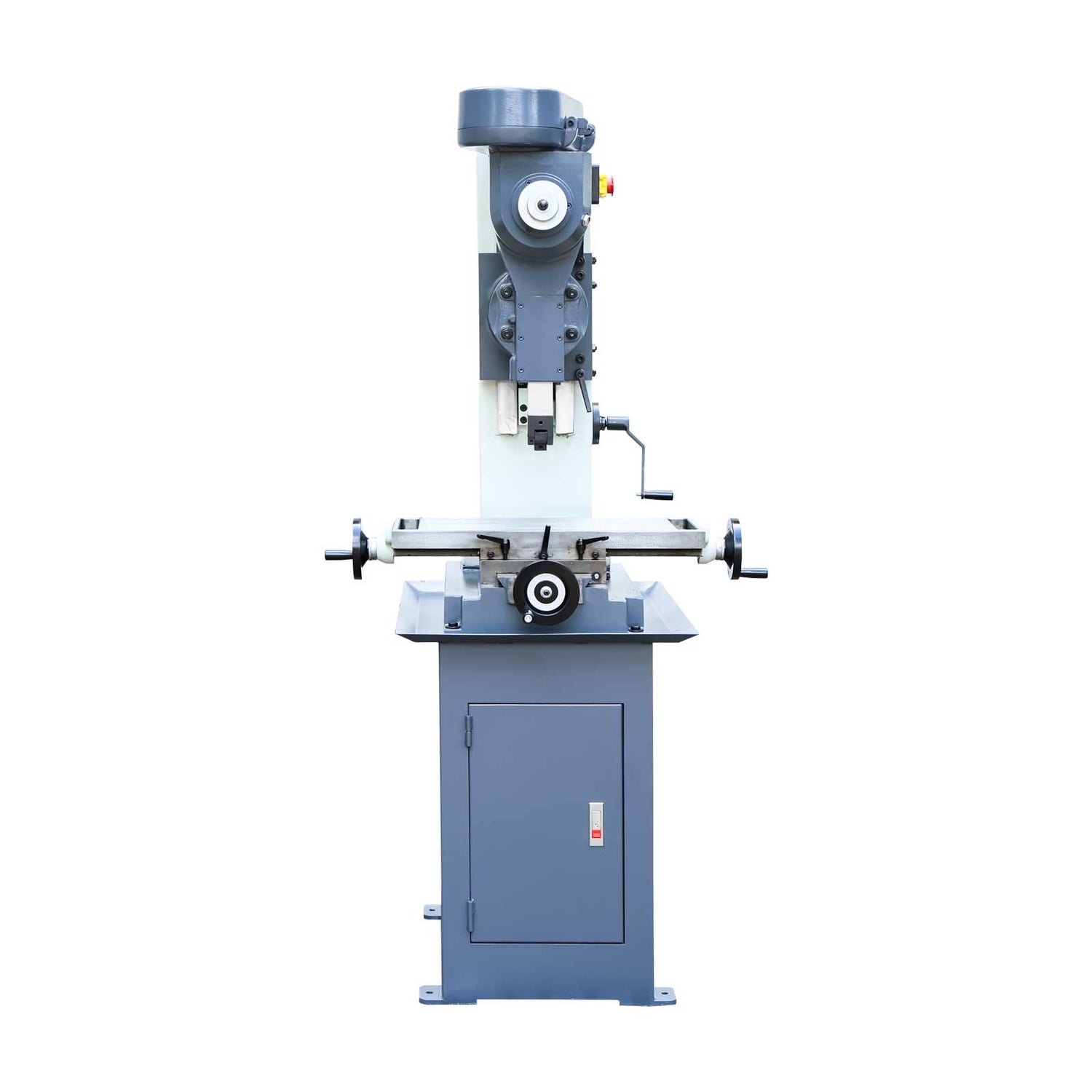

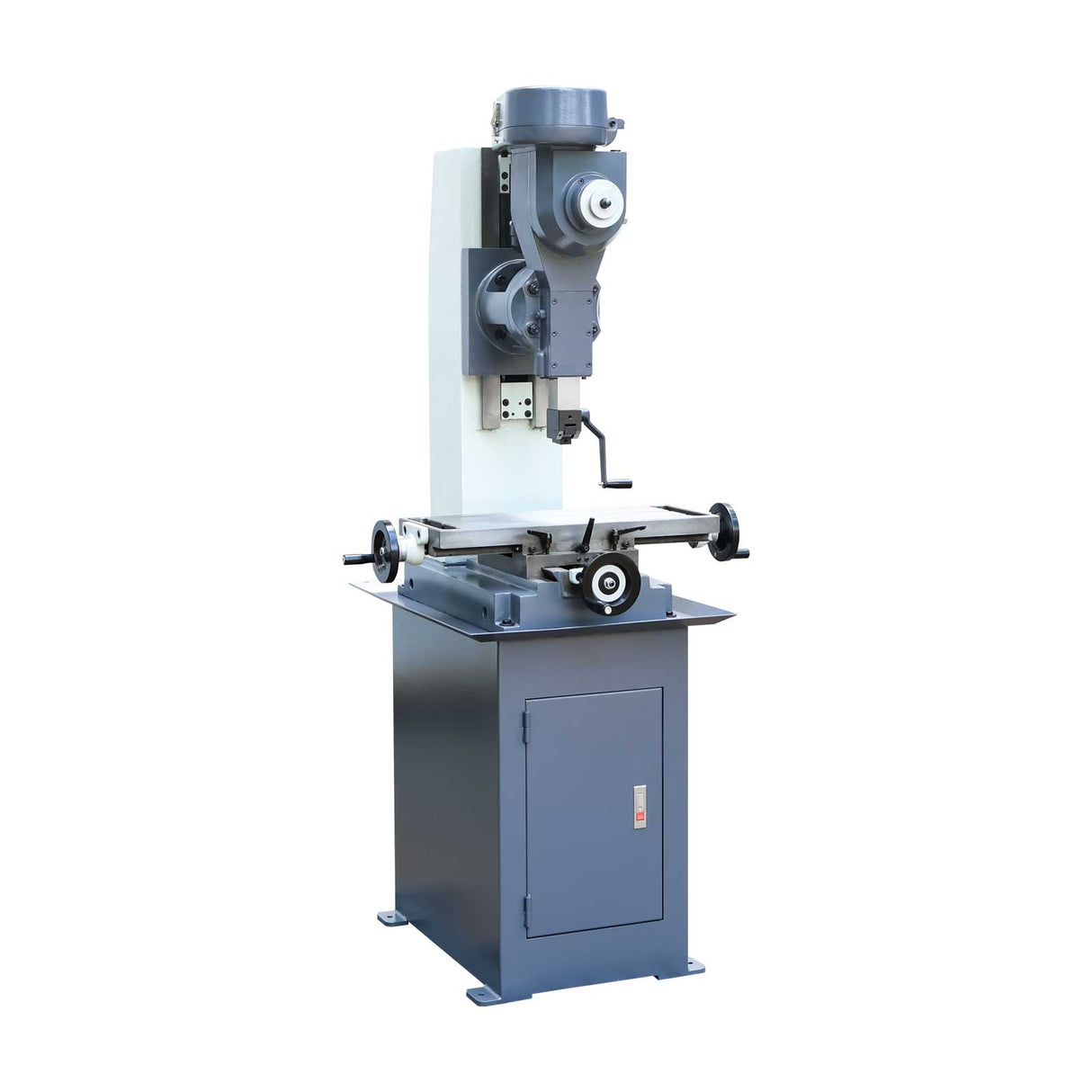

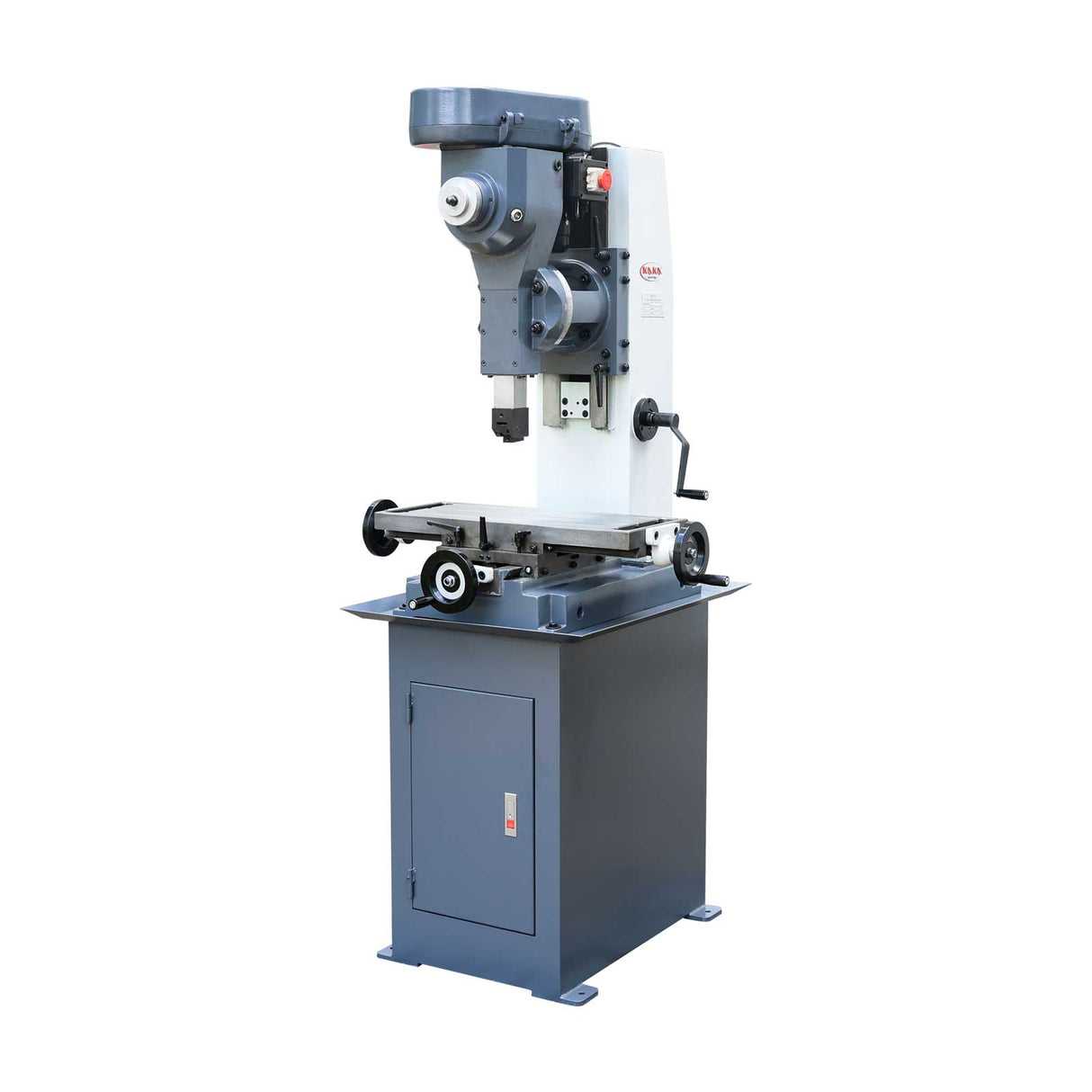

The KANG B5013 is a compact and versatile vertical slotting machine designed for accurate internal keyways, splines, square holes, and other precision slotting applications.
Precision Vertical Slotting Machine. 100mm stroke capacity for accurate internal keyways, splines, square holes, and specialist slotting applications.
6 Adjustable Stroke Speeds. Select from 60, 85, 120, 170, 230, and 340 strokes/min to suit different workpieces and machining requirements.

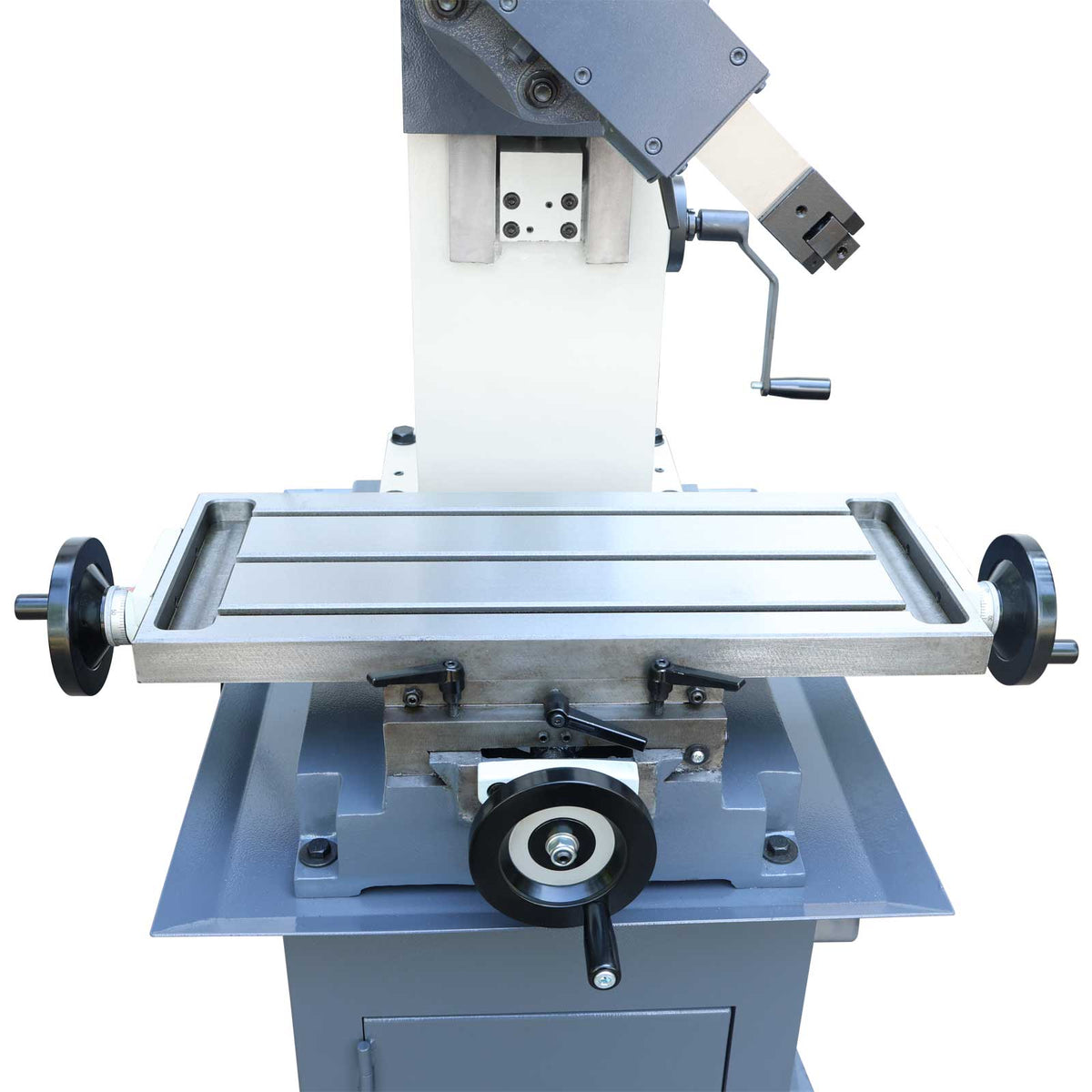

Versatile Compound Table. Large 600 × 240mm table with 340 mm longitudinal and 140mm cross travel for flexible workpiece positioning.

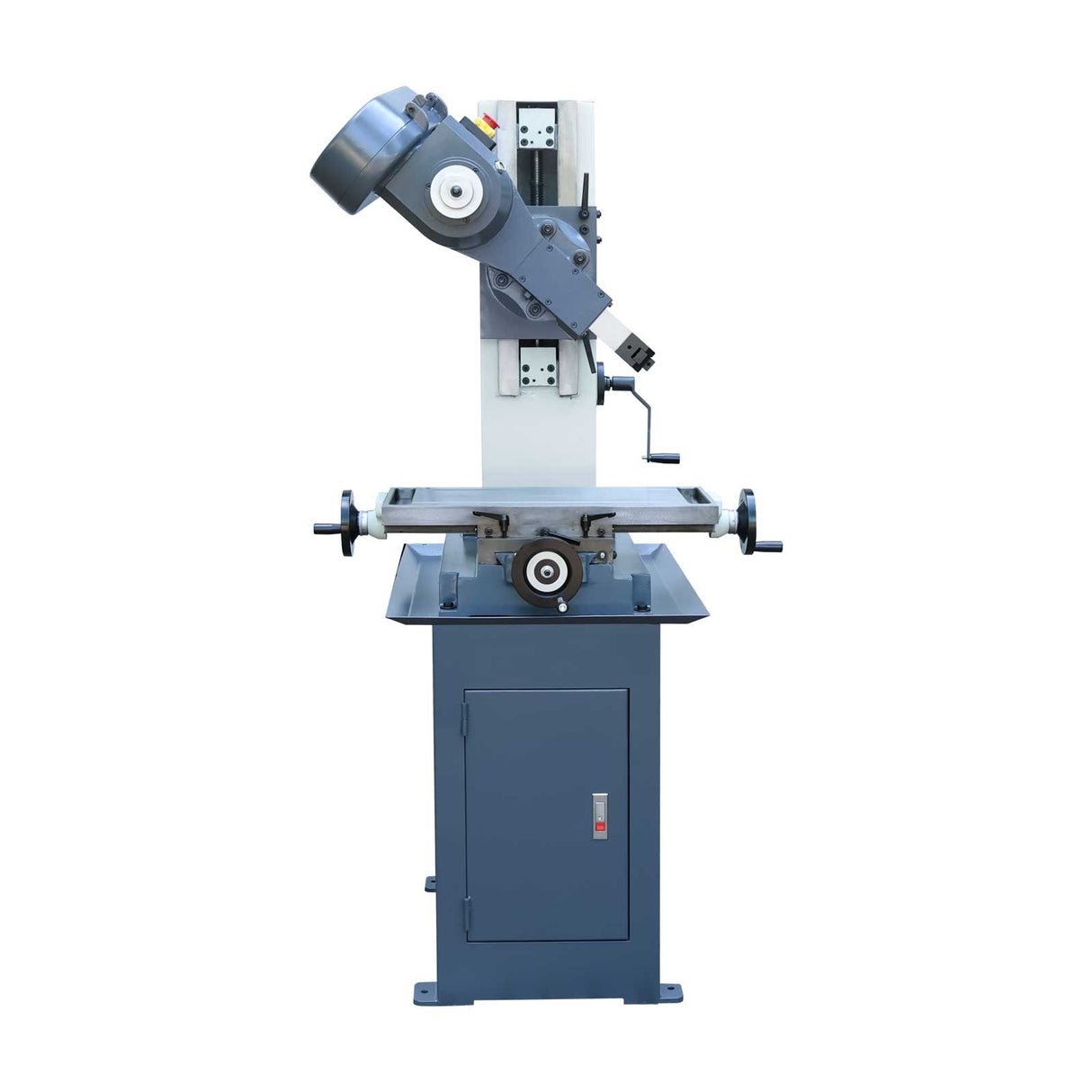

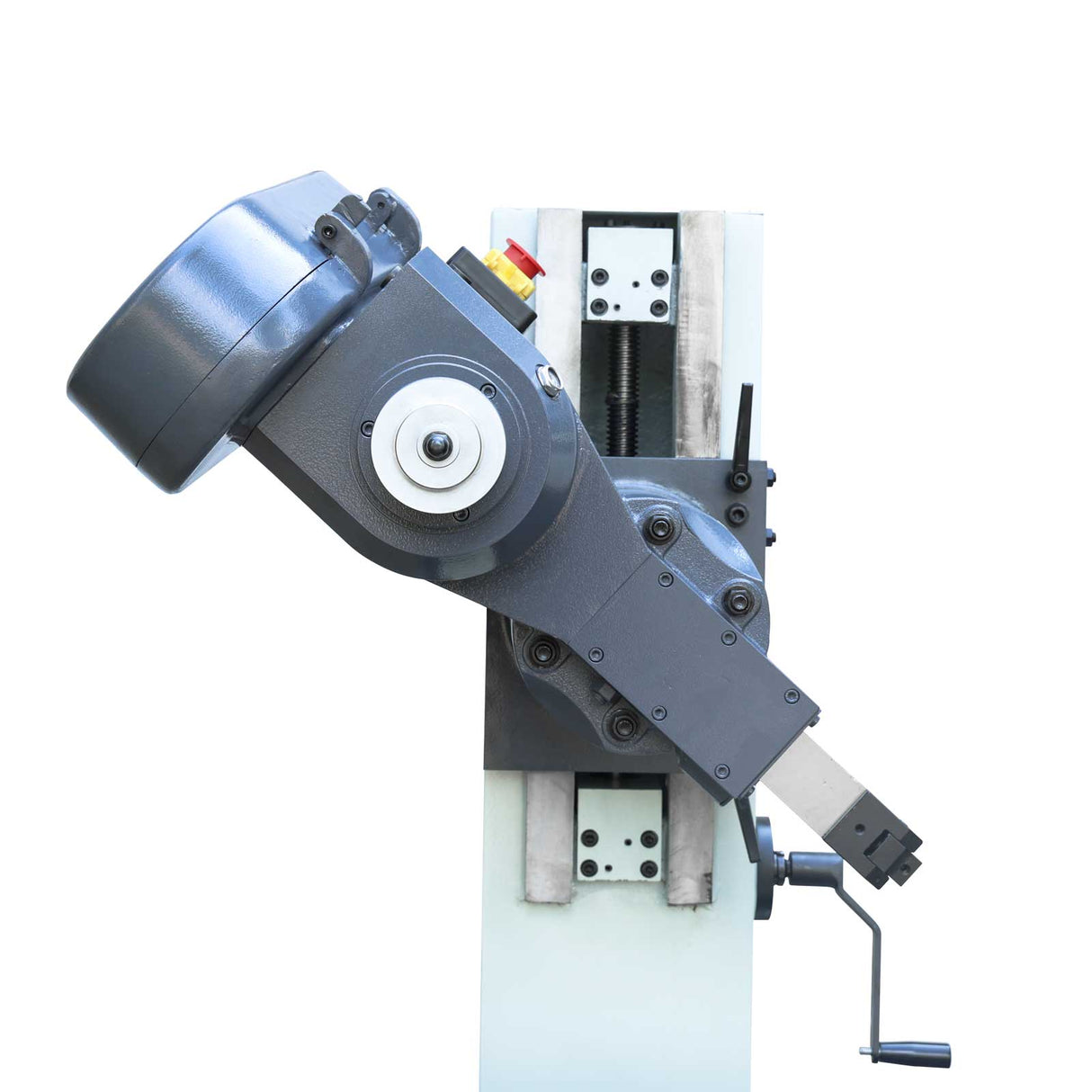

±90° Tilting Slotting Head. The tilting head adds considerable versatility for angled and specialised slotting operations.

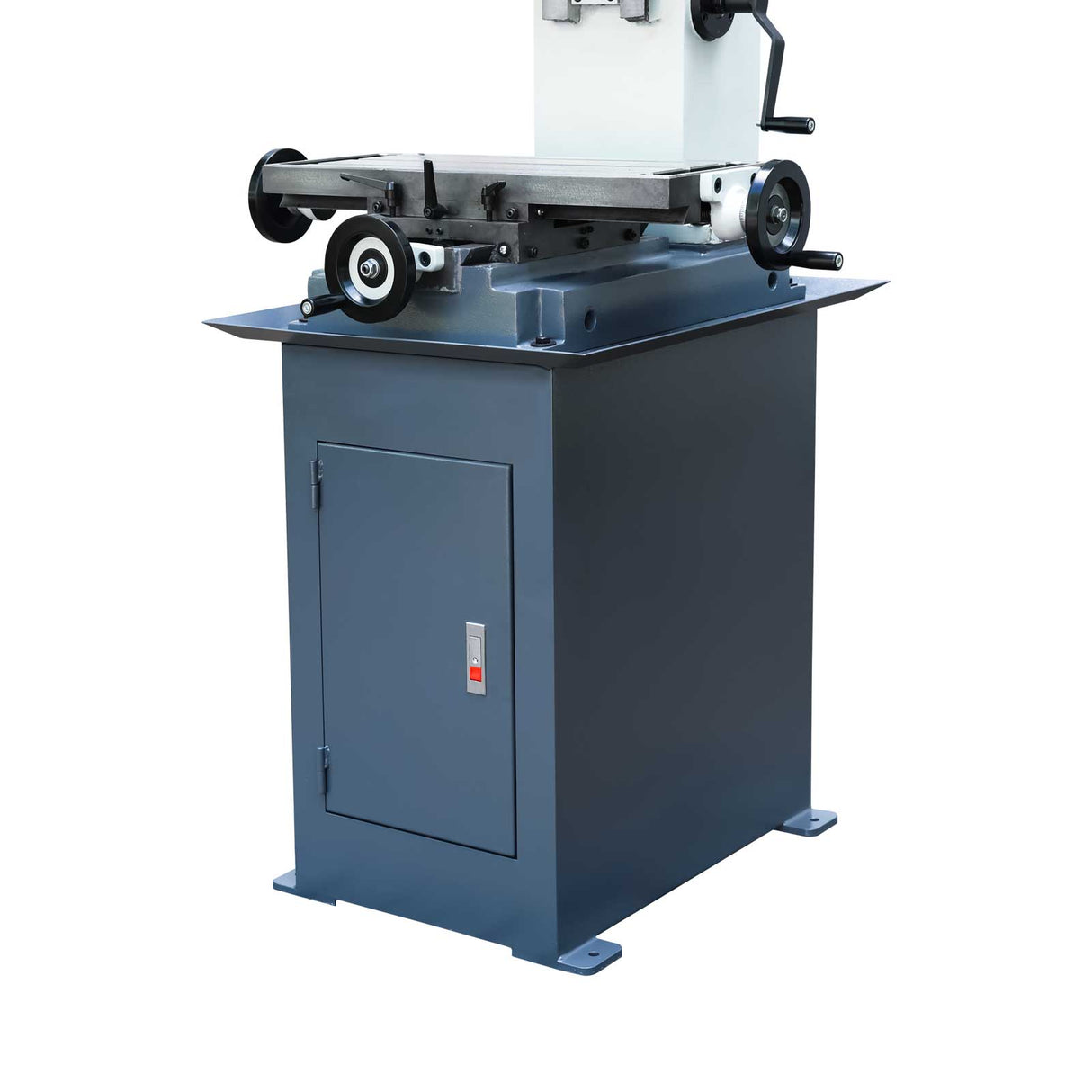

Heavy-Duty Workshop Construction. Solid cast-iron frame and 240kg machine weight provide excellent stability for professional engineering and maintenance applications.
Features
Runs on 415V power
100 mm stroke length, suitable for internal keyways, splines and square holes

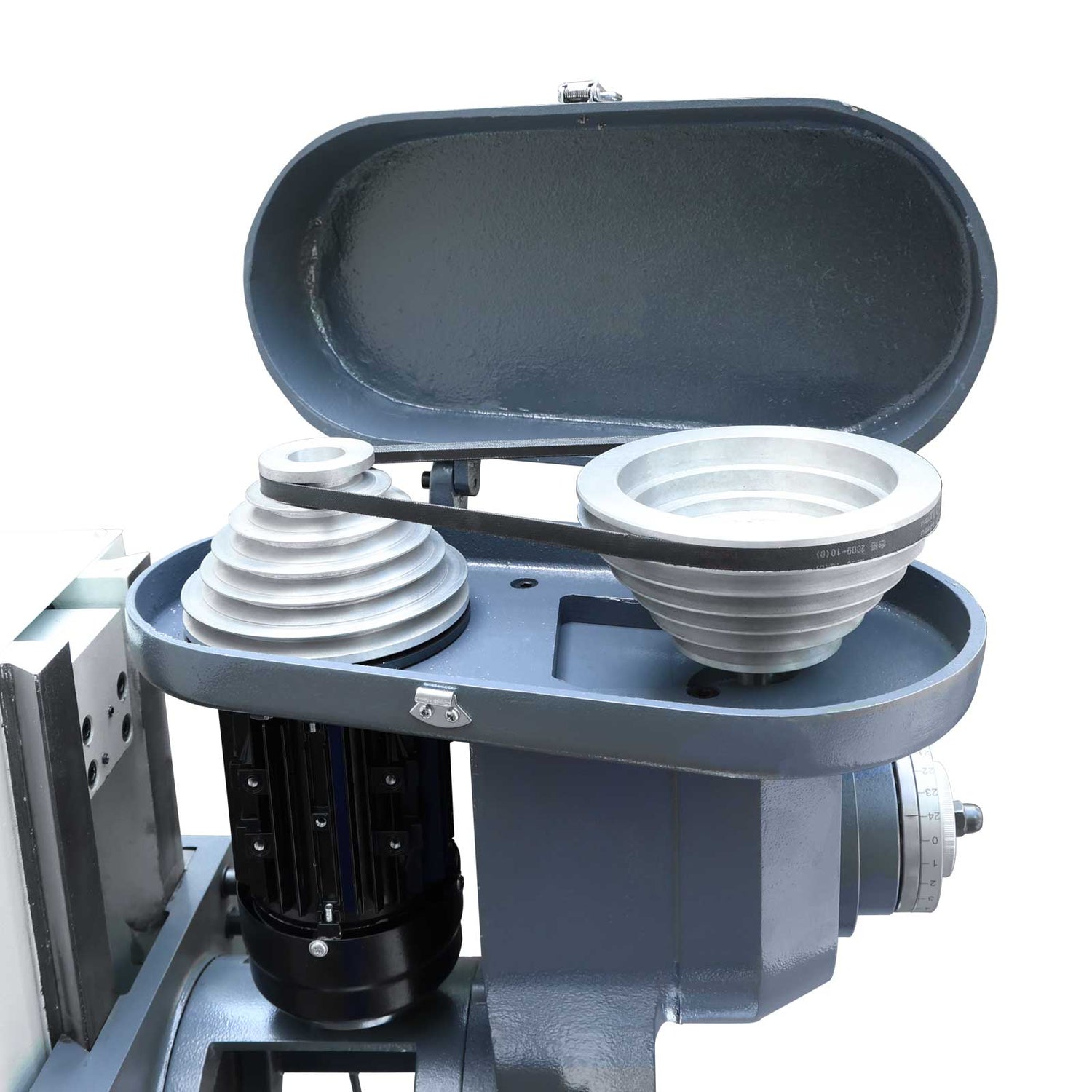

Belt drive, adjustable stroke speed
600 x 240mm compound movement table, 340x140 mm table travel
Specifications
| SKU | 176602 |
| Model | B5013 |
| Max. stroke | 105 mm |
| Strokes per minute | 60, 85, 120, 170, 230, 340 |
| Table size | 600x240 mm |
| Longitudinal table travel | 340 mm |
| Cross table travel | 140 mm |
| T-slot | 12mm |
| Motor power | 0.25 kW |
| Packing size | 83x76x109 cm |
| N.W./G.W. | 240/300 kg |
