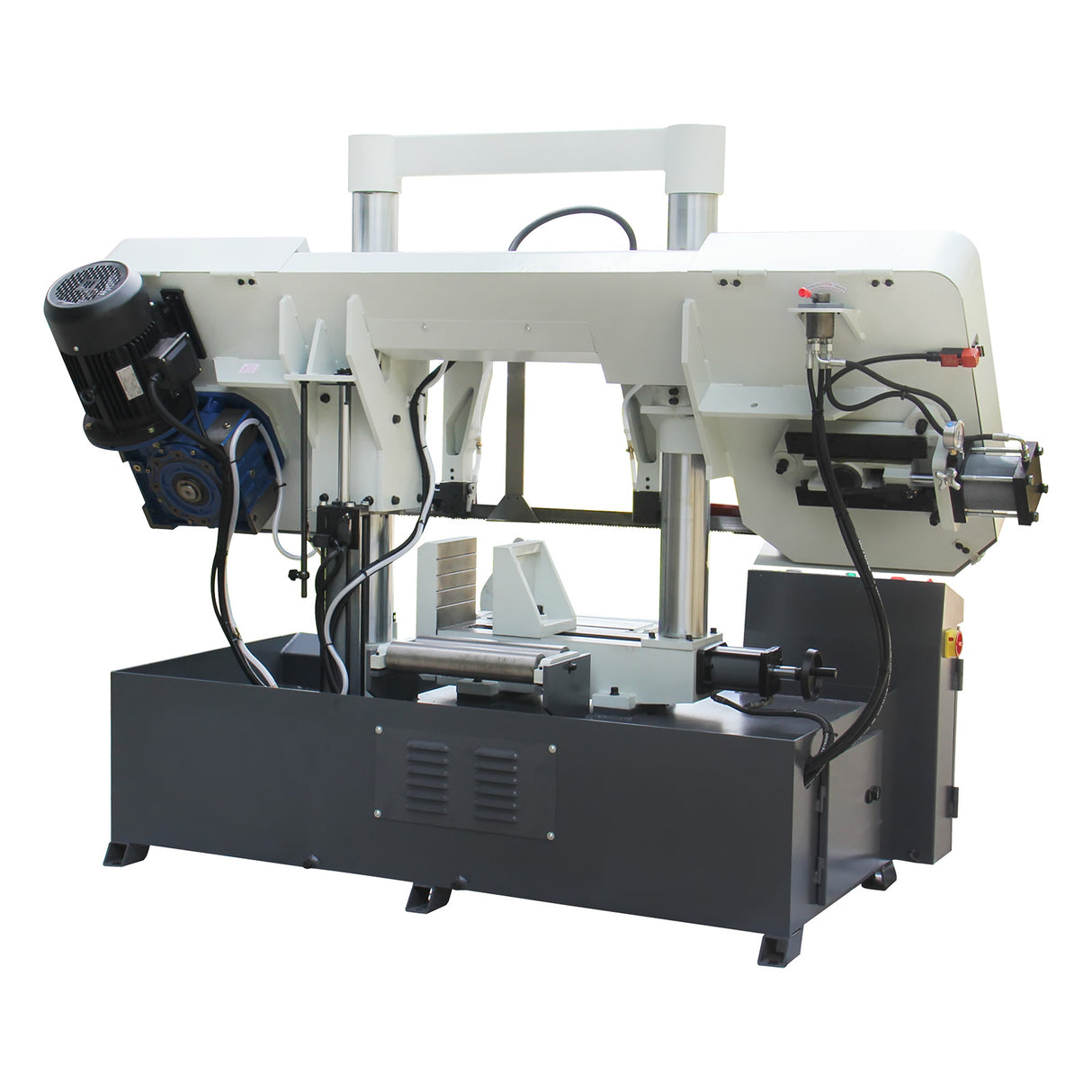

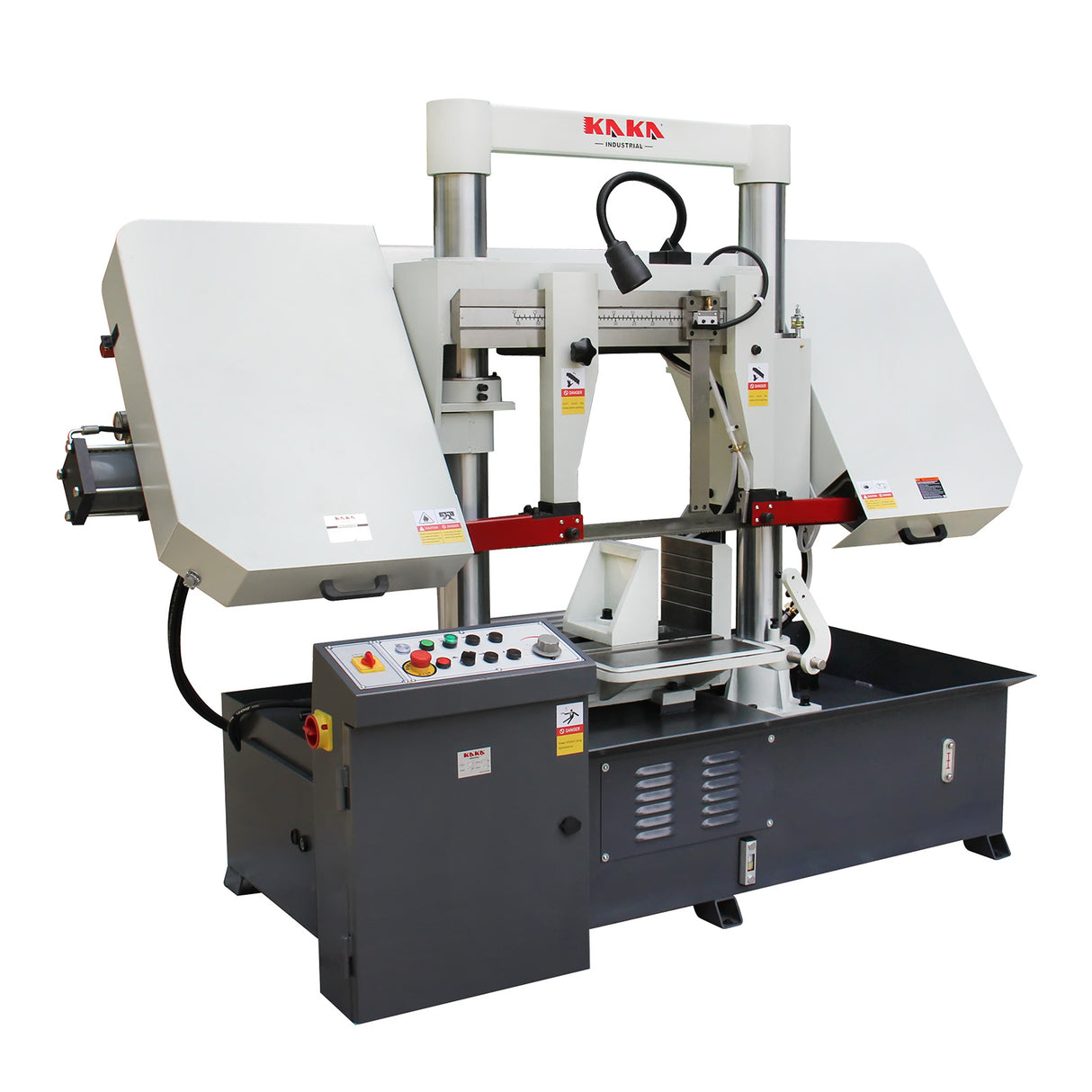

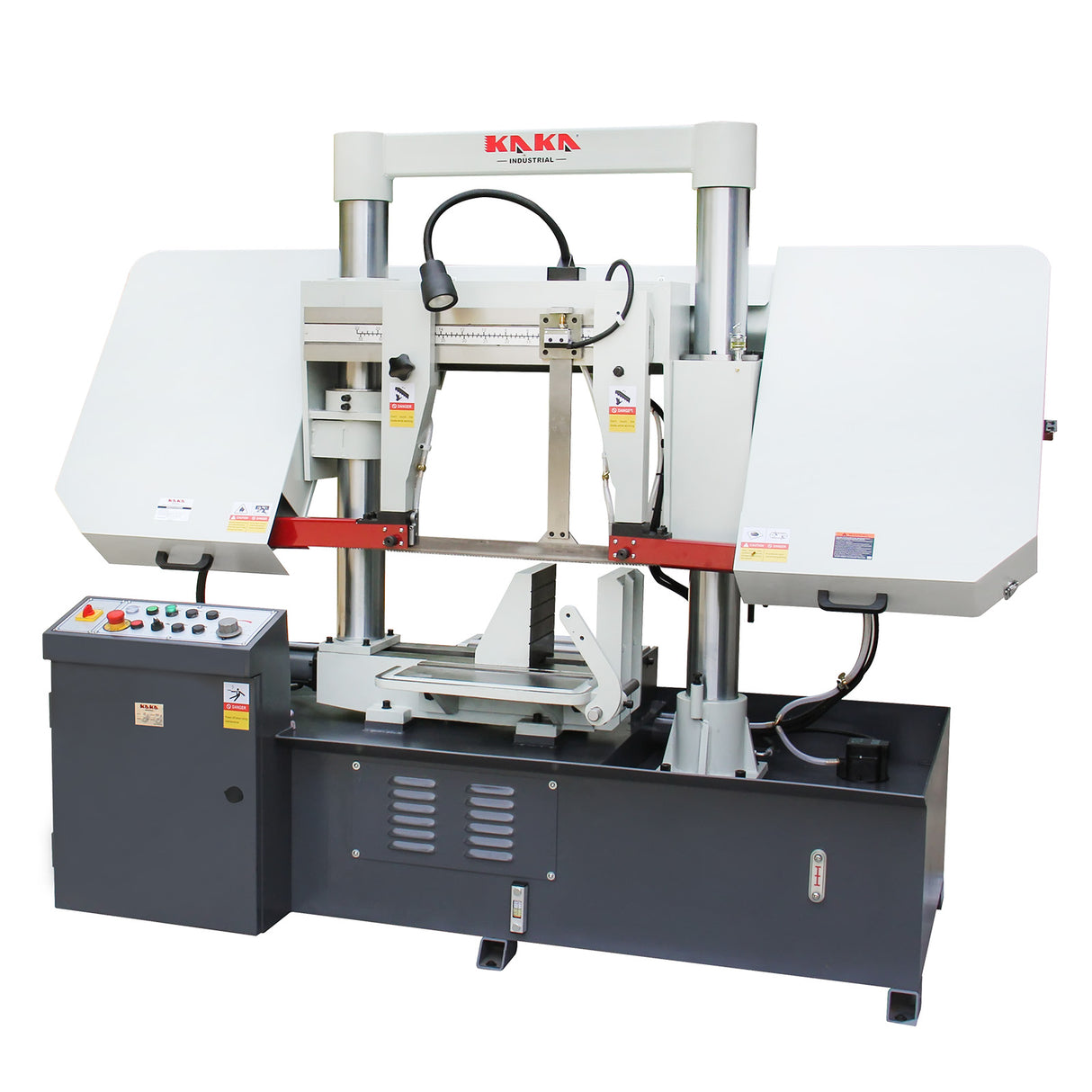

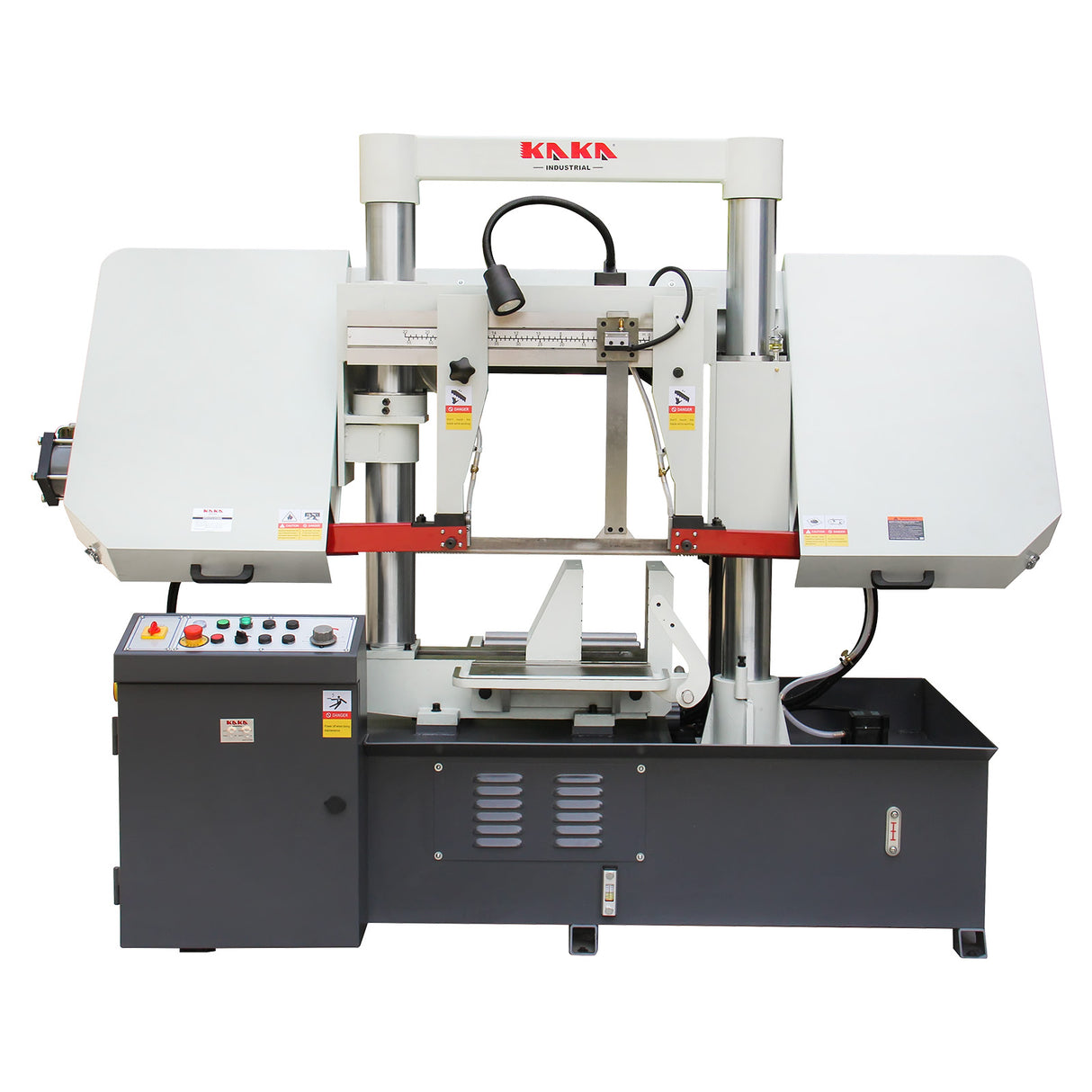

KANG Industrial TGK-16 Double Column Band Saw
The KANG TGK-16 is a robust semi-automatic double-column horizontal bandsaw designed for professional and industrial use. It excels at cutting solid materials, profiles, pipes, full rivet iron, and non-ferrous metals with precision and efficiency.
Superior Stability & Precision Band Saw. The double-column precision-ground guide system, combined with a heavy, robust machine body, delivers low-vibration operation. This ensures clean, accurate cuts even on large solid blocks and tough materials, ideal for fabrication shops, steel suppliers, and manufacturing in Australia.
Versatile & Efficient Cutting. Handles a wide range of materials (steel, profiles, pipes, non-ferrous).

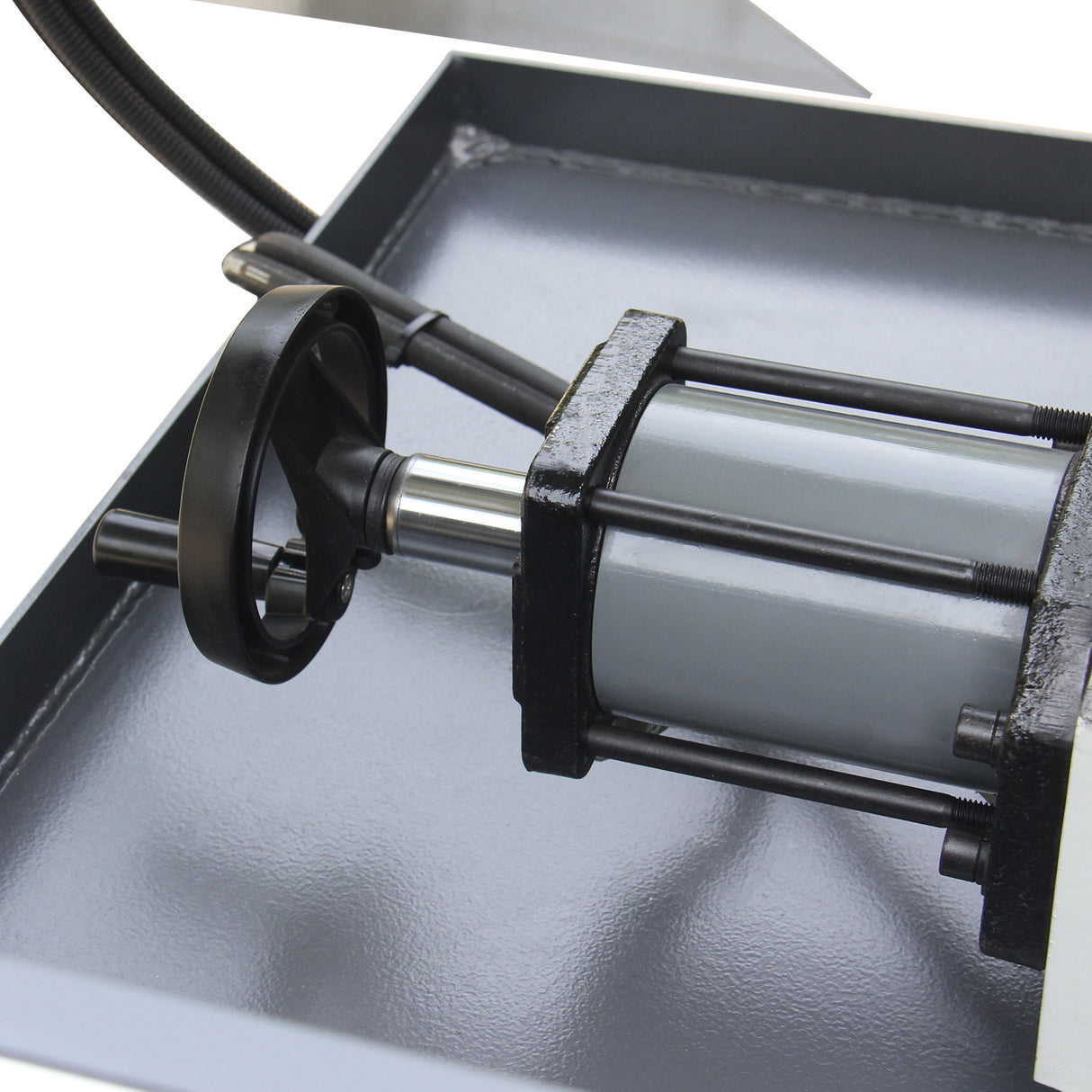

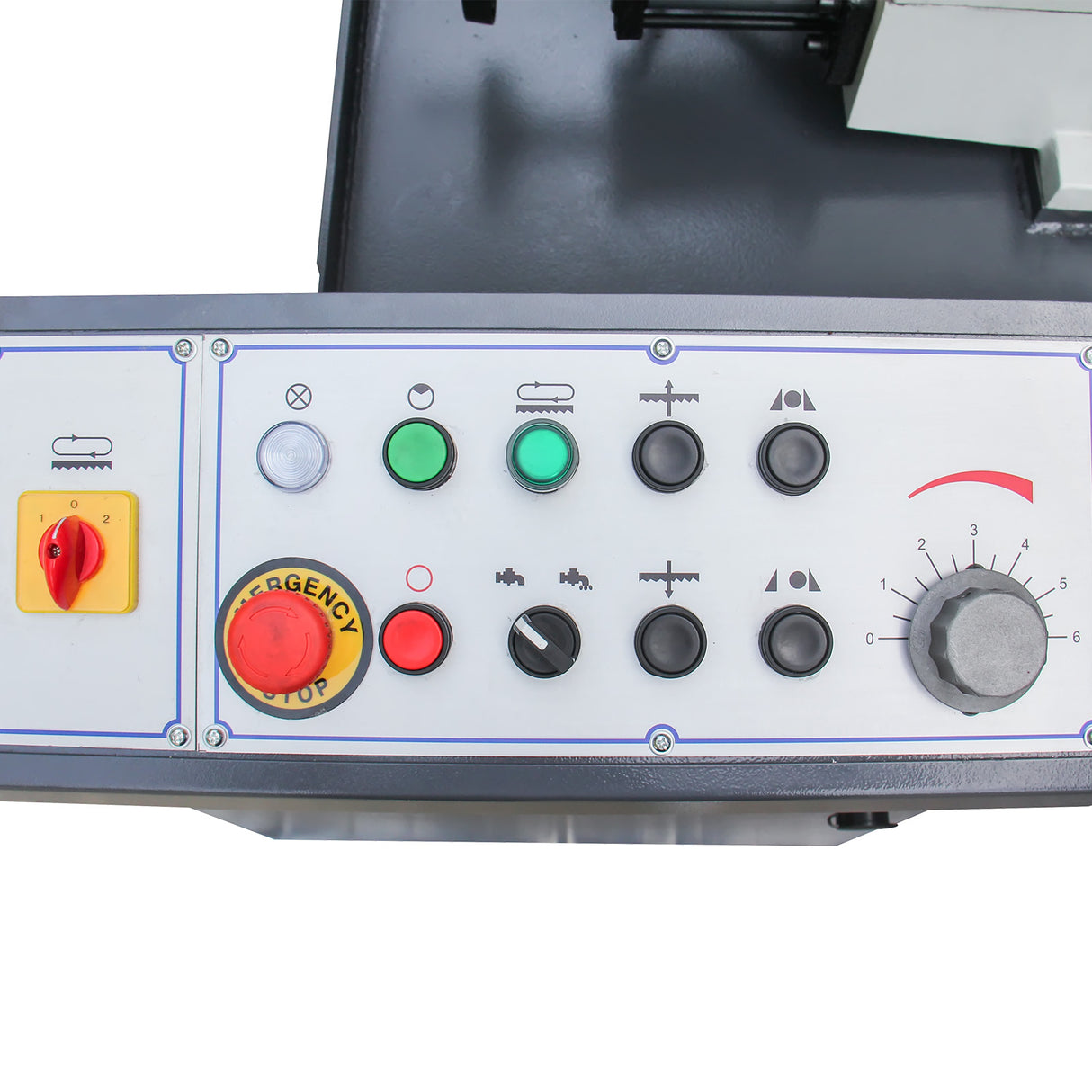

User-Friendly Semi-Automatic Operation Dual Column Bandsaw. Hydraulic vice with handwheel fine adjustment for quick, secure clamping. Hydraulic blade tensioning, automatic shut-off at end of cut (with frame return to preset height), and adjustable downfeed pressure make it easy to operate with minimal supervision.

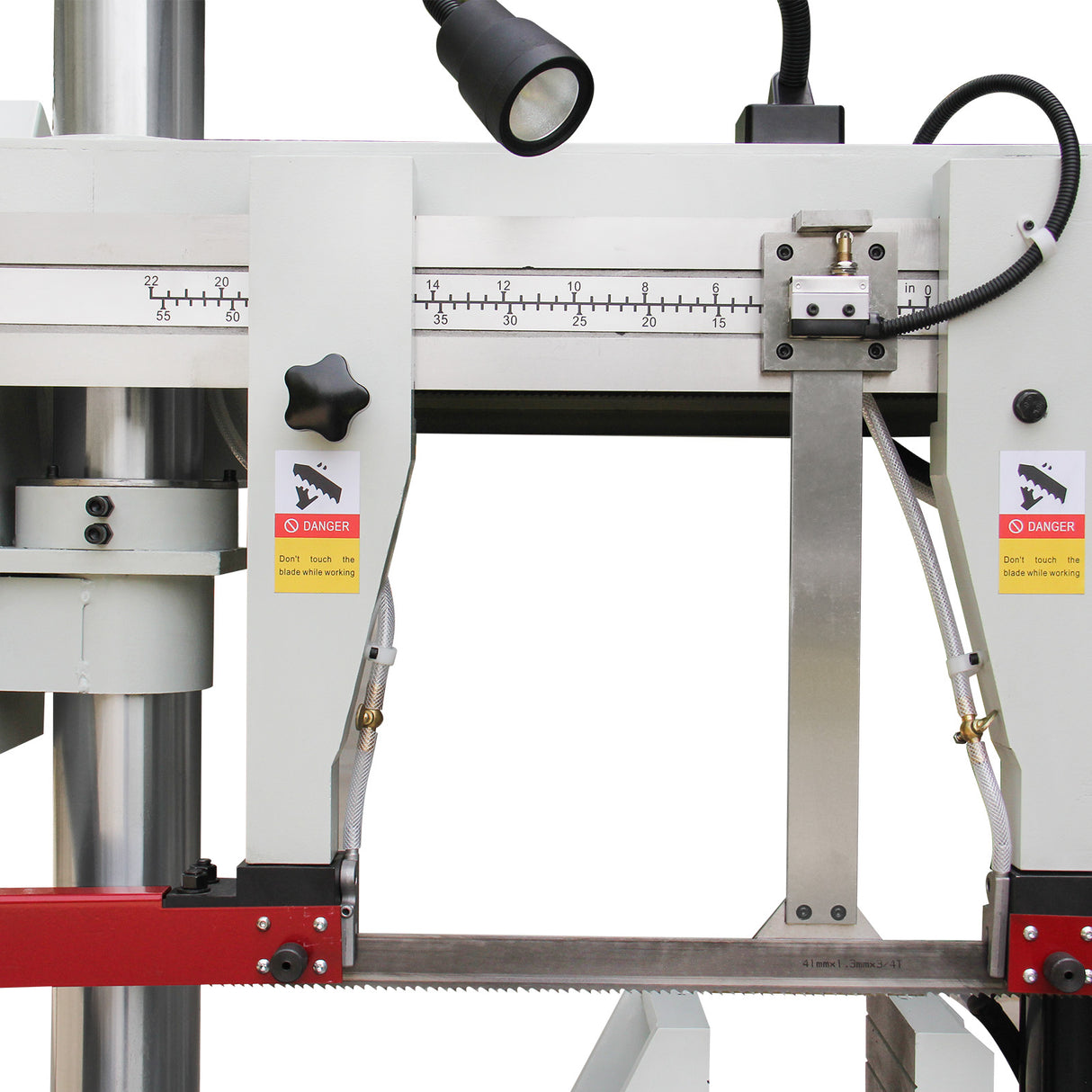

Built for Heavy Professional Metal Cutting. Torsion-free spheroidal cast iron saw frame, ball-bedded quick-adjust blade guides, and overall heavy construction (over 1.3 tonnes) provide long-term reliability and minimal deflection under load.

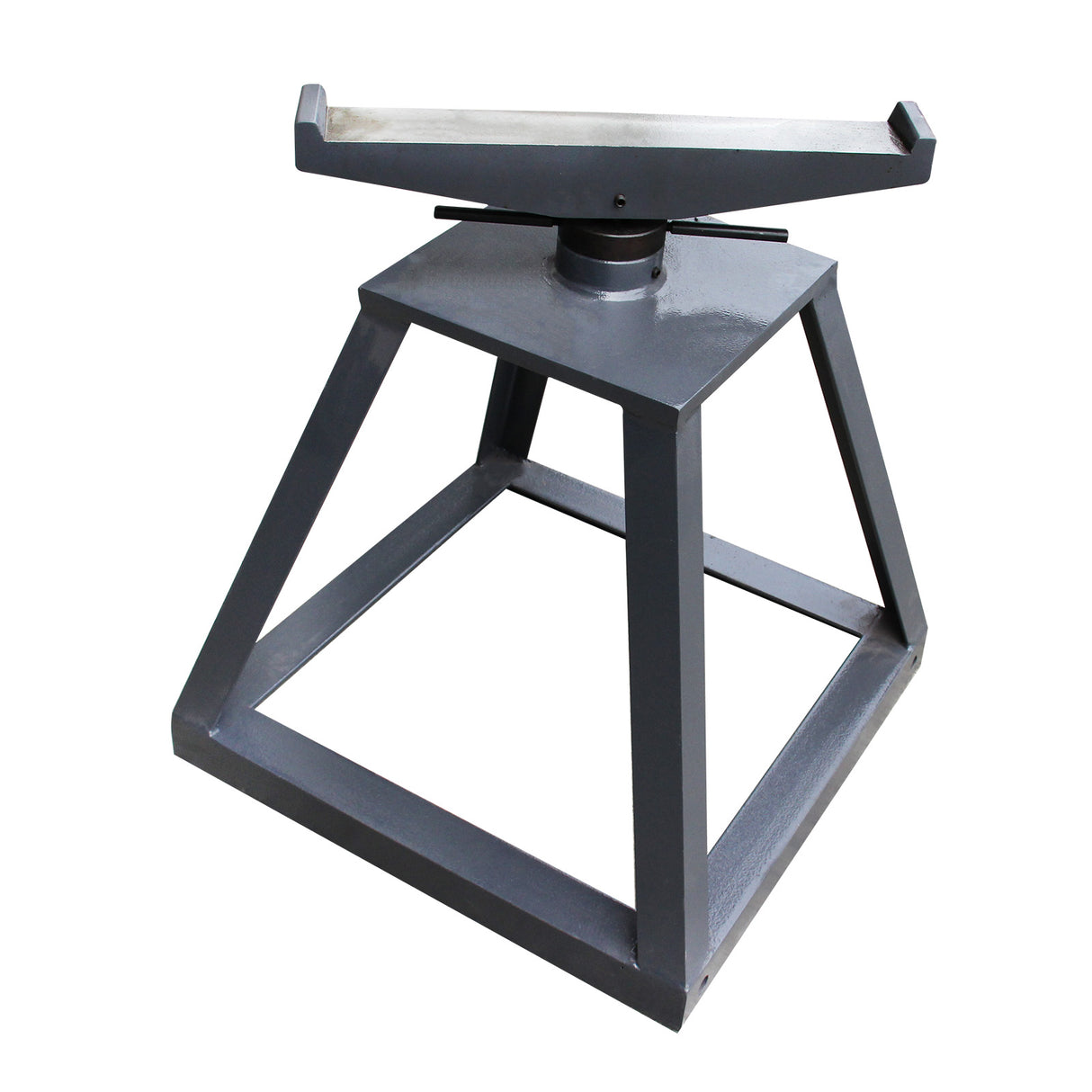

Complete Ready-to-Use Package. Comes with bandsaw blade, coolant system, hydraulic systems, material support, work light, and safety features. Minimal setup required.
Features
Runs on 415V power

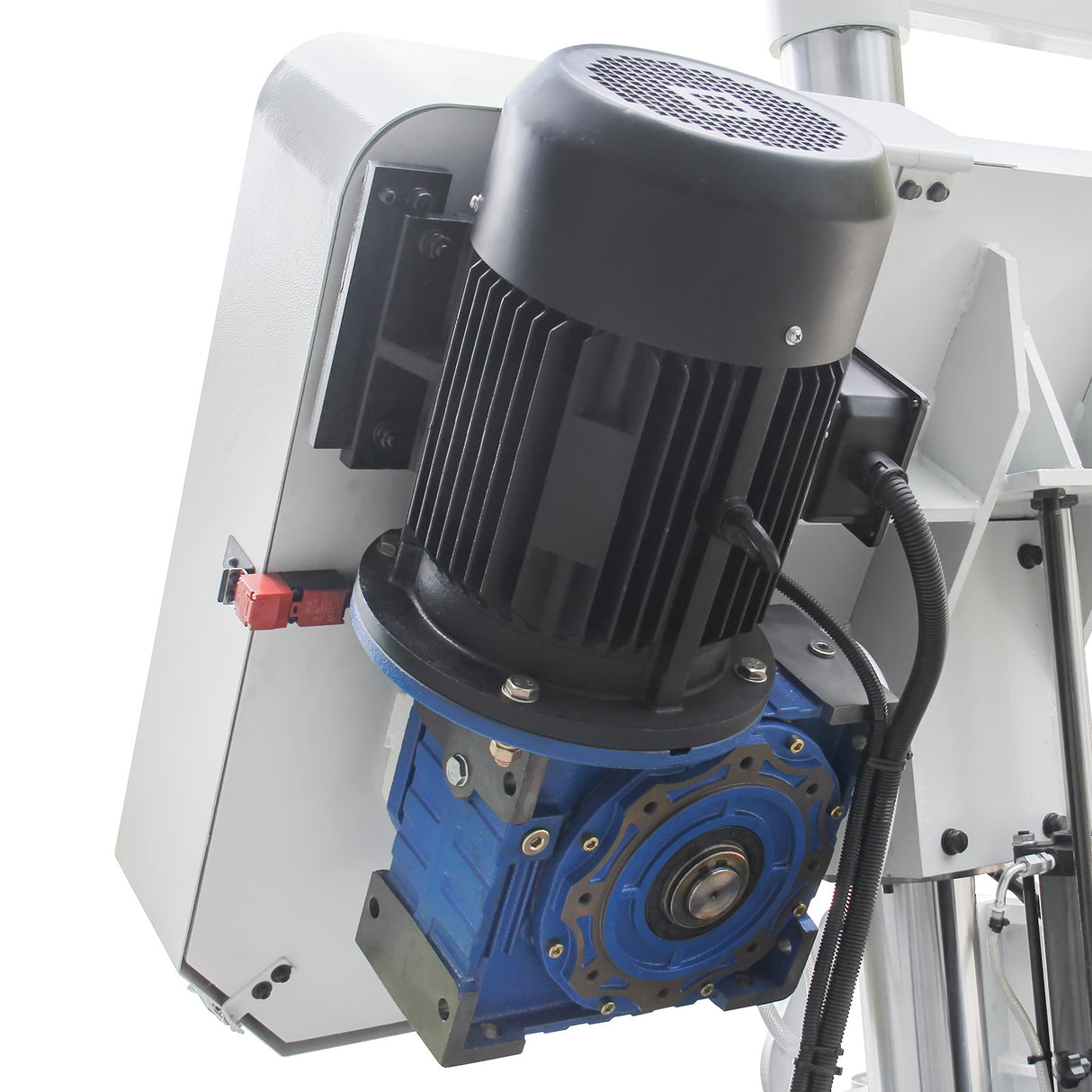

3.0/4.0 kW double speed motor to get two saw blade speeds, 36,56 m/min
Double column structure, saw frame vertical lifting, high stability
Saw frame descent by hydraulic control, variable speed

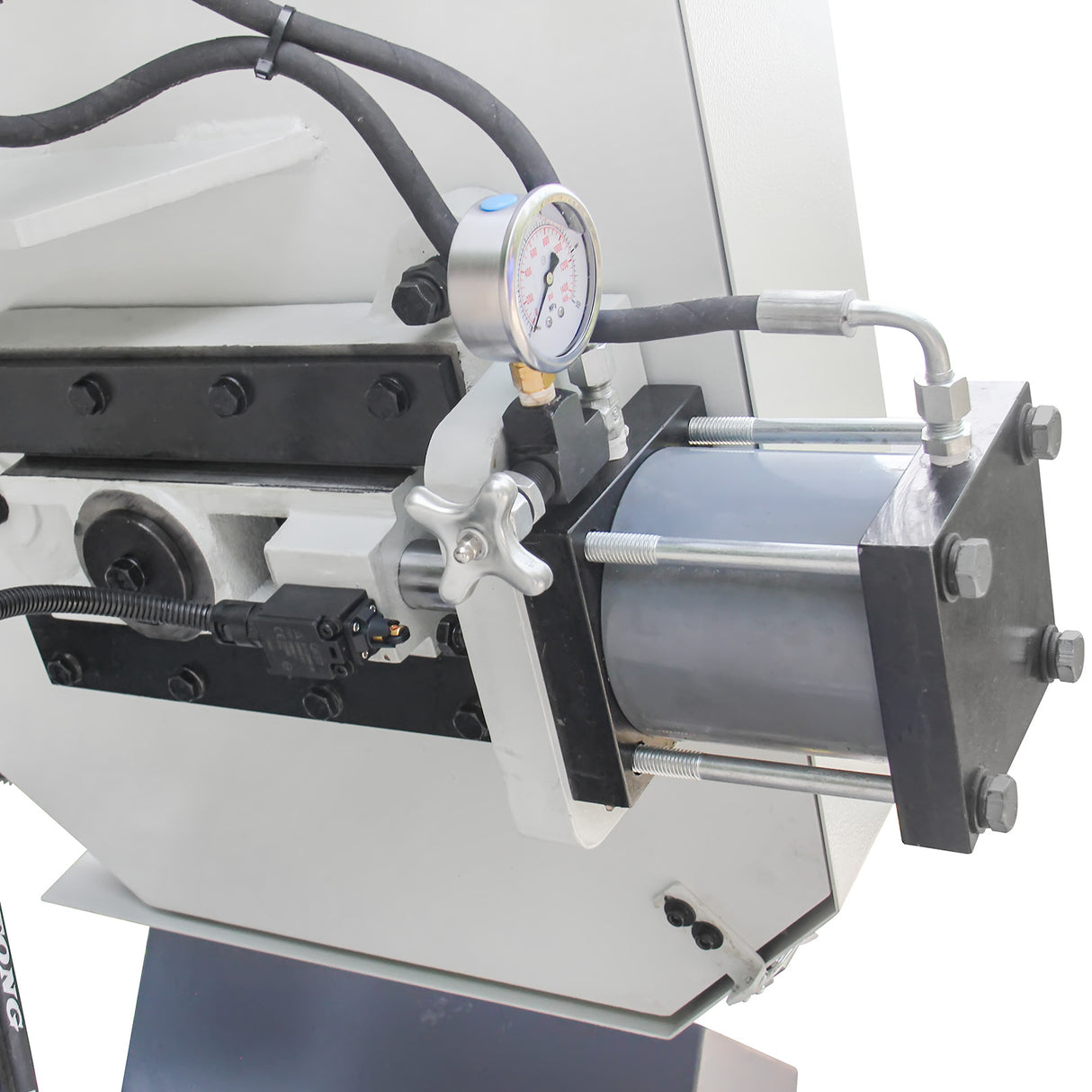

Hydraulic clamping vice and hydraulic blade tension adjustment

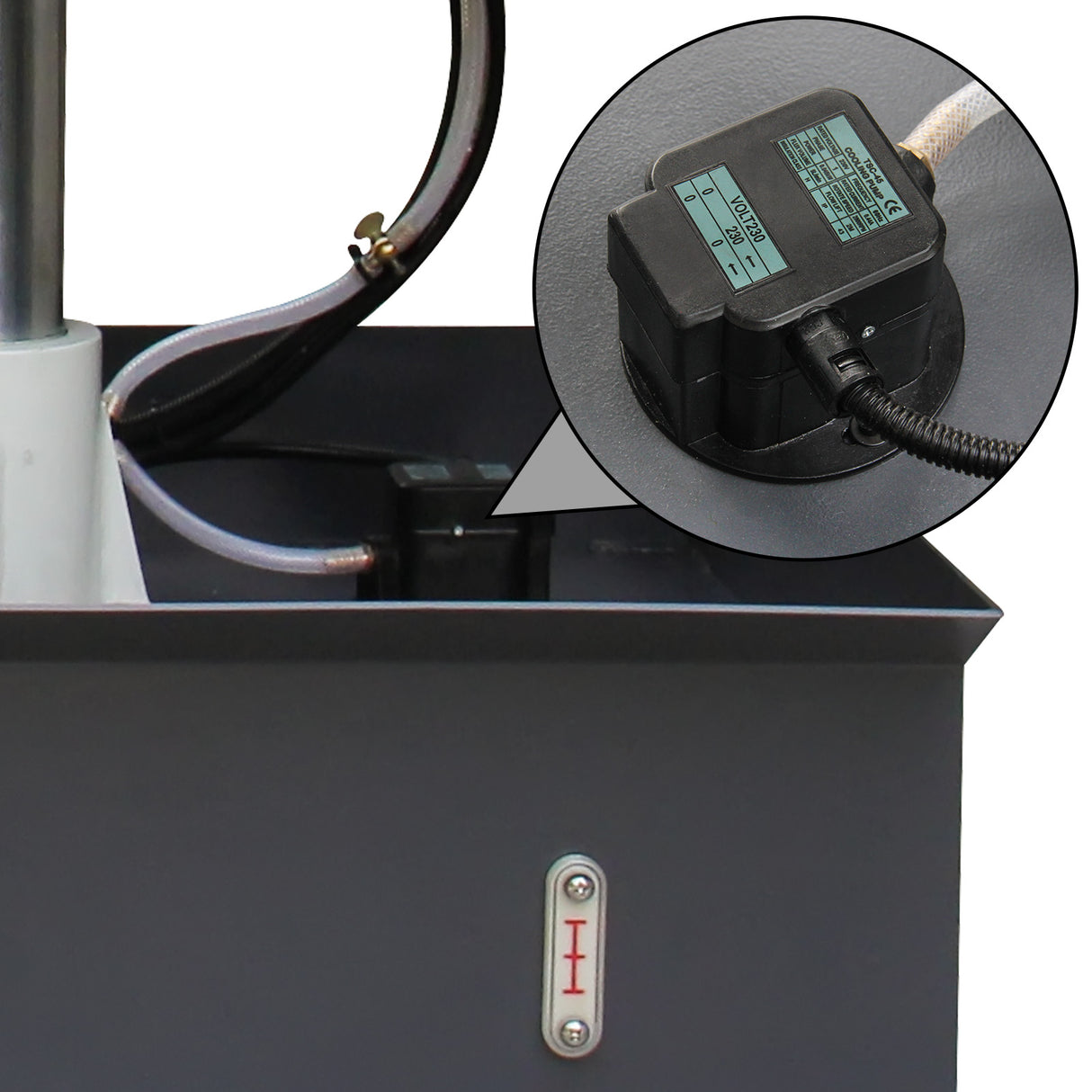

Standard working light and cooling system

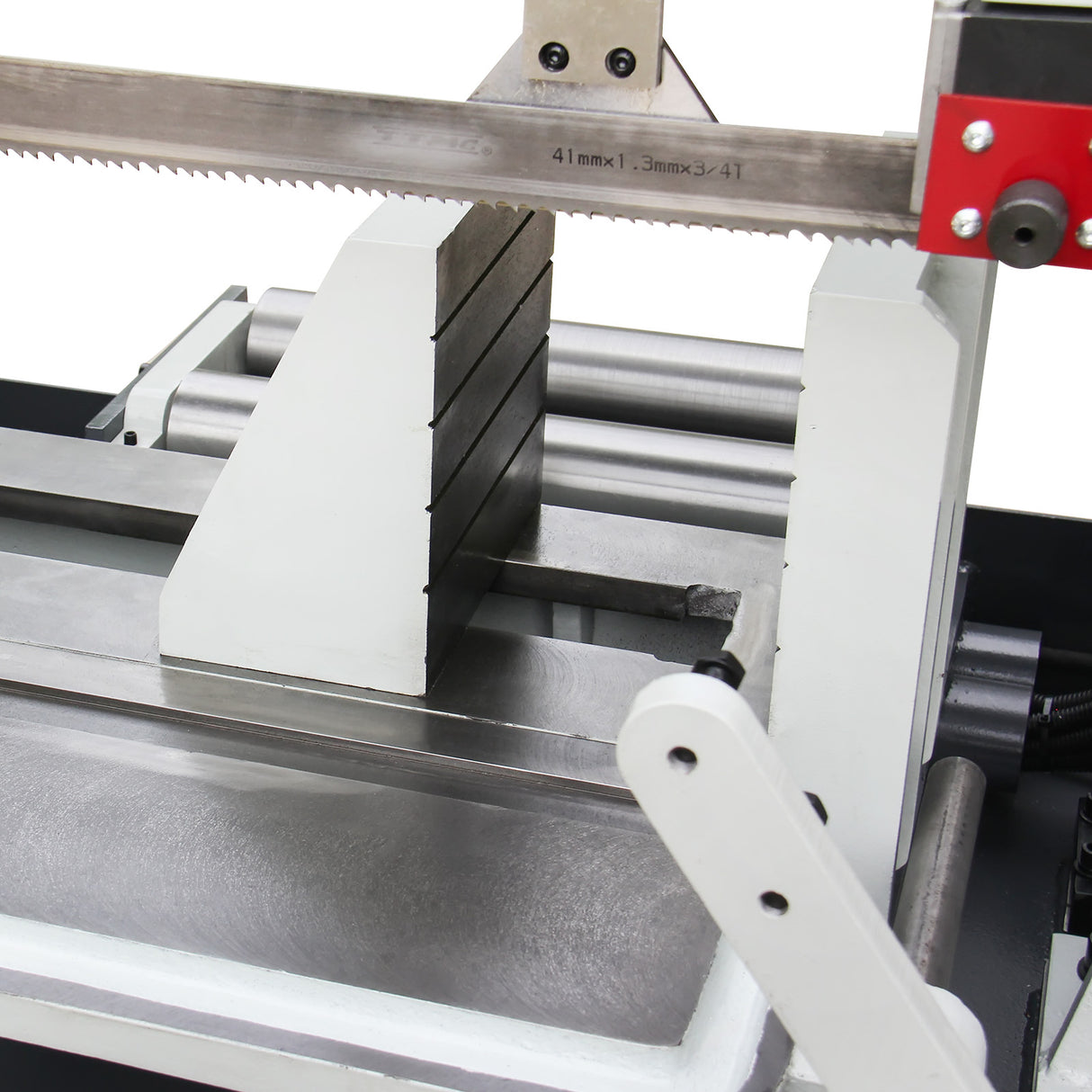

Bi-Metal Band Saw Blade (Pre-Installed, 41x1.3x5000mm, TPI 3/4)
Specifications
| SKU | 188303 |
| Model | TGK-16 |
| Max. cutting capacity | ø400-400x400 mm |
| Vice table height | 610 mm |
| Cutting speed | 36,56 m/min |
| Feeding speed | Hydraulic, variable speed |
| Balde size | 41x1.1x5000 mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Hydraulic |
| Main motor power | 3.0/4.0 kW |
| Oil pump motor power | 0.75 kW |
| Oil Tank Volume | 45L |
| Coolant pump motor power | 0.9 kW |
| Coolant tank Volume | 120L |
| Drive | Gear |
| Packing size | 270x135x215 cm |
| N.W./G.W. | 1325/1585 kg |
